Panasonic WV-CW240S Manuale utente

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

Model No. WV-CW240S

WV-CW244FE

Colour CCTV Cameras

Operating Instructions

FRANÇAIS

ESPAÑOL DEUTSCH ENGLISHITALIANO

The model shown is WV-CW244FE.

-2-

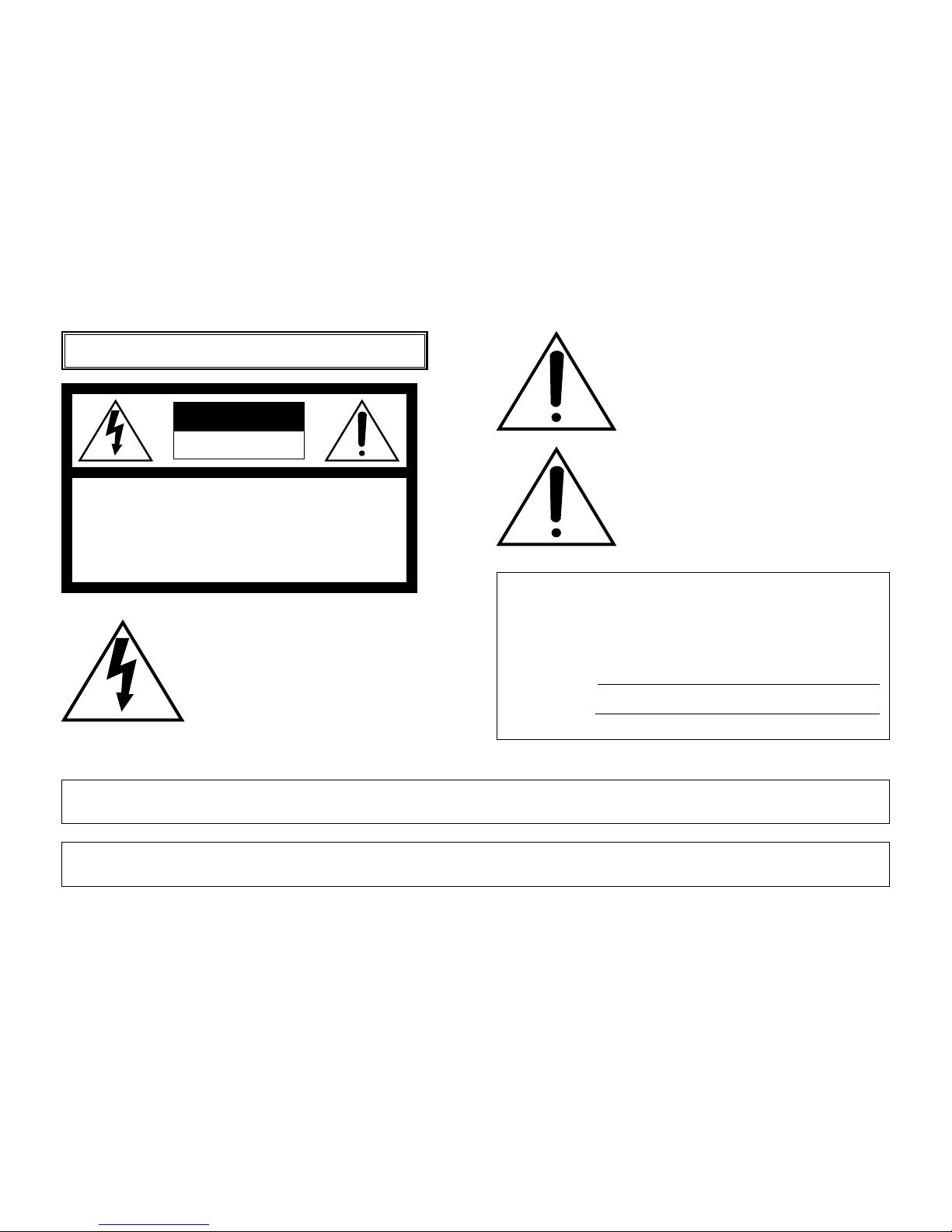

WARNING: To prevent fire or electric shock hazard, do not expose this appliance to rain or moisture. The apparatus shall not be exposed

to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

The lightning flash with arrowhead

symbol, within an equilateral triangle, is

intended to alert the user to the pres-

ence of uninsulated "dangerous volt-

age" within the product's enclosure that

may be of sufficient magnitude to con-

stitute a risk of electric shock to per-

sons.

The exclamation point within an equi-

lateral triangle is intended to alert the

user to the presence of important oper-

ating and maintenance (servicing)

instructions in the literature accompa-

nying the appliance.

The serial number of this product may be found on the top

of the unit.

You should note the serial number of this unit in the space

provided and retain this book as a permanent record of your

purchase to aid identification in the event of theft.

Model No.

Serial No.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO

USER SER-VICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN Turn the power off at the mains to dis-

connect the main power for all unit.

ENGLISH VERSION

CAUTION: An ALL-POLE MAINS SWITCH with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical

installation of the building.

-3-

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT

CAREFULLY.

WARNING: This apparatus must be earthed.

IMPORTANT

The wires in this mains lead are coloured in accordance with the

following code.

Green-and-yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance

may not correspond with the coloured markings identifying the ter-

minals in your plug, proceed as follows.

The wire which is coloured green-and-yellow must be con-

nected to the terminal in the plug which is marked with the letter E

or by the earth symbol Ior coloured green or green-and-

yellow.

The wire which is coloured blue must be connected to the ter-

minal in the plug which is marked with the letter Nor coloured

black.

The wire which is coloured brown must be connected to the ter-

minal in the plug which is marked with the letter Lor coloured red.

Wij verklaren als enige aansprakelijke, dat het product waarop deze

verklaring betrekking heeft, voldoet aan de volgende normen of andere

normatieve documenten, overeenkomstig de bepalingen van Richtlijnen

73/23/EEC en 89/336/EEC.

Vi erklærer os eneansvarlige for, at dette produkt, som denne deklaration

omhandler, er i overensstemmelse med standarder eller andre normative

dokumenter i følge bestemmelserne i direktivene 73/23/EEC og

89/336/EEC.

Vi deklarerar härmed värt fulla ansvar för att den produkt till vilken denna

deklaration hänvisar är i överensstämmelse med standarddokument, eller

andra normativa dokument som framstölls i EEC-direktiv nr. 73/23 och

89/336.

Ilmoitamme yksinomaisella vastuullamme, että tuote, jota tämä ilmoitus

koskee, noudattaa seuraavia standardeja tai muita ohjeellisia asiakirjoja,

jotka noudattavat direktiivien 73/23/EEC ja 89/336/EEC säädöksiä.

Vi erklærer oss alene ansvarlige for at produktet som denne erklæringen

gjelder for, er i overensstemmelse med følgende normer eller andre

normgivende dokumenter som følger bestemmelsene i direktivene 73/23/

EEC og 89/336/EEC.

We declare under our sole responsibility that the product to which this

declaration relates is in conformity with the standards or other normative

documents following the provisions of Directives EEC/73/23 and

EEC/89/336.

ENGLISH

-4-

CONTENTS

FEATURES ..................................................................................................................................................................... 5

PREFACE ....................................................................................................................................................................... 5

PRECAUTIONS .............................................................................................................................................................. 6

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ........................................................................................ 7

INSTALLATION .............................................................................................................................................................. 10

■Installation Plans & Preparations ............................................................................................................................. 10

■Mounting the Camera .............................................................................................................................................. 12

■Connections ............................................................................................................................................................ 14

■Image Adjustment ................................................................................................................................................... 16

SPECIFICATIONS .......................................................................................................................................................... 18

STANDARD ACCESSORIES .......................................................................................................................................... 19

OPTIONAL ACCESSORIES ............................................................................................................................................ 20

OPTIONAL HEATER UNIT ............................................................................................................................................. 21

■Optional Heater Unit WV-CW3HE ........................................................................................................................... 21

-5-

PREFACE

The WV-CW240 series is a 1/3” CCD colour camera

designed for use in a video surveillance system. The

camera features a high picture quality thanks to the use

of digital signal processing LSIs, and easy installation.

• Mounting method: Flush mounting/WV-CW244FE,

Surface mounting/WV-CW240S

• Signal processing: Automatic Light Control (ALC),

Automatic Gain Control (AGC), Automatic Tracing

White Balance (ATW), etc.

• Synchronization: Internal, Line-Lock, (only when

24 V AC or 220 V - 240 V AC supplied) and

Multiplexed Vertical Drive (VD2)

• Minimum illumination: 1.0 lx (0.1 foot-candle) at

WIDE

• Signal-to-noise ratio: 50 dB (Equivalent to AGC

OFF)

• Horizontal resolution: 480 TV lines

• Optional heater unit available for the camera used

at temperatures between –10 °C and –30 °C (14 °F

and –22 °F).

FEATURES

-6-

1. This product should be installed and connected by

qualified service personnel or system installers in

conformity with local codes.

2. Use a class 2 power source supplying 12 V DC or

24 V AC.

3. To prevent fire or electric shock hazard, use a UL

listed cable (VW-1, style 1007) to connect the

power supply to the camera. (WV-CW244FE)

4. Be sure to use a ceiling board/wall having enough

strength to support this camera.

5. Handle the camera with care.

Do not abuse the camera. Avoid striking, shaking,

etc. The camera could be damaged by improper

handling or storage.

6. Do not use strong or abrasive detergents.

Use a dry cloth to clean the camera body when

dirty.

In case the dirt is hard to remove, use a mild deter-

gent and wipe gently. Afterwards, wipe off the

remaining detergent with a dry cloth.

7. Clean the lens faceplate with care.

Do not clean the lens with strong or abrasive deter-

gents. Use lens tissue or a cotton tipped applicator

and ethanol.

8. Never face the camera towards the sun.

Do not aim the camera at bright objects. Whether

the camera is in use or not, never aim it at the sun

or other extremely bright objects. Otherwise,

blooming or smear may be caused.

9. Do not operate the camera beyond its specifica-

tions.

Use the camera under conditions where tempera-

ture is between –10 °C to +50 °C (14 °F to 122 °F),

and humidity is below 90 %. The input power

source for WV-CW240S is 220 V - 240 V 50 Hz, and

for WV-CW244FE is 24 V AC 50 Hz or 12 V DC.

10. Use a monitor whose resolution is at least equal to

that of the camera.

PRECAUTIONS

-7-

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

123

OFF ON

LLSYNC INT*

OFF*BLC ON

SOFTAP SHARP*

2nd transport protection screw (Red)

Space for heater unit

* Default setting

qFocus lock lever

Fixes the focus position after adjusting.

wTilting lock screw

Fixes the tilting position after adjusting.

eZoom lock lever

Fixes the zoom position after adjusting.

rPanning table

Adjusts the panning angle of the camera.

-8-

tAzimuth adjuster

Adjusts the azimuth angle to obtain a level image.

yPan lock screw

Fixes the panning position after adjusting.

uVideo jack (3.5-diam. mini jack)

For connecting an LCD monitor to adjust the cam-

era images. Use an L-type plug to save space.

iAperture Level Selector

SHARP: Sharpens the image outline.

SOFT: Softens the image outline.

The default setting is SHARP.

oBack Light Compensation Selector

ON: Compensates the background if it is brighter

than the object.

OFF: Does not compensate.

The default setting is OFF.

!0 Synchronization Mode Selector

Specifies a source for synchronization.

INT: Internal 2:1 interlace.

LL: Line-lock mode driven by 24 V AC or 220 V-240

V AC.

The default setting is INT.

Note: Do not set the switch to LL (Line-Lock) posi-

tion when supplying 12 V DC to avoid synchro-

nization error.

!1 Heater power connector

Supplies power to the optional heater unit when it is

built in the camera. Connect here a harness stick-

ing out from the heater unit.

-9-

!2 Dome cover

!3 Video output cable with BNC connector

Connects with the video connector of the monitor.

!4 Camera power cable

For WV-CW240S: Supplies 220 V - 240 V AC 50 Hz

to the camera. The camera will supply the

optional heater unit with 24 V AC power that is

transformed from the supplied 220 V - 240 V

AC.

For WV-CW244FE: Supplies 24 V AC 50 Hz or 12

V DC to the camera. The black and grey cords

will supply 24 V AC to the optional heater unit

from an external power source.

!5 Camera attachment

!6 Camera mounting bracket

Only WV-CW240S (surface mount type) is supplied

with a mounting bracket for ceiling installation.

!7 Cable access hole

!8 Sideway cable exit

-10-

INSTALLATION

■Installation Plans & Preparations

●WV-CW244FE

“F” stands for flush mounting. This model can be

installed on the wall or ceiling prepared with a 95 mm

diameter hole.

1. Space

Prepare a space larger than ø160 mm.

2. Flush-mount hole

Drill a hole having a 95 mm diameter on the wall or

ceiling.

3. Attachment fixing screws

Locally procure four screws (M4) that are suitable

for the installation surface to fix the attachment on

the surface.

4. Cable route

Cables will go behind the wall or ceiling.

5. Waterproof Process

When necessary, apply waterproof process to the

camera and relevant portions.

74 mm

(2-15/16")

109 mm

(4-5/16")

ø95 mm

(ø3-3/4")

Camera lock screw

Attachment fixing screw x4

(procured locally)

Altri manuali per WV-CW240S

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Telecamera di sicurezza

Panasonic

Panasonic WVNM100 - NETWORK COLOR CAMERA Manuale utente

Panasonic

Panasonic BB-HCM547 Manuale di istruzioni per l'installazione

Panasonic

Panasonic WV-NF284 - i-Pro Network Camera Manuale utente

Panasonic

Panasonic WVCS564 - COLOR CCTV CAMERA Manuale utente

Panasonic

Panasonic AW-HN40HKPJ Manuale utente

Panasonic

Panasonic Super Dynamic III WV-NS202A Manuale utente

Panasonic

Panasonic WV-U2540L Guida all'installazione

Panasonic

Panasonic AK-HC1500 Manuale utente

Panasonic

Panasonic WV-SUD638 Manuale utente

Panasonic

Panasonic WV-CS570/G Manuale utente

Panasonic

Panasonic KX-HCM10 Manuale utente

Panasonic

Panasonic i-Pro WV-SP306 Manuale utente

Panasonic

Panasonic GPUS522CU - COLOR CAMERA Manuale utente

Panasonic

Panasonic WV-V2530LK Manuale utente

Panasonic

Panasonic Super Dynamic III WV-CW960 Manuale utente

Panasonic

Panasonic PMCH8 Foglio di istruzioni

Panasonic

Panasonic WV-V1330LK Manuale utente

Panasonic

Panasonic WVBP100 - CCTV CAMERA Manuale utente

Panasonic

Panasonic WV-CP110E Manuale utente

Panasonic

Panasonic WVBP130 - B/W CCTV CAMERA Manuale utente

Panasonic

Panasonic WV-SFV531 Manuale utente

Panasonic

Panasonic Machine Vision GP-MF130 Manuale utente

Panasonic

Panasonic WV-SW172 Manuale utente

Panasonic

Panasonic WV-SW598A Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
