Technical Description

MEW00290

Revision 1

External Presentation unit 1728

Author: Jan Pettersson Date of issue: 2005-03-31 Date of rev: 2006-10-11

This page has deliberately been left blank.

Panasonic Electric Works Fire & Security Technology Europe AB

MEW00290 Rev: 1 Technical Description External Presentation unit 1728

Table of contents

1Introduction________________________________ 3

2Definitions / Explanations ____________________ 4

3General description _________________________ 5

3.1 Ext. Presentation unit 1728 ___________________________ 5

3.1.1 SW mode 1728 - 1587__________________________ 5

3.1.2 SW mode 1728 - 1582__________________________ 5

4Selective alarm presentation __________________ 6

4.1 Ext. Presentation unit 1728 ___________________________ 6

5LED indicators, Push buttons, etc. _____________ 8

5.1 Ext. Presentation unit 1728 ___________________________ 8

6SW mode & Address setting _________________ 11

6.1 SW mode setting__________________________________ 11

6.1.1 SW mode setting via jumper "J4" ________________ 12

6.2 Address setting ___________________________________ 12

6.2.1 Address setting mode via the c.i.e. _______________ 13

6.3 Flow chart _______________________________________ 13

7User definable text messages _________________ 15

8Commissioning a new unit / SSD download_____ 16

9Restart ___________________________________ 18

10 Fault messages_____________________________ 19

10.1 Fault messages in the ext. Presentation unit _____________ 19

10.2 Fault messages in the c.i.e. __________________________ 19

10.2.1 EBL512 c.i.e.________________________________ 19

10.2.2 EBL128 c.i.e.________________________________ 20

11 Software (S/W) ____________________________ 21

11.1 S/W version______________________________________ 21

11.2 S/W download____________________________________ 22

12 Operation_________________________________ 23

13 Connections_______________________________ 25

14 Technical data_____________________________ 27

14.1 Power supply_____________________________________ 27

14.2 RS485 __________________________________________ 27

14.2.1 Cable ______________________________________ 27

14.3 RS232 __________________________________________ 27

14.4 Connection ______________________________________ 27

14.5 Current consumption_______________________________ 27

15 Revision history____________________________ 29

Panasonic Electric Works Fire & Security Technology Europe AB

MEW00290 Rev: 1 Technical Description External Presentation unit 1728

This page has deliberately been left blank.

Panasonic Electric Works Fire & Security Technology Europe AB

MEW00290 Rev: 1 Technical Description External Presentation unit 1728

1 Introduction

This document1describes the External Presentation unit 1728

(Informationstablå). The shorter expression EPU will also be used in

this document.

The 1728 unit can run in one of two SW modes:

SW mode 1728 - 1587

SW mode 1728 - 1582

See chapter "General description", page 5.

1Original file name: K:\PRO\FIRE\EBL\Doc\Eng\MEW00290rev1.doc

Panasonic Electric Works Fire & Security Technology Europe AB

MEW00290 Rev: 1 Technical Description External Presentation unit 1728

2 Definitions / Explanations

Definitions / explanations / abbreviations / etc. frequently used or not

explained elsewhere in the document.

EPU External Presentation Unit

C.i.e. Control and indicating equipment (=control unit)

C.U. Control unit (=Control and indicating equipment)

S/W Software

H/W Hardware

Panasonic Electric Works Fire & Security Technology Europe AB

MEW00290 Rev: 1 Technical Description External Presentation unit 1728

3 General description

The ext. Presentation unit is intended for pre-warning, co-incidence,

fire and heavy smoke / heat alarm presentation. One or more faults in

the system will be presented as "General fault in system".

3.1 Ext. Presentation unit 1728

Figure 1. The External Presentation Unit 1728 has a Swedish

front.

The enclosure is made of grey (RAL 7035) high impact ABS, with

temperature resistance up to 85° C. Fitted with a supplementary "O"

ring gasket, it will comply with IP65, in respect of dust and moisture.

Dimensions (W x H x D): 220 x 145 x 50 mm.

The Ext. Presentation unit shall be wall mounted.

3.1.1 SW mode 1728 - 1587

The Ext. Presentation unit 1728, running in SW mode 1728 – 1587, is

intended to succeed the existing Display unit 2236SE and the External

presentation display 2428SE. In this mode, 1728 has the highest

performance with regard to functionality, response time, ability to

store fire alarms, etc. and is to be connected to an Ext. FBP / DU

interface board 1587 mounted in the EBL512 c.i.e. EBL512

software version > 2.2 is required.

This SW mode has to be used in EBL128 and an optional RS485

transceiver component 4552 is required on the main board.

3.1.2 SW mode 1728 - 1582

The Ext. Presentation unit 1728, running in SW mode 1728 – 1582, is

intended to be a spare part for the existing External presentation

display 2428SE connected to an Ext. FBP interface board" 1582

mounted in the EBL52 c.i.e. Note, the functionality / performance is

the same but the size, the look and the front layout are different.

Panasonic Electric Works Fire & Security Technology Europe AB

MEW00290 Rev: 1 Technical Description External Presentation unit 1728

4 Selective alarm presentation

Normally all fire alarms will be presented in the c.i.e:s, ext. FBP:s and

Presentation units, etc. There are some possibilities to select which

alarms that shall be presented in each unit. It is also programmable, if

the fire alarm presentation shall be according to EN54, i.e. when only

one point in a zone is in alarm status it will be presented as a point

alarm (zone and address), else presented as a zone alarm.

4.1 Ext. Presentation unit 1728

The alarm presentation in 1728 will be like in the c.i.e. that it is

connected to, i.e. point alarm or zone alarm presentation. See the

Operating Instructions, chapter "Fire alarm" for the system

respectively.

Via Win512 / Win128, it is possible to select which alarms that shall

be presented in the unit respectively. For example, if there are many

buildings in an installation, the units in one specific building shall

only present alarms activated within this building.

The following, so called operands are available (CU alternatives not

valid for EBL128):

1. Control unit (CU)

2. Consecutive control units (CU1, CU2)

3. Zone (zone)

4. Consecutive zones (zone1, zone2)

5. Zone – address (zone, addr)

6. Consecutive zone – addresses (zone1, addr1, zone2, addr2)

Explanations:

1. CU = Control unit number (c.i.e. no. 00-29)

2. CU1 = The first control unit number in the sequence. CU2 = The

last control unit number in the sequence.

3. zone = Zone number (001-999) In EBL128 (01-32).

4. zone1 = The first zone number in the sequence. zone2 = The last

zone number in the sequence.

5. zone, addr = Zone number and address within the zone (001, 01 –

999, 99)

6. zone1, addr1 = The first zone number and address in the sequence.

zone2, addr2 = The last zone number and address in the sequence.

Up to 50 operands can be used to make a, so called selector for an ext.

Presentation unit. Here follows a selector example:

Control unit (00), Consecutive zones (100, 500), Zone – address

(900, 01) In this 1728 unit will only be presented alarms that origin

from the c.i.e. no. 00 or from zone 100 up to and including zone 500

or from the alarm point 900-01.

Panasonic Electric Works Fire & Security Technology Europe AB

MEW00290 Rev: 1 Technical Description External Presentation unit 1728

Default in system EBL512 is: Control units (00, 29), i.e. all alarms

from all c.i.e:s will be presented in all ext. Presentation units 1728.

Default in system EBL128: Zones (01 - 32), i.e. all alarms will be

presented in all ext. Presentation units 1728.

Panasonic Electric Works Fire & Security Technology Europe AB

MEW00290 Rev: 1 Technical Description External Presentation unit 1728

5 LED indicators, Push buttons, etc.

The functions of the LEDs, push buttons, display and buzzer are

described below.

5.1 Ext. Presentation unit 1728

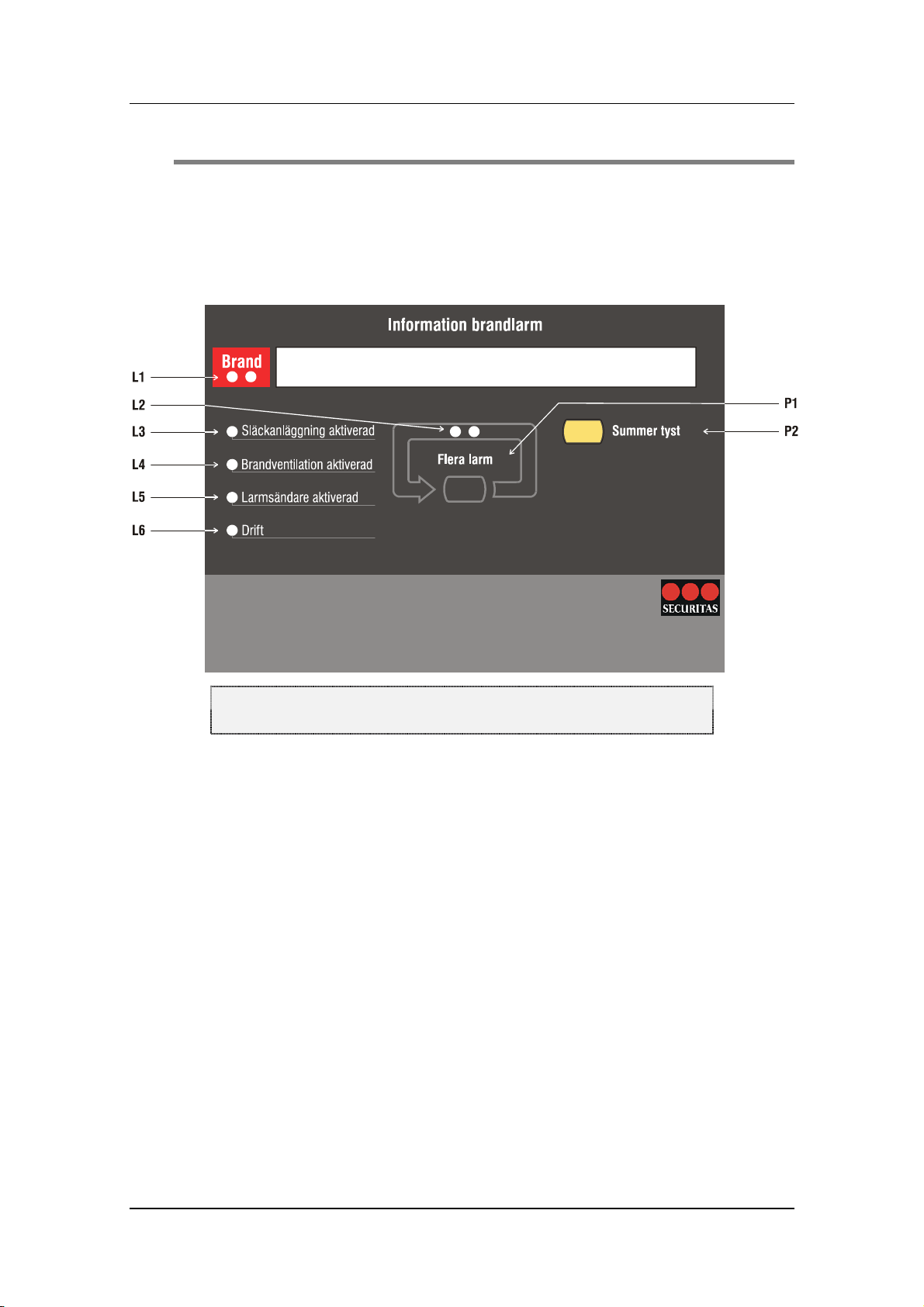

Figure 2. The Ext. Presentation unit 1728 front. The

designation texts are in Swedish. See also tables below.

The following is valid in quiescent (normal) condition:

•The LED "Operation" (L6) is turned on if 24 V DC is

connected and the communication with the c.i.e. is working

normally, else it is turned off.

•Buzzer is silent.

•No text in the display and no back-light.

•No button is possible to use.
