Panasonic SB-AKX32 Manuale utente

Unauthorized copying and distribution is a violation of

law.

MEX1105002CE

Speaker System

Model No. SB-AKX32

Product Color : (K)... Black Type

TABLE OF CONTENTS

1 Service Navigation

1.1. System Information (SB-AKX32LM-K)

1.2. Front Speakers (SB-AKX32LM-K)

2 Specifications

3 Disassembly and Assembly Instructions

3.1. Disassembly of Front Panel Unit

3.2. Replacement of Speaker Connector Housing

4 Wiring Connection Diagram

5 Exploded View and Replacement Parts List

5.1. Cabinet Parts Location

5.2. (SB-AKX32LM-K) Packaging

5.3. Replacement Parts List

1 Service Navigation

1.1. System Information (SB-AKX32LM-K)

SB-AKX32LM-K is use for the following main models:

SC-AKX32LM-K

1.2. Front Speakers (SB-AKX32LM-K)

The illustrations for the speakers will be described in this manual.

• Disassembly and Assembly Instructions

• Wiring Connection Diagram

• Exploded View

• Replacement Parts List

2 Specifications

obe

nó

sod

nos

dojelfe

(asív

asnico

(Bafle

óc

rga

edoc

nócopiT

ade

mI 4

ase

itsú

nó

(

saicneuc

)

–

(zHk1

)

–

(zHk0

)

PxlA

(

enoisne

xmm

Peso k0,4 g

atoN

satejusnátse

icac

ceps

.os

noss

yEl peso

azi

len

aci

ran

rotsi

eps

3 Disassembly and Assembly Instructions

“ATTENTION SERVICER”

Some chassis components may have sharp edges. Be careful when disassembling and servicing.

This section describes procedures for checking the operation and replacing the main components.

For reassembly after operation checks or replacement, reverse the respective procedures.

Special reassembly procedures are described only when required.

Select items from the following index when checks or replacement are required.

Refer to the Parts No. on the page of “Exploded View and Replacement Parts List” (Section 5), if necessary.

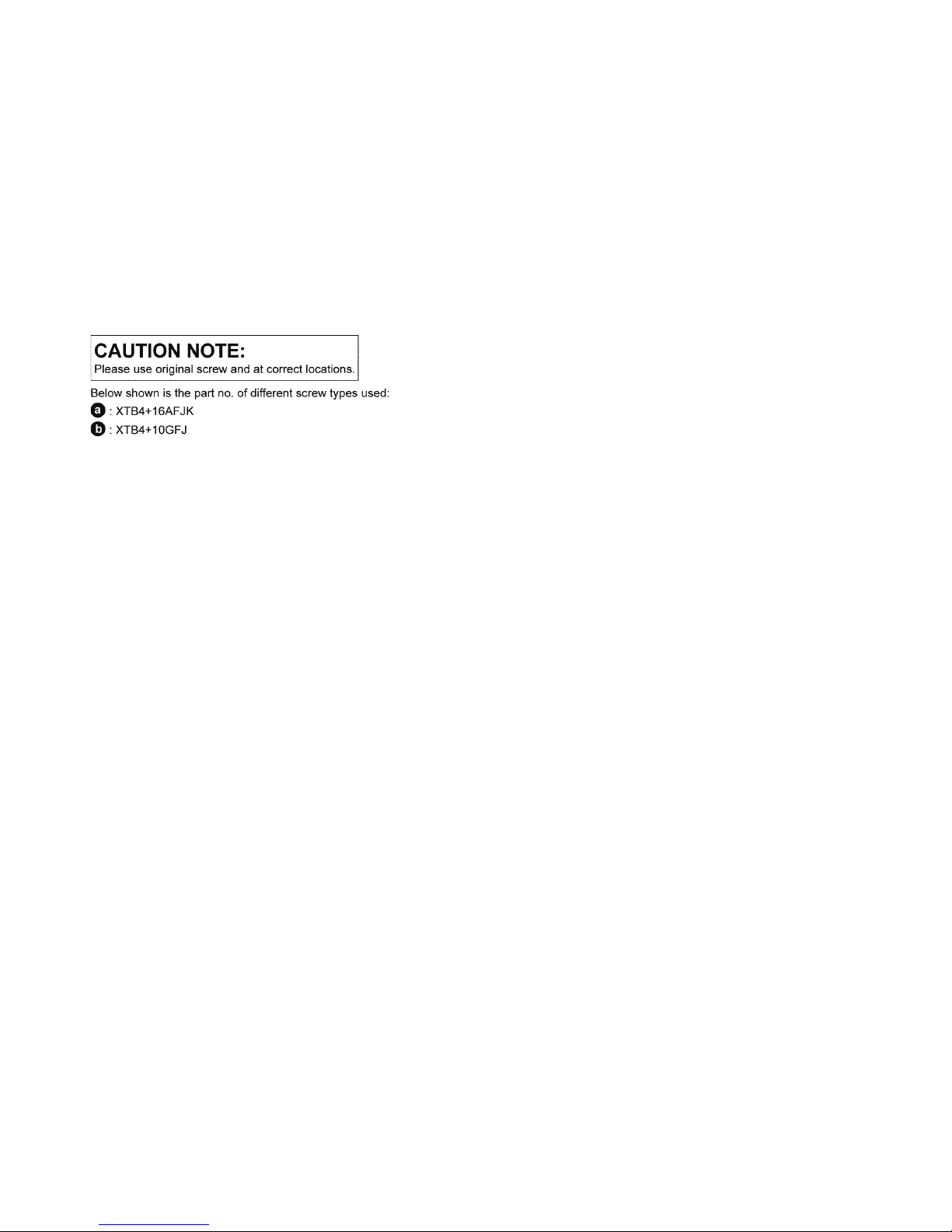

Below is the list of disassembly sections

Disassembly of Front Panel Unit

Disassembly of Tweeter Speaker (SP1)

Disassembly of Full Range Speaker (SP2)

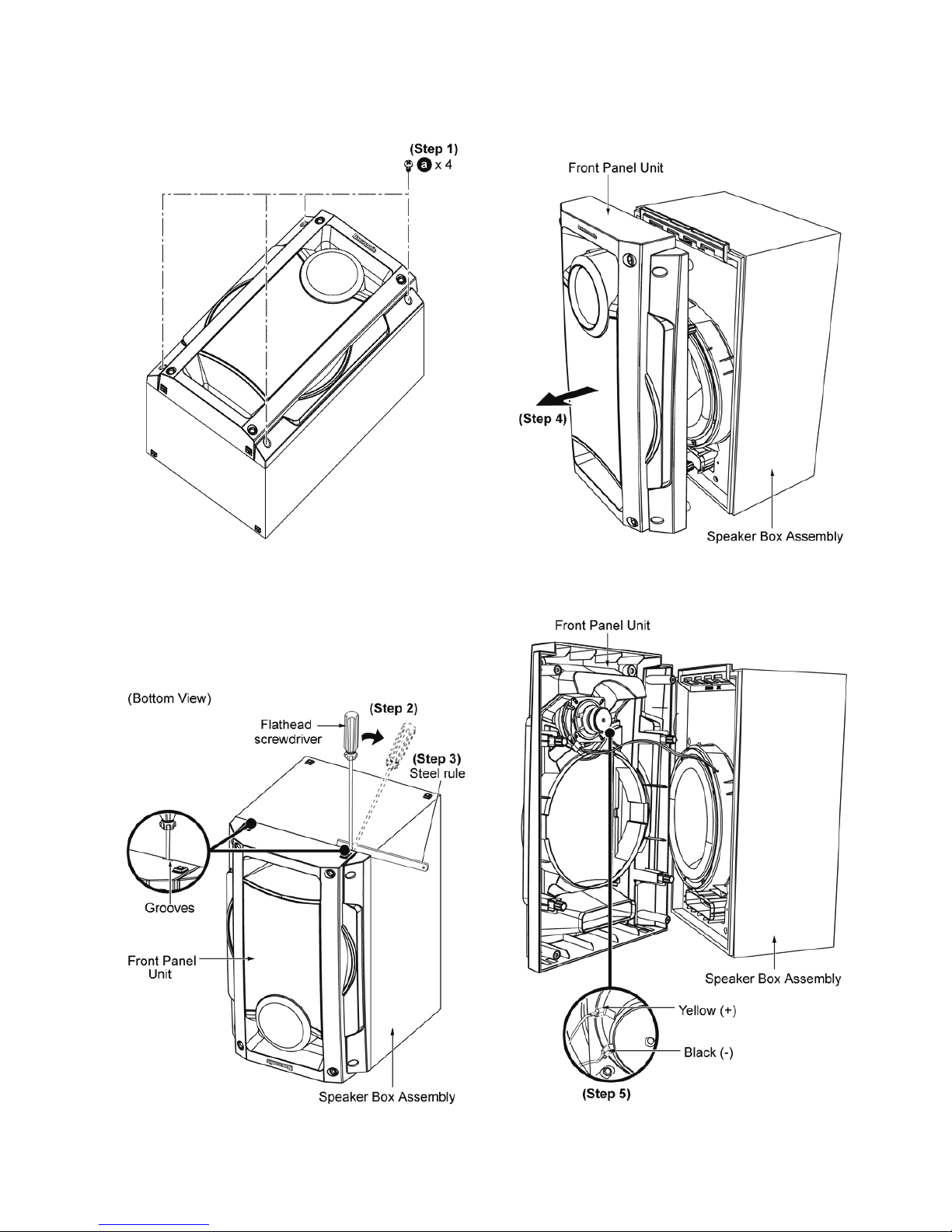

3.1. Disassembly of Front Panel Unit

Step 1: Remove 4 screws.

Step 2: Insert flathead screwdriver into the grooves and apply

light force to push the Front Panel Unit as arrow shown.

Step 3: Insert a steel rule in between the Front Panel Unit and

Speaker Box Assembly.

Caution: Do not exert strong force as it may damage the

Front Panel Unit.

Step 4: Detach the Front Panel Unit slightly as arrow shown.

Caution: Do not exert strong force as it may damage the

wiring within.

Step 5: Detach the yellow (+) and black (-) speaker wires.

Step 6: Remove the Front Panel Unit.

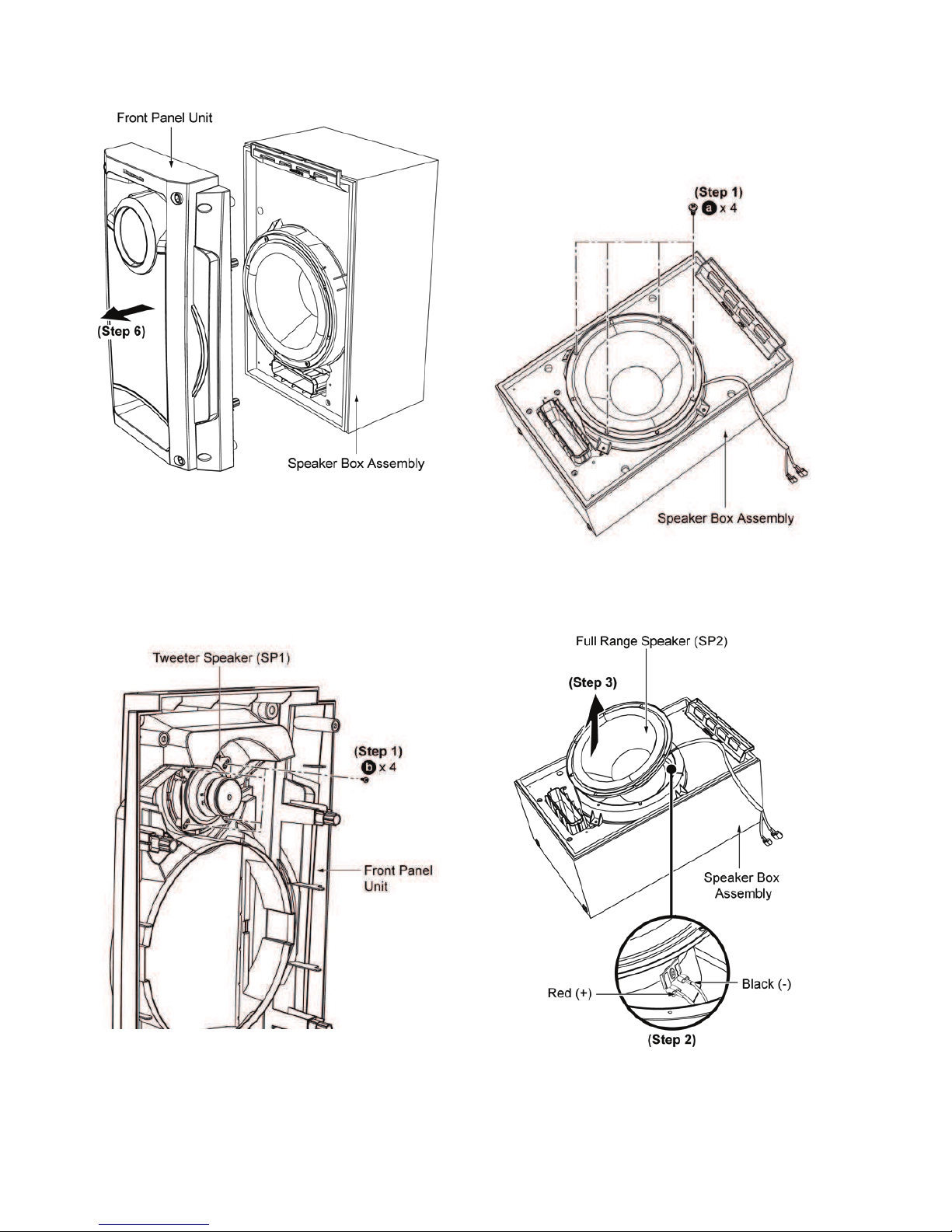

3.1.1. Disassembly of Tweeter Speaker

(SP1)

• Refer to “Disassembly of Front Panel Unit”.

Step 1: Remove 4 screws.

Step 2: Remove the Tweeter Speaker (SP1).

3.1.2. Disassembly of Full Range Speaker

(SP2)

• Refer to “Disassembly of Front Panel Unit”.

Step 1: Remove 4 screws.

Step 2: Detach the red (+) and black (-) speaker wires.

Step 3: Remove the Full Range Speaker (SP2).

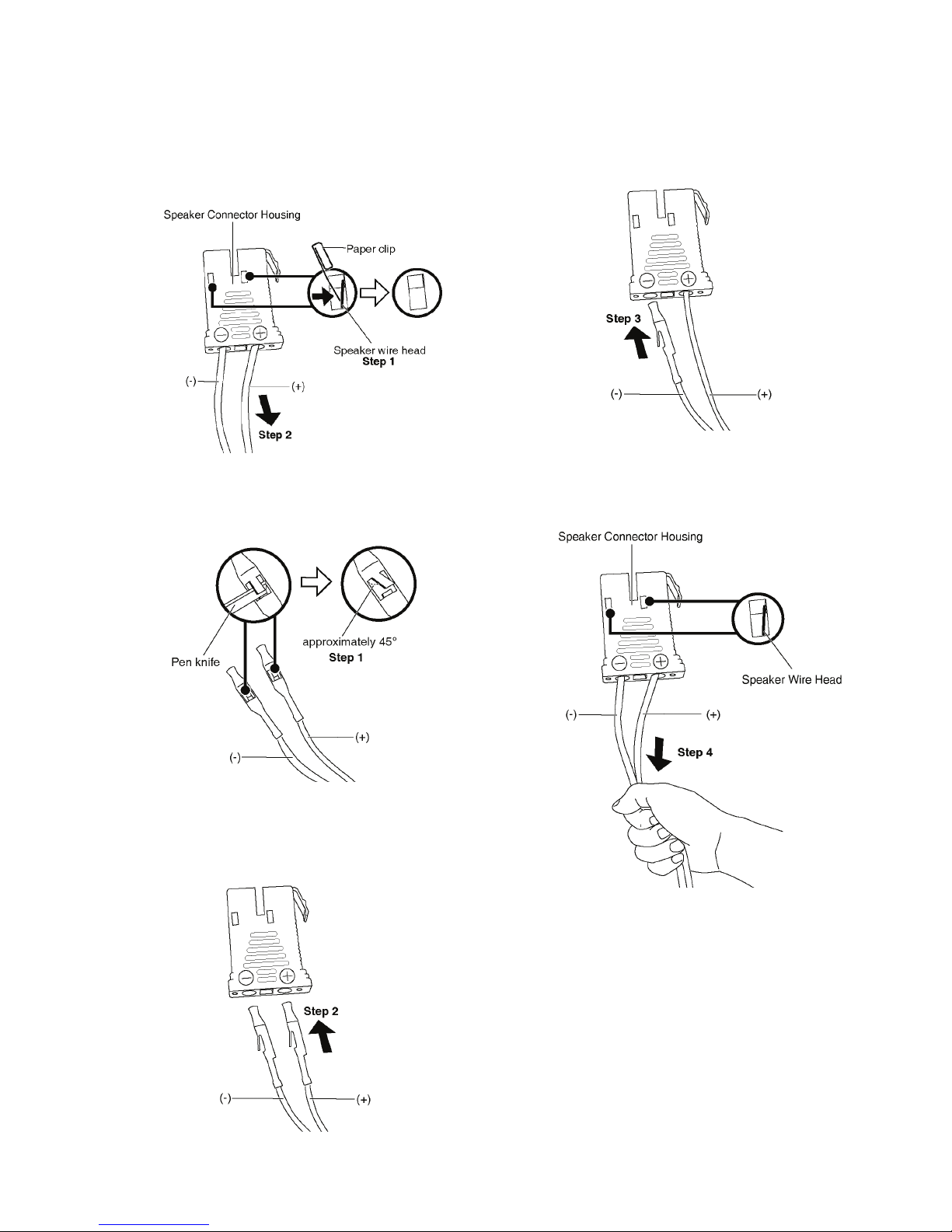

3.2. Replacement of Speaker Connector Housing

3.2.1. Disassembly

Step 1: Use a paper clip push the Speaker Wire head until it

hide inside the Speaker Connector Housing.

Step 2: Pull out the (+) and (-) speaker wire.

3.2.2. Assembly

Step 1: Use a pen knife slightly push up the speaker wire head

approximately 45 .

Step 2: Insert the (+) speaker wire into the (+) hole of the

Speaker Connector Housing.

Note: Push in the speaker wire until hear the “click” sound.

Step 3: Insert the (-) speaker wire into the (-) hole of the

speaker connector housing.

Note: Push in the speaker wire until hear the “click” sound.

Step 4: Pull both speaker wires gently to ensure they lock-in

firmly.

Note: Repeat step1 to 3 if the speaker wires come out.

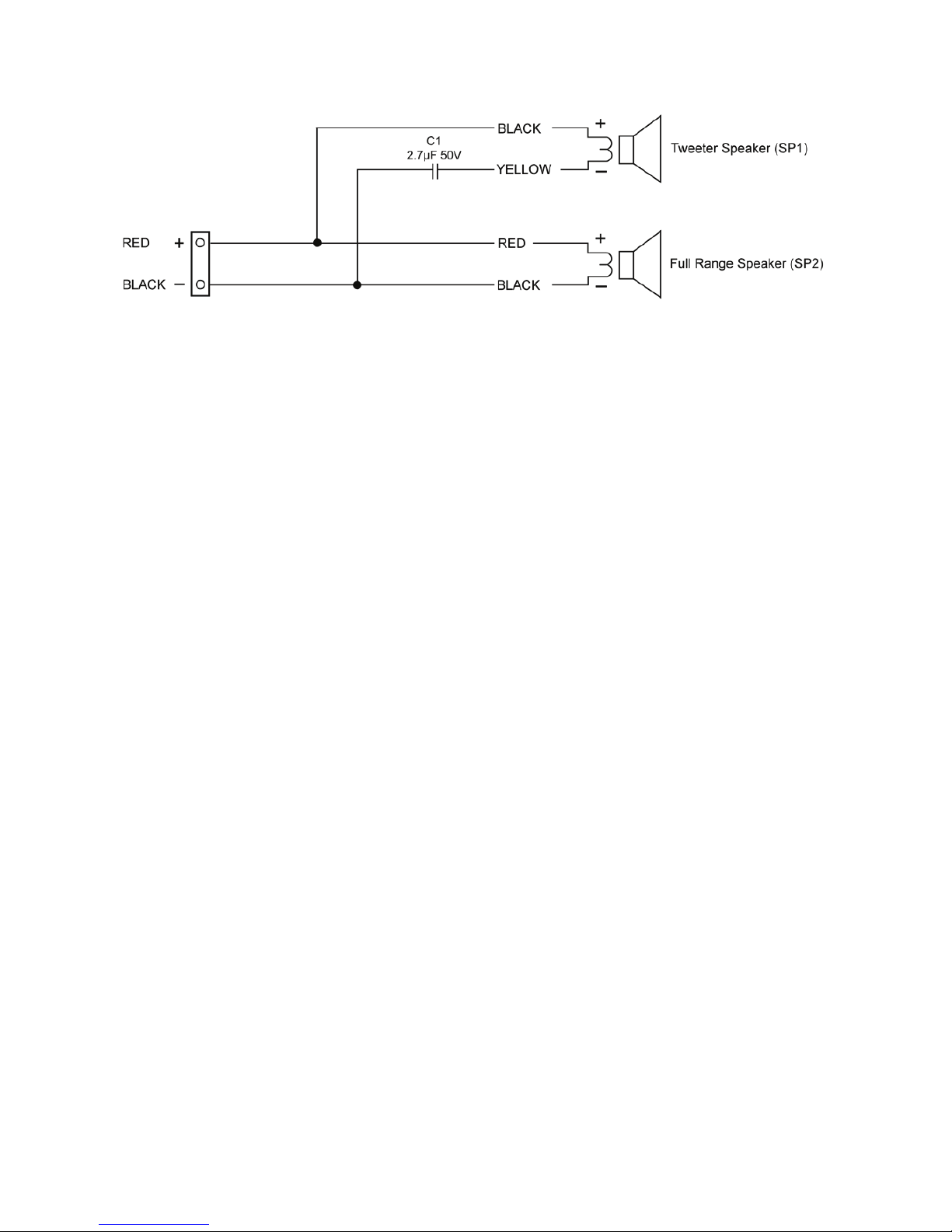

4 Wiring Connection Diagram

5 Exploded View and Replacement Parts List

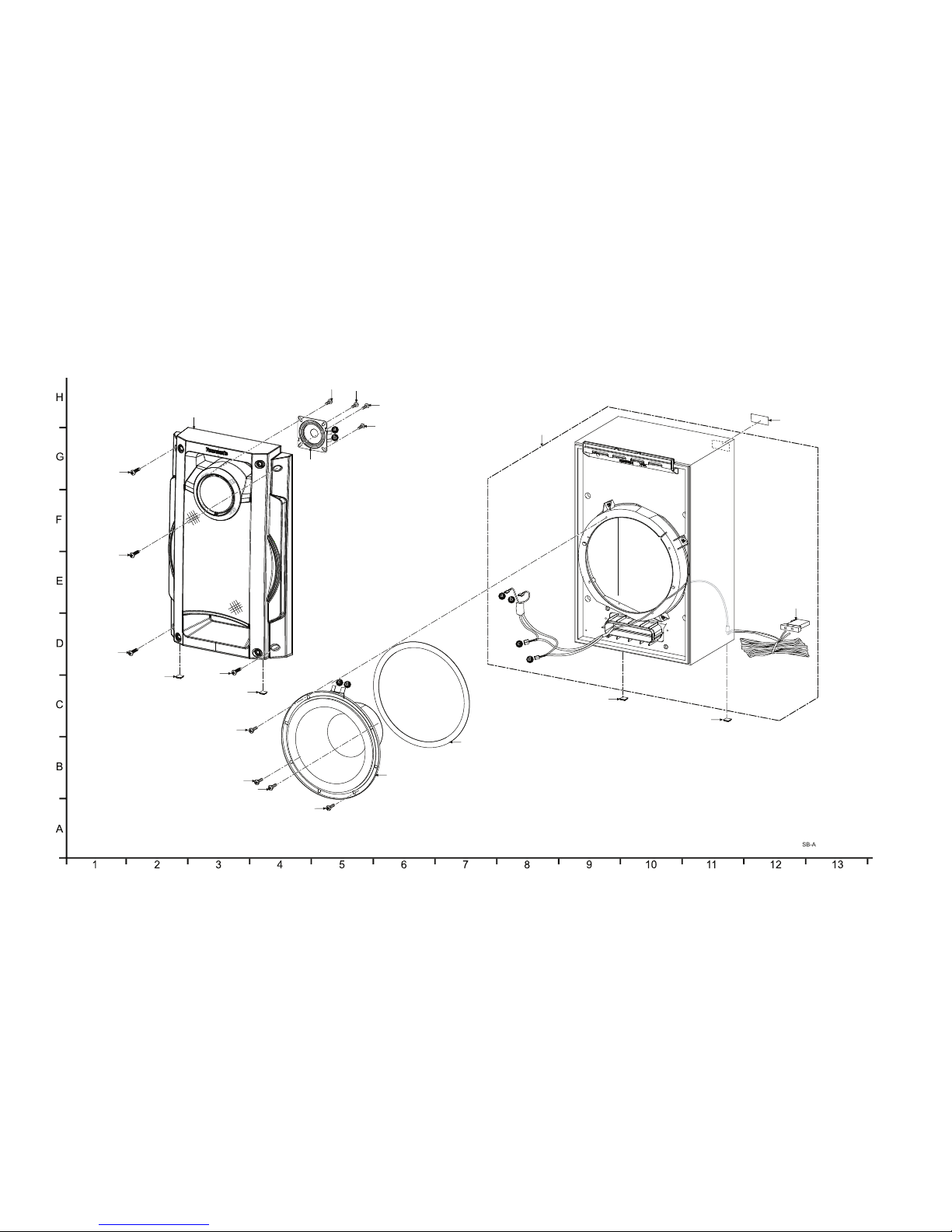

5.1. Cabinet Parts Location

SP2

SP1

2-1

SB-AKX32LM-K

CABINET DRAWINGS

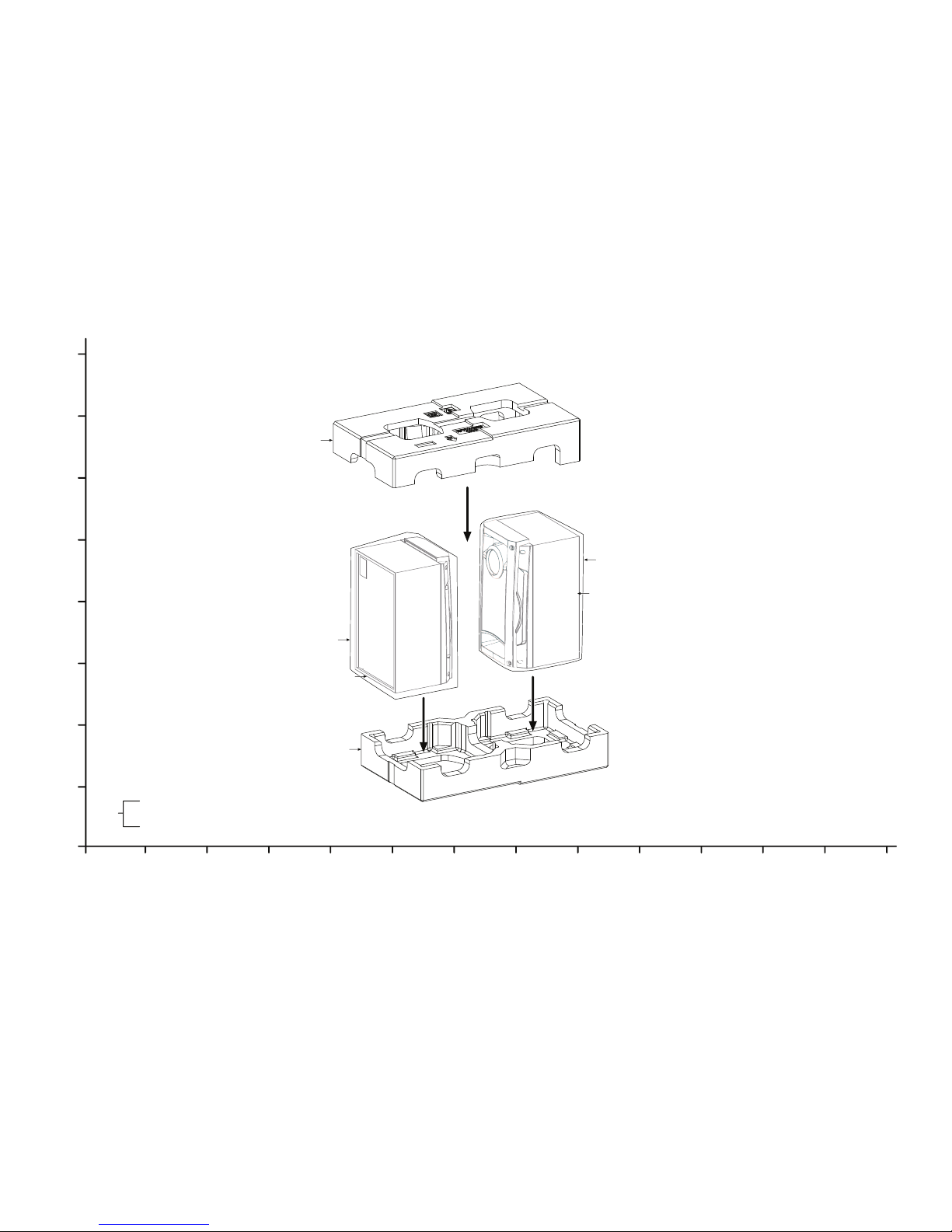

5.2. (SB-AKX32LM-K) Packaging

SB-AKX32

SB-AKX32LM-K

FOR SC-AKX32

PACKAGING DRAWINGS

*P1

POLYFOAM (TOP)RPNM0217T

POLYFOAM (BOTTOM)RPNM0217B

*P1

123456789

10 11 12 13
