Speaker System
Model No. SB-MAX4000E
SB-MAX4000GS
SB-MAX4000PN
SB-MAX4000PS
Product Color : (K)... Black Type
TABLE OF CONTENTS PAGE PAGE
1 Specifications ----------------------------------------------------- 2
2 Disassembly and Assembly Instructions ---------------- 2
2.1. Type of screws --------------------------------------------- 2
2.2. Disassembly of Upper Front Panel Block ----------- 3
2.3. Disassembly of Tweeter Speaker (SP1)------------- 4
2.4. Disassembly of Woofer Speaker (SP2)-------------- 4
2.5. Disassembly of Lower Front Panel Block ----------- 5
2.6. Disassembly of Subwoofer Speaker (SP3) --------- 6
2.7. Disassembly of Lighting Wire P.C.B.
Assembly ---------------------------------------------------- 7
3 Wiring Connection Diagram ---------------------------------- 8
4 Exploded View and Replacement Parts List ------------ 9
4.1. Cabinet Parts Location----------------------------------- 9
4.2. Packaging--------------------------------------------------10
4.3. Replacement Parts List--------------------------------- 11
2
1 Specifications
2 Disassembly and Assembly Instructions
Caution Note:
• This section describes procedures for checking the operation and replacing the main components.
• For reassembly after operation checks or replacement, reverse the respective procedures.
• Special reassembly procedures are described only when required.
• Before carrying out the disassembly process, please ensure all the safety precautions & procedures are followed.
• During the disassembly and/or assembly process, please handle with care as there may be chassis components with sharp
edges.
• During replacement of component parts, please refer to the section of “Replacement Parts List” as described in the service man-
ual.
• Select items from the following indexes when disassembly or replacement are required.
Front Speakers
• Disassembly of Upper Front Panel Block
• Disassembly of Tweeter Speaker (SP1)
• Disassembly of Woofer Speaker (SP2)
• Disassembly of Lower Front Panel Block
• Disassembly of Subwoofer Speaker (SP3)
• Disassembly of Lighting Wire P.C.B. Assembly

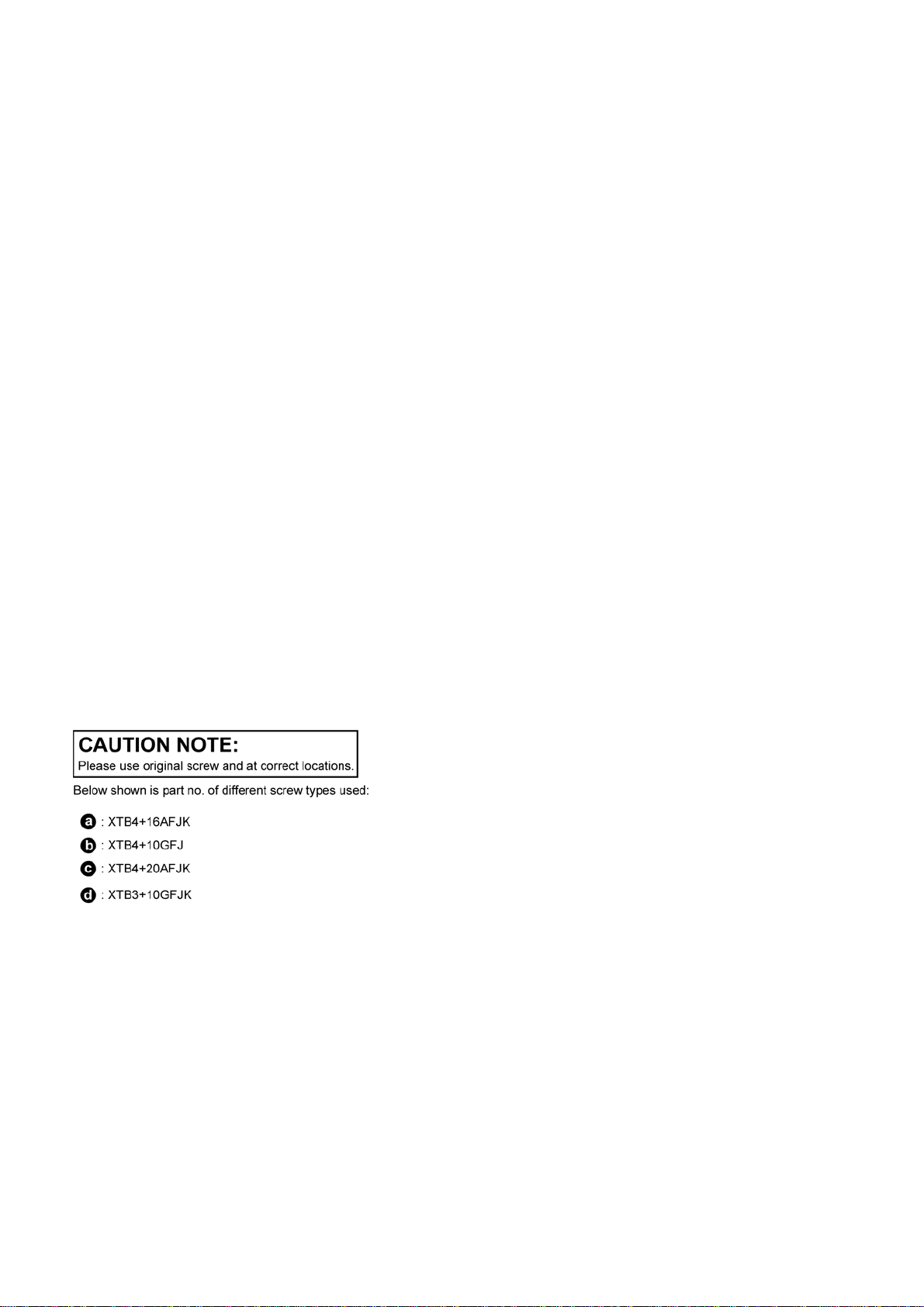

2.1. Type of screws
Speakers
Speaker unit(s)
Tweeter 6 cm cone type
Woofer 20 cm cone type
Super Woofer 30 cm cone type
Impedance High 3 Ω/ Mid 3 Ω/ Low 2 Ω
Dimensions (W x H x D) 407 mm x 709 mm x 389 mm
Mass 19 kg
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum ana-
lyzer.
3

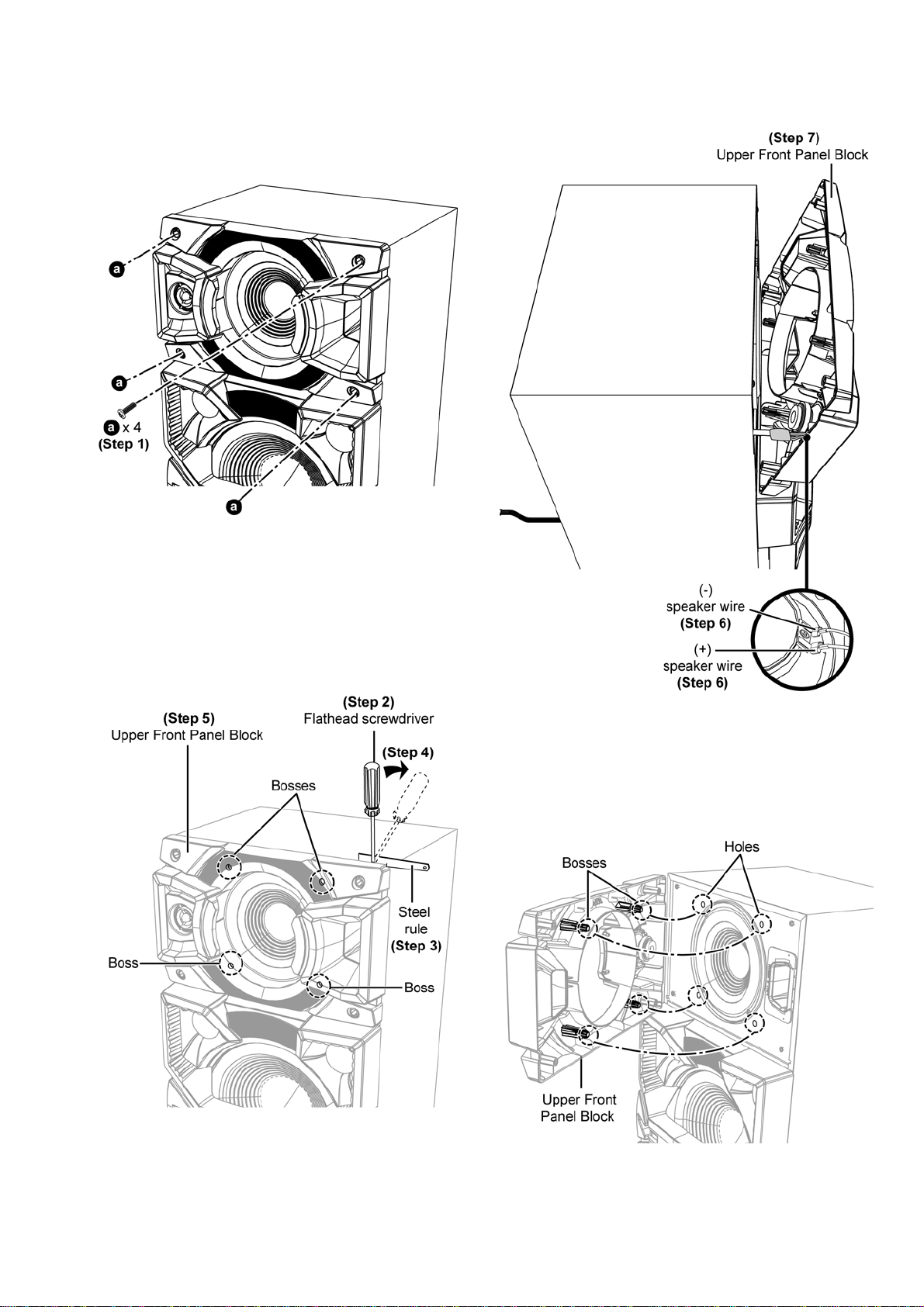

2.2. Disassembly of Upper Front
Panel Block
Step 1 : Remove 4 screws.
Step 2 : Insert flathead screwdriver into the grooves.
Step 3 : Insert a steel rule between the Upper Front Panel
Block and Speaker Cabinet.
Step 4 : Apply light force to push the Upper Front Panel Block.
Caution : Do not exert strong force as it may damage the
Upper Front Panel Block.
Step 5 : Detach Upper Front Panel Block.
Step 6 : Detach speaker wire.
Step 7 : Remove Upper Front Panel Block.
During assembling, please do following
Step 1 : Remove and clean up the bosses and holes.
Step 2 : Align the bosses of Upper Front Panel Block to the
holes of Speaker Cabinet.
Step 3 : Press the Upper Front Panel Block tightly.
4
2.3. Disassembly of Tweeter
Speaker (SP1)
• Refer to “Disassembly of Upper Front Panel Block”
Step 1 : Remove 4 screws.
Step 2 : Remove Tweeter Speaker (SP1).
2.4. Disassembly of Woofer
Speaker (SP2)
• Refer to “Disassembly of Upper Front Panel Block”
Step 1 : Remove 4 screws.
Step 2 : Slightly lift up Woofer Speaker (SP2).
Step 3 : Detach speaker wire.
Step 4 : Remove Woofer Speaker (SP2).
5
2.5. Disassembly of Lower Front
Panel Block
Step 1 : Remove 4 screws.
Step 2 : Insert flathead screwdriver into the grooves.
Step 3 : Insert a steel rule between the Lower Front Panel
Block and Speaker Cabinet.
Step 4 : Apply light force to push the Lower Front Panel Block.
Caution : Do not exert strong force as it may damage the
Lower Front Panel Block.
Step 5 : Detach Lower Front Panel Block.
6
Step 6 : Lift up the Himelon.
Step 7 : Detach 4P Socket.
Step 8 : Remove Lower Front Panel Block.
During assembling, please do following
Step 1 : Remove and clean up the bosses and holes.
Step 2 : Align the bosses of Lower Front Panel Block to the
holes of Speaker Cabinet.
Step 3 : Press the Lower Front Panel Block tightly.
2.6. Disassembly of Subwoofer
Speaker (SP3)
• Refer to “Disassembly of Lower Front Panel Block”
Step 1 : Remove 8 screws.
7
Step 2 : Slightly lift up Subwoofer Speaker (SP3).
Step 3 : Detach speaker wire.
Step 4 : Remove Subwoofer Speaker (SP3).
2.7. Disassembly of Lighting Wire
P.C.B. Assembly
• Refer to “Disassembly of Lower Front Panel Block”
Step 1 : Release the 4P wire from Lower Front Panel Block.
Step 2 : Remove 4 screws.
Step 3 : Remove Lighting Cover.
8
Step 4 : Release 4P wire from slot.
Step 5 : Remove 2 screws.
Step 6 : Remove Lighting Wire P.C.B. Assembly.
3 Wiring Connection Diagram
9
4 Exploded View and Replacement Parts List
4.1. Cabinet Parts Location
SP3
SP2
SP1
17
17
17
17
17
17
17
17
17
17
17
17
16
16
16
16
16
16
16
16
15
15
15
15
15
15
15
15
14
14
13
12
11
11 11
11
10
9
8
8
8
8
6(LEFT)
7(RIGHT)
5
4
(LIGHTING WIRE
P.C.B. ASSEMBLY)
3
2
1
c
a
b
a
b
d
cd
ef
ef
g
g
123456789
A
B
C
D
E
F
G
H
10 11 12 13
SB-MAX4000GS
SB-MAX4000PN
SB-MAX4000PS
SB-MAX4000EK
CABINET DRAWING
10

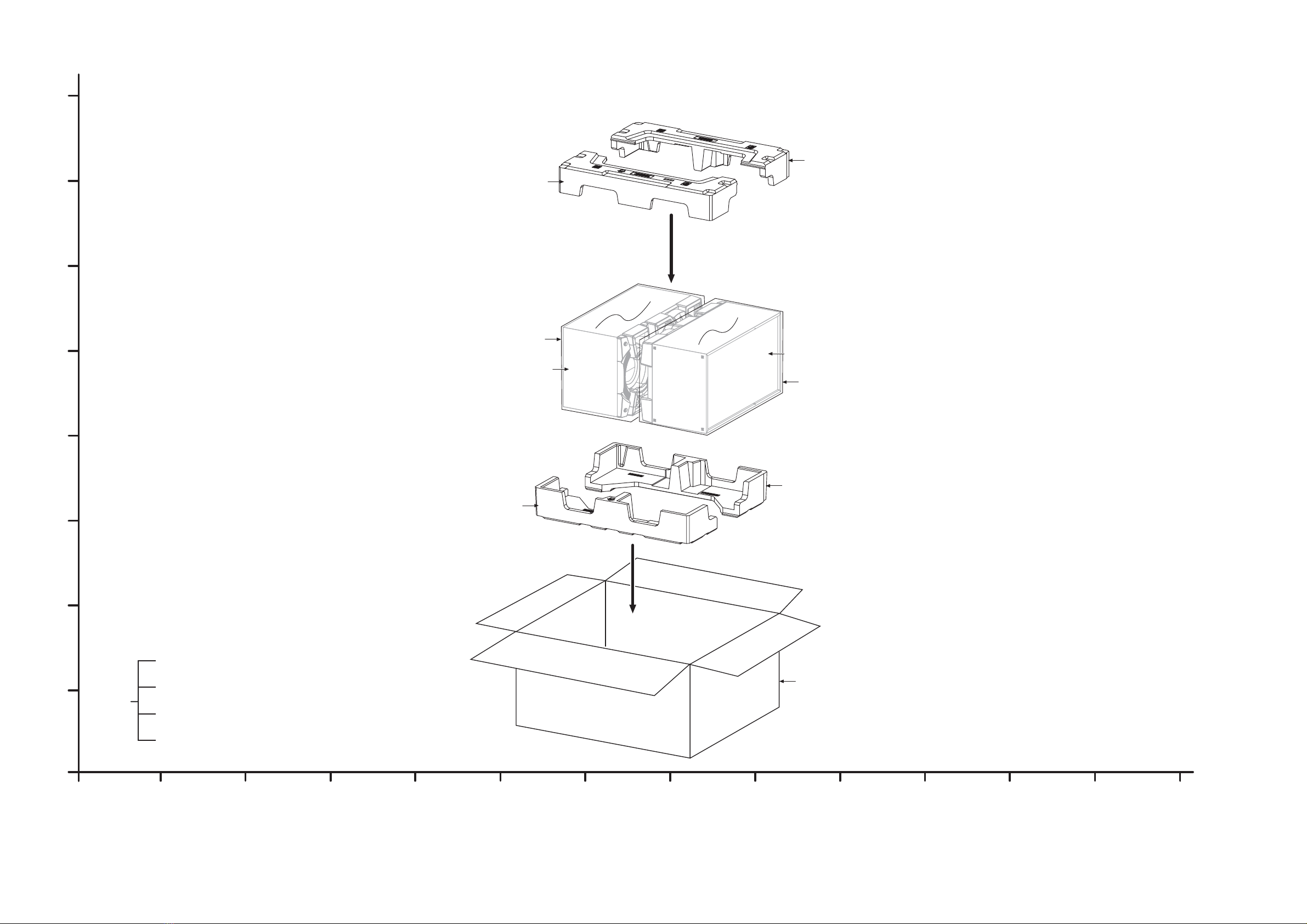

4.2. Packaging
SB-MAX4000GS/PN/PS/E
SB-MAX4000GS/PN/PS/E
P3
P3
*P2
*P2
*P2
*P2
FRONT
P1
123456789
A
B
C
D
E
F
G
H
10 11 12 13
*P2
SB-MAX4000GS
SB-MAX4000PN
SB-MAX4000PS
SB-MAX4000EK
PACKAGING DRAWING
POLYFOAM (TOP/FRONT)
POLYFOAM (BOTTOM/REAR)
POLYFOAM (BOTTOM/FRONT)
POLYFOAM (TOP/REAR)
