Panasonic SC-ALL8 Manuale utente

SQT0179-4

Owner’s Manual

Wireless Speaker System

Model No. SC-ALL8

SC-ALL3

Thank you for purchasing this product.

Please read these instructions carefully before using this product,

and save this manual for future use.

SC-ALL8 SC-ALL3

- 2 -

Table of contents

Accessories............................................................................................. 3

Unit care.................................................................................................. 4

Control reference guide........................................................................... 5

Indicator illumination ............................................................................... 6

Installation .................................................................................. 9

Connections .......................................................................................... 10

Network settings.................................................................................... 12

Enjoying music ...................................................................................... 20

Firmware updates ................................................................................. 24

Others ................................................................................................... 25

Attaching to a wall (optional) .................................................... 27

Troubleshooting..................................................................................... 30

Specifications ........................................................................................ 33

How to use this manual

Click/Tap this icon to jump to “Table of contents”.

≥Pages to be referred to are indicated as “l±±”. You can jump to the

corresponding page by clicking/tapping this.

- 3 -

Accessories



≥Do not use AC power supply cord (AC mains lead) with other equipment.

≥Product numbers provided in this owner’s manual are correct as of May 2014.

These may be subject to change.

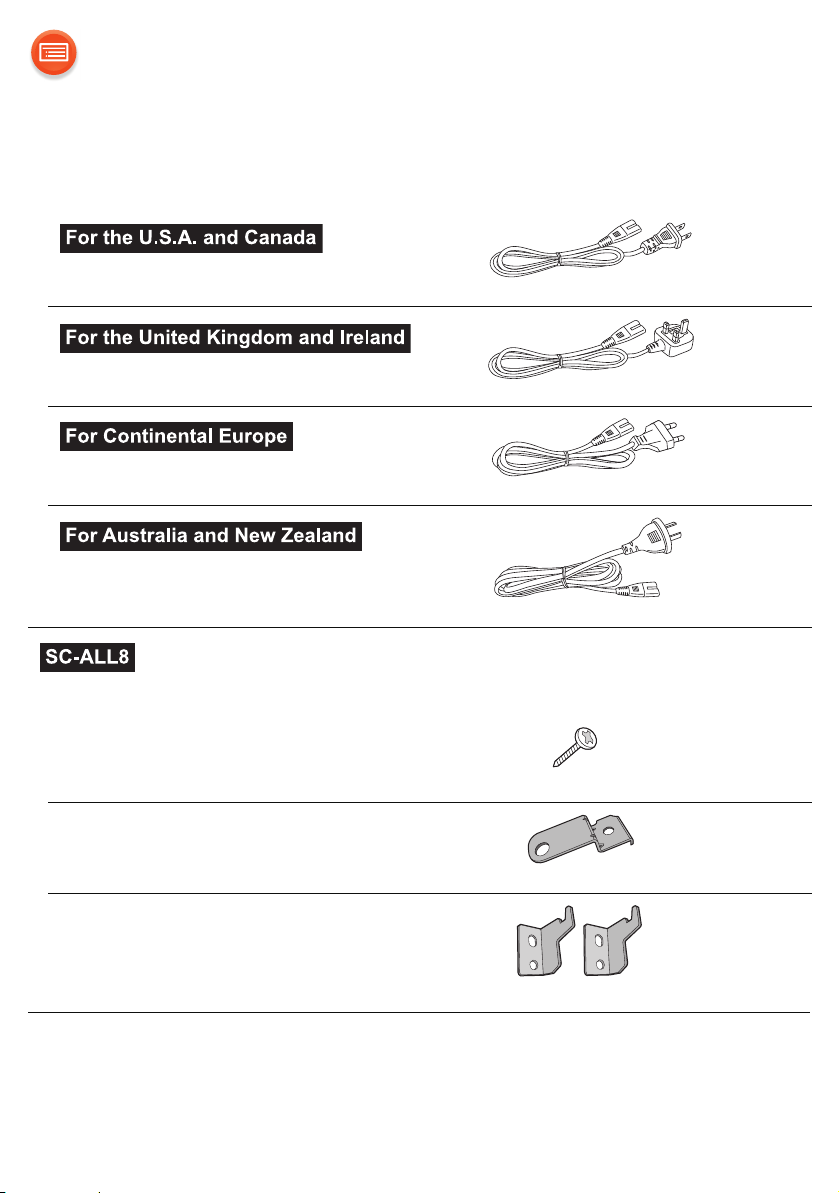

1 AC power supply cord (AC mains lead)

(K2CB2CB00022)

(K2CT2YY00097)

(K2CQ2YY00119)

(K2CJ2YY00101)

Wall mounting accessories

1 Screw

(XTB3+8JFJK-J)

1 Safety holder

(RSC1266)

2 Wall mount brackets

(RSC1262-1)

- 4 -

Unit care

Clean this unit with a soft, dry cloth.

≥When cleaning the speaker covers, use a fine cloth. Do not use tissues or

other materials that can fall apart. Small pieces may get stuck inside the

speaker cover.

≥Never use alcohol, paint thinner or benzine to clean this unit.

≥Before using chemically treated cloth, carefully read the cloth’s instructions.

∫To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard

this unit either by disposal or transfer, then follow the procedure to return

all the settings to the factory defaults to delete the user settings.

(l30, “To return all settings to the factory defaults”)

≥The operation history may be recorded in the memory of this unit.

Disposal of Old Equipment

Only for European Union and countries with recycling

systems

This symbol on the products, packaging, and/or

accompanying documents means that used electrical and

electronic products must not be mixed with general household

waste.

For proper treatment, recovery and recycling of old products,

please take them to applicable collection points in accordance

with your national legislation.

By disposing of them correctly, you will help to save valuable

resources and prevent any potential negative effects on

human health and the environment.

For more information about collection and recycling, please

contact your local municipality.

Penalties may be applicable for incorrect disposal of this

waste, in accordance with national legislation.

- 5 -

Control reference guide

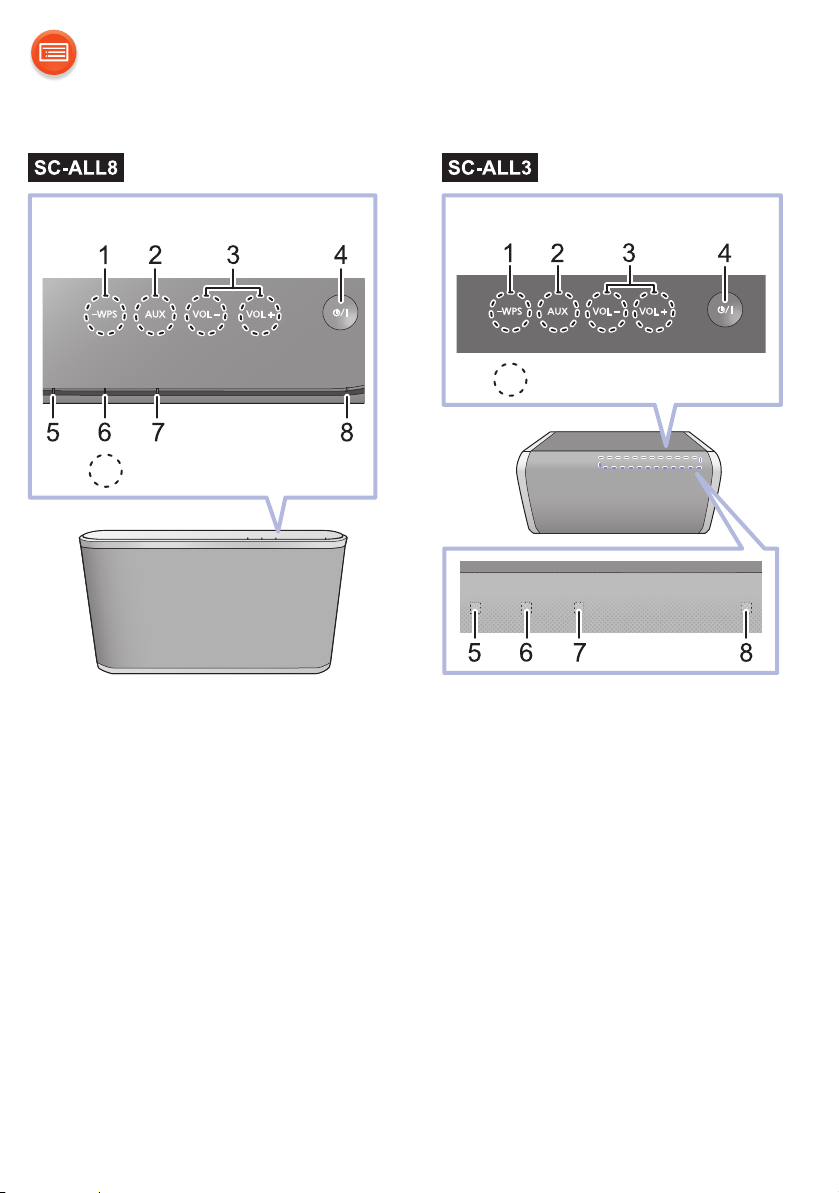

1WPS pairing switch [-WPS]

Enter WPS pairing mode (l17) / firmware update mode (l24)

2Selector switch [AUX]

Select AUX as the audio source (l23)

3Volume control switch [VOL –]/[VOL +]

4Standby/on switch [Í/I]

Touch to switch the unit from on to standby mode or vice versa. In standby

mode, the unit is still consuming a small amount of power.

5Mode indicator (amber)

6Network indicator (blue/red)

7AUX indicator (green)

8Operation indicator (amber)

Top view

: Touch area

Top view

: Touch area

- 6 -

Indicator illumination

The indicator patterns illustrated below are displayed during normal

operational conditions.

Indicator Description

Operation indicator (amber) Blinks once

≥The unit detects the switch touched.

Blinks twice

≥The unit detects a valid operation

performed by touching and holding

the switch.

Blinks

≥Automatic standby mode is

activated. (l10)

Mode indicator (amber) Blinks once

≥The following setting is turned on.

“Network standby” (l16)

“Operation sound setting” (l25)

– When the setting is turned off, it blinks

twice.

Blinks

≥It may blink when the unit turns to

standby mode.

– Do not disconnect the AC power

supply cord (AC mains lead). Doing

so may cause malfunction or

damage.



≥The mode indicator also blinks when

the volume is changed.

- 7 -

Indicator Description

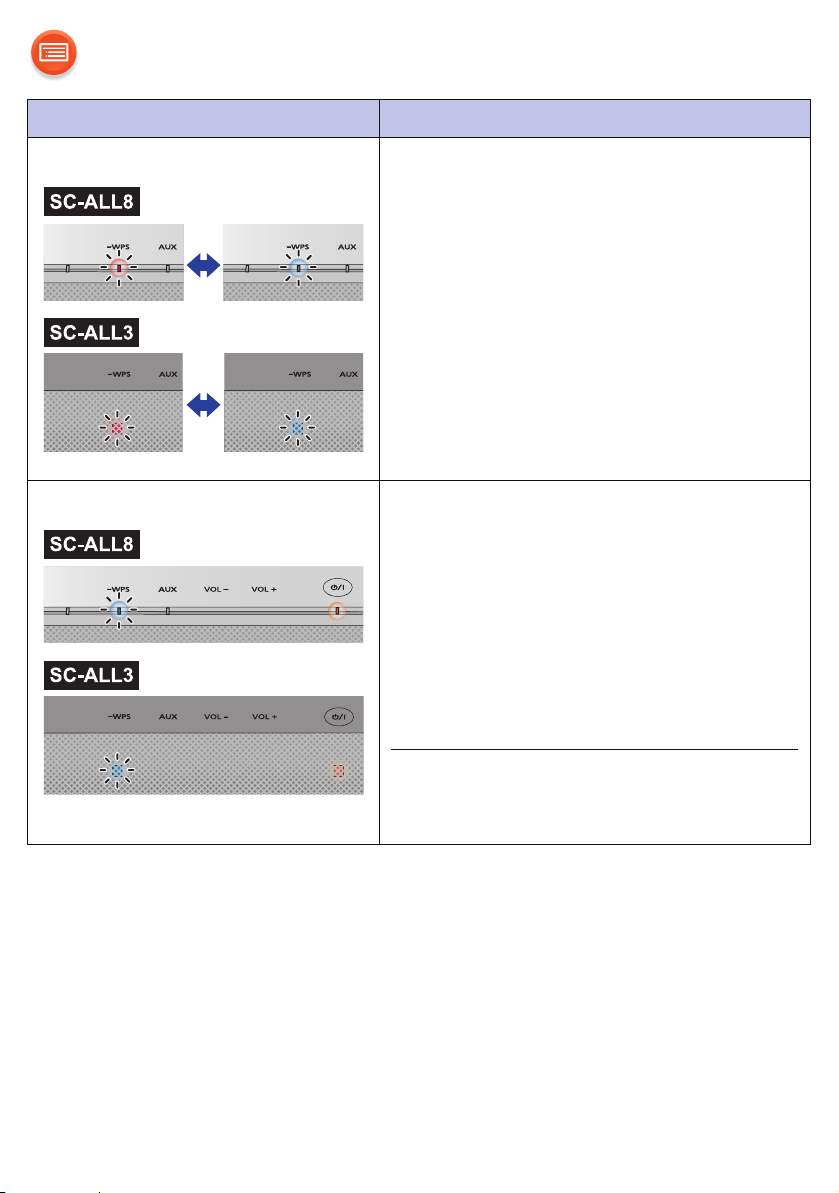

Network indicator (blue/red) Blinks alternately

≥The unit is carrying out an internal

process.

– Wait for approximately 60 seconds

before the blinking stops.

– Do not disconnect the AC power

supply cord (AC mains lead). Doing

so may cause malfunction or

damage.

Network indicator (blue) Blinks slowly

≥The unit is ready for network setup.

(l12)

Blinks

≥The unit is waiting for the WPS

connection. (l17)

Blinks fast

≥The unit is waiting for the WPS PIN

code connection. (l17)



≥The volume cannot be changed during

the blinking.

- 8 -

Indicator Description

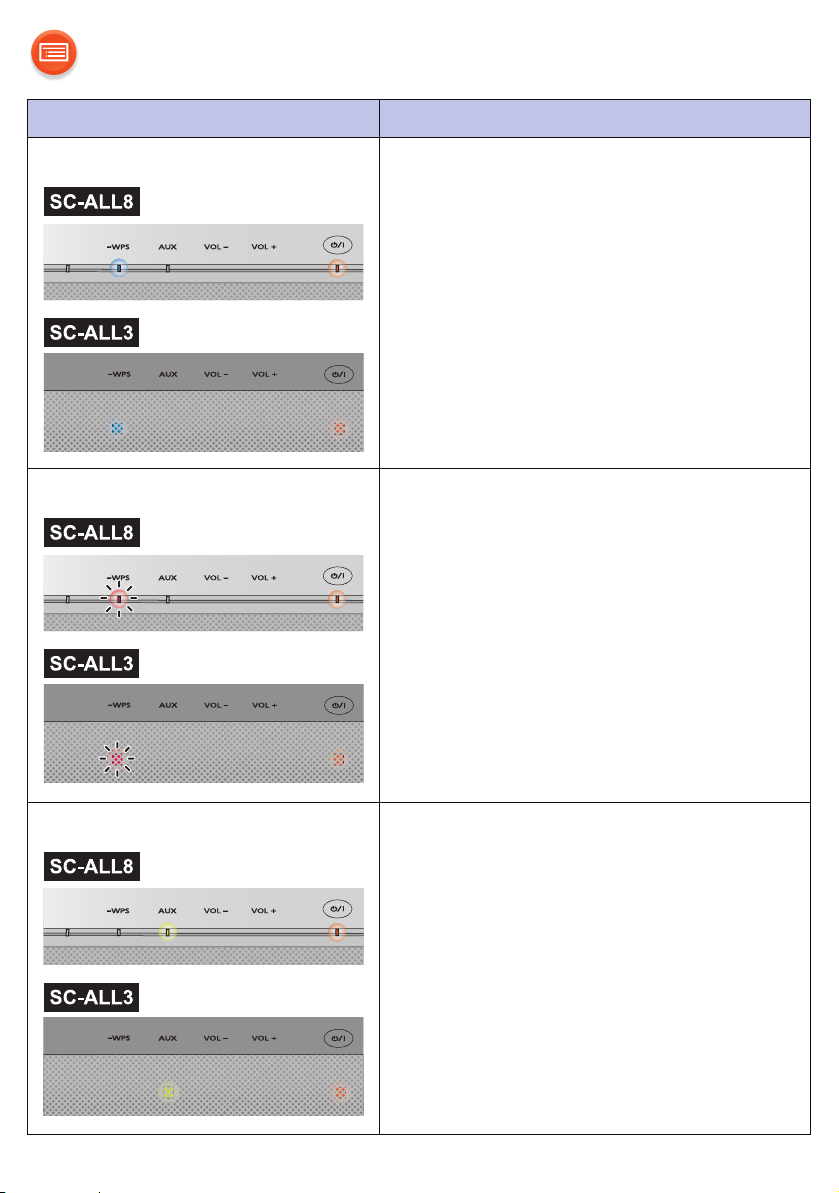

Network indicator (blue) Lights up

≥The unit is connected to the

network.

Network indicator (red) Blinks

≥The unit is connecting to the

network.

– When the network connection cannot

be established, the blinking keeps

going. Check the network connection.

(l12)

AUX indicator (green) Lights up

≥AUX is selected as the audio

source. (l23)

- 9 -

Installation

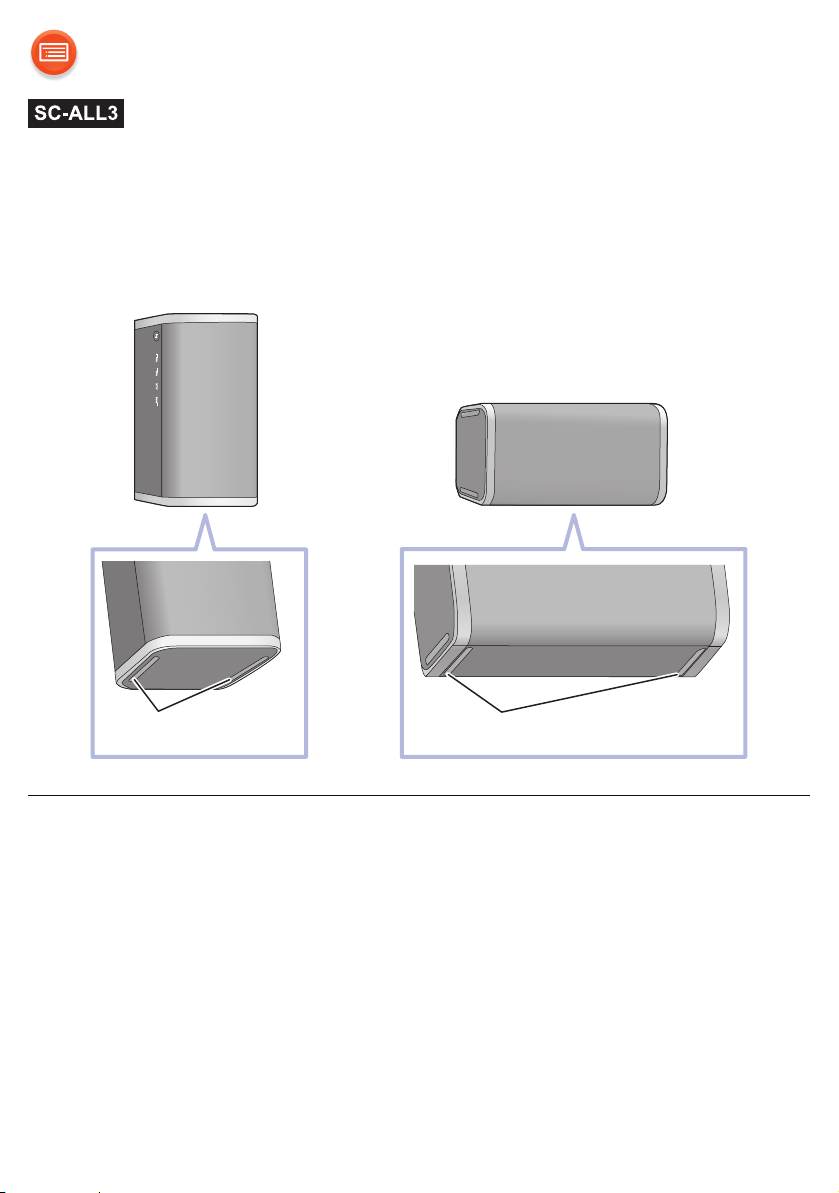

This unit can be installed either vertically or horizontally.

Install the unit with the speaker feet side down as shown below.



≥The output sound will be automatically adjusted depending on the installation

style.

Vertical Horizontal

Speaker feet Speaker feet

- 10 -

Connections



≥This unit consumes a small amount of AC power (l33, 38) even when turned

off.

≥For the purpose of power conservation, the unit can be disconnected if you will

not be using it for extended period of time.

≥These speakers do not have magnetic shielding. Do not place them near a TV,

PC or other magnetic devices.

≥Do not disconnect the AC power supply cord (AC mains lead) when the unit is

on. Doing so may cause malfunction or damage.

Automatic standby mode

This unit is designed to conserve its power consumption and save

energy.

The unit will turn to standby mode automatically if there is no sound and

it is not being used for approximately 20 minutes.

≥The operation indicator (amber) blinks for approximately 1 minute before the

unit turns to standby mode. Touch any switch to cancel it.

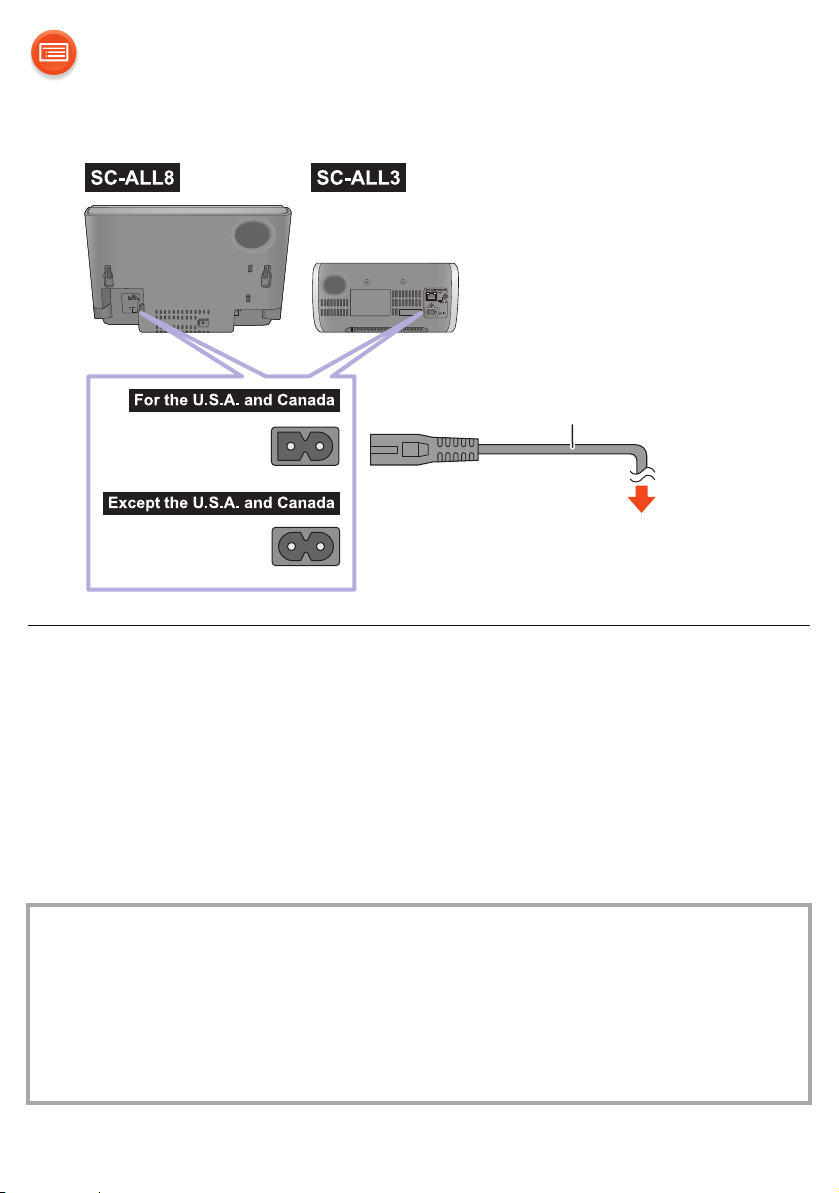

To an AC outlet

AC power supply cord

(AC mains lead)

(supplied)
