Panasonic TY-WK32LR2W Manuale utente

1 Safety precautions 2

2 Requests regarding handing 3

3 Installation construction procedure 3

3.1. Precautions for installation construction 3

3.2. Fitting procedure 4

©2006 Matsushita Electric Industrial Co., Ltd. All

rights reserved. Unauthorized copying and

distribution is a violation of law.

TY-WK32LR2W

4 Replacement Parts List 6

4.1. Parts List 6

4.2. Packing summary 7

5 External dimensions drawing 8

LCD TV wall-hanging bracket (Adjustable angle type)

Specifications

Dimensions (

W

×H×D)

18 57/64” (480 mm) × 15 9/32” (388 mm) × 2 21/64” (59 mm)

22 33/64” (572 mm) × 17 23/32” (450 mm) × 4 21/64” (110 mm)

main bod

y

with packing

Mass (weight)

main bod

y

5.7lb (2.6 kg)

with packing 8.4lb (3.8 kg)

Material Melted galvanizing steel board (SGHC-F12)

CONTENTS

Page Page

ORDER NO. ITD0601001CE

B05 Canada:B07

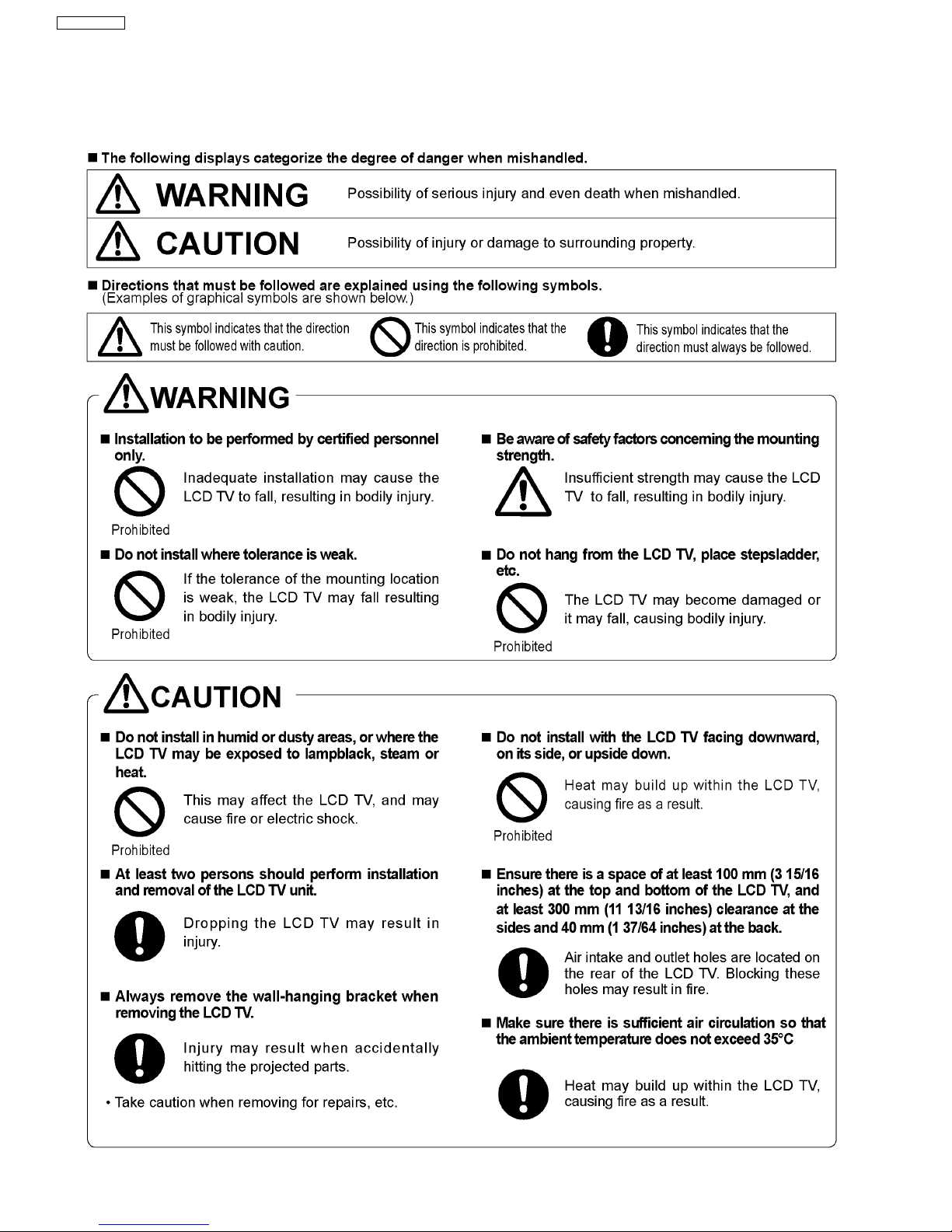

1 Safety precautions

To prevent injury to the user and others and to prevent damage to property, directions that must be followed are explained as

shown below.

2

TY-WK32LR2W

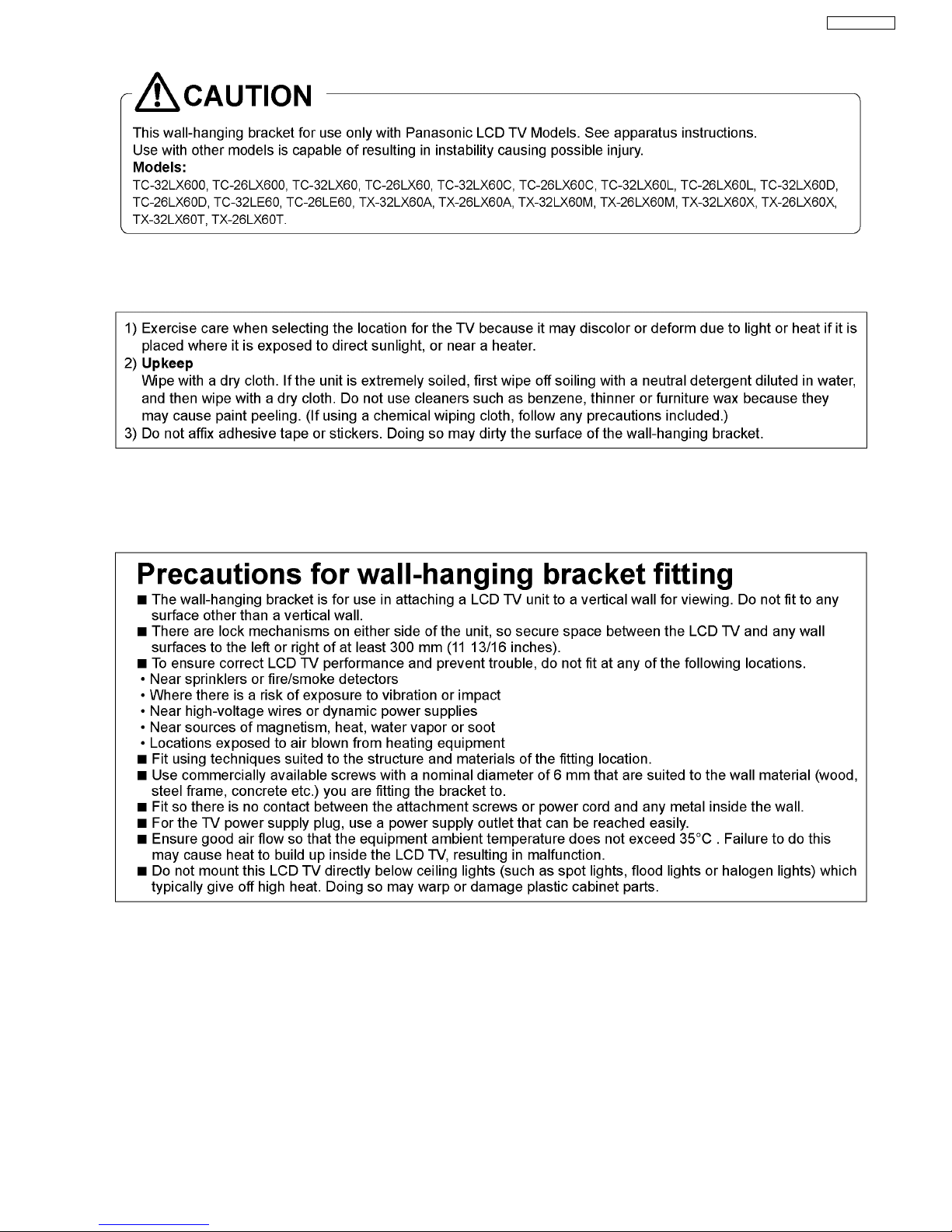

2 Requests regarding handing

3 Installation construction procedure

3.1. Precautions for installation construction

3

TY-WK32LR2W

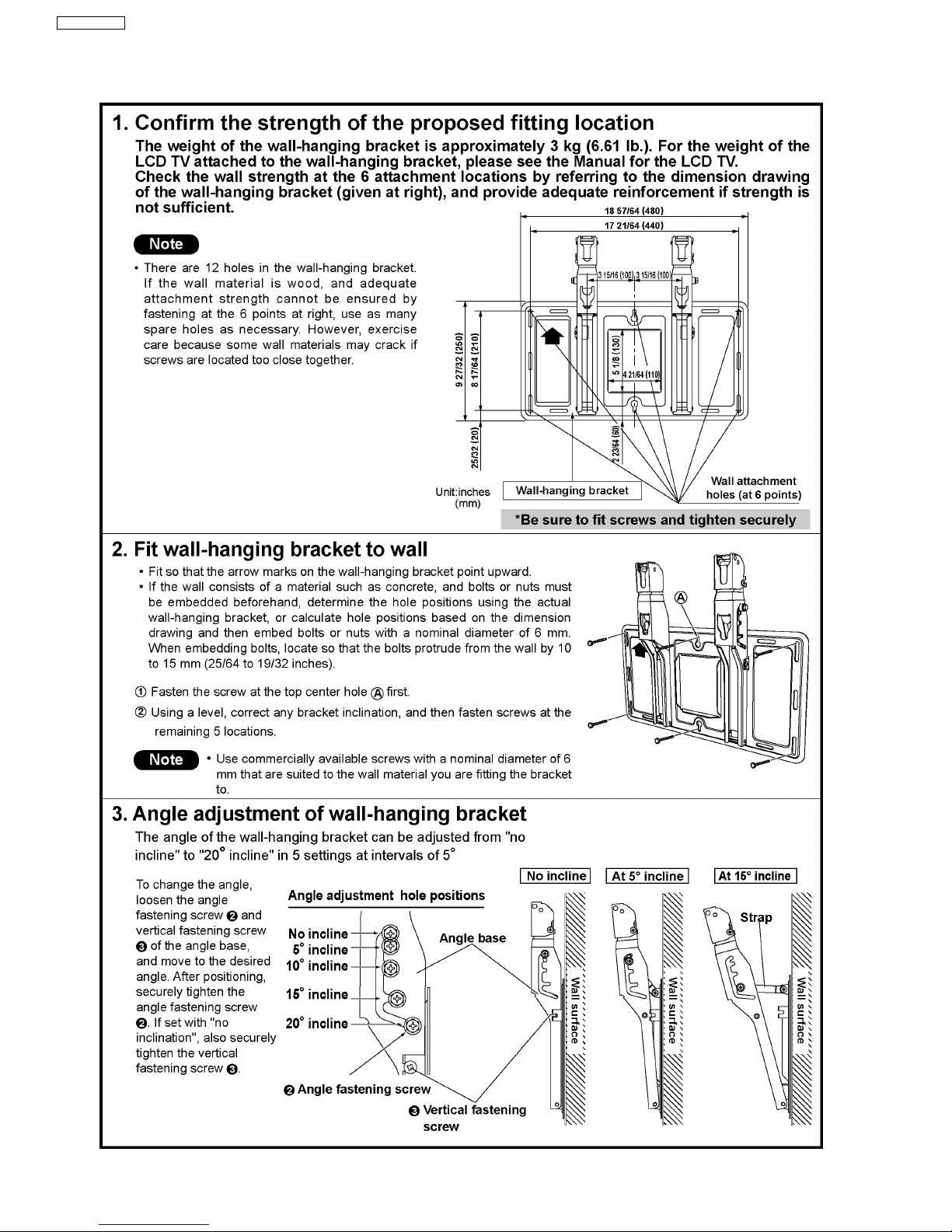

3.2. Fitting procedure

4

TY-WK32LR2W

5

TY-WK32LR2W

4 Replacement Parts List

4.1. Parts List

Ref.

No. Part No. Part Name &

Description Pcs Remarks

1THEA129 SAFTY BOLT(M5x35) 2

2THEA132J ALLEN HEAD

COUNTERSUNK

SCREW(M4x20)

4

3TKKX0014-1 ALLEN WRENCH 1

4TMMX098 INSULATION SPACER 4

5XWC4DFJK DISHED TOOTHED

WASHER 4

6TMKX971 STAND MOUNT COVER 2

7XZB10X10C08 PLASTIC BAG 1

8XZB10X25C03 POLY BAG 1

TQZH713 FITTING INSTRUCTION 1

9TPCB92001 CARTON 1

10 TPDF1565 PAD(UPPER) 1

11 TPDF1566 PAD(BOTTOM) 1

12 TPEH241 PROTECT COVER 1

6

TY-WK32LR2W

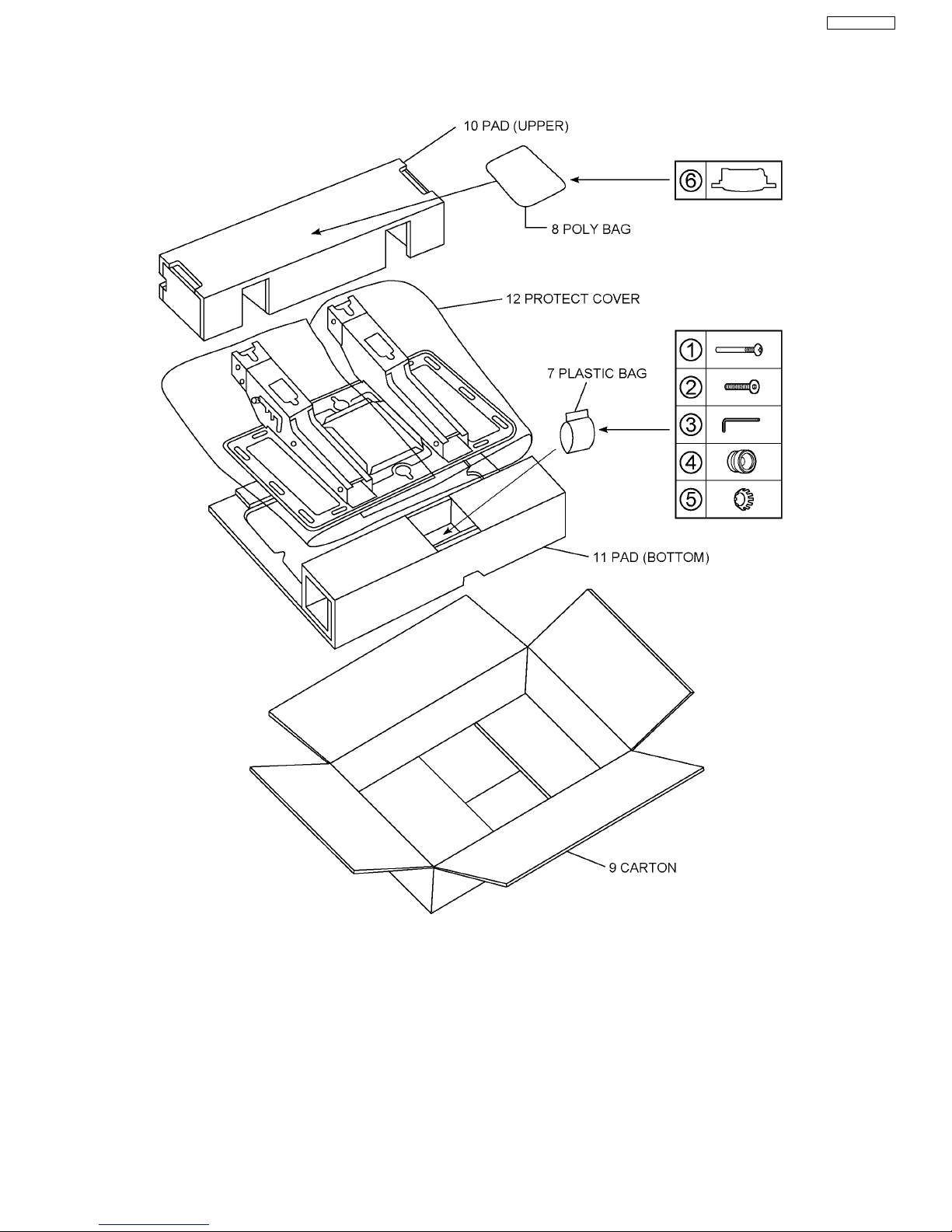

4.2. Packing summary

7

TY-WK32LR2W

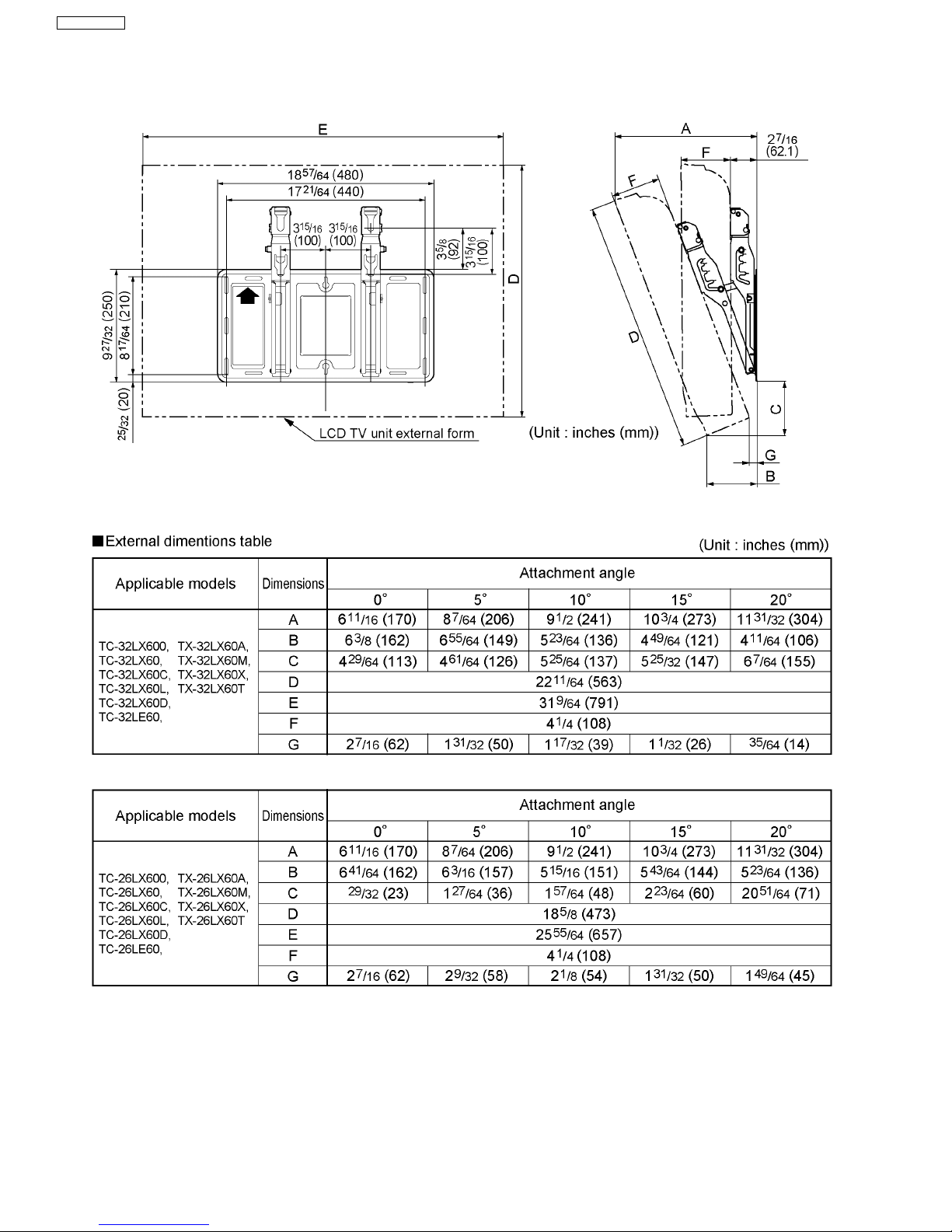

5 External dimensions drawing

8

TY-WK32LR2W
