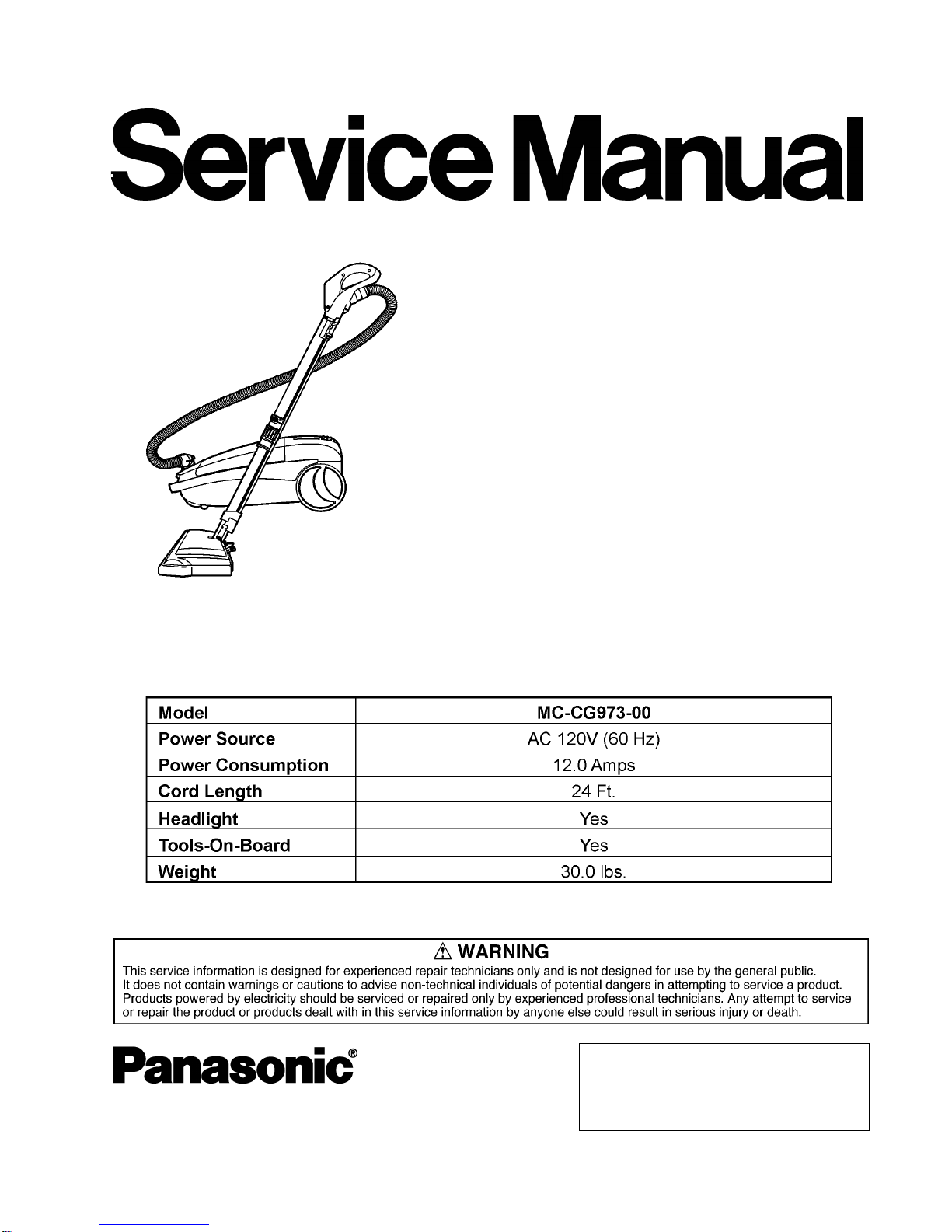

Panasonic MC-CG973-00 Manuale utente

Order Number MAC0702001CE

Vacuum Cleaner

MC-CG973-00

Specifications are subject to change without notice for further

improvement.

PANY OF AMERICA, DIVISION OF PANASONIC

CORPORATION OR NORTH AMERICA. All rights

reserved. Unauthorized copying and distribution is a

violation of law

2.1. Power Nozzle 4

2.2. Canister 6

2.3. Hose & Attachments 8

2.4. Cord Reel 9

2.5. Packing Materials 10

3 SERVICE PROCEDURES - POWER NOZZLE 11

3.1. BULB 11

3.2. BELT 11

3.3. POWER NOZZLE MOTOR 12

3.4. AGITATOR ASSEMBLY 13

4 SERVICE PROCEDURES - CANISTER 14

4.1. HOOD 14

4.2. CANOPY COVER 14

4.3. CORD REEL 14

4.4. CANISTER MOTOR 14

MC-CG973-00

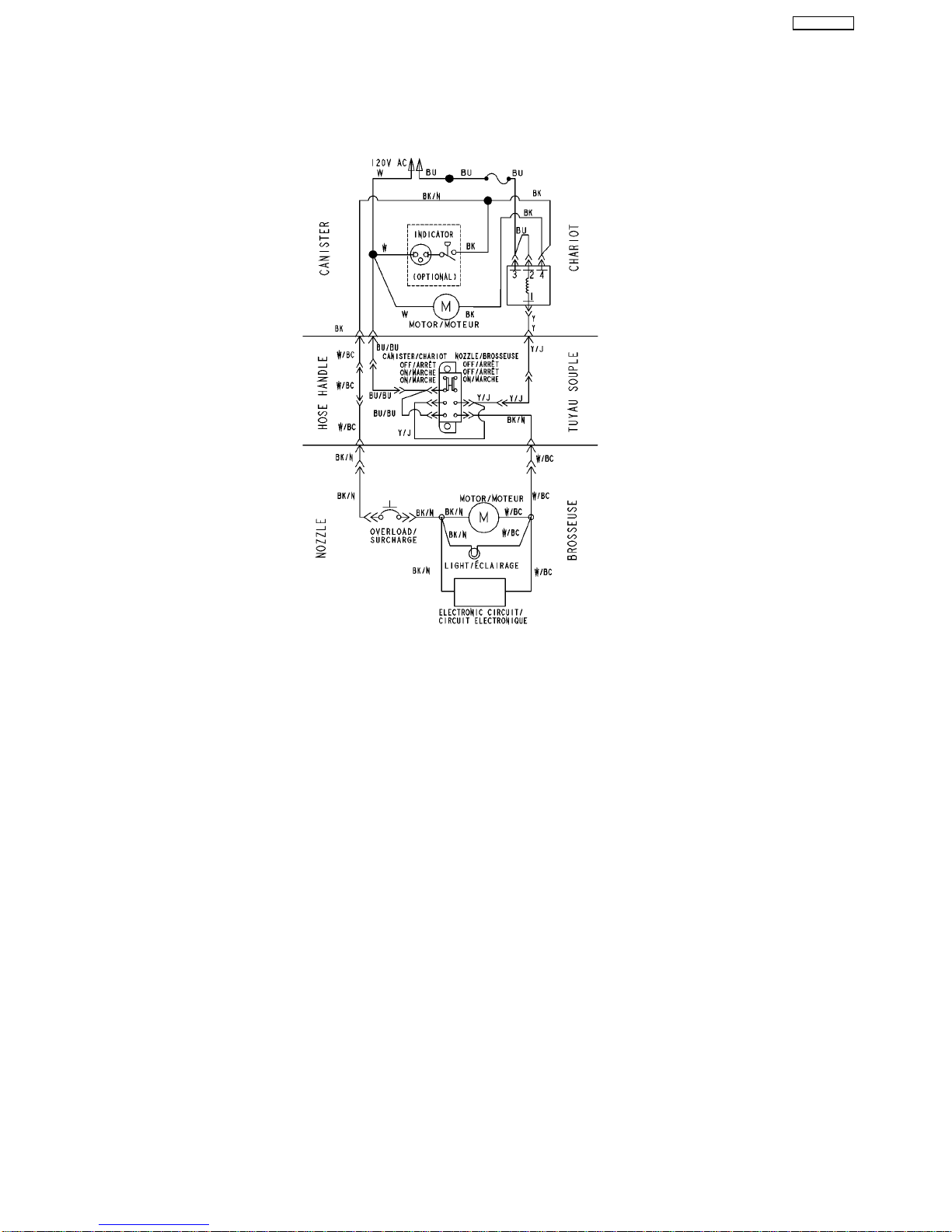

1 WIRING DIAGRAM

1.1. Wiring Schematic

MC-CG973-00

2 EXPLODED VIEW AND PARTS LIST

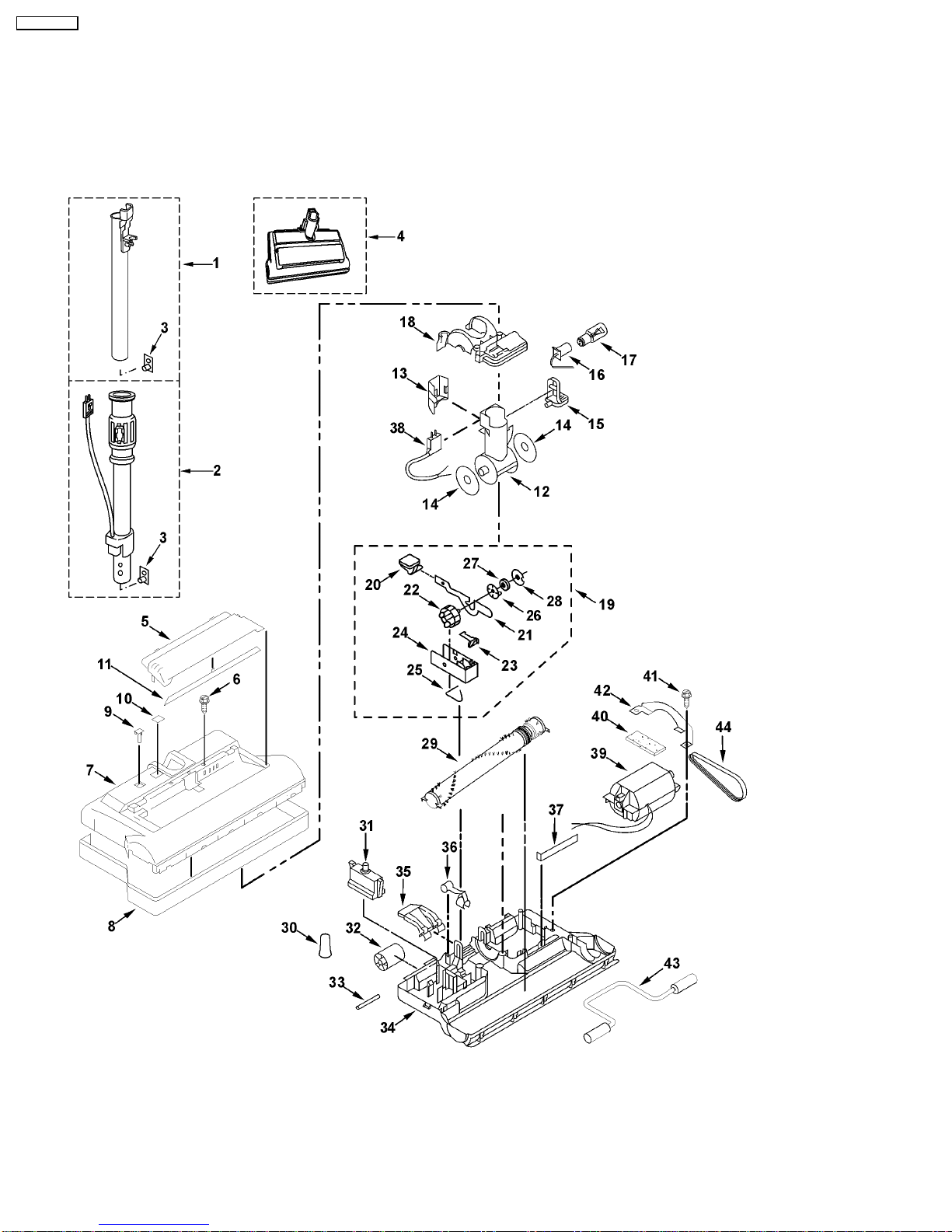

2.1. Power Nozzle

2.1.1. Exploded View

MC-CG973-00

2.1.2. Parts List (Power Nozzle)

Ref. No. Part No. Part Name & Description Quantity Remarks

1 AC97PAENZV06 Upper Wand 1

2 AC99PAKSZV06 Lower Wand 1

3 AMC725-419 Spring Wand Lock Assembly 1 Shipped 10 per package

4 AC50XDDJZC04 Power Nozzle Assembly 1

5 AC24HDDJZCU4 Panel Light 1

6 AMC681-550 Screw 1

7 AC02RBPJZCU4 Nozzle Top 1

8 AC10AAXAZV06 Furniture Guard (Bumper) 1

9 AC13DAUJZVU6 Button Extension 1

10 AC21HGJZ000 Lens - Height Adjust Assembly 1

11 AMC747-286 Lens - Panel Light 1

12 AMC415-3196 Swivel 1

13 AC13DATYZV06 Cover Plug Housing 1

14 AMC742-019 Swivel Seal 1

15 AC47AATYZV06 Foot Pedal 1

16 AC93HAXEZ000 Bulb Socket 1

17 AC28GADFZ00 Bulb 1

18 AC25QRDZV06 Swivel Cap 1

19 AC83MAKSZV06 Indicator Block Assembly 1

20 AC48AMGZV06 Pad - Foot Pedal 1

21 AMC747-287 Indicator Lever 1

22 AMC747-291 Indicator Cam 1

23 AMC742-016 Ratchet Catch 1

24 AMC742-015 Indicator Block 1

25 AMC725-775 Spring Assist 1

26 AMC722-955 Catch Indexing 1

27 AMC725-635 Washer 1

28 AMC722-909 Washer 1

29 AC84RCHJZ000 Agitator Assembly 1

30 AC44DCYKZ000 Wire Crimp 1 Shipped 10 per package

31 AC97KAXEZV04 Overload Protector 1

32 AC01CAKZZV06 Roller 1

33 AMC742-006 Rear Axle 1

34 AC03RAXAZU01 Base 1

35 AC47AGJZV06 Handle Release 1

36 AMC742-013 Lifter 1

37 AMC742-002 Motor Adjustment Spring 1

38 AC64EAWBZV06 Cord & Plug 1

39 AC90FCAMZ000 Motor 1

40 AC747156 Motor Gasket 1

41 AMC681-297 Screw 1

42 AMC705-093 Motor Bridge 1

43 AMC744-029 Front Axle 1

44 AC28SAXAZ000 Belt 1

MC-CG973-00

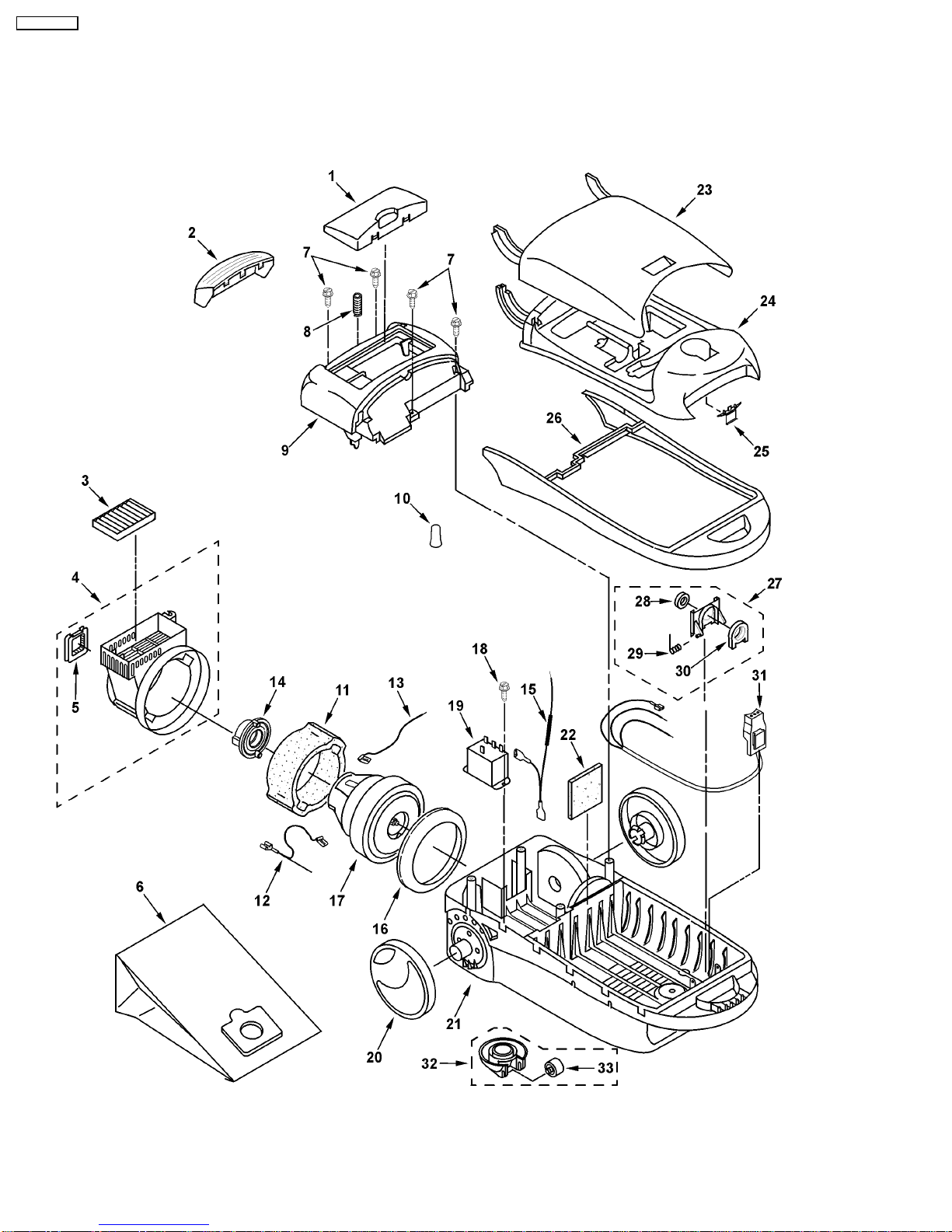

2.2. Canister

2.2.1. Exploded View

MC-CG973-00

2.2.2. Parts List

Ref. No. Part No. Part Name & Description Quantity Remarks

1AC41KBAKZCU4 Filter Cover 1

2AC46NAKTZV06 Cord Rewind Buttom 1

3AC38KBRMZ000 HEPA Filter 1

4AC93FAUXZ000 Motor Enclosure 1

5AC03FAKTZ000 Motor Rubber Support 1

6AC16KGFZ00 Dust Bag 1

7AMC414-8999 Screw 1SHIPPED 10 PER PACKAGE

8AMC744-258 Spring 1

9AC90QCZSZC04 Canopy Cover 1

10 AC44DCYKZ000 Wire Crimp 1SHIPPED 10 PER PACKAGE

11 AC99GAKTZ000 Noise Suppressor 1

12 AC85GCYDZ000 Lead Wire - Black 1

13 AC43GAKTZ000 Lead Wire - B 1

14 AC03FAXAZ000 Motor Rear Support 1

15 AC81GAWAZ000 Lead Wire Assembly 1

16 AC02FCUNZ000 Motor Front Support 1

17 AC92FCJNZ000 Motor 1

18 AMC-XTN4+14BFY Screw 1SHIPPED 10 PER PACKAGE

19 AC30EAWPZ000 Relay 1

20 AC99CAKTZV07 Wheel 1

21 AC03ACZSZV07 Lower Body 1

22 AC37KAKTZ000 Secondary Filter 1

23 AC74PDDJZCU4 Tool Cover 1

24 AC60KCRXZCU4 Hood 1

25 AC01DAKTZV07 Buckle 1

26 AC31AAXAZV06 Furniture Guard 1

27 AC11KAKTZR0K Bag Supporter Assembly 1

28 AC64HAKTZ000 Inlet (Bag) Packing 1

29 AMC706-024 Spring, Bag Mount Assembly 1

30 AC03LAKTZ000 Bag Mount Gasket 1

31 AC90EDBXZ006 Receptacle 1

32 AC93CAKTZV07 Castor Roller Unit 1

33 AC95CAKTZV06 Castor Wheel 1

MC-CG973-00

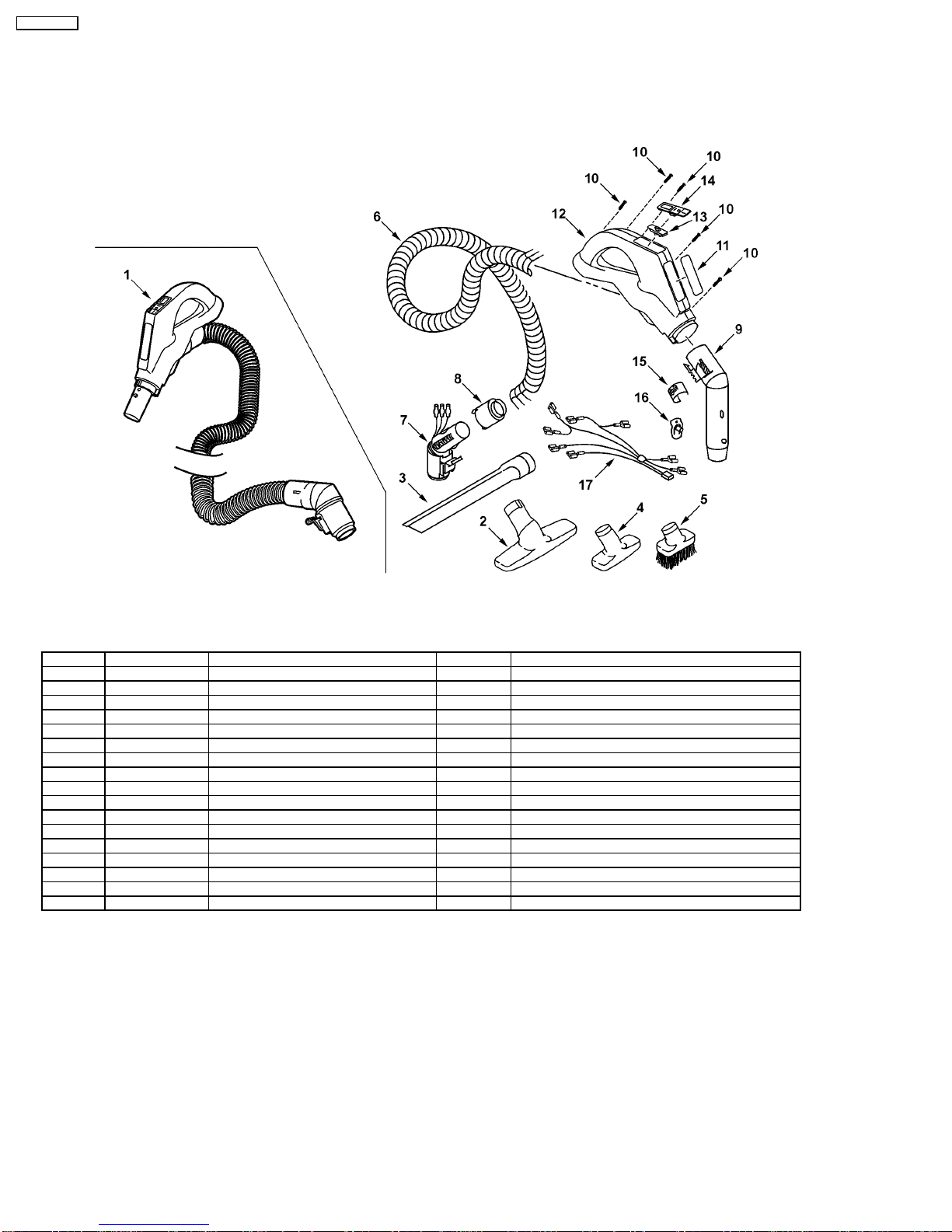

2.3. Hose & Attachments

2.3.1. Exploded View

2.3.2. Parts List

Ref. No. Part No. Part Name & Description Quantity Remarks

1AC94PCHKZV06 HOSE ASSEMBLY 1

2AC96RAKZZV06 FLOOR BRUSH 1

3AC60RAKZZV06 CREVICE TOOL 1

4AC86RAKZZV06 FABRIC BRUSH 1

5AC88RAKZZV06 DUSTING BRUSH 1

6AC05PSUZV06 HOSE ASSY 1

7AC92PCAZZV06 SWIVEL ASSY 1

8AC22PAFZZV06 HOSE ADAPTER 1

9AC98PSTZV06 CURVED PIPE INIT 1

10 AXTN4+12BFY SCREW(HANDLE CAP) ASSY. COMPL 5SHIPPED 10 PER PACKAGE

11 AC31TMBVZ0U0Z ORNAMENTAL PLATE 1

12 AC93BSTZV06 HANDLE ASSEMBLY 1

13 AC09ESTZ000 SLIDE SWITCH 1

14 AC99EAVKZVU7 SLIDE KNOB DECO 1

15 AC54PAPAZV06 CONTROL SUCTION 1

16 AMC415-2093 SPRING WAND LOCK ASSY COMP. 1

17 AC37GSTZV06 WIRE HARNESS 1

MC-CG973-00

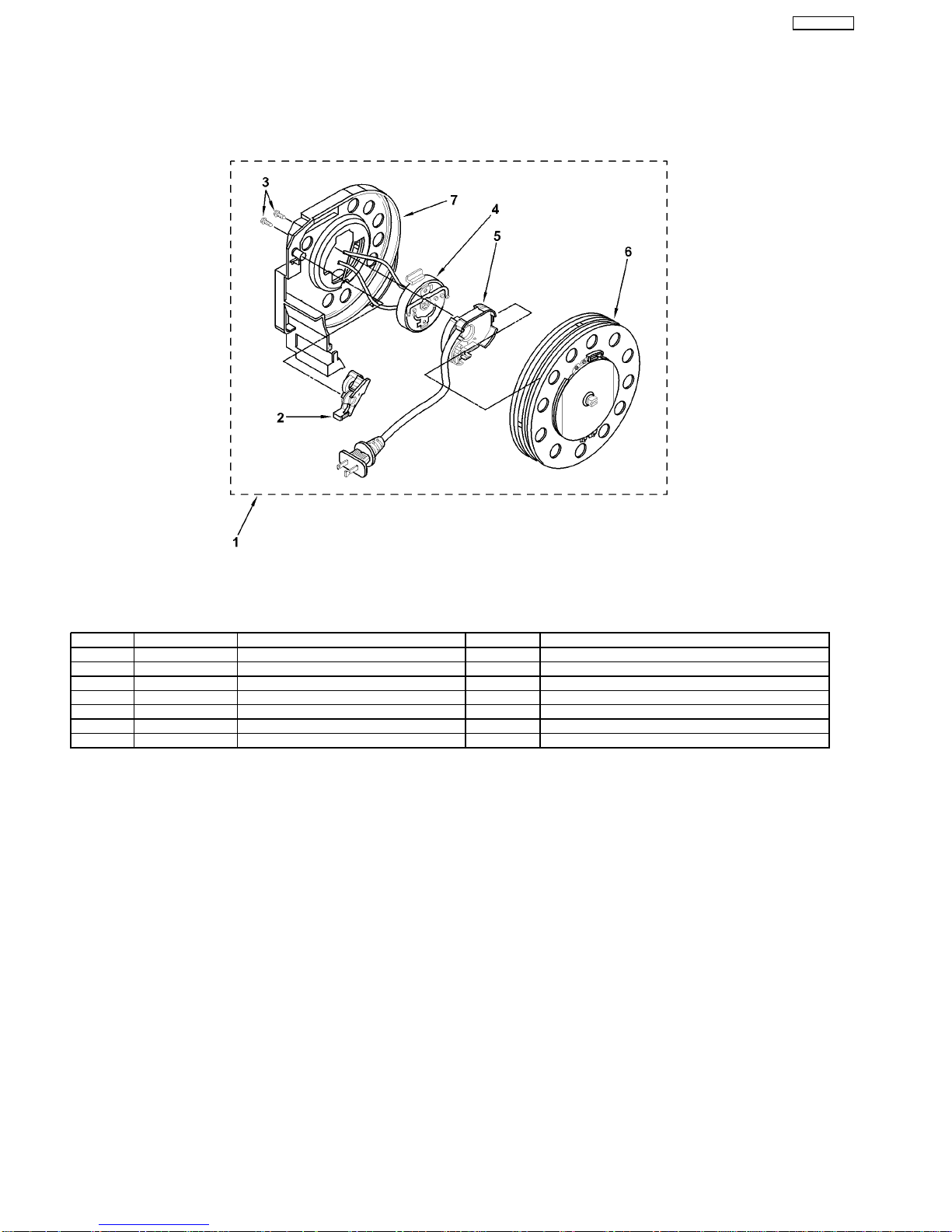

2.4. Cord Reel

2.4.1. Exploded View

2.4.2. Parts List

Ref. No. Part No. Part Name & Description Quantity Remarks

1AC99NCVAZV06 CORD REEL 1

2AC94NAKTZV06 BRAKE LEVER 1

3AXTN4+16BFY SCREW 2SHIPPED 10 PER PACKAGE

4AC19NAVAZ000 CONTACT BASE 1

5AC98NCVAZ000 CONTACT DISC ASSY COMPLETE 1

6AC01NCUHZ000 CORD REEL HUB ASSY COMPLETE 1

7AC04ACUHZV07 CORD REEL BRACKET 1

MC-CG973-00

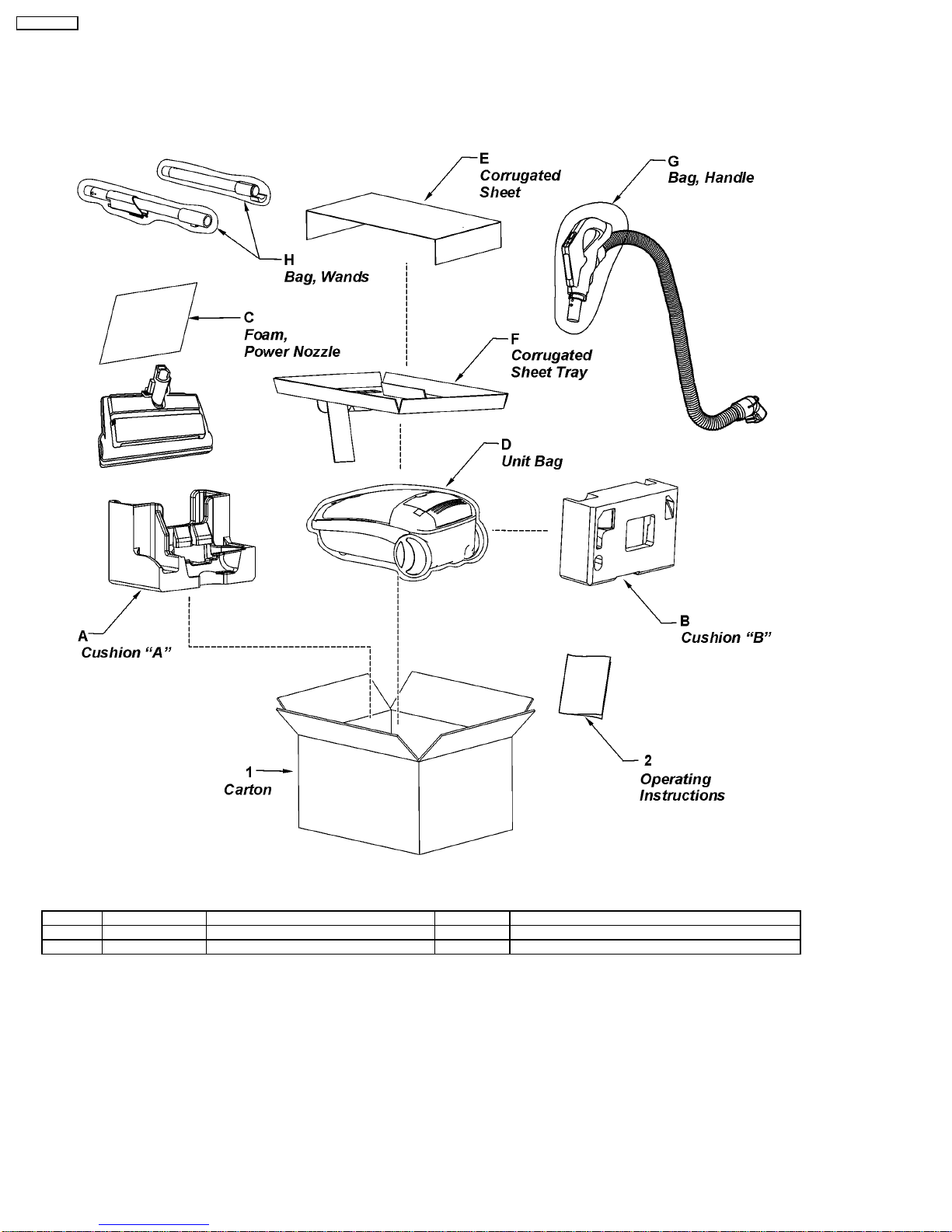

2.5. Packing Materials

2.5.1. Exploded View

2.5.2. Parts List

Ref. No. Part No. Part Name & Description Quantity Remarks

1AC61ZDDJZ000 PACKAGING ASSEMBLY 1INCLUDES ITEMS A - H

2AC01ZDDJZ000 OPERATING INSTRUCTIONS 1

MC-CG973-00
