Panasonic AJ-YA610 Manuale utente
AJ- P
Video Input Recording Board
Operating Instructions
2
Package Contents
OVIDEO I/F board
OROM IC
OWarranty card
OList of Service Centers
OFor information on installing this product, contact your deal-
er or a Panasonic Service Center.
ODo not touch the connector terminals directly with your
hands.
OIf the board will not go in easily, it may be oriented back-
wards. Do not try to force it. Instead, check to make sure
the board’s orientation is correct.
CAUTION:
These servicing instructions are for use by qualified
service personnel only. To reduce the risk of fire or
electric shock do not perform any servicing other
than that contained in the operating instructions
unless you are qualified to do so.
indicates safety information.
Precautions
ODo not touch the product with wet hands.
ODo not drop the product or expose it to bumps or shocks.
ODo not attempt to modify the product.
Doing so could cause it to malfunction.
Compatible Camera-recorder
OAJ-D610WAP
3
Installation in the Camera-recorder
In order to record video input signals, the VIDEO I/F board and
ROM IC (on the VTR SYSCON board) must first be replaced.
To accomplish this, follow the procedure below.
OMake sure the camera-recorder power is off before
beginning the installation procedure.
1Loosen the four screws indicated and remove the side panel
containing the camera-recorder’s display window.
2Loosen the single screw indicated and then remove the
board holder fitting.
Screw
Board holder fitting
Screws
Screws
4
f
d
f

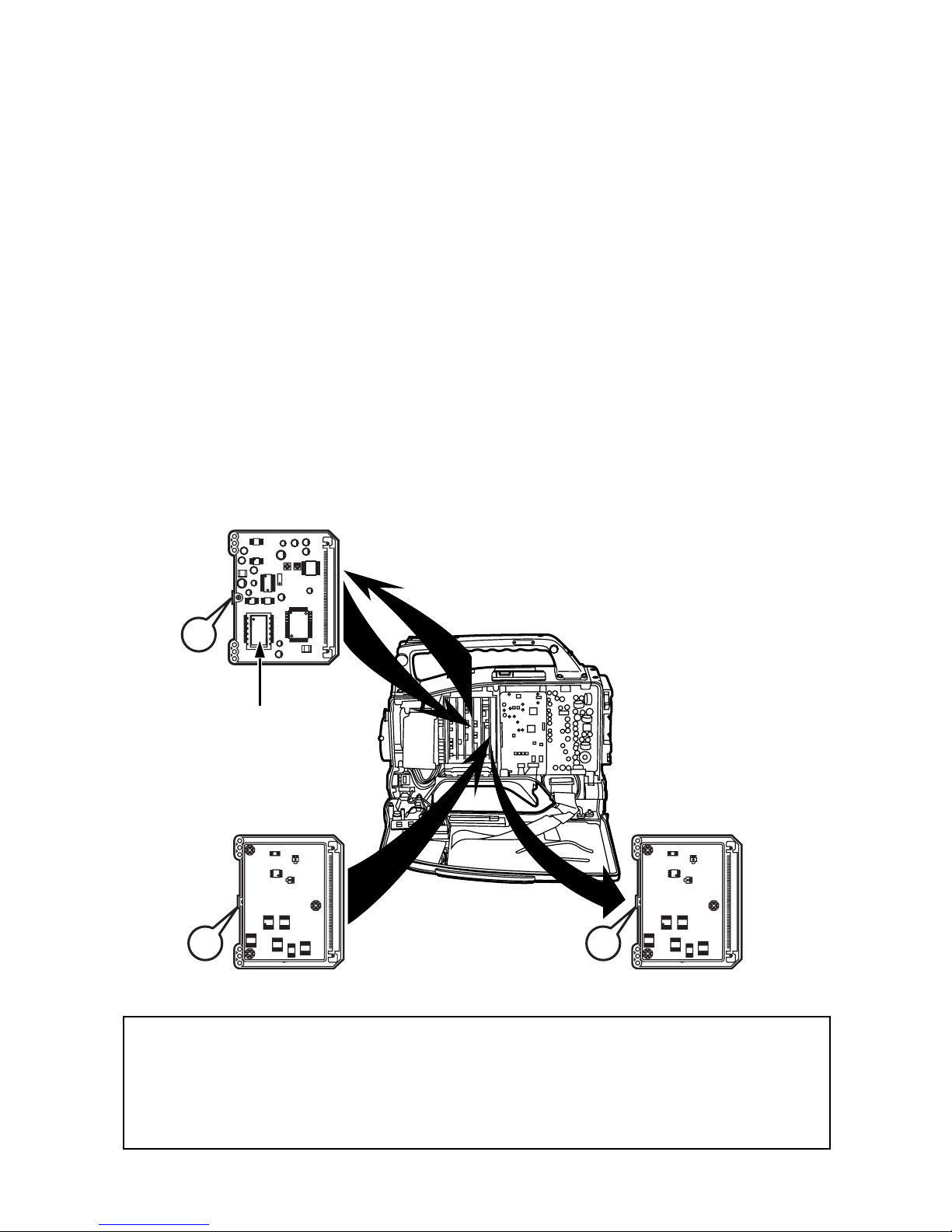

4Remove the VTR SYSCON board
D
and replace the ROM
IC (IC6) mounted on it with the ROM IC supplied as part of
this product.
5After replacing the ROM IC, reinstall the VTR SYSCON
board
D
in the camera-recorder.
6Engage the board holder fitting and replace the side panel.
(Secure both in place using the screws.)
3Remove the VIDEO I/F board
f
installed in the camera-
recorder and replace it with the VIDEO I/F board
f
supplied
as part of this product.
VTR SYSCON board
Replace ROM IC.
Replace VIDEO I/F board.
OThe camera-recorder will require adjustment after the
product is installed. For details on the necessary
adjustments, contact your dealer or a Panasonic
Service Center.
By installing this product in the AJ-D610WAP camera recorder
the REC SIGNAL item will appear on the REC
(ASPECT)/RET screen menu.
MAIN Menu Screen 3 of 4 (SUB menus)
REC (ASPECT)/RET screen
Item Variable
range Remarks
REC SIGNAL CAM
VIDEO
VF dis-
play
USER
ENG
This selects the video input sig-
nals.
CAM: Signals input from the
camera.
VIDEO: Signals input from the
GENLOCK IN connec-
tor.
<Note>
Even when VIDEO has been
selected as the REC SIGNAL
item setting, the setting will
revert to CAM when the power is
turned off and then turned back
on.
n
< REC(ASPECT)/RET >
REC SIGNAL :CAM
REC MODE :4
¢
3/25M
RET SW :REC CHECK
5
PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY
DIVISION OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA
Executive Office:
3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500
EASTERN ZONE:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621
Southeast Region:
1225 Northbrook Parkway, Ste 1-160, Suwanee, GA 30024 (770) 338-
6835
Central Region:
1707 N Randall Road E1-C-1, Elgin, IL 60123 (847) 468-5200
WESTERN ZONE:
3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500
Government Marketing Department:
52 West Gude Drive, Rockville, MD 20850 (301) 738-3840
Broadcast PARTS INFORMATION & ORDERING:
9:00 a.m. – 5:00 p.m. (EST) (800) 334-4881/24 Hr. Fax (800) 334-4880
Emergency after hour parts orders (800) 334-4881
TECHNICAL SUPPORT:
Emergency 24 Hour Service (800) 222-0741
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010
Panasonic de Mexico S.A. de C.V.
Av angel Urraza Num. 1209 Col. de Valle 03100 Mexico, D.F. (52) 1 951 2127
Panasonic Sales Company
Division of Matsushita Electric of Puerto Rico Inc.
San Gabriel Industrial Park, 65th Infantry Ave., Km. 9.5, Carolina, Puerto Rico
00630 (787) 750-4300
Printed in Japan
VQT9074
F1100W @P
