Panasonic NA-120VX7 Guida del prodotto

Operating & Installation

Instructions

Washing Machine

(Household Use)

Model No.

NA-120VX7

Thank you for purchasing this product.

- Read these instructions carefully for optimum

performance and safety before use.

- Keep this manual for future reference.

Contents

SAFETY P RECAUTIONS 4

Before Using 8

Washing 14

Optional Functions 22

Maintenance 27

Troubleshooting 30

Installation / Others 34

AWW9901A5MA0-0B0

Before Using

SAFETY PRECAUTIONS

Washing

Optional Functions

Safety Precautions ...........4

Checking Your Washing

Machine....................8

BeforeWashing..............9

ControlPanel...............10

Detergent..................12

Washing Basic Method ........14

ProgrammeList.............16

Details of Programmes .......18

Washing Tips...............20

Changing Programme

Settings ...................22

yChanging the temperature

[WaterTemp]...........22

yChanging the water level

[WaterLevel]...........22

yChanging the spin speed

[Spin Speed]...........23

ySetting the programme

end time

[Preset]................23

Washing with Optional

Functions..................24

ySelect and run processes

[Mode]................24

yPrewash

[Prewash].............24

yRinse thoroughly

[Extra Rinse]............25

ySterilise the laundry

[Blue Ag+ (Max. 3 kg)]....25

Contents

NA-120VX6_EN(HK).indd 2 2017-10-12 17:15:54

Maintenance

Troubleshooting

Installation / Others

(Ask the installation to service

person)

Changing Appliance

Settings...................26

yCancelling the buzzer .......26

ySetting the Child Lock

[Child Lock]...............26

yCancelling the “Active Foam”

function..................26

Maintenance ...............27

yWater supply filter..........27

yIf the water supply hose is

frozen...................27

yAppliance................28

yDrum....................28

yDetergentdrawer..........28

yDrain filter . . . . . . . . . . . . . . . . 29

Troubleshooting.............30

Error Display ...............33

Choosing the Right Location. . . 34

Moving and Installing.........35

Connecting the Hoses........37

Checking after Installation.....39

Power and Water

Consumption...............41

Specifications..............42

NA-120VX6_EN(HK).indd 3 2017-10-12 17:15:54

Safety Precautions

Read and follow these safety precautions.

May cause serious injury or death.

For the safety of you and your family

zThis appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowl-

edge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety.

zChildren should be supervised to ensure that they do

not play with the appliance.

zKeep away from fire. Do not put flammable materials

or clothes with such things attached in the drum. Keep

them away from the appliance. (To prevent explosion

RU¿UH

For example: Kerosene, gasoline, benzine/thinner,

alcohol, etc.

zTo prevent injury, do not touch the drum until it com-

pletely stops.

Ground the appliance

zBe sure to have your dealer perform grounding work.

If not provided a ground, electric shock may occur in

electric leakage

WARNING

NA-120VX6_EN(HK).indd 4 2017-10-12 17:15:55

SAFETY PRECAUTIONS

To prevent electric shock, overheating,

FRPEXVWLRQRU¿UH

z8VHDVRFNHWWKDWVDWLV¿HVWKHUDWLQJUHTXLUHPHQWVROHO\

for this appliance. Do not use a plug adaptor or exten-

sion cord.

zDo not use a power cord or plug that is damaged. If

the power cord is damaged, it must be replaced by the

PDQXIDFWXUHULWVVHUYLFHDJHQWRUVLPLODUO\TXDOLILHG

persons in order to avoid a hazard.

zDo not plug in or unplug the power cord with wet

hands.

zAlways fully insert the power plug into the socket.

zDo not hold or pull on the cord when removing the plug

from the socket.

zUnplug the power cord before cleaning.

Repairs

zNever disassemble, repair or modify the appliance

yourself.

In case of malfunction or failure, immediately stop use,

unplug the power cord, and ask your nearest service

centre for repair.

WARNING

NA-120VX6_EN(HK).indd 5 2017-10-12 17:15:55

Safety Precautions(continued)

CAUTION

May cause injury or property damage.

Correct use

zThis appliance is only suitable for textiles labelled

washing machine washable.

zDo not connect to a hot water supply.

zDo not obstruct the openings of the bottom face with

carpet, etc.

To prevent water leaks

zNew hose-sets supplied with the appliance are to be

used and old hose-sets should not be reused.

zTurn off the tap if the appliance is not going to be used

for a prolonged period, such as during a holiday. Water

could leak while you are away and cause damage to

household goods.

To prevent injury and burns

z.HHS\RXU¿QJHUVDZD\IURPWKH

door hinge when opening and

closing the door.

zDo not climb onto the appliance. Hinge

NA-120VX6_EN(HK).indd 6 2017-10-12 17:15:55

SAFETY PRECAUTIONS

zWhen washing at high temperature, be careful not to

burn yourself. Drain hose, drum, door glass, and laun-

dry will be hot.

To prevent damage to the appliance and laundry

zDo not operate the appliance with the anchor bolts still

¿WWHG7KLVPD\FDXVHH[FHVVLYHYLEUDWLRQRIWKHDSSOL

ance.

zDo not wash clothes that are

stained with a lot of vegetable

oil, cosmetic oil, etc. The oil can

get hot and deform the door

seal, leading to water leakage.

zDo not wash, rinse, or spin waterproof sheets or

clothes.Intense vibration during spin or falling of the

appliance may result in injury, damage to the main unit,

ZDOOÀRRUODXQGU\RUZDWHUOHDNDJH

For example: Raincoats, wet suits, etc.

CAUTION

NA-120VX6_EN(HK).indd 7 2017-10-12 17:15:55

Checking Your Washing Machine

Adjustable feet

(P. 36)

Drain hose

(P. 37, 38)

Power cord and plug*

*The plug shape varies

with the region.

Water inlet (P. 38)

Anchor bolts

(P. 36)

(Rear of appliance)

Accessories

Detergent drawer (P. 12)

Hinge 'UDLQ¿OWHUFRYHU

(P. 29)

Door seal

Drum

(Washing/spin-drying

tub)

Control panel

(P. 10)

Door

Elbow (P. 38) Cover caps (4) (P. 36)

Water supply hose

(P. 37, 38)

Bottom plate (P. 35)

NA-120VX6_EN(HK).indd 8 2017-10-12 17:15:59

Before Using

Before Washing

Check before use

:KHQ¿UVWXVLQJRUDIWHUDORQJWLPHRI

idling, check the following.

zThe water supply hose and drain

hose are connected properly.

(P. 37, 38)

zThere is no problem in the water

supply hose connection, when

turning on the tap.

zThe power plug is plugged in.

%HIRUH¿UVWXVH

There may be drops of water, or

condensation, in the appliance due to

the factory inspection process before

shipment. To rinse away any residues

etc., operate as follows:

- “Cotton” programme

- Default setting 40 °C

- No detergent, no clothing

Preparing laundry

Read the washing labels of clothes,

and sort them by colour, fabric, and

degree of soiling. This helps you

choose a suitable programme and

temperature.

Stained items

zApply stain remover to any stains.

z“StainMaster+” programmes

(P. 17) are recommended for

removing stains.

Sorting

zWash separately clothes that

are not colour fast. (denim, dark

coloured items, etc.)

Before putting clothes in drum

To prevent damaging clothes or

malfunctioning of the appliance, carry

out the following steps.

zRemove foreign objects (coins,

pins, clips, nails) from laundry.

zTie strings on aprons, etc.

zClothing with raised fabric: Turn

inside out.

zClothing with zippers: Pull up

zippers, and turn inside out.

zSmall items, wired bras, and lace

items: Put in a laundry net.

zBrush off hair, animal fur, sand etc.

before washing

zHeavy dirt or deep stains: Wash

OLJKWO\E\KDQG¿UVW

NA-120VX6_EN(HK).indd 9 2017-10-12 17:15:59

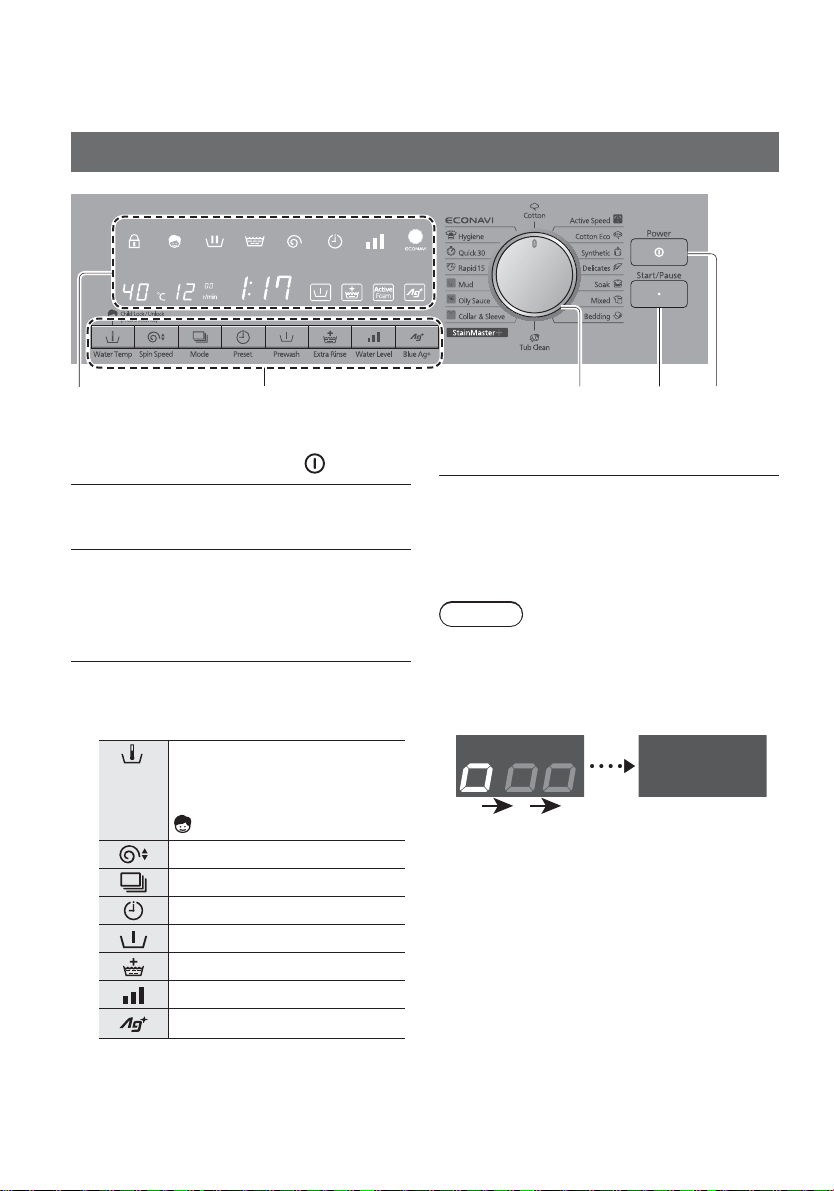

Control Panel

Controls

2354 1

1. Power button [Power ]

2. Start/Pause button [Start/Pause]

To start or pause the operation.

3. Programme selection dial

Use this dial to choose a

programme suitable for the

laundry. (P. 16)

4. Control buttons

To change washing settings or to

select optional functions.

Water temperature

(P. 22)

Child Lock*1 (P. 26)

Spin speed (P. 23)

Mode (P. 24)

Preset (P. 23)

Prewash (P. 24)

Extra Rinse (P. 25)

Water Level (P. 22)

Blue Ag+(P. 25)

5. Display (P. 11)

*1Child Lock: Press and hold the

button for at least 5 seconds to lock

the door and other buttons.

NOTE

zTo turn the power off and back on,

press “Power” to switch off and

make sure the display has gone off,

before turning back on.

For about

3 seconds Goes off

zIf you do not press “Start/Pause”

within 10 minutes of powering on

the unit, the appliance automatically

switches itself off.

NA-120VX6_EN(HK).indd 10 2017-10-12 17:16:00
