WASHING MACHINE

NA-149MG4*

* LAS LAE/LSA-Silver

* WAS/WAE/WSA-White

Safety Instructions

Safety Instructions ..................................................

Installation

Product Description ................................................

Installation ...........................................................

Operations

Quick Start .............................................................

Before Wash ..........................................................

Detergent Dispenser ...............................................

Control Panel .........................................................

Option....................................................................

Other Functions ......................................................

Programs ..............................................................

Wash Program Table ...............................................

Maintenance

Clean And Care .....................................................

Troubleshooting ....................................................

Technical Specifications .........................................

CONTENTS

SAFETY INSTRUCTIONS

Safety Instructions

• This appliance is not intended for use by

persons(including children) with reduced

physical,sensory or mental capabilities or lack of

experience and knowledge unless they have been

given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do

not play with the appliance.

• If the power cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

• Should use the new water inlet hose set which supplied

with product. Don’t reuse old hose set.

• The openings must not be obstructed by a carpet.

• This appliance is intended to be used in household

and similar applications such as:

− staff kitchen areas in shops, offices and other

working environments;

− farm houses;

− by clients in hotels, motels and other residential type

environments;

− bed and breakfast type environments;

− areas for communal use in blocks of flats or in

launderettes.

For your safety,the information on this manual must be followed

to minimize the risk of fire or explosion, electric shock, or to

prevent property damage, personal injury or loss of life.

Explanation of symbols:

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

• If the power cord is damaged, it must be replaced by the

The electric shock!

SAFETY INSTRUCTIONS

Safety Instructions

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

death or serious injuries unless it’s avoided.

Warning!

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

slight or minor injuries.

Note!

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

slight or minor injuries or damage to property and the

environment.

Caution!

Warning!

• The new hose-sets supplied with the appliance are to be

used and that old hose-sets should not be reused.

• Before any maintenance , must unplug the appliance

first.

• Always unplug the machine and turn off the water

supply after use.

• Plug must be accessible after installation.

• Pull out its plug and cut off water supply after the

operation.

• Take care that power voltage and frequency shall be

identical to those of washing machine.

• Glass door may be very hot during the operation. Keep

kids and pets far away from the machine during the

operation very wet rooms as well as in the rooms with

explosive or caustic gas.

• Remove all packages and transport bolts before using

the appliance. Otherwise, serious damage may result.

• The washing machine with single inlet valve only can

be connected to the cold water supply. The product

with double inlet valves should be correctly connected

to the hot water and cold water supply.

• To ensure your safety, power plug must be inserted into

an earthed three-pole socket. Check carefully and make

sure that your socket is properly and reliably earthed.

• Make sure that the water and electrical devices must

be connected by a qualified technician in accordance

with the manufacturer's instructions and local safety

regulations.

SAFETY INSTRUCTIONS

Risk of explosion!

•

Do not wash or dry articles that have been cleaned in, washed

in, soaked in, or dabbed with combustible or explosive

substances( such as wax, oil, paint, gasoline, degreasers,

dry-cleaning solvents, kerosene, etc.) This may result in

fire or explosion.

Before hand thoroughly rinse items of washing by hand.

• This washing machine is for indoor use only.

Installing the product!

• Do not use any socket with rated current less than that

of appliance.Never pull out power plug with wet hand.

Risk to children!

This appliance is not intended for use by persons

(including children) with reduced

•

physical, sensory or

mental capabilities or lack of experience and knowledge

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety.

• Children of less than 3 years should be supervised to

ensure that they do not play with appliance.

• Animals and children may climb into the machine. Check

the machine before every operation.

• Kids should be supervised that they do not play with the

appliance.

SAFETY INSTRUCTIONS

Caution!

• It isn't intended to be built-in using.

• The openings must not be obstructed by a carpet.

• Washing machine shall not be installed in bath room or

very wet rooms as well as in the rooms with explosive

or caustic gases.

• Remove all packages and transport bolts before using

the appliance. Otherwise, serious damage may result.

• The washing machine with single inlet valve only can be

connected to the cold water supply. The product with

double inlet valves should be correctly connected to the

hot water and cold water supply.

• Plug must be accessible after installation.

Risk of damaging appliance!

• Your product is only for home use and is only designed

for the textiles suitable for machine washing.

• Do not climb up and sit on top cover of the machine.

• Do not lean against machine door.

• Cautions during Handling Machine:

1.Transport bolts shall be reinstalled to the machine by

a specialized person.

2.The accumulated water shall be drained out of the

machine.

3.Handle the machine carefully. Never hold each protruded

part on the machine while lifting. Machine door can

not be used as the handle during the conveyance.

4.This appliance is heavy. Transport with care.

5.A precaution indicates that the hands shall not be

inserted into running water-extracting tub.

SAFETY INSTRUCTIONS

Operating the appliance!

• Before washing the clothes at first time, the product

shall be operated in one round of the whole procedures

without the clothes inside.

• Flammable and explosive or toxic solvents are forbidden.

Gasoline and alcohol etc.shall not be used as detergents.

Please only select the detergents suitable for machine

washing, especially for drum.

• Make sure that all pockets are emptied. Sharp and rigid

items such as coin,brooch,nail,screw or stone etc. may

cause serious damages to this machine.

• Please check whether the water inside the drum has

been drained before opening its door.Please do not open

the door if there is any water visible.

• Be careful of burning when the product drains hot

washing water.

• Never refill the water by hand during washing.

• After the program is completed, Please wait for two

minutes to open the door.

6.A precaution indicates that the appliance shall not

be installed at a humid place.

• Please do not close the door with excessive forces. If it

is found difficult to close the door, please check if the

clothes are put in or distributed well.

• It is forbidden to wash carpets.

SAFETY INSTRUCTIONS

• Carpet does not obstruct the openings for washing machines

with ventilation openings in the base. 

Accessories

Product Description

Transport

hole plug Supply hose

cold water

Screws

• The product line chart is for reference only, please refer to real product as

standard.

Note!

Drum

power cord

Control panel

Detergent dispenser

Service filter

Door

Water supply hose

Top cover

Drain hose

Owner’s manual

Rat resistance panel

with sticky tape

INSTALLATION

Installation

Before installing the machine, the location characterized

follows shall be selected:

1.Rigid, dry, and level surface

2.Avoid direct sunlight

3.Sufficient ventilation

4.Room temperature is above 0℃

5.Keep far away from the heat resources such as coal or gas.

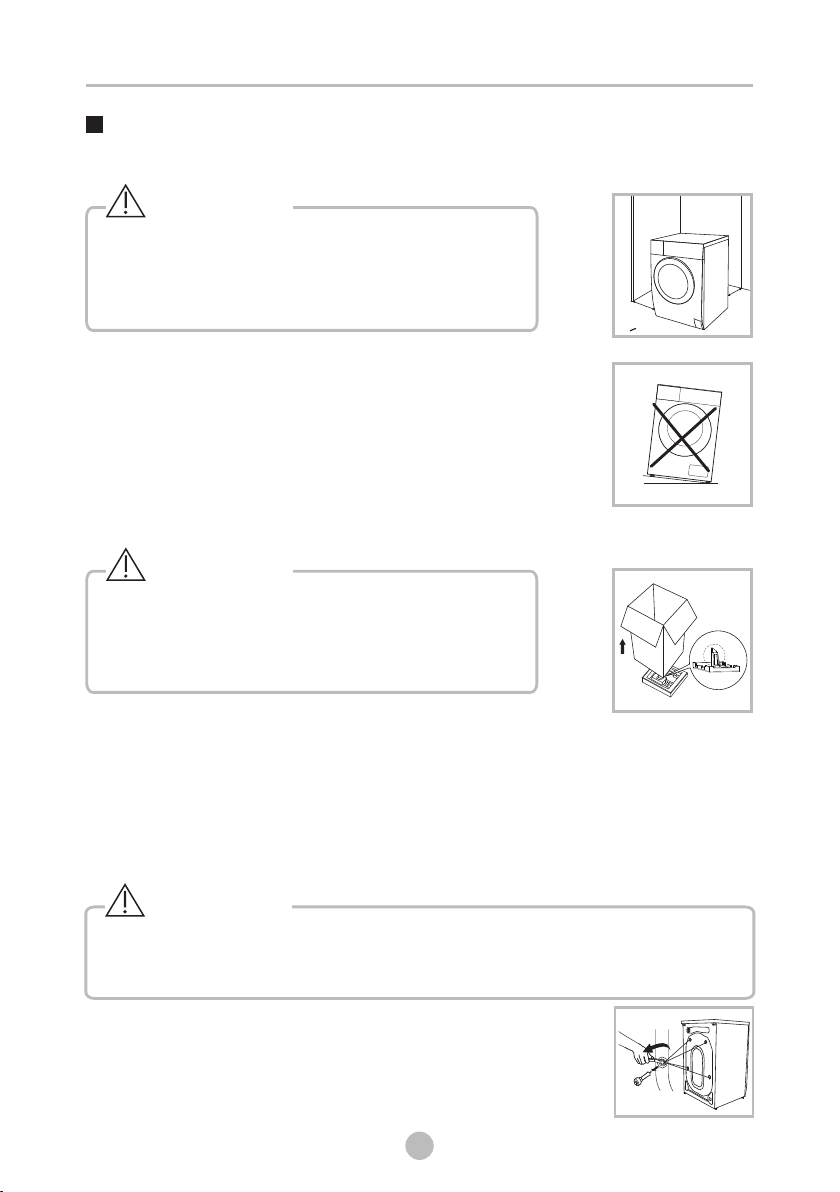

Unpacking the washing machine

1. Remove the carton box and styrofoam packing.

2. Lift the washing machine and remove the base packing.

3. Remove the tape securing the power cord and drain hose.

4. Remove the inlet hose from the drum.

Make sure the small triangle

foam is removed with the bottom one together. If not, lay the unit down with side

surface, then remove the small foam from the unit bottom manually.

Please take the following steps to remove the bolts:

1.Loosen 4 bolts with spanner and then remove them.

2.Stop the holes with transport hole plugs.

3.Keep the transport bolts properly for future use.

Remove transport bolts

•

Stability is important to prevent the product from

vibration!

Make sure that the product should not stand on

the power cord.

Warning!

•

Packaging material (e.g. Films, Styrofoam) can be

dangerous for children.

There is a risk of suffocation ! Keep all packaging

well away from children.

Warning!

•

You must remove the transport bolts from the backside before using the product.

If the bolts are not removed they may cause heavy vibration, noise and

malfunction.

Warning!

INSTALLATION

W> 20 mm

Installation area

Indice

Altri manuali Panasonic Rondella

Panasonic

Panasonic NA-W120G1 Manuale utente

Panasonic

Panasonic NA-F135A5WSA Guida del prodotto

Panasonic

Panasonic NA-F953B Istruzioni operative

Panasonic

Panasonic NA-148VB3 Manuale utente

Panasonic

Panasonic NA-140VS4 Manuale utente

Panasonic

Panasonic NA-F70A7 Guida del prodotto

Panasonic

Panasonic NA-F75S6 Guida del prodotto

Panasonic

Panasonic NA-F70B1 Manuale utente

Panasonic

Panasonic NA-F80VB7 Guida del prodotto

Panasonic

Panasonic NA-F70B5 Guida del prodotto

Panasonic

Panasonic NA-F75S7 Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

Panasonic

Panasonic NA-FD10X1 Guida del prodotto

Panasonic

Panasonic NA-127VB6WAE Manuale utente

Panasonic

Panasonic NA-107VC5 Istruzioni operative

Panasonic

Panasonic NA-127VB4 Manuale utente

Panasonic

Panasonic NA-FS95A1WAU Guida del prodotto

Panasonic

Panasonic NA-F100A9 Guida del prodotto

Panasonic

Panasonic NA-107VC4W01 Manuale utente

Panasonic

Panasonic NA-140VZ4 Istruzioni operative

Panasonic

Panasonic NA-FS16X3 Manuale utente

Panasonic

Panasonic NA-FS80X1 Manuale utente

Panasonic

Panasonic NA-V11FX2 Guida del prodotto

Panasonic

Panasonic NA-F65A8P Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente

Beko

Beko WKB 51231 PTMA Manuale utente
