Panasonic NA-F95AR1 Guida del prodotto
Thank you for purchasing this product.
- Read these instructions carefully for optimum
performance and safety before use.
- Keep this manual for future reference.
AWW9901C91C0-0C0
A0421-0(NZ)
Printed in Vietnam
04-2021
Operating & Installation Instructions
Fully Automatic Washing Machine
(Household Use)
Model No. NA-F95AR1
NA-F85AR1
AWW9901C91C0-0C0
Contents
Safety Precautions 2
Part Names
/
Accessories
6
Before Washing 7
Operation Panel 8
Washing 9
Variety of Programs 10
Detergent / Softener / Bleach
12
Washing Options
• Preset
• Wash / Rinse / Spin
• Delicate
• Bedding
• Stain Master
• Cotton Eco
• Air Dry (90 min)
14
Convenient Functions 18
Contents of Programs 19
Maintenance 20
Installation 24
Error Display 28
Troubleshooting 30
Specifications 32
2
Safety Precautions
May cause serious injury or death.
WARNING

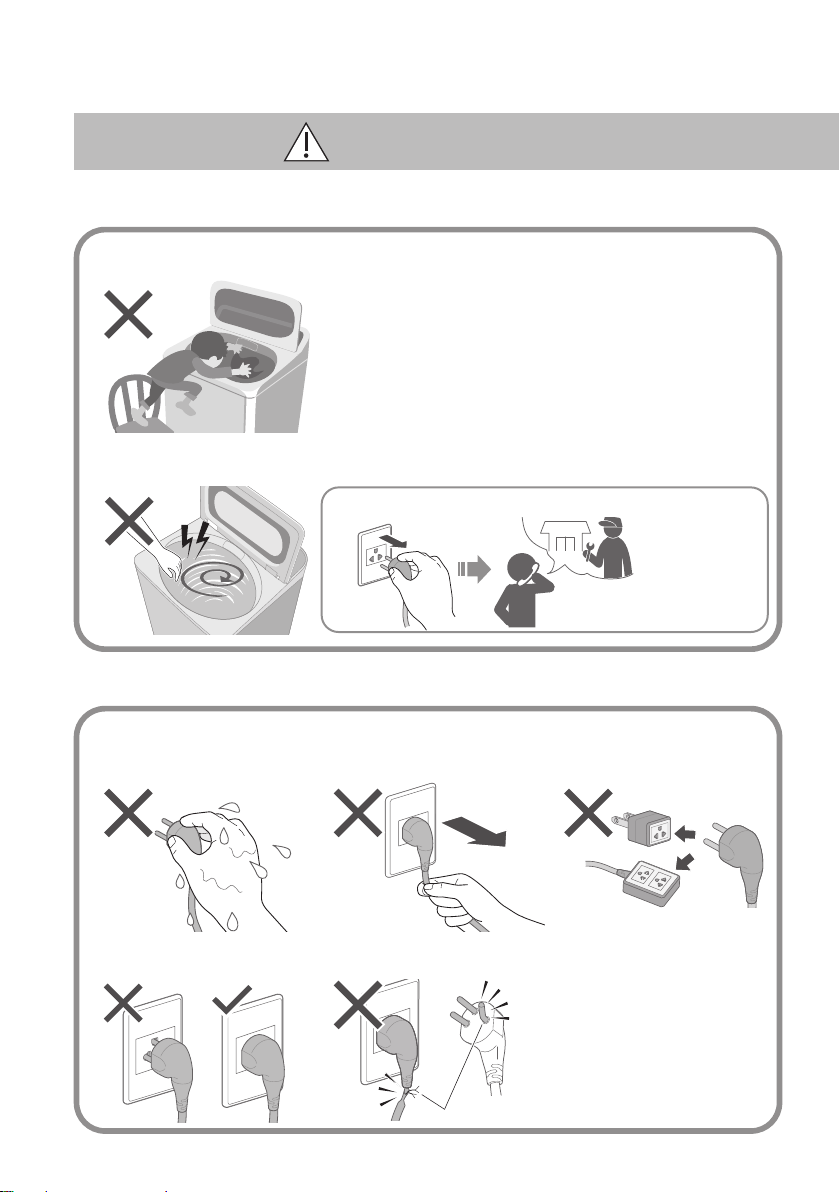

Children must not use it alone.
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
zChildren should be supervised to ensure that they do
not play with the appliance.
Do not touch the tub until it stops.
zIf the tub does not stop within 15 sec:
May cause fire or electric shock.
Do not touch it
with wet hands.
Do not hold or
pull on the cord.
Do not use.
Fully insert it. Do not use.
zIf the power cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons
in order to avoid a hazard.
Damaged
Plug adaptor
Extension cord
3
WARNING

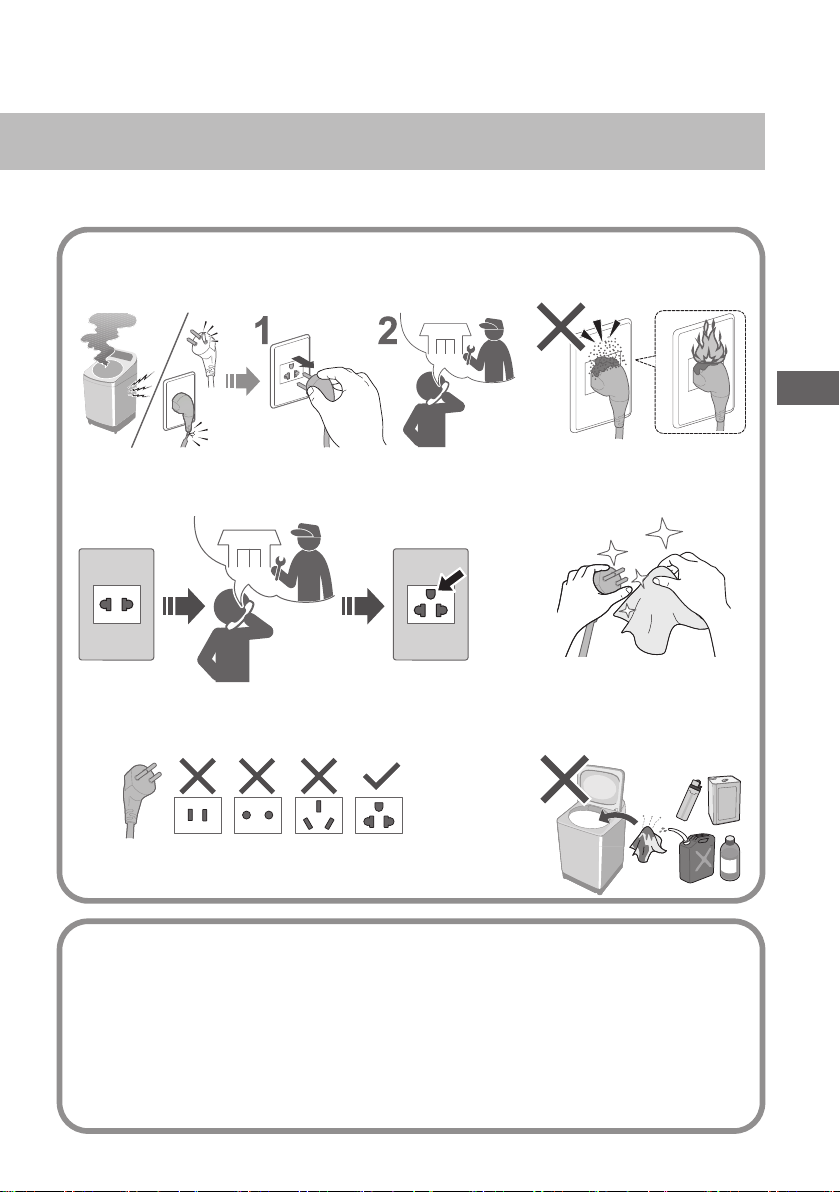

In case of failure or damaged power cord,
stop use and ask the electrical technician.
Accumulated dust
may cause fire.
Securely insert the ground prong.
Ask the electrical technician for a new socket.
Wipe the power plug
periodically.
Use a socket appropriate for this
appliance.
Keep away from
flammable materials.
e.g.)
zThe plug shape, socket shape and rating
requirement vary with the region.
External water heater safety
zUnder certain conditions, hydrogen gas may be produced in your hot water heater
that has not been used for two weeks or more. Hydrogen gas can be explosive
under these circumstances. To prevent the possibility of damage or injury, you
should turn on all hot water faucets in your home, and let the water ow out for
several minutes before connecting to your washer. This will allow any built-up
hydrogen gas to escape. Since hydrogen gas is ammable, do not smoke or use
an open ame or start appliance during this process.
4
Safety Precautions (continued)
CAUTION
May cause injury.

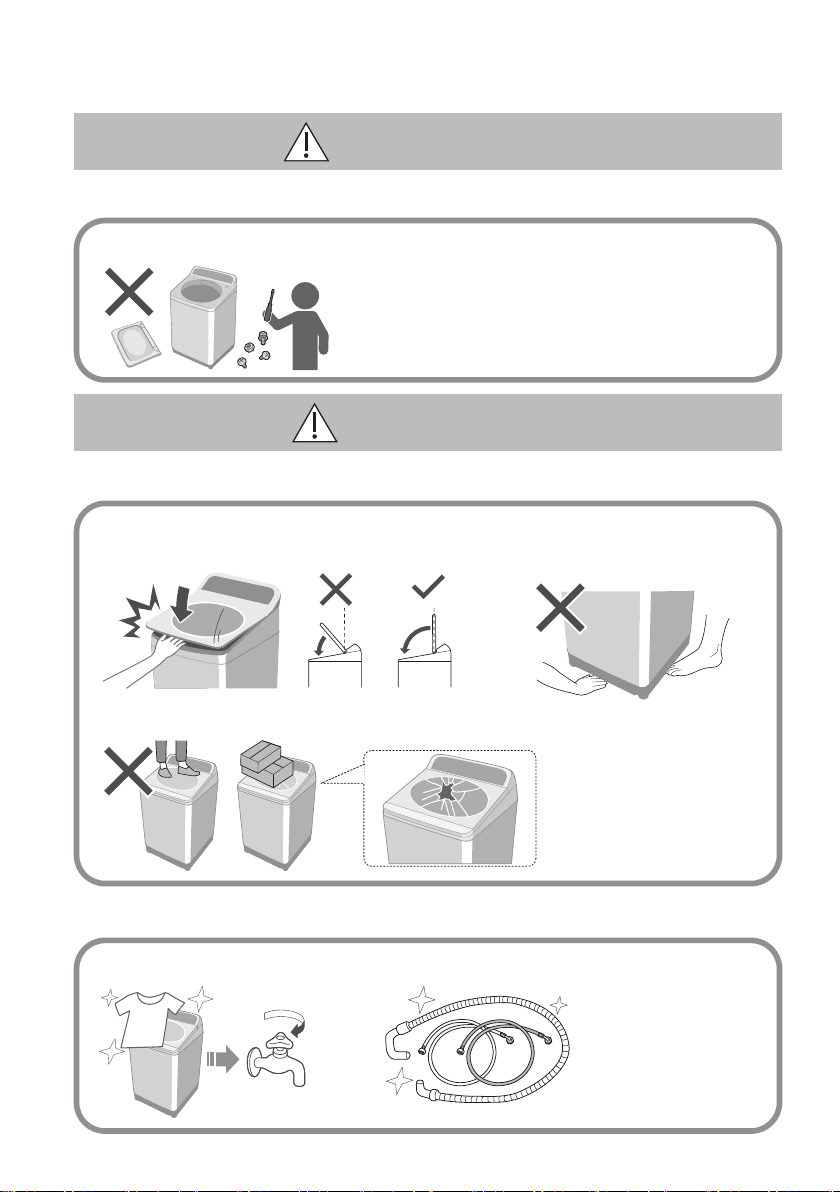

Be careful not to get your fingers
caught.
Be careful of your
hands and feet.
Do not climb or put objects on the appliance.
May cause water leakage.
Turn off the water faucet. Use new hose-sets.
zNew hose-sets
supplied with the
appliance are to be
used and old hose-sets
should not be reused.
zIf the lid is broken,
immediately stop using.
May cause failure.
Do not disassemble, repair or modify it by yourself.
WARNING
5
For maximum mass of dry cloth and pressure of tap water, see page 32.
May cause failure.

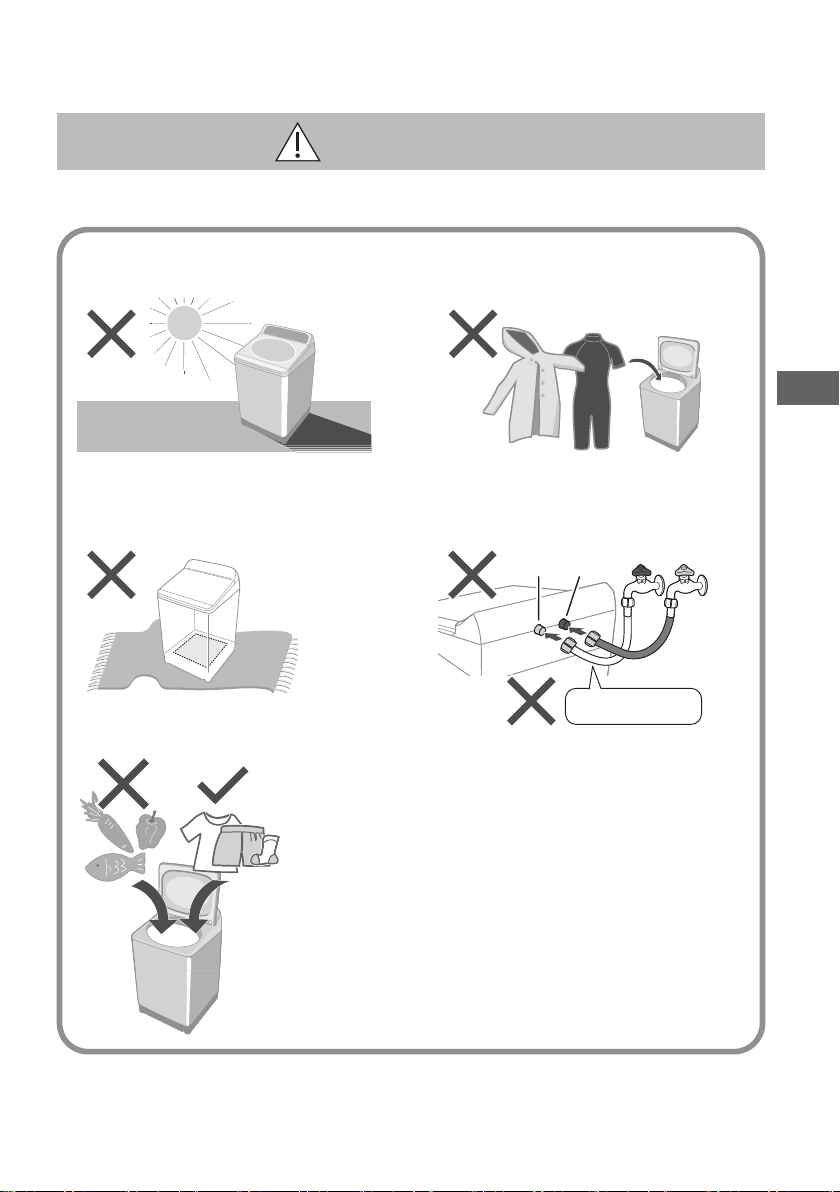

Keep away from heat and direct
sunlight.
Do not wash waterproof
items.
Raincoats, wet suits, etc.
Do not obstruct.
Do not incorrectly attach HOT/
COLD water supply hoses.
zDo not obstruct
the openings of
the bottom face
with carpet, etc.
Cold
Cold Hot
Hot
Over 60 ºC
For Machine-washable items only.
zThis appliance is intended to be used in household.
This appliance is not intended to be used in
applications such as:
- Staff kitchen areas in shops, oces and other
working environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- areas for communal use in blocks of ats or in
launderettes.
CAUTION
6
Part Names / Accessories

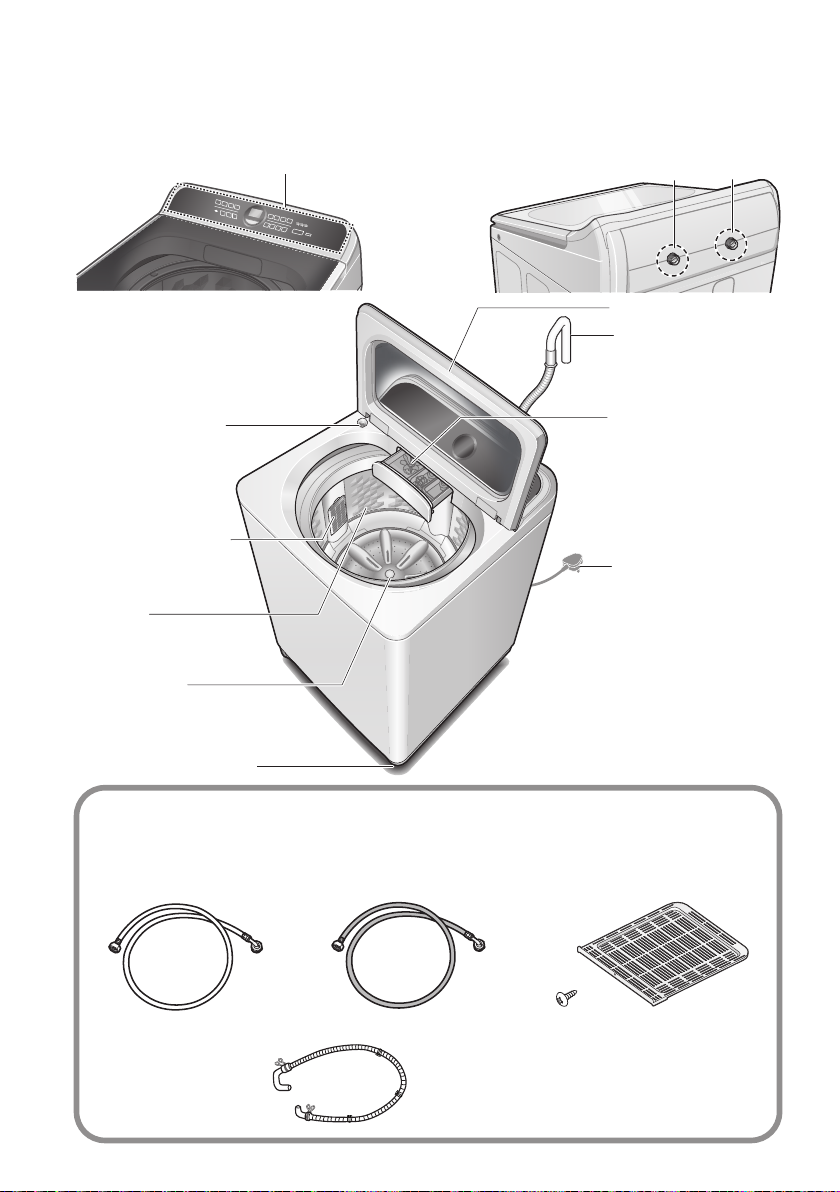

Lint filter (P. 20)
Lid
Leveller (P. 27)
Power cord and
plug* (P. 27)
* The plug shape
varies with the
region.
Detergent and
softener drawer
(P. 12)
Operation panel (P. 8)
Water supply valve (P. 26)
Pulsator
Tub
Hot
Cold
Drain hose (P. 25)
Accessories
Water supply hose
for HOT (White) (1)
(P. 26)
• Length: 1.25 m
Water supply hose
for COLD (Gray) (1)
(P. 26)
• Length: 1.25 m
Bottom cover (1) (P. 25)
Screw (1) (P. 25)
Drain hose (1)
Hose band (2)
(P. 25)
Adjustable leg (P. 27)
7

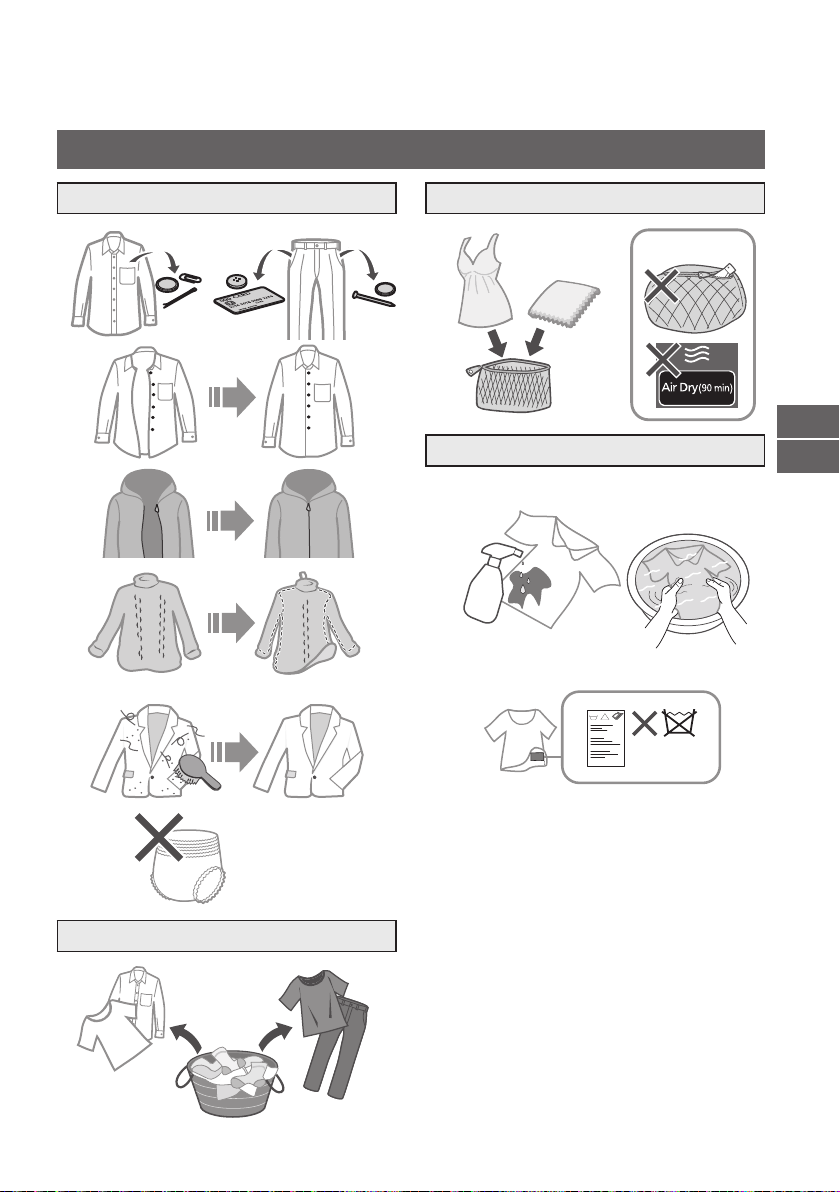

Before Washing
Laundry preparation and check
Use laundry nets for delicates
Overpack
For “Stain Master”
(P. 16)
zPretreatments for heavily stains
zObserve the clothes' care labels
Pre-laundry check
Reverse
Clothes likely to pill
Paper diapers
Wash separately
White
clothes Coloured
clothes
8
Operation Panel
NOTE
zIn case of a power failure.
Operation will resume from where it stopped when the power recovers.
zIf you do not press within 10 minutes after power-on. Auto power off.
Temp Setting
zThe estimated temperature in the tub
(When hot water supply is 60 ºC and cold water supply is 20 ºC.)
Hot: approx. 40 ºC
Warm: approx. 30 ºC
Cold: approx. 20 ºC
zNot available: Air Dry, Cotton Eco, Delicate, Tub Hygiene
Program
selection
(P. 10)
Stain Master
(P. 16)
Power On/Off
Air Dry
(P. 17)
Start/Pause Child Lock
lamp (P. 18)
Water
Level
Preset (P. 10)
Detergent volume
Water level (L) Detergent *2
79 *1 70 65
60 55 50
45
40 35
25
*1 NA-F95AR1: 79 L
NA-F85AR1: 77 L
*2 : 1 scoop of detergent
Water amount
Approx.
5 sec
Remaining time
Refill (P. 19)
Change process
settings (P. 14)
Flashing
(in progress)
9
1
2Preset timer
3Measures the
amount of laundry.
20 sec 5 sec
20 sec
4
(P. 8)
(P. 12)
5

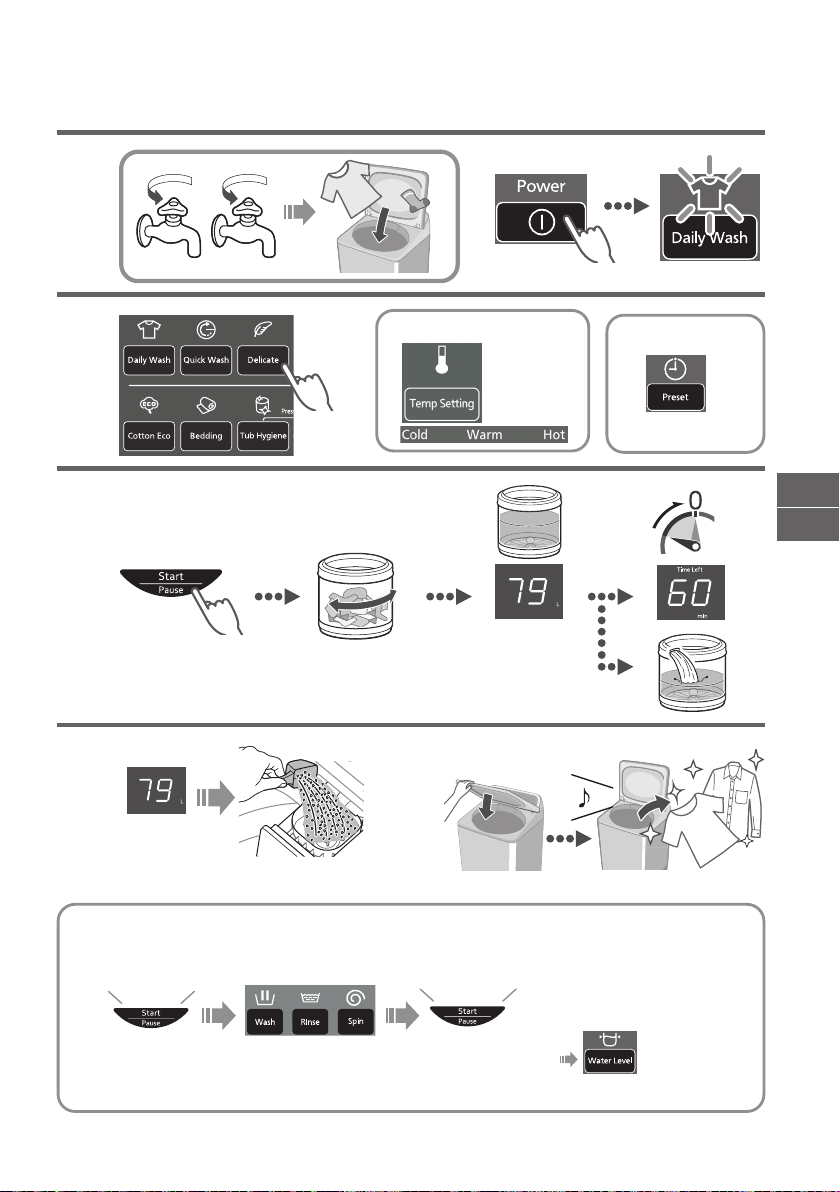

Washing
After pressing “Start”
zTo change each operation (while washing).
Pause Start
zTo check or change the water level (while washing).
zYou cannot change the program.
(P. 14)
Temp Setting
(P. 8)
10
Variety of Programs
Program Purpose
Max.
capacity *
(kg)
Wash
Daily Wash (P. 9)
zEveryday clothes
9.5
8.5
Quick Wash (P. 9)
zFor light soil
9.5
8.5
Delicate (P. 15)
zWashing gently
4.2
Cotton Eco
(P. 17)
zSaving water and energy
9.5
8.5
Bedding (P. 15)
zComforters and blankets
With a machine-washable tag
4.2
