Panduit PN366E Manuale utente

TX6 10GIG

Shielded Jack Module

Page 1 of 2

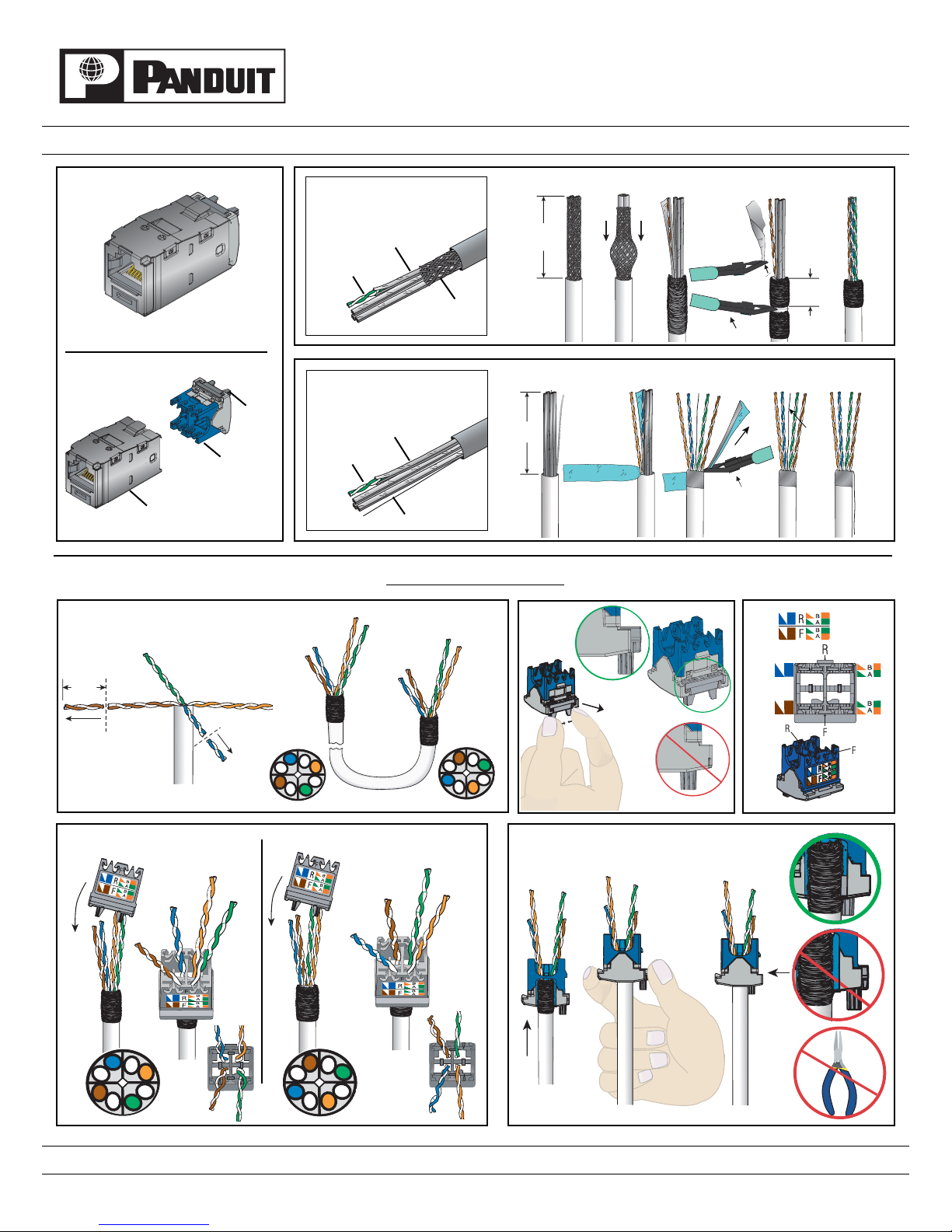

INSTALLATION INSTRUCTIONS PN366E

©Panduit Corp. 2007

For Technical Support: www.panduit.com/resources/install_maintain.asp

Part Number: CJS6X88TG, CJS6X88TGY

.5 in

(12.7 mm)

2.0 in

(50.8 mm)

CWST

Braid

Conductors

Individual Foil

Pair Screen

S-STP / PIMF

Cable

End 1 Cable

End 2

Cable End 1 Cable End 2 6

Pr1

Pr2

Pr3

Pr4

Pr1

Pr2

Pr3

TERMINATION STEPS

(12.7mm)

Jack

Wire Cap

Strain

Relief

Collar

U/FTP

Drain Wire

Conductors

Individual Foil

Pair Screen

2.0 in

(50.8mm)

CWST

Drain

Wire

Page 2 of 2

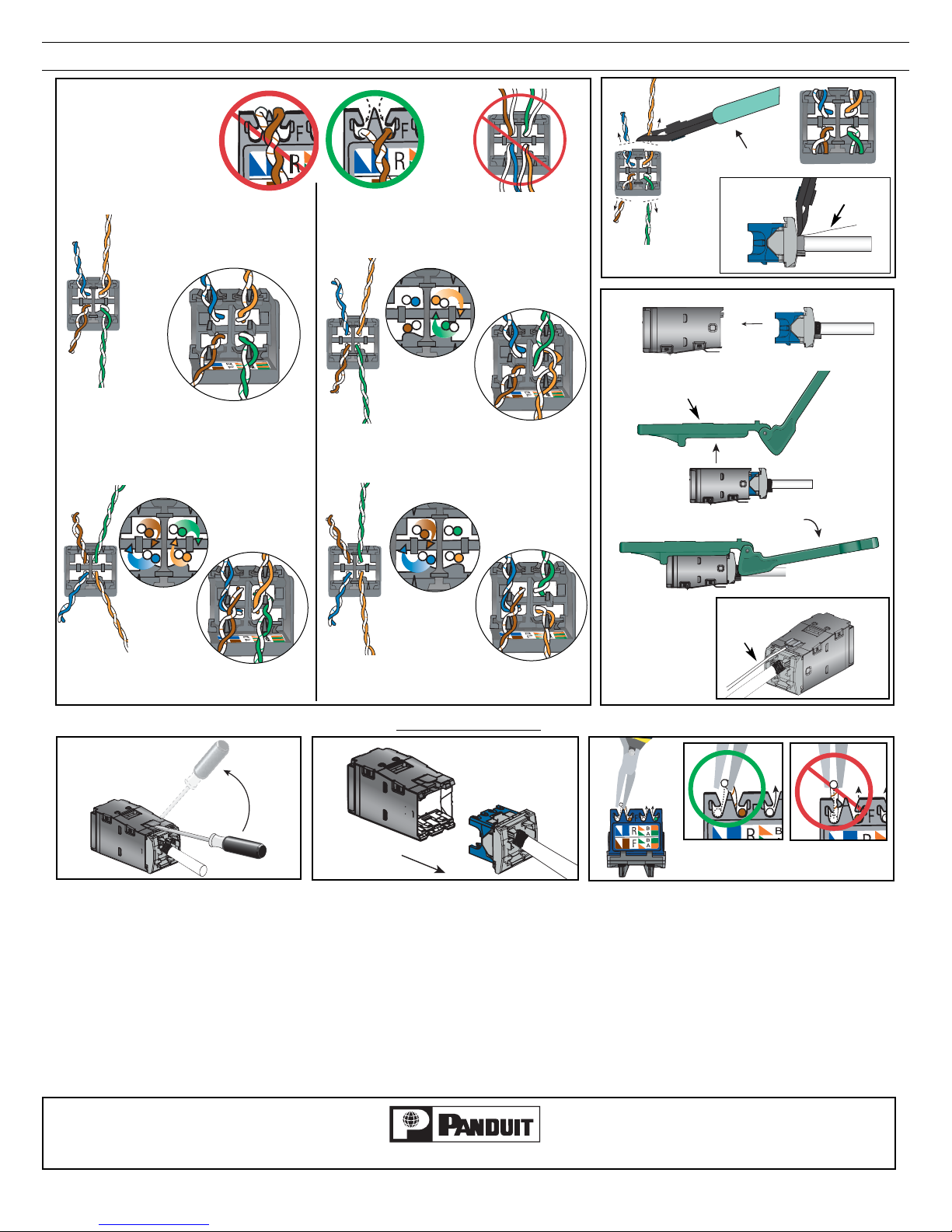

INSTALLATION INSTRUCTIONS PN366E

For Instructions in Local Languages

and Technical Support:

http://www.panduit.com/resources/install_maintain.asp

E-mail:

[email protected]

Fax:

(708) 444-6993

www.panduit.com

Cable End 1

Cable End 2

Cable End 1

Cable End 2

T568B T568A

See note 4.

CWST

EGJT

CJSGK-X

KIT

REMOVAL STEPS

Notes:

1. For specified performance, follow TIA/EIA 568-B installation guidelines.

2. Jack Modules can terminate PVC or LSZH rated 22-26 AWG solid or stranded IWC cable with 0.048 inch (1.2 mm)

maximum insulated conductor outside diameter.

3. Jack Modules may be re-terminated a minimum of 20 times.

4. On cable end 2 for A & B wiring and cable end 1 of A wiring, wrap the designated pairs around the proper center dividing post (A or B) and terminate in the proper

location.

5. CJSGK-X Grounding Kit is REQUIRED for all MINI-COM Modular Patch Panels, but is optional for MINI-COM All Metal Shielded Modular Patch Panels.

6. For technical and performance information, consult PANDUIT Technical Support.

As with all Wiring Accessories, the following statements apply:

1. Never install communications wiring during a lightning storm.

2. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.

3. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.

4. Use caution when installing or modifying communication wiring.

See note 5

Drain Wire

U/FTP
