Panduit N2RCFR Manuale utente

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 1 of 3

-A

CCESS

N-Type Switch Cabinets

Part numbers:

(N2RCFR, N5RCFR, N8RCFR, N1RCFR Set of Four Cage Nut Equipment Rails

)

(N2RTFR, N5RTFR, N8RTFR, N1RTFR Set of Four Tapped Equipment Rails

)

Front Equipment Rail Installation

• Remove existing front rails from cabinet posts (use T25 Torx bit to remove existing screws)

• Install [2] Front Equipment Rails to Front Cabinet Posts with [5] Countersunk Torx screws per rail (use T25 Torx bit)

• Use supplied shims (as necessary) to ensure proper EIA spacing of front equipment rails

Countersunk Torx Screw

(use T25 Torx bit)

[5] screws per rail

REMOVE EXISITING

FRONT EQUIPMENT RAILS

(use T25 Torx bit)

Shim

(**use as necessary**)

FALLING EQUIPMENT HAZARD

Remove all equipment installed onto equipment rails before performing any adjustments to equipment rail spacing.

FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT.

WARNING

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

Page 2 of 3

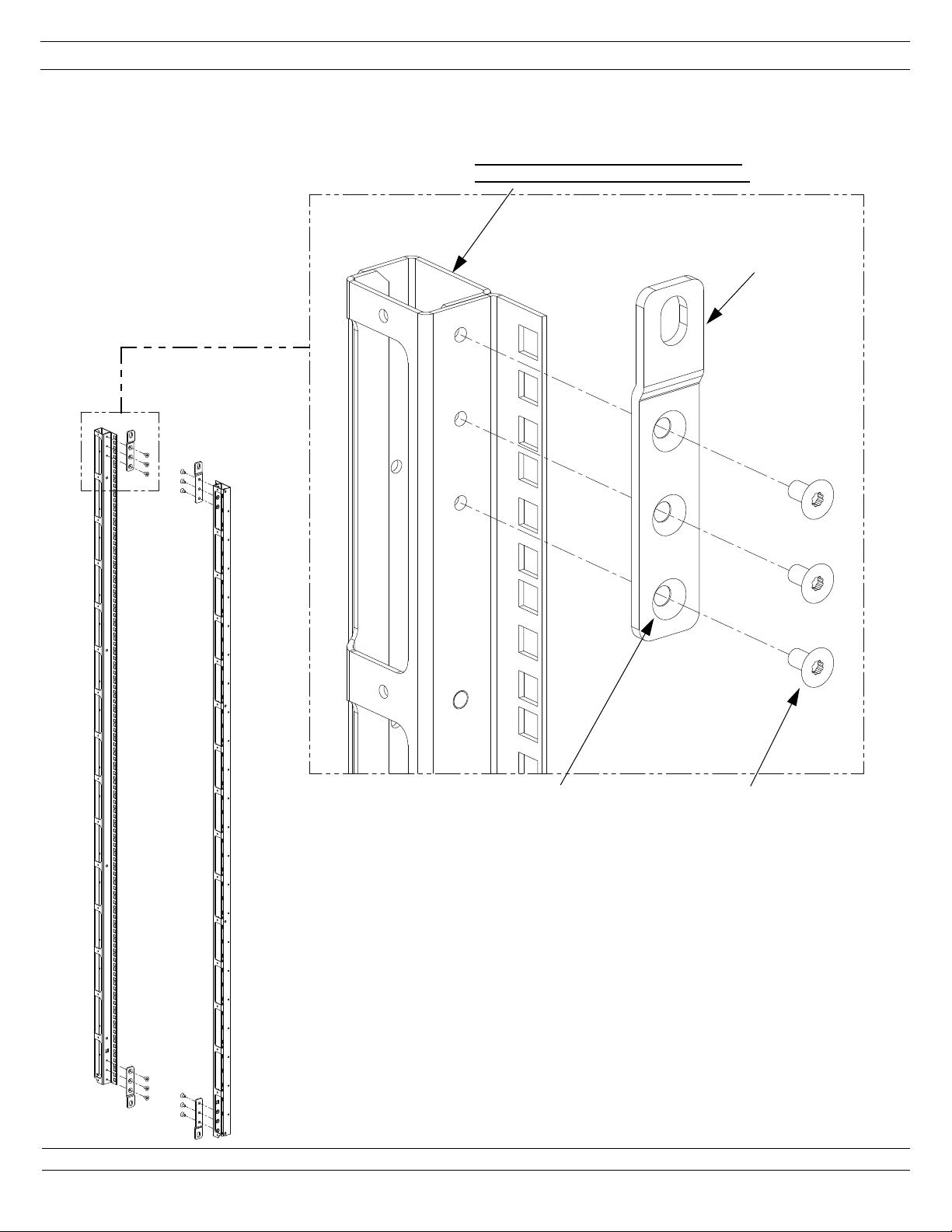

Equipment Rail

Mounting Bracket

Rear Equipment Rail Installation

• Install [4] Equipment Rail Mounting Brackets to Equipment Rails with [3] Countersunk Torx screws per bracket (use T25 Torx bit)

• Ensure that countersunk holes of brackets are oriented to match heads of countersunk screws

Countersunk Torx Screw

(use T25 Torx bit)

Ensure that countersunk holes

of bracket match screw

NOTE - HARDWARE KITS ARE SHIPPED

INSIDE OF EQUIPMENT RAIL CHANNELS

INSTALLATION INSTRUCTIONS

E-mail:

[email protected]

Phone:

866-405-6654

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp www.panduit.com

Page 3 of 3 Rev. 02

M10 Hex Head Screw

(use 15mm socket wrench)

Equipment Rail

Mount Nut

(Finger Grip Area)

Barbed Surface

(face to outside

of cabinet)

Rear Equipment Rail Installation

• Locate desired Equipment Rail position

• Insert [2] Equipment Rail Mount Nuts through slots of Front-to-Back Beam (top and bottom locations)

• Fasten [2] M10 Hex Screws to E-Rail Mount Nuts at top and bottom of Equipment Rail

• Tighten M10 Hex Head Screw to 30.0 +/- 5.0 N-m [22.1 +/- 3.7 Ft-lbs]

INSTALL EQUIPMENT RAILS

M10 Hex Head Screw

(use 15mm socket wrench)

Equipment Rail

Mount Nut

M10 Hex Head Screw

(use 15mm socket wrench)

Slot of

Front-to-Back Beam
