Panio HW2250K Manuale utente
1
PANIO
HW2250K User manual
2
Contents
1. Packing ..................................................................................................................3
2. Panel description .................................................................................................. 3
3. Remote Control .....................................................................................................4
3
1. Packing
2. Panel description
Front panel
IR: for the IR remote control
POWER: Power indicator light
INPUT1 : for the HDMI inputs selection
INPUT2: for the DP inputs selection
1~4: The 4 HDMI outputs indicators
H+: For the horizontal bezel increase
H-: For the horizontal bezel decrease
V+: For the vertical bezel increase
V-: For the vertical bezel decrease
UPGRADE: USB Upgrade port
Back panel
INPUT1: HDMI input ports
INPUT2: DP input ports
OUTPUT: 4 HDMI outputs to connect to displays
AUDIO OUT: for the audio de-embedded
RS-232: RS-232 Control port
DC 12V: power supply
No.
Name
Qty
Unit
No.
Name
Qty
Unit
1
HW2250K
1
Pcs
3
Remote Control Battery not provided
1
Pcs
2
DC 12V
1
Pcs
4
Quick Guide
1
Pcs
4
3. Remote Control
IN1, IN2: When connecting HDMI and DP signals at
the same time, users can press the IN1 or IN2 to
select to output.
RESET: Press to reset when want to reset the bezel
correction, output ports flip/rotating.
SPLICING MODES: quick setup buttons for users to set
the video wall
The other buttons on this remote control is for the
HDMI multiviewer Switch
5

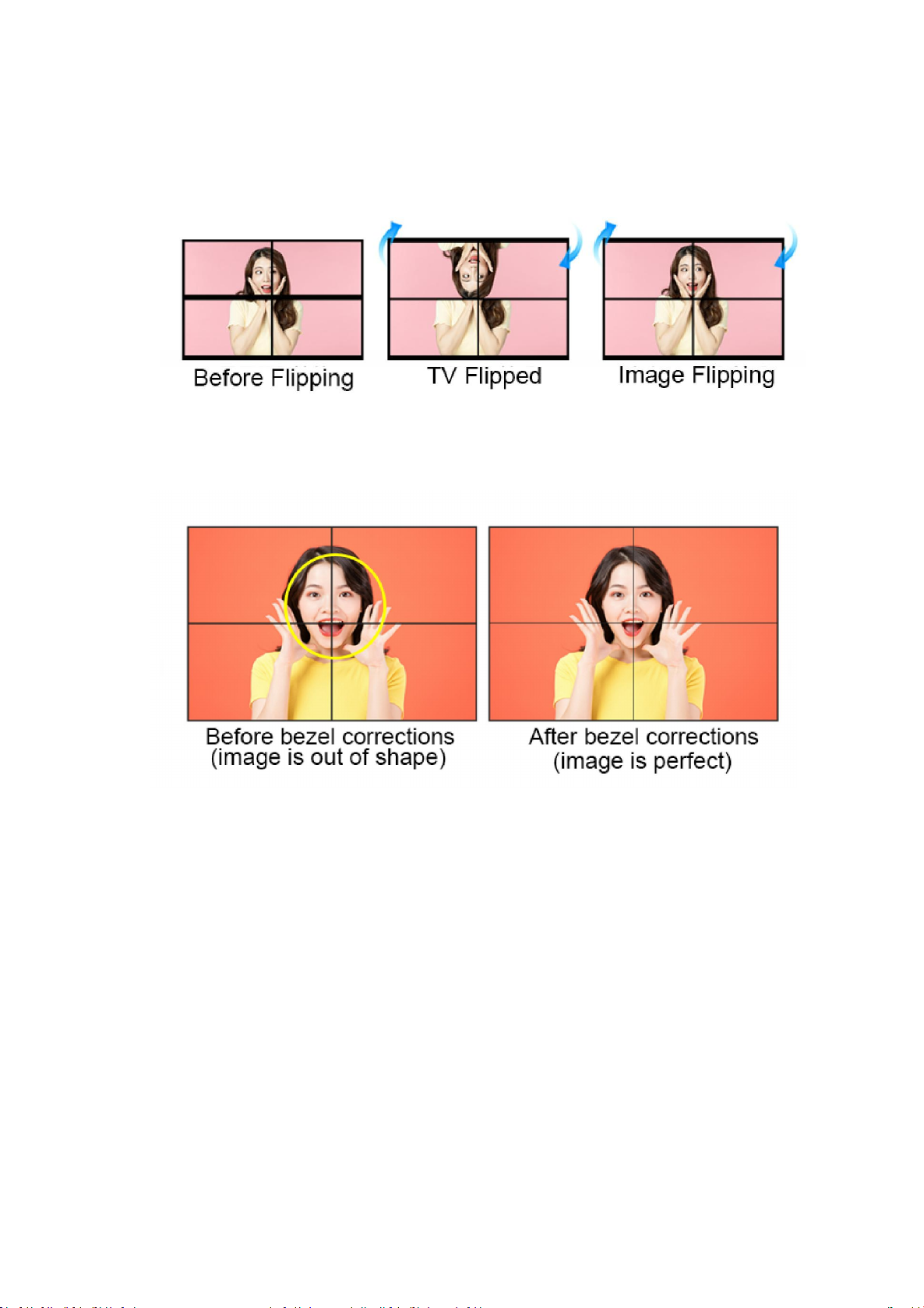

ROT1: For HDMI output 1 flipping, need to press reset button when want the normal display.
ROT2: For HDMI output 2 flipping, need to press reset button when want the normal display.
ROT3: For HDMI output 3 flipping, need to press reset button when want the normal display.
ROT4: For HDMI output 4 flipping, need to press reset button when want the normal display.
BEZEL H+, H-: For the video wall horizontal bezel corrections(Reset button to back or 100 hits)
BEZEL V+, V-: For the video wall vertical bezel corrections(Reset button to back or 100 hits)
