Pantech MHS291LVW Manuale utente

User Manual

Thank you for purchasing the Verizon

4G LTE Mobile Hotspot MHS291LVW.

The MHS291LVW is a Global ReadyTM

wireless device that enables high-speed

wireless communication from your

computer and easily connects at high

speeds to the Internet, your corporate

Intranet, and your email while you’re

away from the office or out of the

country.

The MHS291LVW is simple to install and

use.

2 Table of Contents

Table of Contents

Before Using 5

About this User Manual .....................................................................................................5

Product Features...................................................................................................................5

Getting Started 6

System Requirements.........................................................................................................6

Introduction to the Verizon 4G LTE Mobile Hotspot MHS291LVW ....................7

Managing the Back Cover .................................................................................................8

Installing/Removing the 4G LTE SIM Card...................................................................9

Managing the Battery......................................................................................................10

To Install USB Driver 13

Using Mobile Hotspot 16

Activate Your Mobile Hotspot ......................................................................................16

Connecting to the Mobile Hotspot ............................................................................16

Table of Contents 3

HARDWARE

Idle Screen 19

Settings 20

Wi-Fi Info...............................................................................................................................20

Connected Devices...........................................................................................................20

Messages..............................................................................................................................20

Network Settings...............................................................................................................21

Wi-Fi Settings ......................................................................................................................21

Software Update................................................................................................................23

About Jetpack.....................................................................................................................24

SOFTWARE

Start the Verizon Wireless Manager 26

My Jetpack Home..............................................................................................................27

Data Usage...........................................................................................................................27

Connected Devices...........................................................................................................28

Jetpack Settings 29

Jetpack ..................................................................................................................................29

Wi-Fi........................................................................................................................................32

Advanced .............................................................................................................................33

Messages 40

4 Table of Contents

About Jetpack 41

Internet Status....................................................................................................................41

Jetpack Info .........................................................................................................................41

Diagnostics ..........................................................................................................................42

Statistic & Logs ...................................................................................................................43

Help and Support..............................................................................................................44

Troubleshooting 45

Windows XP(SP3) ..............................................................................................................45

Windows Vista(SP2) ..........................................................................................................46

Windows 7 / Vista(SP2) ....................................................................................................47

Windows 7 ...........................................................................................................................48

Glossary 49

Safety and Warranty 52

Regulatory Notices ...........................................................................................................52

Warnings and Cautions...................................................................................................52

Product Handling ..............................................................................................................53

Safety Information for Mobile Hotspot .....................................................................54

Safety Information for FCC RF Exposure ...................................................................58

SAR Information.................................................................................................................59

FCC Compliance Information........................................................................................60

12-Month Limited Warranty ..........................................................................................61

Before Using 5

Before Using

About this User Manual

You will find all the information you need to install and to use the mobile

hotspot in this user manual.

Before using the mobile hotspot , you must properly install the mobile

hotspot software by closely following the installation instructions.

Product Features

• Advanced antenna design: Efficient, innovative internal antenna design

optimizes data transfer rate and sensitivity to network signals.

• Supports 4G and 3G network technologies.

• Connected devices up to 10 user in mobile broadband coverage area.

• Data Speeds

- LTE bands: Typical download speeds of up to 5 to 12 Mbps in Mobile

Broadband coverage area.

- CDMA bands: Typical download speeds of 600 Kbps to 1.4 Mbps and

upload speeds of 500 to 800 Kbps in Mobile Broadband coverage

area.

• Supports Windows 8, 7 SP1, Vista SP2 and XP SP3 or higher systems with

installed driver.

6 Getting Started

Getting Started

System Requirements

Item Required Specification

Operating system

Windows 8 (32-bit/64-bit), Windows 7 SP1

(32-bit/64-bit), Windows Vista SP2 (32-bit/64-bit),

Windows XP SP3 32-bit or higher

Internet Browser

Microsoft Internet Explorer 7 or higher, Mozilla

Firefox 3.6 or higher, Google Chrome 9 or higher,

Apple Safari 5 or higher, Opera 9 higher

Port One Type-A USB Port (USB 2.0 only)

Note

• To use Wi-Fi mode, your computer needs Wi-Fi capability and internet

browser software only.

• USB 3.0 is not supported.

Getting Started 7

7Back Cover

8Micro USB/

Charger Port

9External Antenna

Adapter Port

Note

The external antenna adapter ports are for RF test, debugging and etc.

Introduction to the Verizon 4G LTE Mobile

Hotspot MHS291LVW

The Verizon 4G LTE mobile hotspot can be used to access the Internet,

your company’s intranet, or you can use it to send and receive email. It

is extremely useful when you are away from the office, on the road, or

wherever a wireline Internet access is not readily available.

3Red Lighting Effect

4Status Display

5Scroll Key

6OK key

1Power/Lock

2External Antenna

Adapter Port

8 Getting Started

Managing the Back Cover

Removing the back cover

1. Turn off your mobile hotspot and hold it securely with both hands with

the front facing out.

2. Place your finger nail in the groove at the left of the mobile hotspot,

and then lift it up.

Closing the back cover

Place the back cover over the battery compartment and press it downward

until it clicks into place.

Getting Started 9

Installing/Removing the 4G LTE SIM Card

1. Turn off your mobile hotspot and remove the back cover and battery.

2. Insert the SIM card into the slot. Position the SIM card (“SIM” is inscribed

near the slot opening) with the Verizon logo facing up and slide into

place until it’s fully inserted. Then, close the back cover.

3. To remove the SIM card, turn off your mobile hotspot and remove the

back cover. Gently pull the SIM card out to remove it.

About the SIM Card

Your SIM (Subscriber Identity Module) Card is a small rectangular plastic

card that stores your phone number and important information about your

wireless service.

You can move the SIM Card from one device to another and your wireless

service will work seamlessly as long as you have a compatible device and

service plan. To see which devices are compatible with the Verizon Wireless

SIM Card, visit verizonwireless.com/certifieddevice.

10 Getting Started

Managing the Battery

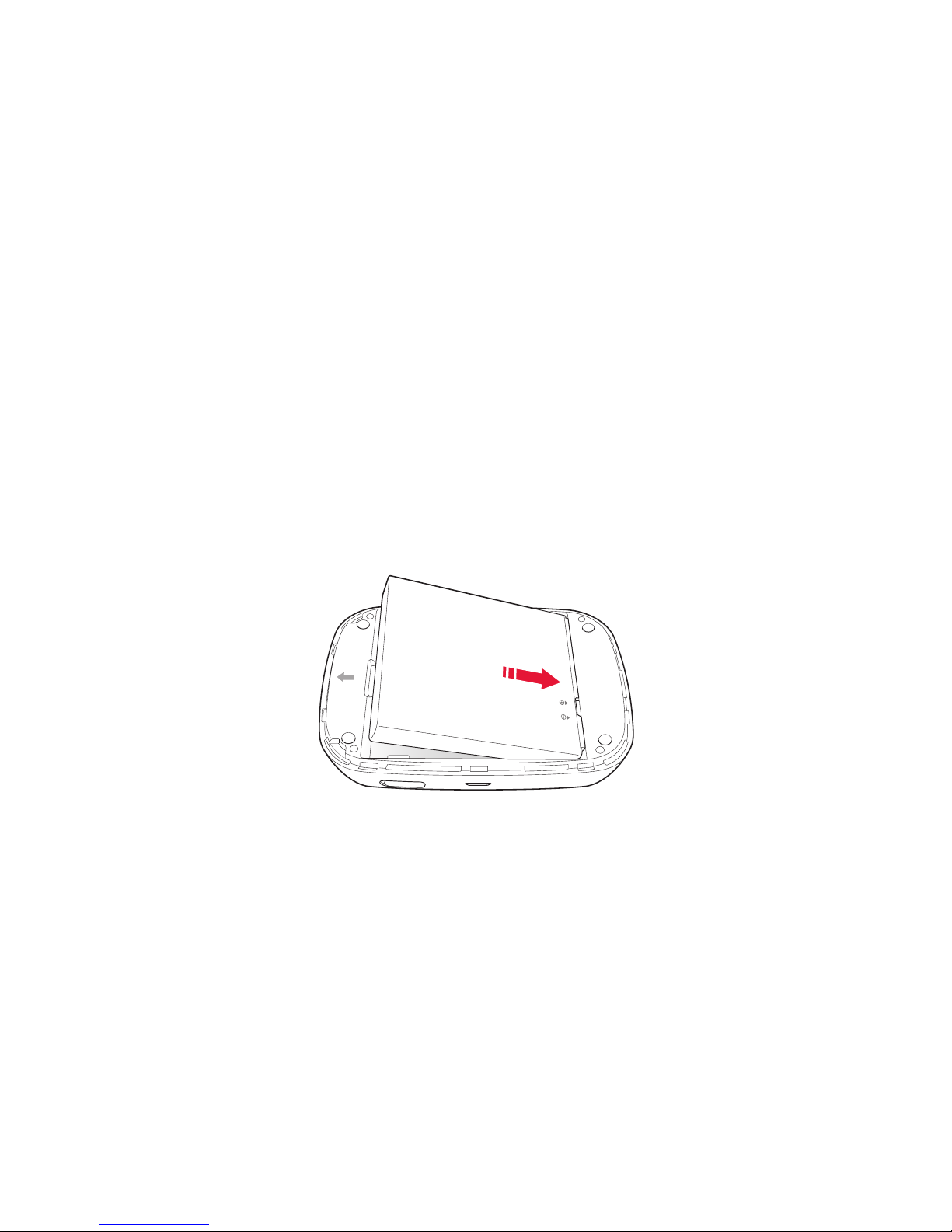

Installing/Removing the battery

1. Insert your finger tip into slot at the left of the mobile hotspot and

gently lift back cover to remove.

2. Slide the battery into the slot by aligning the contacts and press down

until you hear the“click”.

3. Align the cover tabs with the slots on the back of the device and gently

press the battery cover onto the mobile hotspot until it snaps into

place.

4. To remove the battery, turn off your mobile hotspot and remove the

back cover.

5. Insert your fingernail into the slot and lift the battery from the

compartment.
