Pantheon PO4+4 Manuale utente
PANTHEON PIZZA OVENS
Instruction Manual
Pizza Oven
PO4+4
P04
Introduction
Thank you for purchasing a Pantheon Catering Equip ent product.
In this booklet you will find instructions for safe operation so please
read carefully and retain for future reference. The pizza oven boasts
such features including: an inner hollow plate ensuring perfect pizza
taste, independent te perature control of each deck and solid
construction for reliable durability.
Warnings and Precautions
The following warnings and precautions are i portant and ust be
observed:
•High te peratures can cause burns. When this achine is in
use and shortly before or after use, take care not to touch the
door and the inside of this achine directly to avoid risk of
burns.
•Ensure the voltage require ent of the appliance is consistent
with that of the power supply.
•Refrain fro using sharp objects within the oven, to avoid
unnecessary da age and scratches.
•If the power cord beco es da aged, to avoid accidents, seek
the help of a qualified engineer.
•Do not open the oven door to take food out while the oven is
switched on to avoid accidents. (Please do this only after
switching off the power).
•Ensure there are no fla able products in the vicinity of where
the oven will be used.
•Ensure there are no obstructions in front of the oven, which ay
restrict the ove ent of the oven doors.
Disclaimer: The manufacturer will accept no reliability for any injury
or damage caused by incorrect usage of the boiler.
Technical Data
Specifications:
MODEL
ELECTRIC
PIZZA OVEN
(PO4+4)
ELECTRIC PIZZA OVEN
(PO4)
POWER(KW) 8.4 4.2
VOLTAGE 3N-380~415V
5lines
3N-380~415V 5lines
FREQUENCY
(Hz)
50~ 0 50~ 0
DIMENSIONS (mm) 820×910×
750
820×910×430
CHAMBER SIZE (mm)
10×10×
140
10×10×140
DECKS 2 1
Model Specifications:
Operating Instructions
1. Ensure the product is turned on, the set the desired
te perature using the te perature knob.
2. When the te perature reaches the required level, open the
door and place the pizza into the cha ber to cook.
3. When the pizza is cooked, it is advised firstly to turn the oven
off, before re oving the pizza.
4. After all cooking is finished, please turn off the power switch
and cut off the power supply.
Maintenance
Cleaning
Prior to cleaning, ensure the unit is turned off and disconnected fro
the power supply. Only use a da p cloth to clean the relevant sections
of the oven, ensuring to avoid any corrosive cleaners or harsh
che icals.
Troubleshooting
Pro lem Possi le Causes Solution
1. The achine is
plugged in and the
power supply is
working. The power
indicator is on but
there is no heat.
1. Ther ostat is
broken.
2. Heating ele ent is
burned out.
1. Replace the ther ostat.
2. Replace the heating
ele ent.
2. The power is
switched on and the
ther ostat is turned
on. The te perature
increases but cannot
be controlled.
1. Ther ostat is out
of action.
1. Replace the ther ostat.
3. The power is
switched on, the oven
is switched on but the
indicator does not
illu inate.
1. Indicator is broken.
1. Replace the indicator.
4. The power is
switched on, the
indicator does not
illu inate and there is
no heat.
1. Power supply is not
working.
2. Fuse is burned out.
1. Check the power supply
and wire connection to
ake sure the supply is
working.
2. Replace the fuse.

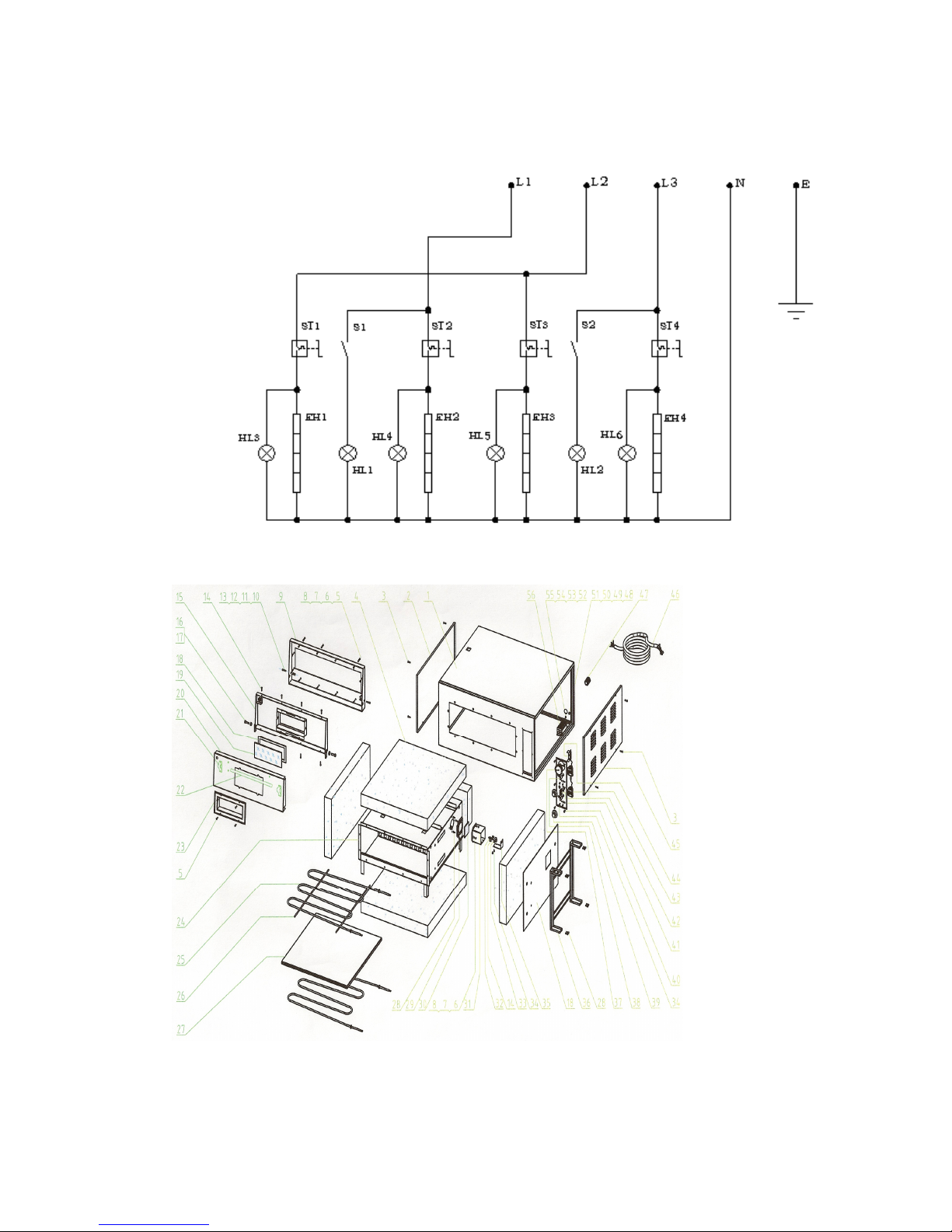

Circuit Diagram
Parts Diagram

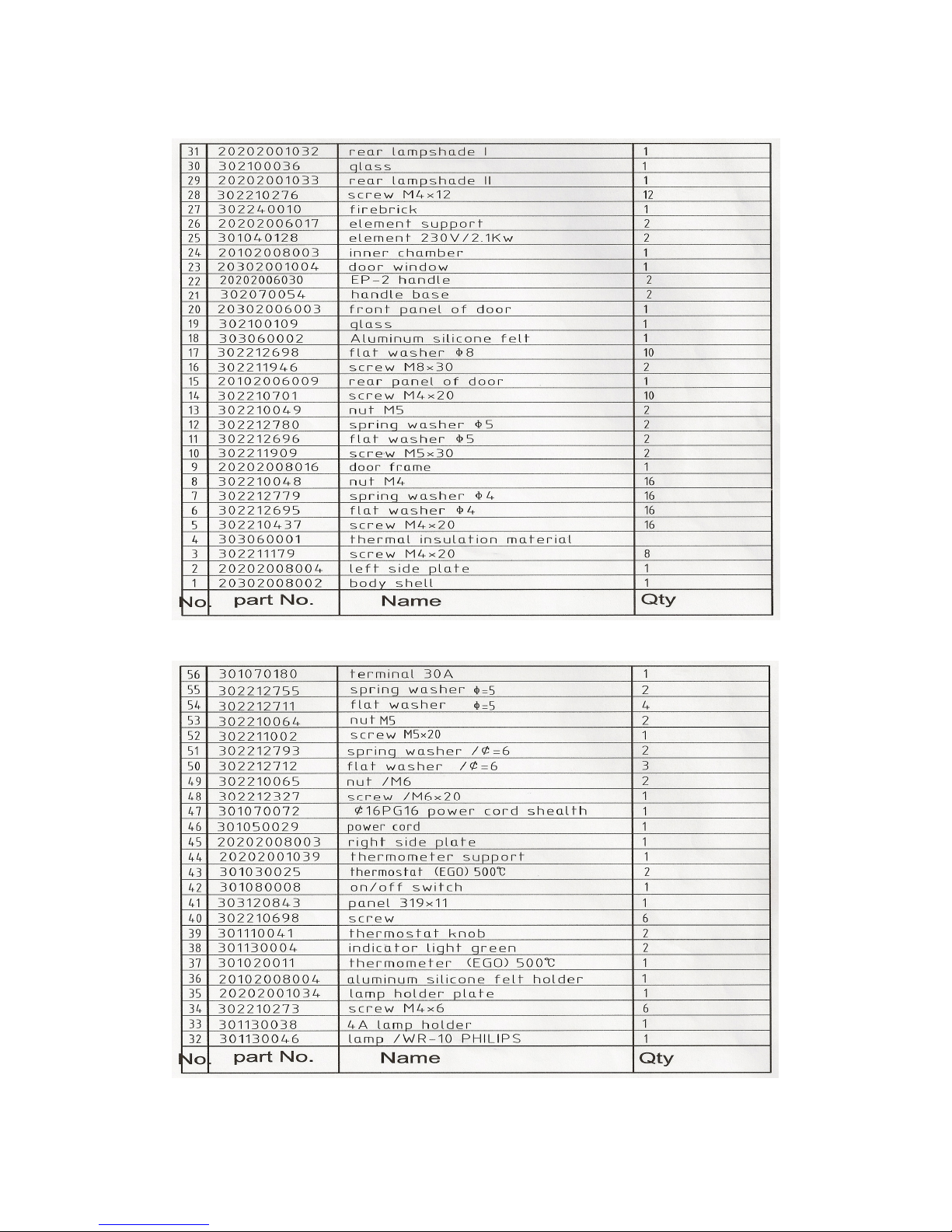

Parts List
Vulcan Works
Dixon Street
Bolton
BL6 7PH
Tel 0800 046 1570
Email info@pantheonce.co.uk
Web www.panheonce.co.uk
CONSUMER INFORMATION
WEEE DIRECTIVE
This product may contain substances that can be hazardous to the environment if not disposed of
properly.
Electrical and electronic equipment should never be disposed of with general household waste but
must be separately collected for their proper treatment and recovery.
The crossed out bin symbol, place on the product, reminds you of the need to dispose of the
product correctly at the end of its life.
In this way you will assist in the recovery, recycling and re-use of many of the materials used in
this product.
At the end of the life of your new product please contact Pantheon Catering Equipment for
information on collection arrangements.
When buying this new product, your retailer will also inform you of the possibility to return, free
of charge, another end of life product of equivalent type that has fulfilled the same functions as the
supplied equipment.
Where possible, please recycle your packaging.
With your help it is possible to reduce the amount of electrical and electronic waste ending up in
landfill and to improve quality of life by preventing the release of potentially hazardous
substances into the environment.
ENVIRONMENT AGENCY PRODUCER REGISTRATION NUMBER: WEEE/JG0104WV
