ParaBody 662101 Guida all'installazione

1Part # 7046901

Rev B Revision: 07/31/01

ASSEMBLY INSTRUCTIONS

662101 GLUTE/SQUAT OPTION

IMPORTANT NOTES

Please note:

Tools Required forAssembly

* Thank you for purchasing the Parabody 662101 Glute/Squat Option. Please read these

instructions thoroughly and keep them for future reference. This product must be assembled

on a flat, level surface to assure its proper function.

* Rubber mallet or hammer

* 3/4” wrench

* Ratchet with 3/4” socket

* Adjustable wrench

* Tape measure

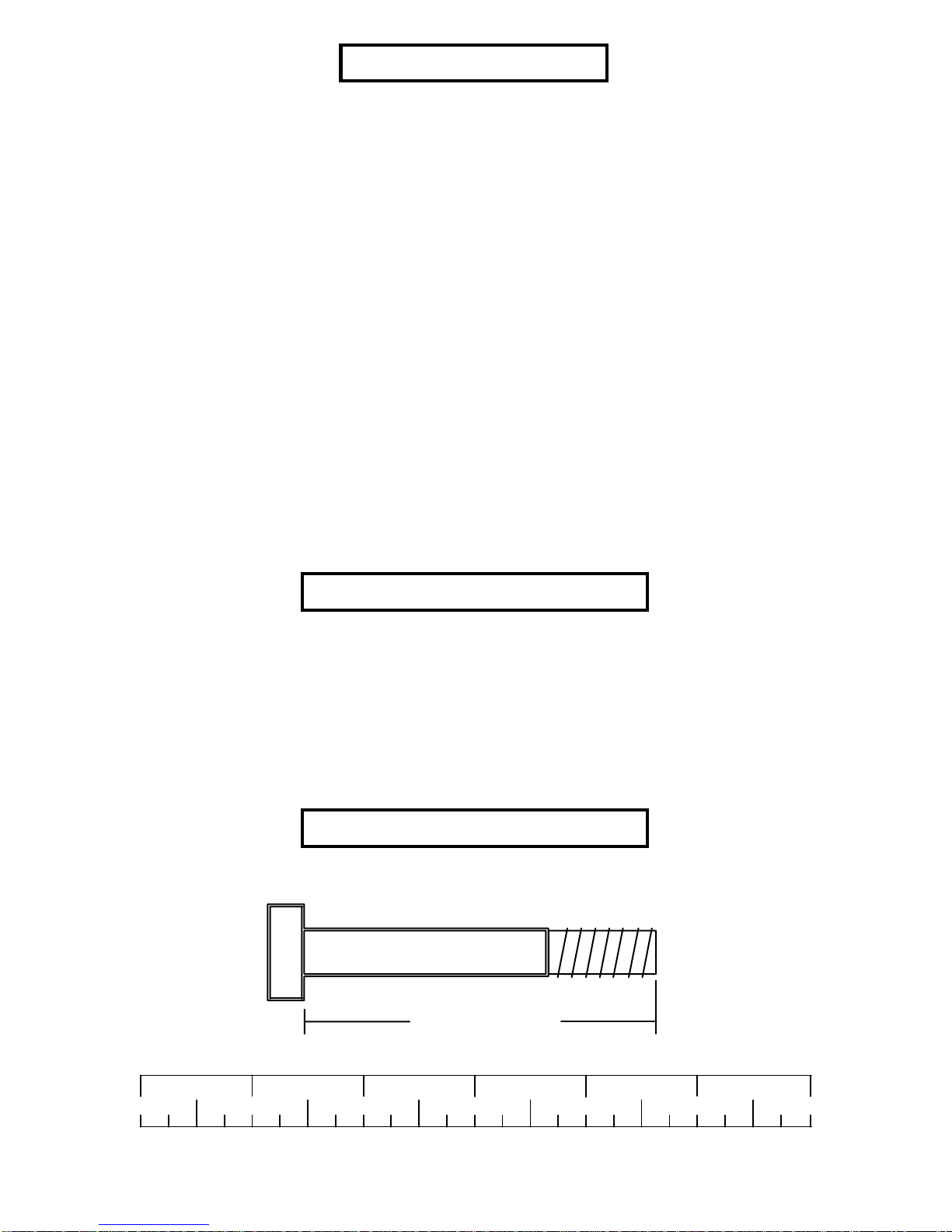

NOTE:BOLTLENGTHISMEASUREDFROMTHEUNDERSIDEOFTHEHEAD OFTHEBOLT.

BOLT LENGTH RULER:

* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy

water. Touch-up paint can be purchased from your Parabody customer service representative

at (800) 328-9714.

Bolt Length Ruler

0123456

1/2 1/2 1/2 1/2 1/2 1/2

BOLT LENGTH

WELCOMETOTHEWORLDOF Serious steel!

There is a risk assumed by individuals who use this type of equipment. To minimize risk, please

follow these rules:

2. Do not allow minors or children to play on or around this equipment.

1. Inspect equipment daily. Tighten all loose connections and replace worn parts immediately.

Failure to do so may result in serious injury.

3. Exercise with care to avoid injury.

4. If unsure of proper use of equipment, call your local Parabody distributor or call the

Parabody customer service department at (800) 328-9714.

STEP 1

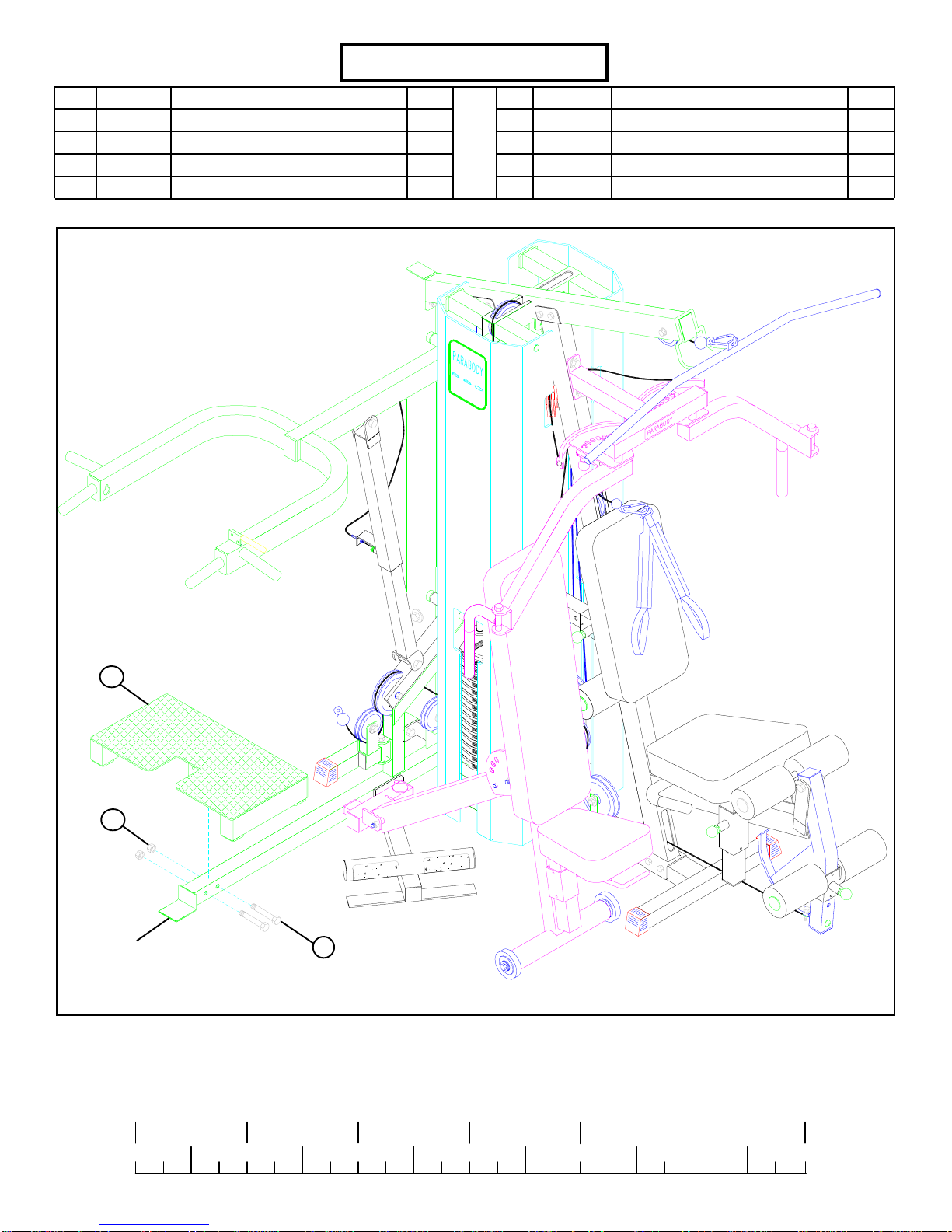

FIGURE 1

PART #

6748802

6748702

6740002

6016401

KEY

QTY

PART #

6670701

3102918

3102801

DESCRIPTION

NON-SKID STRIP

1/2 X 3-1/4” BOLT

1/2” LOCK NUT

QTY

DESCRIPTION

FOOTPLATE

SQUATBAR

GLUTE KICK

ROLLER PAD

KEY

PARTS LIST

• Swing the PRESS SEAT over 90° to install FOOT PLATE (1). See FIGURE 1.

6 1/2 X 3-1/4”

PRESS

BASE

• SECURELY attach the FOOT PLATE (1) to the PRESS BASE using two 1/2 X 3-1/4” BOLTS (6) and two 1/2” LOCK NUTS (7) as

shown in FIGURE 1.

0123456

1/2 1/2 1/2 1/2 1/2 1/2

STEP 3

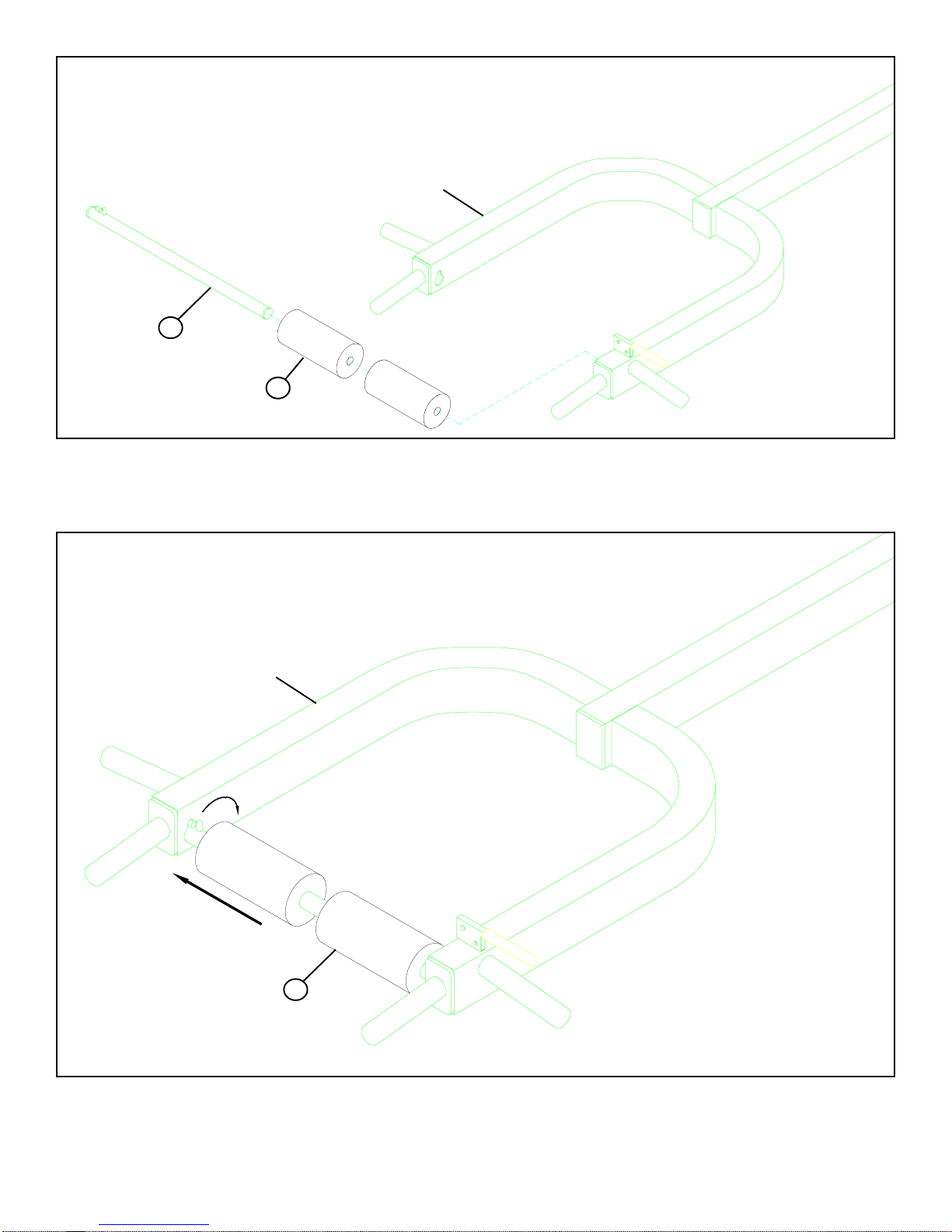

FIGURE 2

• Insert other end of SQUAT BAR (2) into the PRESS ARM. See FIGURE 3.

• Rotate SQUAT BAR (2) 90° to hold SQUAT BAR (2) in PRESS ARM. See FIGURE 3.

FIGURE 3

STEP 2

• Slide two ROLLER PADS (4) over the SQUAT BAR (2). See FIGURE 2. Space PADS out equally to support back of neck.

(Optional : SQUAT BAR may be used without ROLLER PADS.)

• Insert SQUAT BAR (4) into the hole on the PRESS ARM as shown.

PRESS

ARM

PRESS

ARM

STEP 5

FIGURE 4

• Rotate GLUTE KICK (3) 90° to hold GLUTE KICK (3) in PRESS ARM. See FIGURE 5.

FIGURE 5

STEP 4

• Attach one NON-SKID STRIP (5) to the GLUTE KICK (3) as shown in FIGURE 4.

• Insert GLUTE KICK(3) into the hole on the PRESS ARM as shown.

PRESS

ARM

PRESS

ARM

ThankyouforpurchasingthePARABODY662101 GLUTE/SQUATOPTION. If unsure of properuse of

equipmentreferto the662101OPERATION GUIDE orcall yourlocalPARABODYdistributor orcallthe

PARABODYcustomerservice department at (800) 328-9714.
