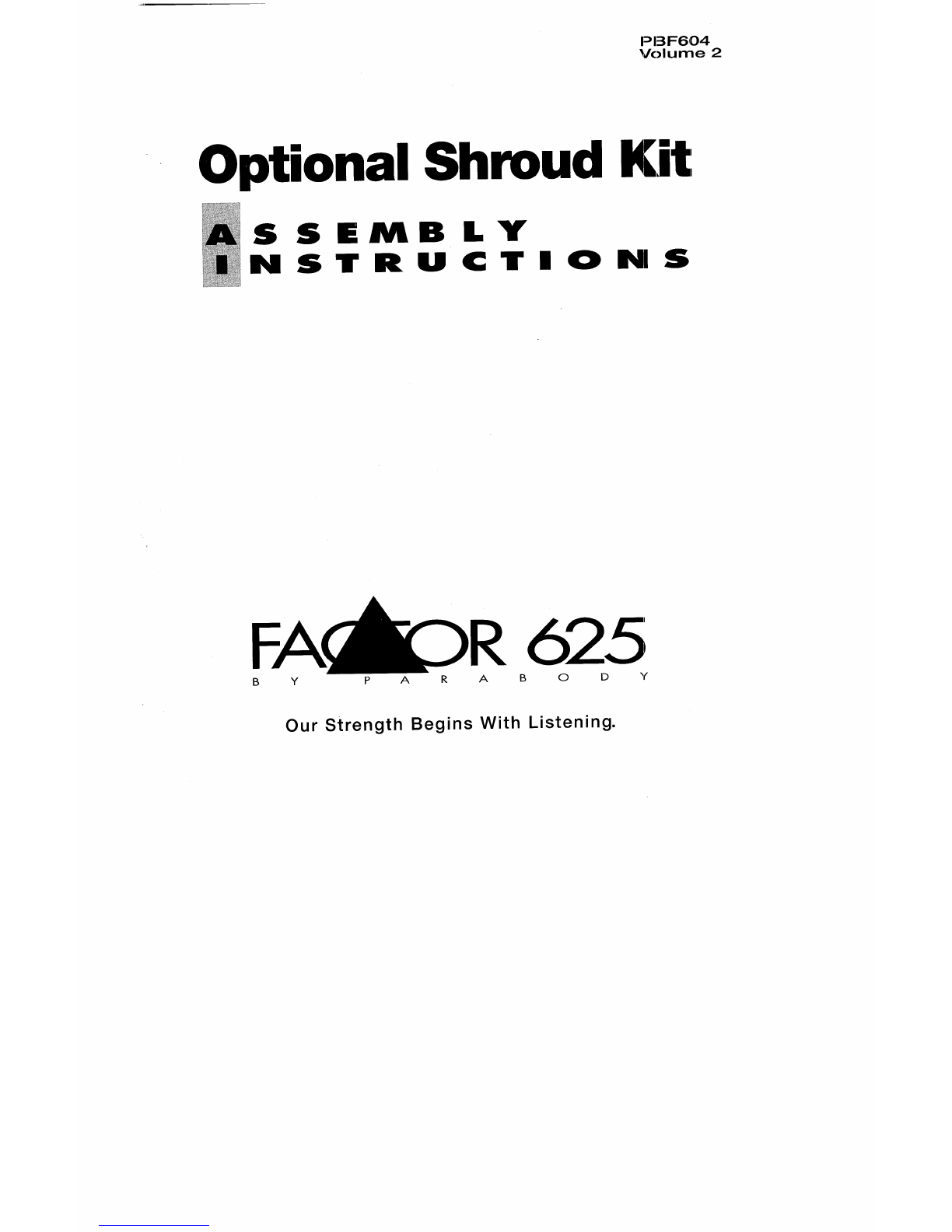

ParaBody FACTOR 625 Manuale utente

I:)E}F604

Volume 2

Optional Shroud Kit

S EMB L Y

NSTRUCTIOHS

625

B Y P A R A B OD Y

Our Strength Begins With Listening.

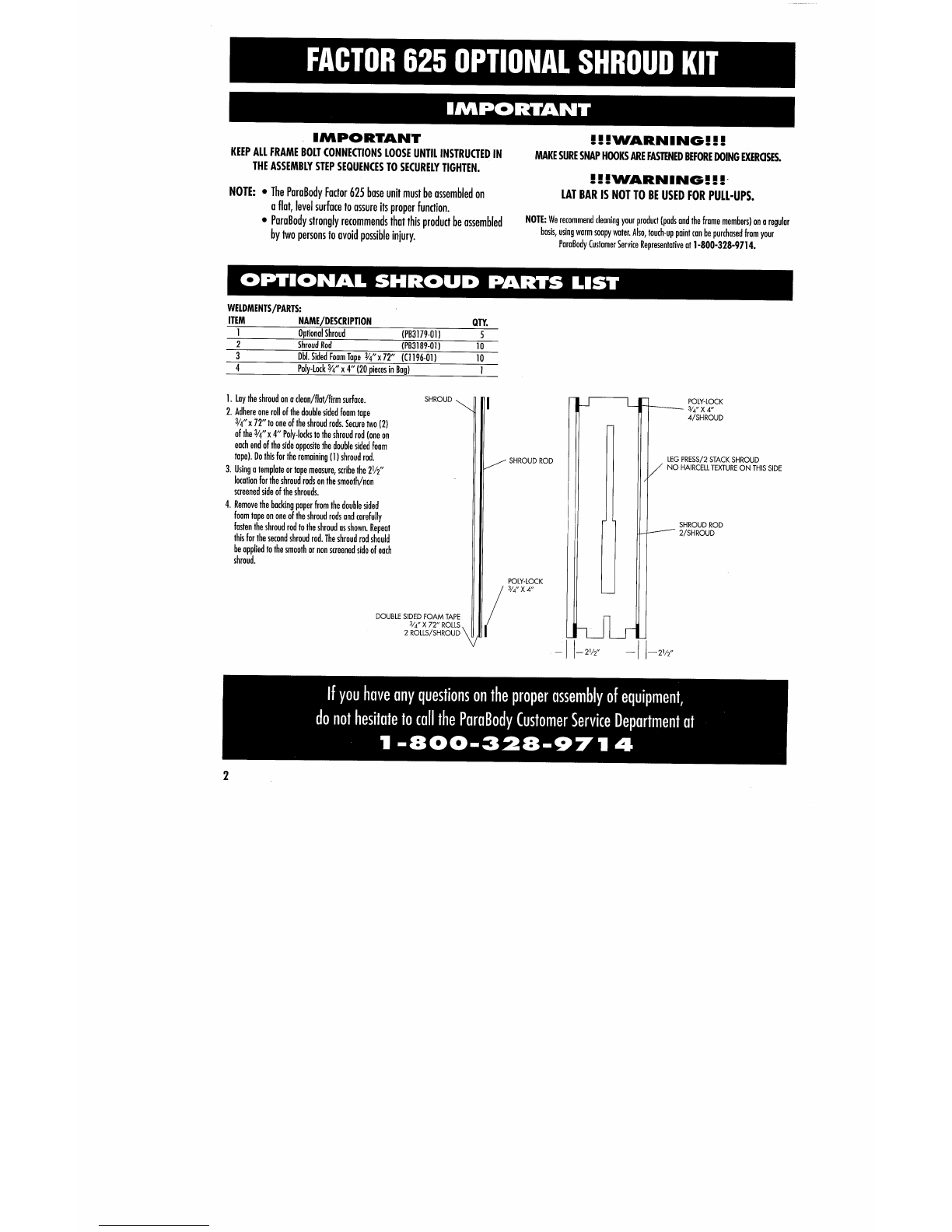

IMPORTANT

KEEPALLFRAMEBOLTCONNECTIONSLOOSEUNTILINSTRUCTEDIN

THEASSEMBLYSTEPSEQUENCESTOSECURELYTIGHTEN.

NOTE:

¯TheParaBodyFactor625baseunitmustbeassembledon

aflat,levelsurfacetoassureitsproperfunction.

¯ParaBodystronglyrecommendsthatthisproductbeassembled

bytwopersonstoavoidpossibleiniury.

!!I llI

.WARNING...

MAKESURESNAPHOOKSAREFASTENEDBEFOREDOINGEXERaSES.

!!!WARNING!!!-

LATBARIS NOTTOBEUSEDFORPULL-UPS.

NOTE:Werecommendcleaningyourproduct(padsandtheframemembers)onaregular

basis,usingwarmsoapywater.Also,touch-uppaintcanbepurchasedfromyour

ParaBodyCustomerServiceRepresentativent1-800-328-9)’14.

WELDMENTS/PARTS:

ITEM NAME/DESCRIPTION QTY.

1OptionnlShroud (PB3179-01) 5

2 ShroudRod (PB3189-01) 10

3Dbl.SidedFoamTape3/4"x72"(Cl196-01) 10

4 Poly-Lock3/4"x4"(20piecesinBag) 1

1.Laytheshroudonadean/flat/firmsurface.

2.Adhereonerollofthedoublesidedfoamtape

3/4"x72"tooneoftheshroudrods.Securetwo(2)

ofthe3/4"x4"Poly-lockstotheshroudrod(oneon

eachendofthesideoppositethedoublesidedfoam

tape).Dothisfortheremaining(1)shroudrod.

3. Usingatemplateortapemeasure,scribethe21/2

locationfortheshroudrodsonthesmooth/non

screenedsideoftheshrouds.

4.Removethebackingpaperfromthedoublesided

foamtapeononeoftheshroudrodsandcarefully

fastentheshroudrodtotheshroudusshown.Repeat

thisforthesecondshroudrod.Theshroudrodshould

beappliedtothesmoothornonscreenedsideofeach

shroud.

SHROUD

DOUBLESIDEDFOAMTAPE

3/4"X72"ROLLS

2 ROLLS/SHROUD

SHROUDROD

POLY-LOCK

3/4.X4"

--L POLY-LOCK

~ 3/4. X4.

4/SHROUD

LEGPRESS/2STACKSHROUD

NOHAIRCELLTEXTUREONTHISSIDE

SHROUDROD

2/SHROUD

If youhaveanyquestionsontheproperassemblyofequipment,

donothesitatetocalltheParaBodyCustomerServiceDepartmentat

T -800-328-97 T 4

Donotmarkthis box! Document:11000199

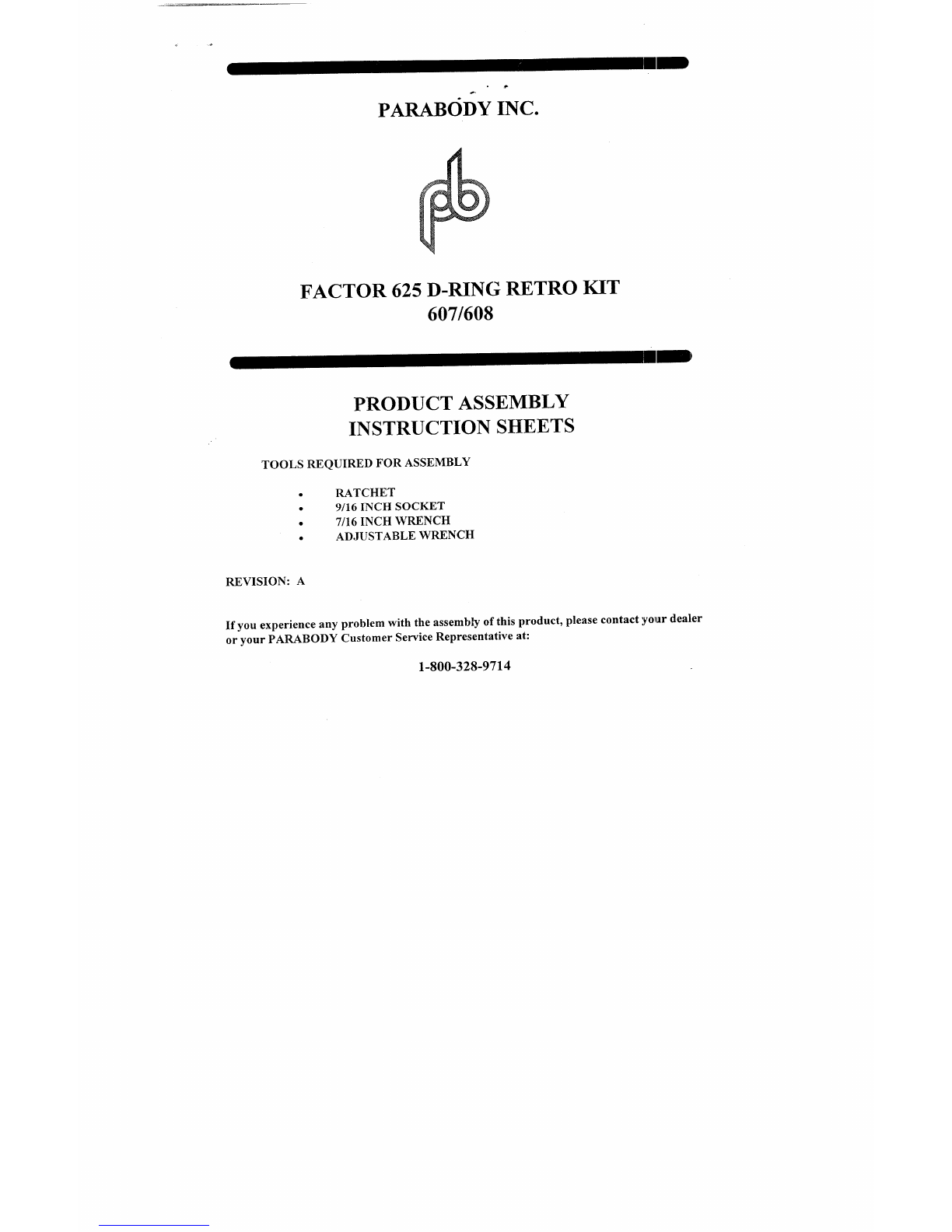

PARAB6DY INC.

FACTOR625 D-RING RETROKIT

607/608

PRODUCT ASSEMBLY

INSTRUCTION SHEETS

TOOLS REQUIRED FOR ASSEMBLY

RATCHET

9/16 INCH SOCKET

7/16 INCH WRENCH

ADJUSTABLE WRENCH

REVISION: A

If youexperience any problemwith the assemblyof this product, please contact yo~ar dealer

or your PARABODYCustomer Service Representative at:

1-800-328-9714

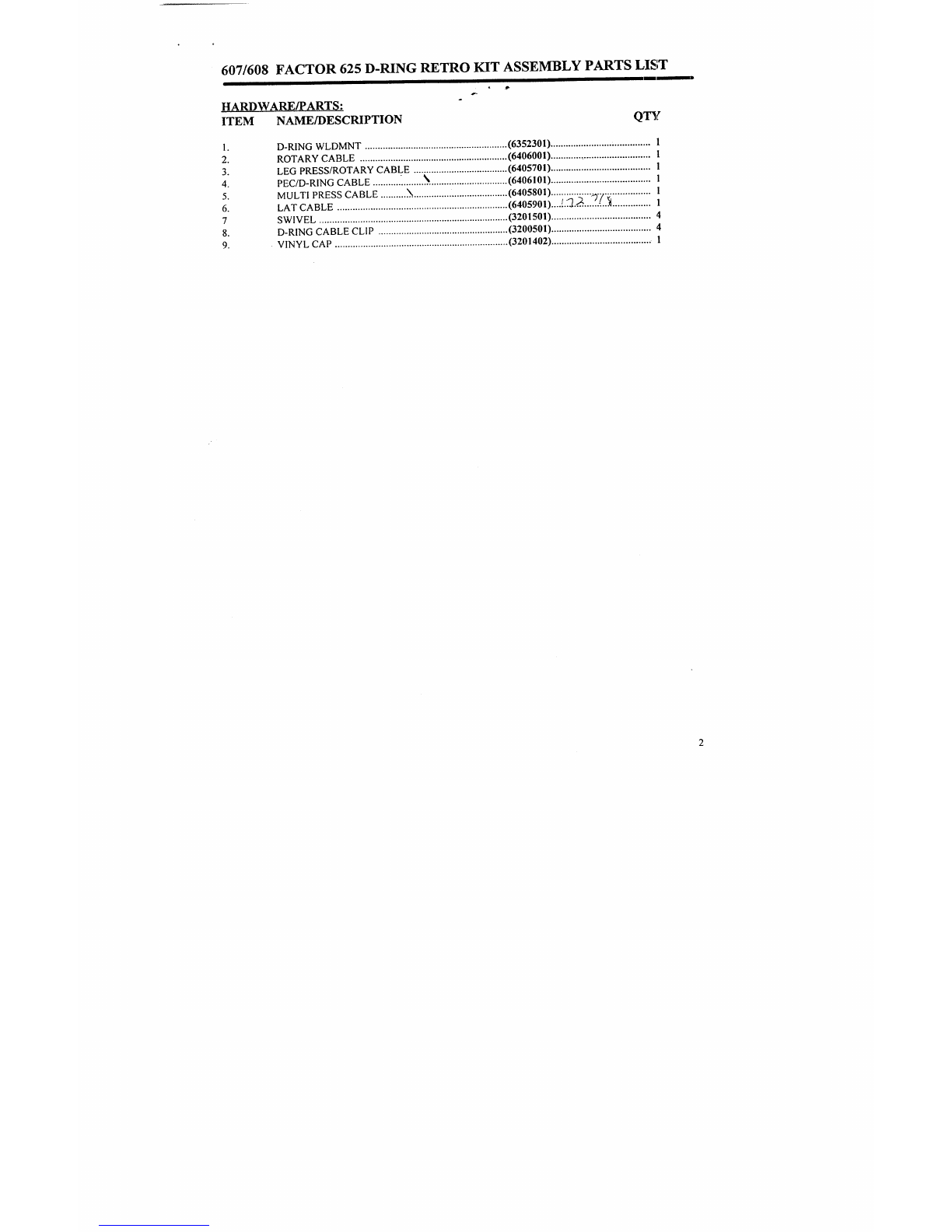

607/608 FACTOR 625 D-RING RETRO KIT ASSEMBLY PARTS LIST

HARDWARE/PARTS:

ITEM NAME/DESCRIPTION QT~(

D-RINGWLDMNT........................................................ (6352301)........................ ~...............1

ROTARYCABLE.......................................................... (6406001)........................................ I

LEGPRESS/ROTARYCABLE..................................... (6405701)....................................... 1

PEC/D-RINGCABLE........... ~........

.~................................

(6406101)....................................... 1

MULTIPRESSCABLE.......... ..X......................................(6405801)........... =....~.~,.~................ 1

LATCABLE................................................... (6405901)

"’’!’’~""’~’"

...... :"~............... 1

SWIVEL.......................................................................... (3201501)....................................... 4

D-RINGCABLECLIP................................................... (3200501)....................................... 4

¯ VINYLCAP.................................................................... (3201402)....................................... 1

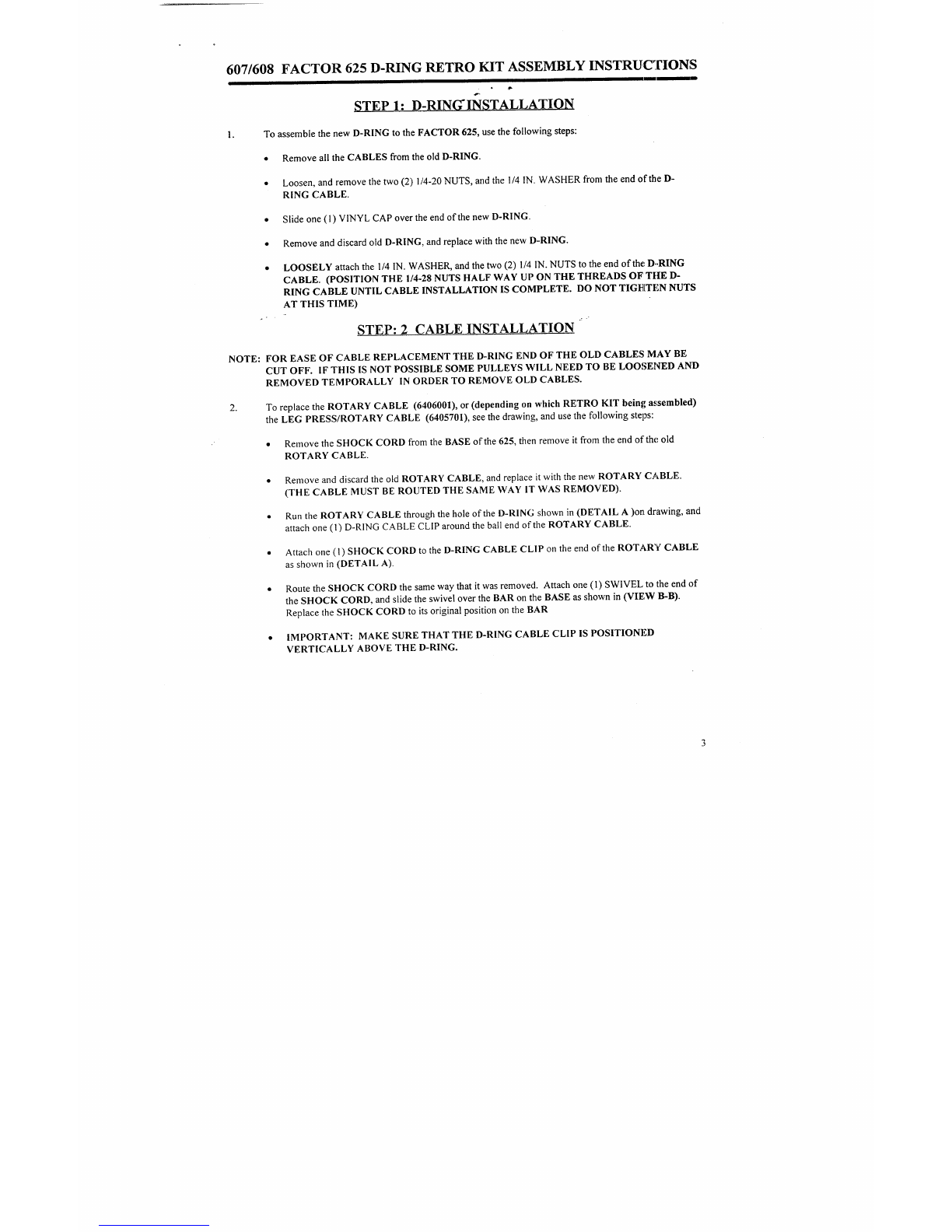

607/608 FACTOR 625 D-RING RETRO KIT ASSEMBLY INSTRUCTIONS

STEP 1: D-RING’INSTALLATION

1. Toassemble the newD-RINGto the FACTOR625, use the following steps:

¯Removeall the CABLESfrom the old D-RING.

¯Loosen, and removethe two (2) 1/4-20 NUTS,and the 1/4 IN. WASHERfrom the end of the

RING CABLE.

¯Slide one (1) VINYLCAPover the end of the newD-RING.

¯Removeand discard old D-RING,and replace with the newD-RING.

¯LOOSELYattach the 1/4 IN. WASHER,and the two (2) 1/4 IN. NUTSto the end of the D..RING

CABLE. (POSITION THE 1/4-28 NUTS HALF WAYUP ON THE THREADSOF TIlE D-

RING CABLEUNTIL CABLEINSTALLATION IS COMPLETE.DO NOT TIGI-][TEN NUTS

AT THIS TIME)

STEP: 2 CABLE INSTALLATION

NOTE: FOR EASE OF CABLE REPLACEMENTTHE D-RING END OF THE OLD CABLES MAYBE

CUT OFF. IF THIS IS NOT POSSIBLE SOMEPULLEYS WILL NEED TO BE LOOSENEDAND

REMOVED TEMPORALLY IN ORDER TO REMOVEOLD CABLES.

To replace the ROTARYCABLE(6406001), or (depending on which RETROKIT being assembled)

the LEGPRESS/ROTARYCABLE(6405701), see the drawing, and use the following steps:

¯Removethe SHOCKCORDfrom the BASEof the 625, then remove it from the end of the old

ROTARY CABLE.

¯ Removeand discard the old ROTARYCABLE,and replace it with the new ROTARYCABLE.

(THE CABLE MUST BE ROUTEDTHE SAME WAYIT WASREMOVED).

¯Run the ROTARYCABLEthrough the hole of the D-RINGshown in (DETAILA )on drawing, and

attach one (1) D-RINGCABLECLIP around the ball end of the ROTARYCABLE.

¯ Attach one (1) SHOCKCORDto the D-RINGCABLECLIP on the end of the ROTARYCABLE

as shown in (DETAILA).

¯Route the SHOCKCORDthe same waythat it was removed. Attach one (I) SWIVELto the end

the SHOCKCORD,and slide the swivel over the BARon the BASEas shown in (VIEWB-B).

Replace the SHOCKCORDto its original position on the BAR

¯ IMPORTANT: MAKESURE THAT THE D-RING CABLE CLIP IS POSITIONED

VERTICALLY ABOVETHE D-RING.

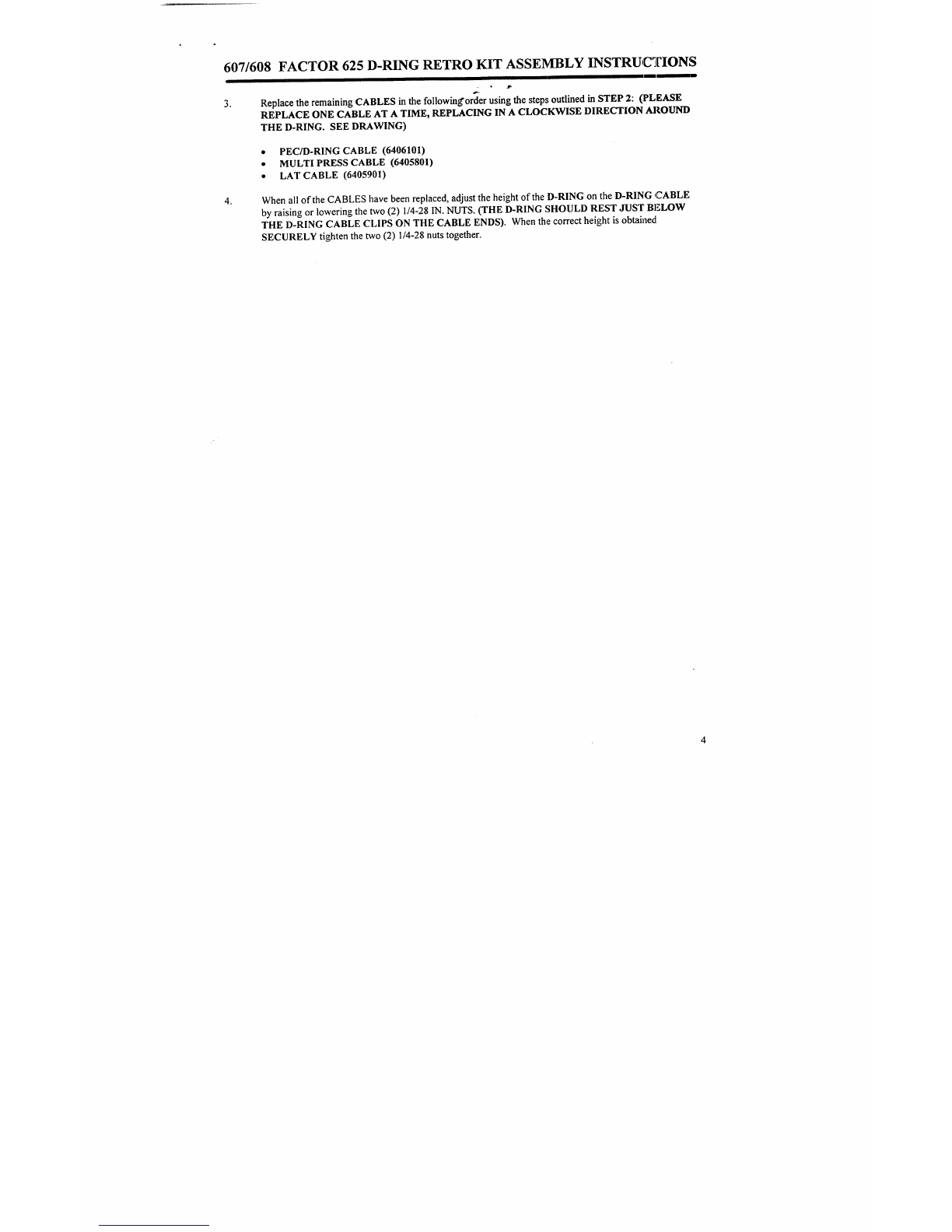

607/608 FACTOR625 D-RING RETRO KIT ASSEMBLY INSTRUCTIONS

3. Replace the remaining CABLESin the following’or~er using the steps outlined in STEP2: (PLEASE

REPLACE ONE CABLE AT A TIME, REPLACING IN A CLOCKWISE DIRECTION AROUND

THE D-RING. SEE DRAWING)

¯PEC/D-RING CABLE(6406101)

¯MULTI PRESS CABLE(6405801)

¯LAT CABLE(6405901)

Whenall of the CABLEShave been replaced, adjust the height of the D-RINGon the D-RINGCABLE

by raising or lowering the two (2) 1/4-28 IN. NUTS.(THE D-RINGSHOULDRESTJUSTBELOW

THED-RINGCABLECLIPS ONTHECABLEENDS). Whenthe correct height is obtained.

SECURELYtighten the two (2) 1/4-28 nuts together.
