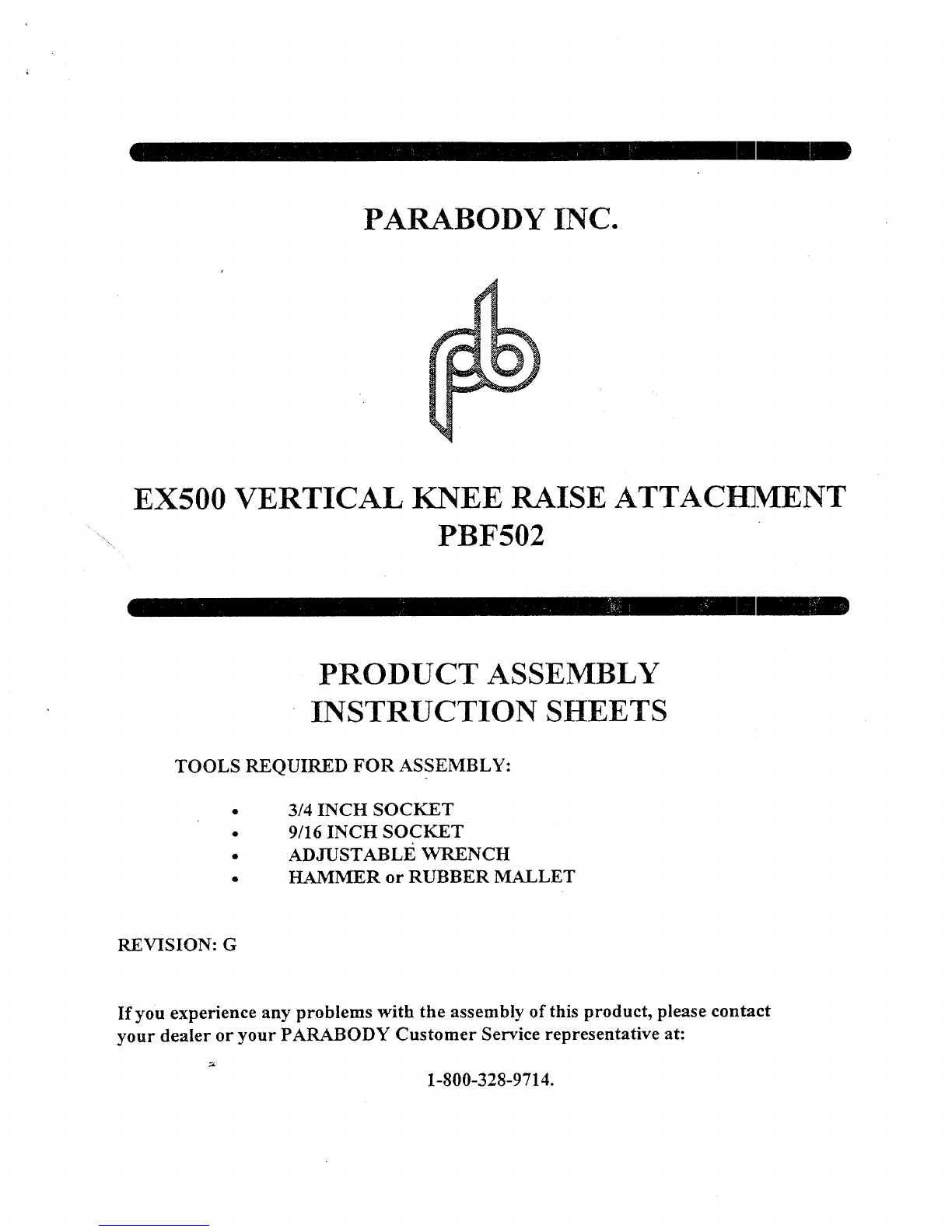

ParaBody PBF502 Manuale utente
PARABODY INC.
EX500 VERTICAL KNEE RAISE ATTACI~MENT
PBF502
PRODUCT ASSEMBLY
INSTRUCTION SHEETS
TOOLS REQUIRED FOR ASSEMBLY:
3/4 INCH SOCKET
9/16 INCH SOCKET
ADJUSTABLE WRENCH
HAMMERor RUBBER MALLET
REVISION: G
If you experience any problems with the assembly of this product, please contact
your dealer or your PARABODYCustomer Service representative at:
1-800-328-9714.

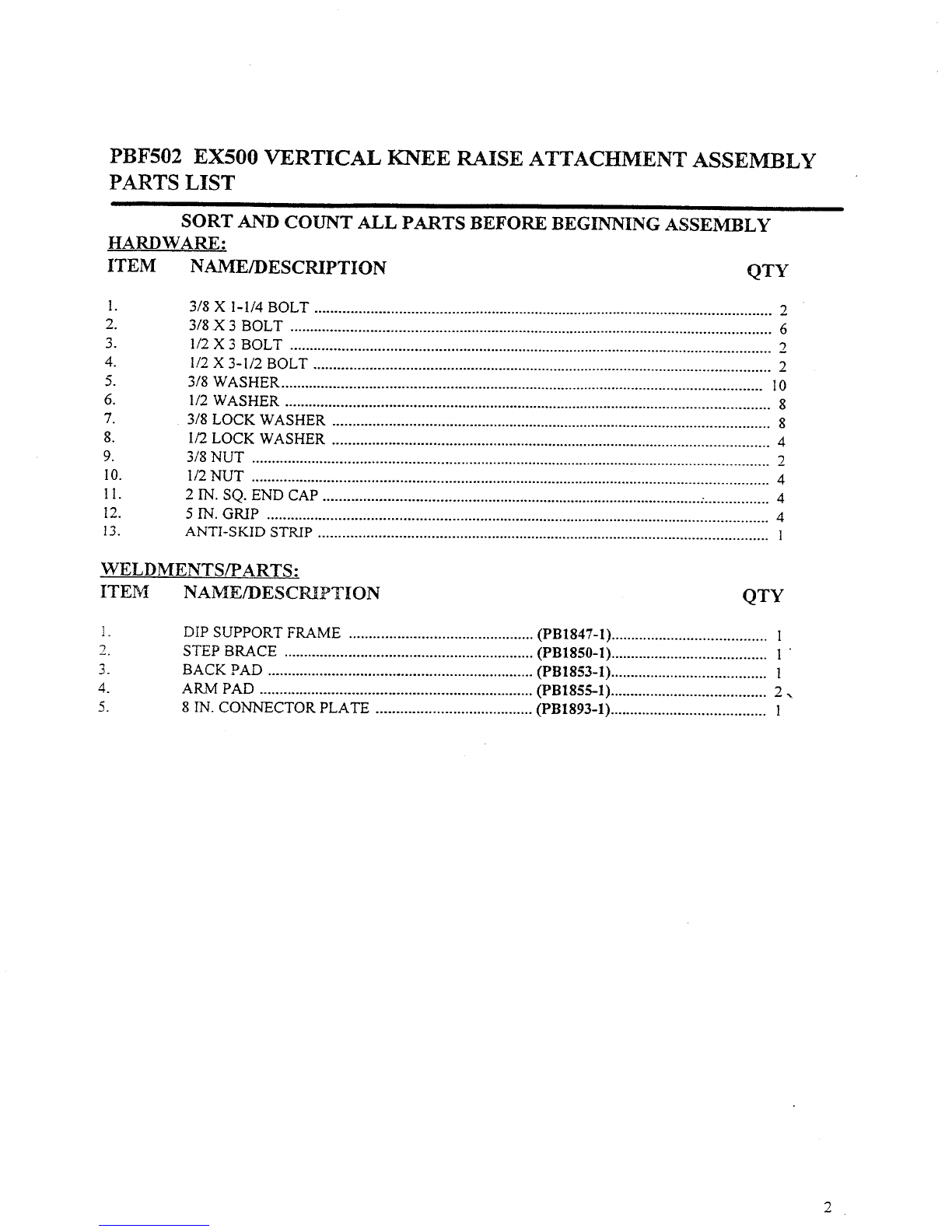

PBF502 EX500 VERTICAL KNEE RAISE ATTACHMENT ASSEMBLY
PARTS LIST
SORT AND COUNT ALL PARTS BEFORE BEGINNING ASSEMBLY
HARDWARE:
ITEM
2.
3.
4.
5.
6.
7.
8.
9.
I0.
II.
12.
13.
NAME/DESCRIPTION QTY
3/8XI-1/4BOLT................................................................................................................... 2
3/8.X3BOLT......................................................................................................................... 6
1/2X3BOLT......................................................................................................................... 2
1/2X3-I/2BOLT................................................................................................................... 2
3/8WASHER......................................................................................................................... 10
1/2WASHER.......................................................................................................................... 8
3/8LOCKWASHER.............................................................................................................. 8
I/2LOCKWASHER.............................................................................................................. 4
3/8NUT.................................................................................................................................. 2
1/2NUT.................................................................................................................................. 4
2IN.SQ.ENDCAP............................................................................................... : ................ 4
5IN.GRIP.............................................................................................................................. 4
ANTI-SKIDST1LIP................................................................................................................. 1
WELDMENTS/PARTS:
ITEM NAME/DESCRIPTION QTY
]o
2.
3.
4.
5.
DIPSUPPORTFRAME.............................................. (PB1847-1)....................................... I
STEPBRACE.............................................................. (PB1850-1)....................................... 1"
BACKPAD.................................................................. (PB1853-1)....................................... 1
ARMPAD.................................................................... (PB1855-1)....................................... 2
8 IN. CONNECTORPLATE....................................... (PB1893-1).......................................

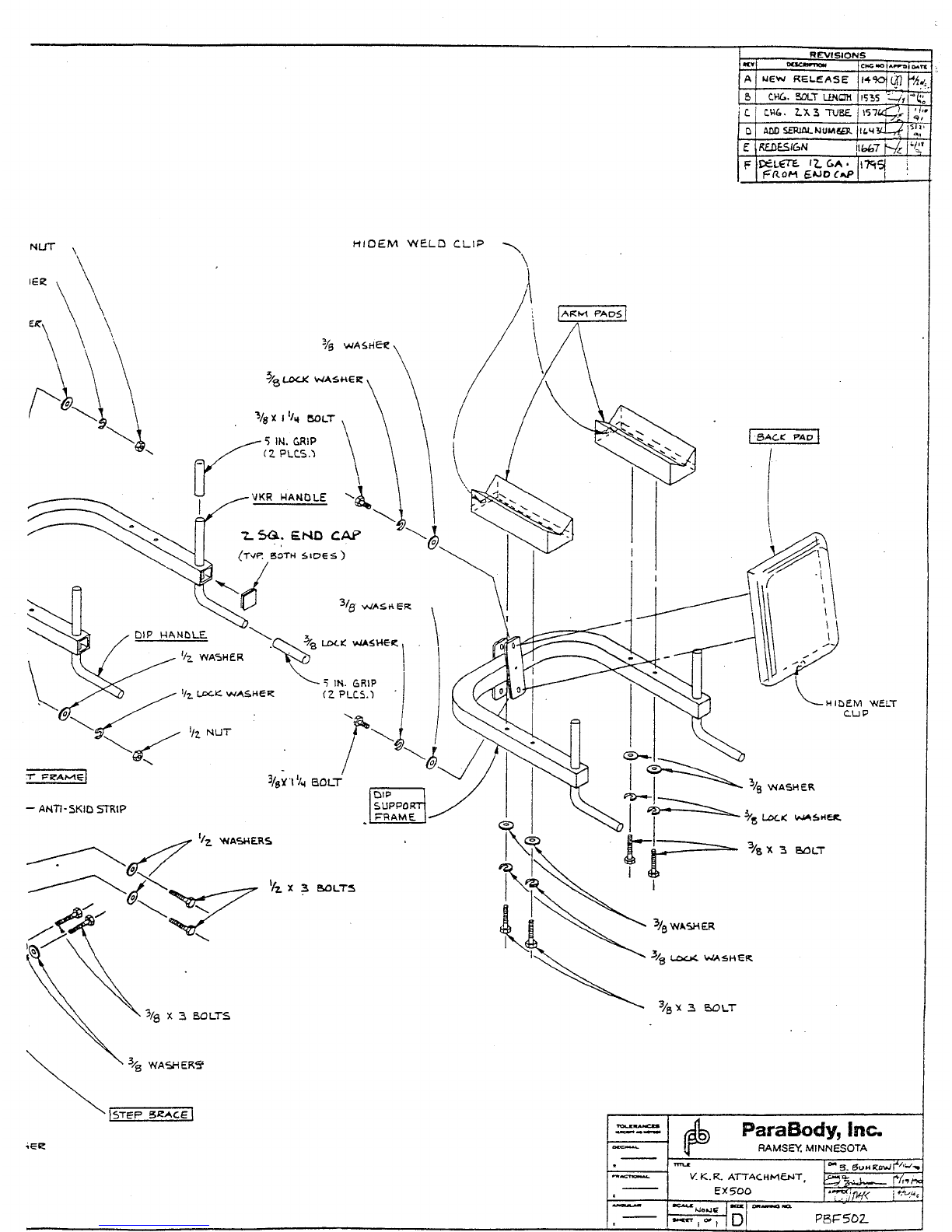

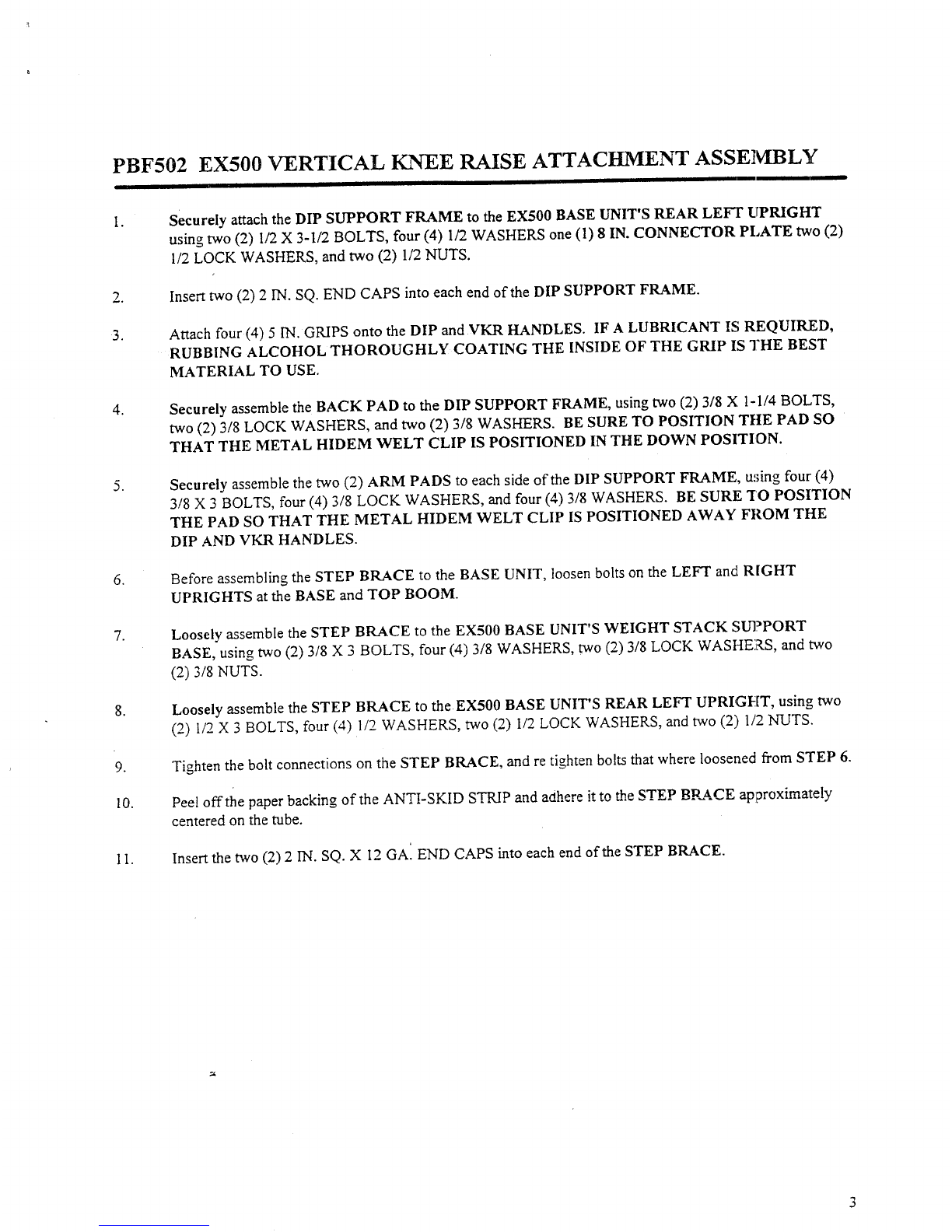

PBFS02 EX500 VERTICAL KNEE RAISE ATTACHMENTASSEM_BL¥

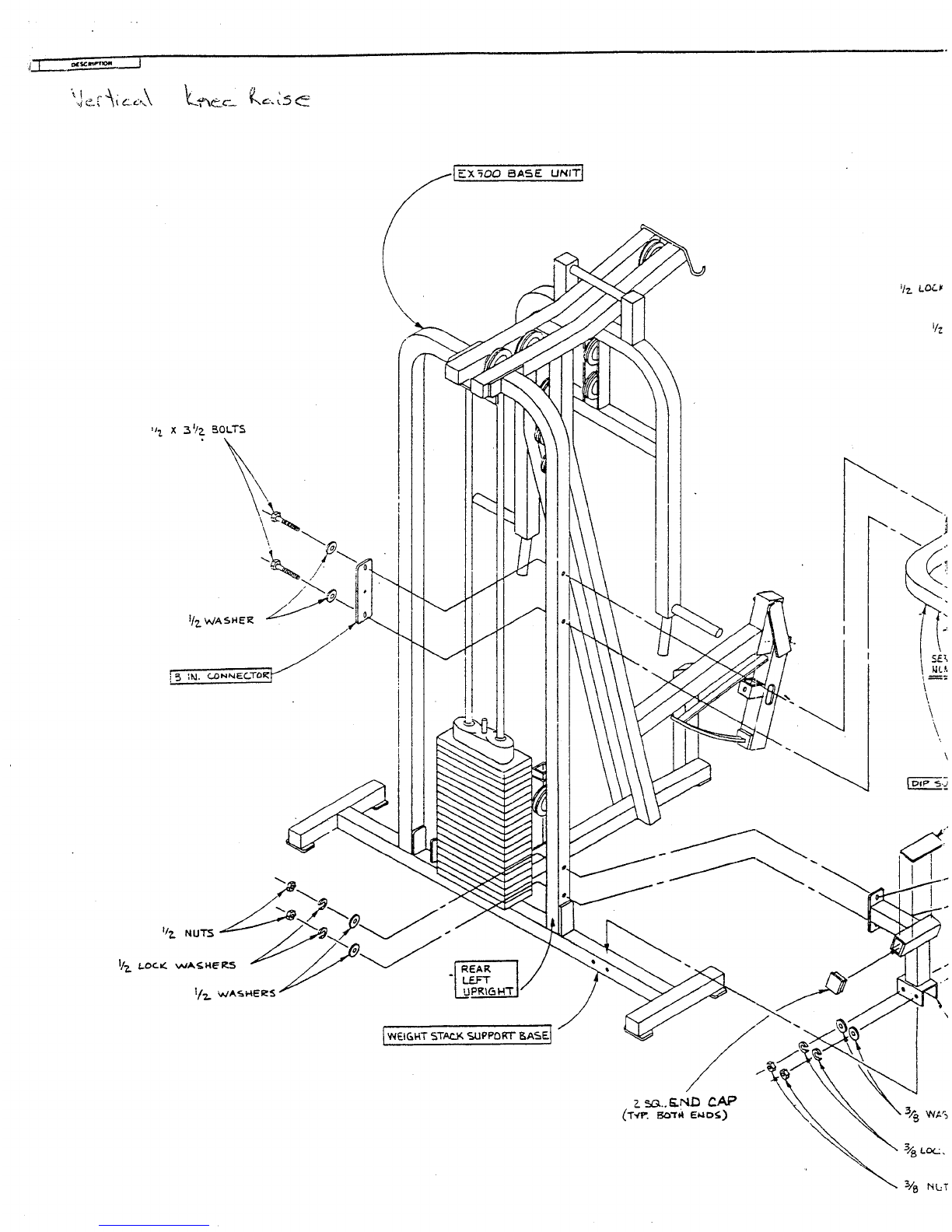

Securely attach the DIP SUPPORTFRAMEto the EX500 BASEUNIT’S REARLEFT UPRIGHT
using two (2) I/2 X 3-I/2 BOLTS,four (4) 1/2 WASHERSone (1) 8 IN. CONNECTORPLATEtwo
1/2 LOCKWASHERS,and two (2) 1/2 NUTS.
o
Insert two (2) 2 IN. SQ. ENDCAPSinto each end of the DIP SUPPORTFRAME.
Attach four (4) 5 IN. GRIPSonto the DIP and VKRHANDLES.IF A LUBRICANTIS REQUIRED,
RUBBING ALCOHOLTHOROUGHLYCOATING THE INSIDE OF THE GRIP IS THE BEST
MATERIAL TO USE.
Securely assemble the BACKPADto the DIP SUPPORTFRAME,using two (2) 3/8 X1-1/4 BOLTS,
two (2) 3/8 LOCKWASHERS,and two (2) 3/8 WASHERS.BE SURETO POSITIONTIlE PAD
THAT THE METALHIDEM WELTCLIP IS POSITIONED IN THE DOWNPOSITI.ON.
Securely assemble the two (2) ARMPADSto each side of the DIP SUPPORTFRAME,using four (4)
3/8 X 3 BOLTS,four (4) 3/8 LOCKWASHERS,and four (4) 3/8 WASHERS.BESURF,"I’O POSITION
THE PAD SO THAT THE METAL HIDEM WELT CLIP IS POSITIONED AWAYFROMTHE
DIP AND VKR HANDLES.
o
11.
Before assembling the STEPBRACEto the BASEUNIT,loosen bolts on the LEFTand RIGHT
UPRIGHTSat the BASEand TOP BOOM.
Loosely assemble the STEP BRACEto the EXS00 BASEUNIT’S WEIGHTSTACKSUPPORT
BASE,using two (2) 3/8 X 3 BOLTS,four (4) 3/8 WASHERS,two (2) 3/8 LOCKWASHERS,and
(2) 3/8 NUTS.
Loosely assemble the STEP BRACEto the EXS00 BASEUNIT’S REARLEFTUPRIGHT,using two
(2) I/2 X 3 BOLTS,four (4) 1/2 WASHERS,two (2) I/2 LOCKWASHERS,and two (2) 1/2
Tighten the bolt connections on the STEPBRACE,and re tighten bolts that whereloosened fromSTEP6.
Peel off the paper backing of the ANTI-SKIDSTRI.P and aahere it to the STEPB.u~4.CEapproximately
centered on the tube.
Insert the two (2) 2 IN. SQ. X12 GA’. ENDCAPSinto each end of the STEPBRACE.
I I
/
