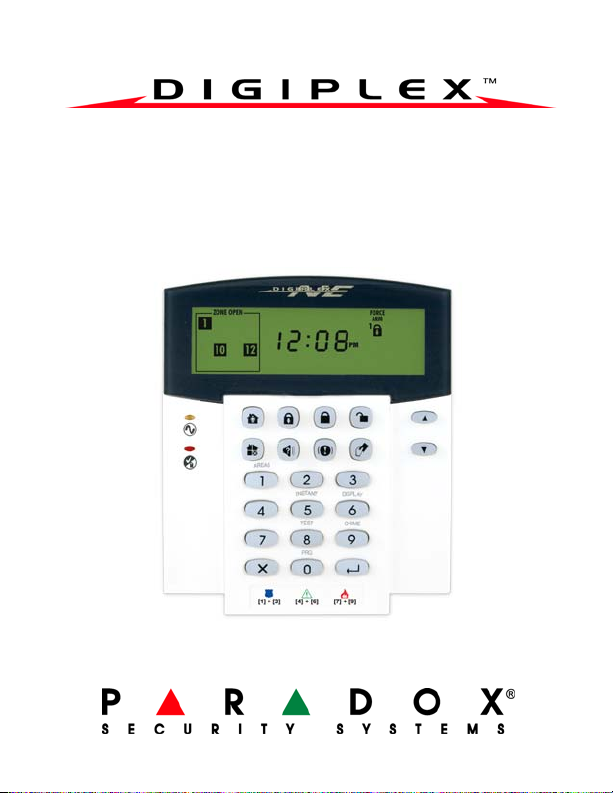

Paradox Digiplex EVO DGP2-640 Manuale utente

Icon LCD Keypad

DGP2-640

User Guide

DGP2-640

DGP2640_EU00.fm Page -3 Friday, April 8, 2005 11:28 AM

DGP2640_EU00.fm Page -2 Friday, April 8, 2005 11:28 AM

Table of Contents

Introduction..............................................................1

Basic Operation.......................................................2

Action Keys.........................................................................2

Keypad Indicator Lights.......................................................3

Visual Feedback..................................................................4

Auditory Feedback..............................................................5

Modes and Settings ............................................................5

Partitioned System..................................................7

Area Status Display.............................................................7

Zones........................................................................8

Zone Status Display............................................................8

Arming......................................................................9

Exit Delay Timer..................................................................9

Regular Arming...................................................................9

Stay Arming.......................................................................10

Instant Arming...................................................................10

Force Arming.....................................................................11

One-Touch Keys...............................................................12

Keyswitch Arming..............................................................13

Auto-Arming......................................................................13

Bypass Programming........................................................14

Disarming...............................................................16

Entry Delay Timer .............................................................16

Disarming an Armed System ............................................17

DGP2640_EU00.fm Page -1 Friday, April 8, 2005 11:28 AM

Alarm Memory Display...................................................... 17

Access Codes ........................................................18

System Master Code........................................................ 18

User Access Codes.......................................................... 20

Keypad Lock-Out.............................................................. 24

Trouble Display......................................................25

Additional Features ...............................................28

Programmable Outputs (PGMs)....................................... 28

Panic Alarms..................................................................... 28

Programming Chime Zones.............................................. 28

Programming the Time..................................................... 30

Quick Function Keys.............................................31

Fire and Burglar Alarms........................................32

Standard Fire Zone........................................................... 32

Delayed Fire Zone............................................................ 32

Fire Safety Tips................................................................. 34

Minimizing Home Fire Hazards......................................... 35

Burglar Alarm.................................................................... 35

Testing and Maintenance......................................36

Burglar Alarm Testing....................................................... 36

Fire Alarm Testing ............................................................ 36

System Maintenance........................................................ 36

System Test...................................................................... 36

DGP2640_EU00.fm Page 0 Friday, April 8, 2005 11:28 AM

640 Icon LCD Keypad 1n

1.0 Introduction

The 640 Icon LCD Keypad allows you to easily access your security

system's functions and provide you with an easy-to-understand

display of your security system's alarm and operational status.

All the of actions performed in your security system will be executed

and displayed through the keypad. Your security system uses

advanced technology which will provide you with reliable security

protection and powerful features that are easy to use.

Since you will communicate your instructions to the system through

your keypad, please read this manual carefully and have your

installer explain basic system operation.

1.1 Legend

= Indicates a warning.

= Indicates a note or reminder.

[Number]=

Indicates information that must be entered on the keypad.

DGP2640_EU00.fm Page 1 Friday, April 8, 2005 11:28 AM

2 User Guide

2.0 Basic Operation

This section provides an overview of the keypad’s functionalities.

This includes the use of action keys and visual feedback.

Many of the features in your system must be enabled by your

installer. If the feature is not programmed, the keypad will emit a

rejection beep and the action will be cancelled.

2.1 Action Keys

The Icon keypad has action keys with which you can access the

keypad’s various functions as outlined in Table 1.

Table 1: Action Keys

Action Key Key Description

Stay Arm Arms the perimeter only, allowing you to

remain in the protected area. Refer to

Stay Arming on page 10.

Force Arm Arms area without waiting for all zones to

close. Refer to Force Arming on page 11.

Regular Arm Arms individual areas or all assigned

areas when all zonesare closed. Refer to

Arming on page 9.

Disarm Disarms individual areas or all assigned

areas. Refer to Disarming on page 16.

Zone Bypass Deactivates specific zones the next time

the system is armed. Refer to Bypass

Programming on page 14.

DGP2640_EU00.fm Page 2 Friday, April 8, 2005 11:28 AM

640 Icon LCD Keypad 3n

2.2 Keypad Indicator Lights

The state of each light on the keypad represents a specific condition

in your system as outlined in Table 2.

Table 2: Light Indications

Action Key Key Description

Events in

Memory Displays a record of recently triggered

alarms. Refer to Alarm Memory

Display on page 17.

System Trouble Displays a list of any system troubles that

occurred. Refer to Trouble Display on

page 25.

Set User Codes Change user access codes. Refer to

Access Codes on page 18.

Light Function Display Status

AC Light ON Power ON

OFF Power OFF

Status Light Green ON All zones closed

Green OFF Zone(s) open or in tamper

Green flash Exit delay

Red ON Area(s) armed

Red OFF Area(s) disarmed

Red flash System in alarm

DGP2640_EU00.fm Page 3 Friday, April 8, 2005 11:28 AM

4 User Guide

2.3 Visual Feedback

The icons on the keypad’s screen communicate your system’s status

as outlined in Table 3.

Table 3: Icon Display and Functionalities

Icon(s) Display and Functionality

Indicates numbers corresponding to zones

and option numbers. If a zone or zones are

open, their corresponding number(s) will

appear.

Indicates which areas are Force armed.

Refer to Force Arming on page 11.

Indicates which areas are Regular armed.

Refer to Arming on page 9.

Indicates which areas are Instant armed.

Refer to Instant Arming on page 10.

Indicates which areas are Stay armed.

Refer to Stay Arming on page 10.

Indicates the numerical values for the time,

sections, zones, options and codes.

Indicates which zones are in Chime Mode.

Refer to Programming Chime Zones on

page 28.

Indicates a tamper situation in the system.

Refer to Trouble Display on page 25 and

Group [5]: Zone Tamper on page 27.

DGP2640_EU00.fm Page 4 Friday, April 8, 2005 11:28 AM

640 Icon LCD Keypad 5n

2.4 Auditory Feedback

When you enter information on the keypad, it will guide you with beep

tones. You should be familiar with these:

Confirmation Beep: When an operation (i.e. arming/disarming) is

successfully completed on the keypad or when the system switches

to a new status/mode, the keypad produces an intermittent beep tone

(“BEEP-BEEP-BEEP-BEEP”).

Rejection Beep: When the system reverts to its previous status or

when an action is performed incorrectly on the keypad, it will emit a

continuous beep tone (“BEEEEEEEEP”).

2.5 Modes and Settings

2.5.1 Confidential Mode

Your installer can program your keypad to hide the status of your

system by changing the keypad from Normal Mode to Confidential

Mode. This occurs when your keypad has been inactive for a period

Icon(s) Display and Functionality

Indicates a fire zone situation in the system.

Refer to Fire and Burglar Alarms on

page 32.

Indicates system troubles. Refer to Trouble

Display on page 25.

Indicates bypassed zones. Refer to Bypass

Programming on page 14.

Indicates alarms stored in memory. Refer to

Alarm Memory Display on page 17.

DGP2640_EU00.fm Page 5 Friday, April 8, 2005 11:28 AM

6 User Guide

of time as defined by your installer. In Confidential Mode all of the

indicator lights will turn off and the keypad will not display any zones

or status icons. Depending on how your keypad was programmed by

your installer, you must either press a key or enter your user access

code to activate Normal Mode.

2.5.2 Multiple-action

If your installer has enabled this feature, your keypad will permit you

to complete more than one action without having to reenter your user

access code. Press the []key to exit the User Menu.

2.5.3 Display Settings

You can adjust the illumination of the LCD screen to suit your needs.

How do I adjust the display settings?

1. Press and hold the [6] key for 3 seconds. Your keypad will emit

a confirmation beep and the display options (1 to 3) will scroll.

The display option will appear on the left, while the option’s

setting will appear on the right. Press the key corresponding to

the setting you wish to modify.

• Option 1 – Adjust the scroll speed (0 is the highest, 7 is the

slowest)

• Option 2 – Adjust the backlight (0 is the lowest, 7 is the

highest)

• Option 3 – Adjust the contrast (0 is the lowest, 7 is the

highest)

2. Use the [S]and [T]keys to increase or decrease the settings.

3. Press the []key to save and exit.

DGP2640_EU00.fm Page 6 Friday, April 8, 2005 11:28 AM
