PARAMOUNT BED CA-A307E Manuale utente

Intended use

■This lifting pole is designed to be attached to the bed for support to raise the body from the bed

by attaching to the bed or for training too.

■Intended users : Medical professionals, patients

■Patient target group : Refer to the instruction manual of the medical device to be used together

with this product.

Lifting pole

CA-A307E

Lifting pole

Preface

Thank you for purchasing our lifting pole.

This instruction manual describes precautions and how to safely use and operate the lifting pole.

●To ensure safe and proper use of the lifting pole, be sure to read this instruction manual

and the instruction manual for the suitable bed before use.

●The safe and correct operating procedures should be explained not only to the person using the bed

with lifting pole for medical treatment but also to the user’s caregiver.

●After reading this instruction manual, store it in a place that can be easily accessed for later reference.

Users and/or patients are requested to report information about any serious incident that occurs within the EU

to the regulating authority of the member country of residence.

Serious incident means any incident that directly or indirectly resulted in, may have resulted in,

or may result in any of the following.

・Death of a patient, user, or other person

・Serious temporary or permanent adverse effects on the health of a patient, user, or other person

・Serious public health threat

●Some of the descriptions in this instruction manual may differ from the product you have purchased

due to model improvements.

●Values described for the operation range, dimensions, angles, and weights are subject

to normal manufacturing tolerances.

Except for special cases, words such as approximately and about are omitted in this instruction manual

to improve readability.

●For any queries, contact Paramount Bed (see p. 4) or your distributor.

7C02126400A2

Temperature

Humidity

Air pressure

-10℃to 50℃5℃to 40℃

20%RH to 90%RH at 30

℃

20%RH to 90%RH at 30

℃

700hPa to 1060hPa

Environmental conditions Range

When transported or stored When in use

Load capacity (kg) 76

Product weight (kg) 10

Materials Made of steel, powder coating (part is resin mold item)

Product name

Model No.

Lifting pole

CA-A307E

External dimensions (mm) 1205 x 866 x 130 (when assembled)

Part names and part confirmation

■After unpacking, check that there are no missing or damaged parts. If any parts are missing

or damaged, contact Paramaount Bed or your distributor.

Specifications

< Specifications >

Subject to normal manufacturing tolerance

< Classification >

Classification as medical device in Europe : Class 1

< Applicable standards >

This product is designed and manufactured according to the following standards.

・IEC 60601-1 : 2005 + A1:2012

・EN 60601-1 : 2006 + A1:2013 + A12:2014

< Product lifetime >

The lifetime of this equipment is typically eight (8) years.

Lifetime is defined as the period during which the product will maintain the specified performance

and safety, provided it has been maintained and operated in conditions of normal use in accordance

with the requirements in this instruction manual.

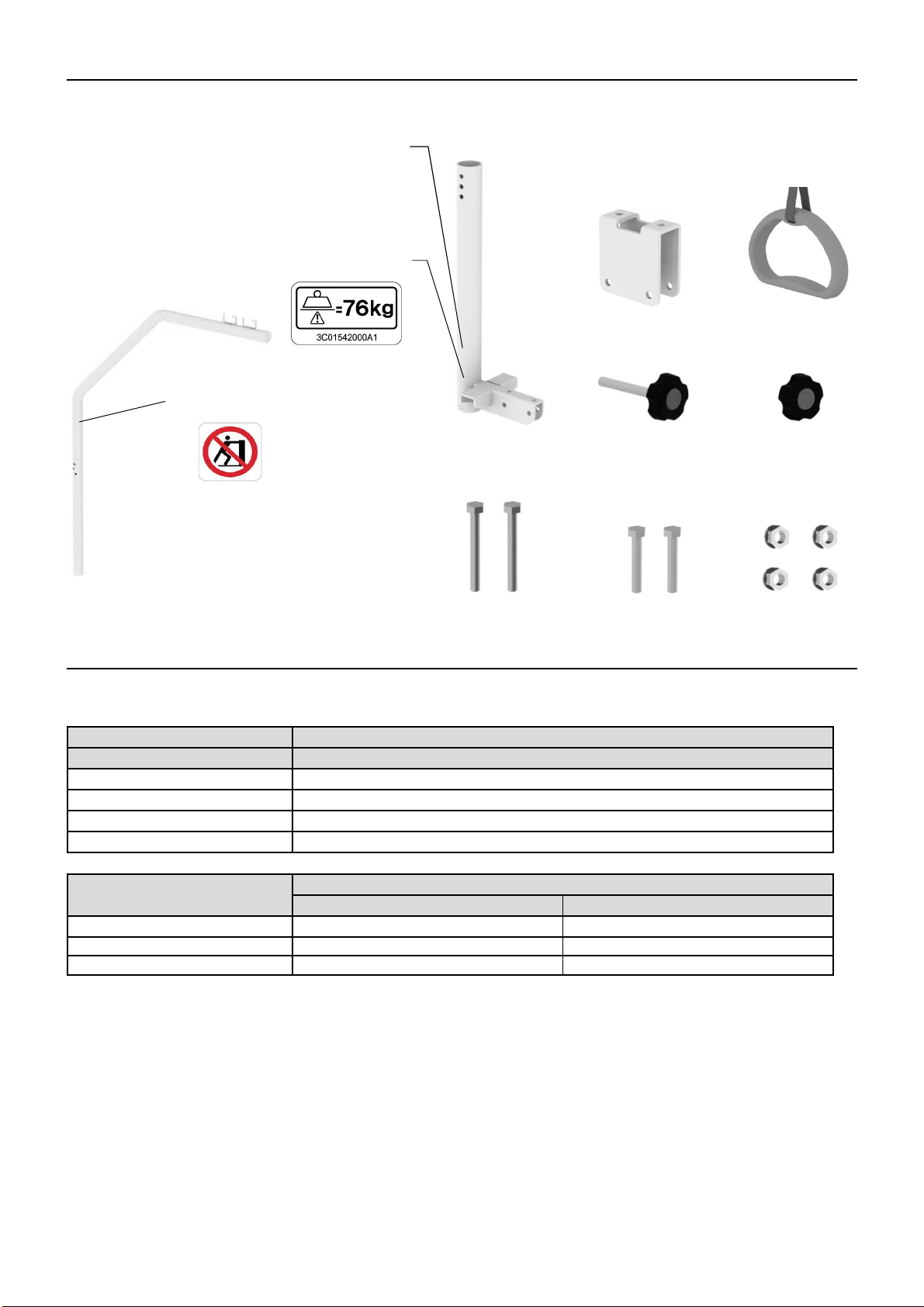

Outer pipe x1

Arm x1

Attachment x1 Grip x1

Knob bolt x1 Knob nut x1

Long bolt x2 Short bolt x2 Nut x4

Product ID label

Safe working load label

Prohibited label

Attaching the lifting pole

●Load capacity is 76kg. Do not hang an article exceeding the load capacity because it may damage

the lifting pole, resulting in an injury.

■The lifting pole can be used for support to raise the body from the bed by attaching to the bed.

It can be used for training too.

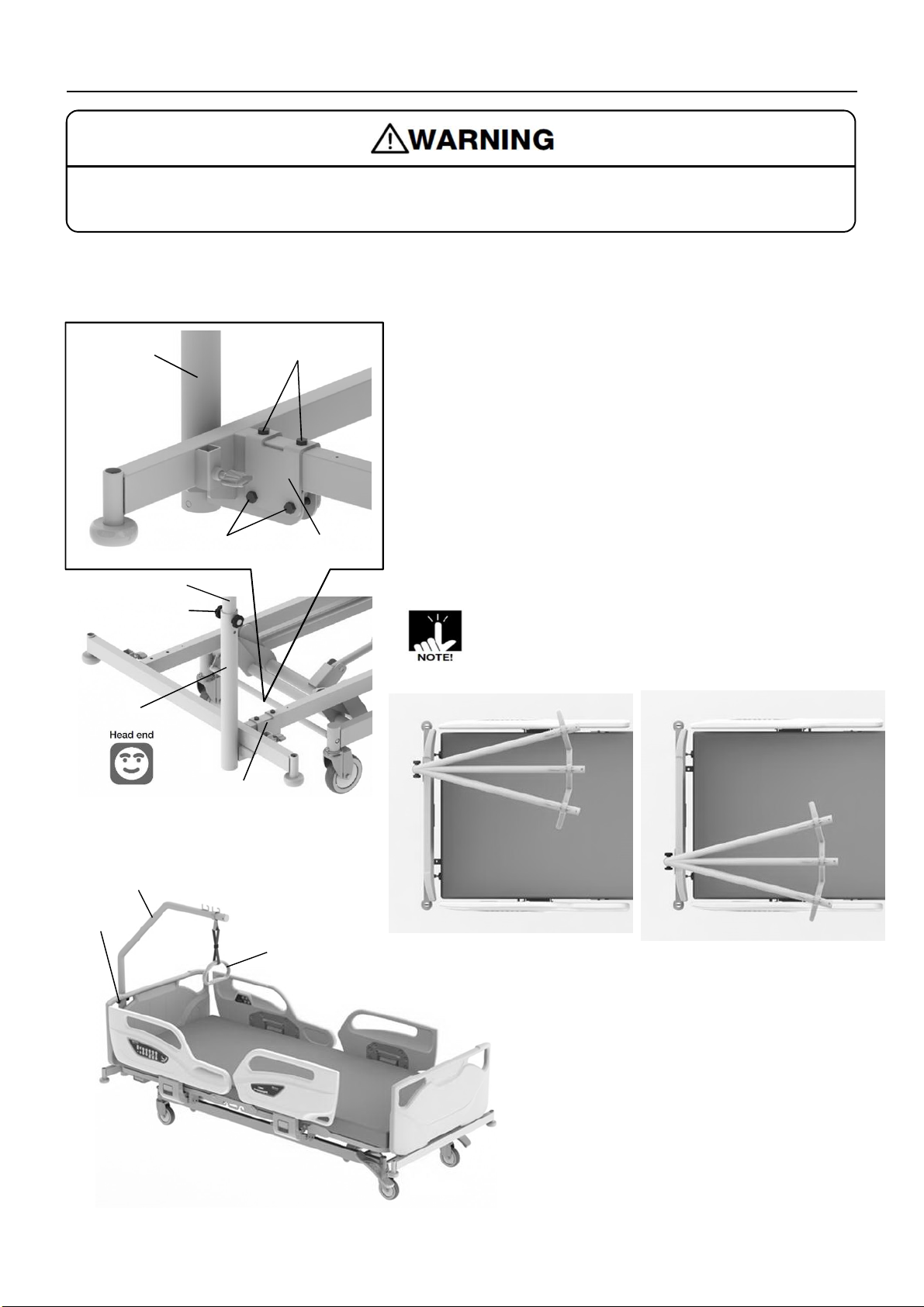

①Detatch the headboard and raise the back section base.

②Set the attachment on the main frame of the bed.

③Attach the outer pipe to the main frame and the

attachment with 2 long bolts and 2 nuts as shown

in figure.

④Fix the outer pipe and the attachment with 2 short

bolts and 2 nuts as shown in figure.

⑤Attach the headboard and lower the back section base.

⑥Inset the arm into the outer pipe and attach the grip to

the arm.

⑦Tighten the knob bolt and knob nut to fasten the arm.

⑧Pull down the grip to make sure that the lifting pole is

attached firmly.

Arm

Knob bolt

Grip

●The lifting pole can be attached on both the right

side and the left side of the bed.

●The arm can be set in three positions.

Outer pipe

Arm

Knob bolt

Attachment

Long bolt, Nut

Short bolt, Nut Attachment

Outer pipe

Symbol Description Symbol Description

Date of manufacture Serial number

Manufacturer for CE mark

Country of manufacture

(Made in China)

CE mark Model number

Do not lean against the lifting pole

Authorised representative

in the european community

Medical device

(This product is an accessory for

medical devices and such

accessory is required to be labeled

as "Medical Device" under

medical device regulations in

Europe. )

Safe working load

Refer to the instruction manual

■To disinfect parts.

Use one of the disinfectants listed below at the specifide concentration, making sure to follow the

instructions in the manuals or other materials available for the selected disinfectant.

76.9% - 81.4% ethanol for disinfection

0.05% - 0.2% benzalkonium chloride (e.g. Osvan)

0.05% - 0.2% benzethonium chloride (e.g. Hiamine)

0.05% chlorhexidine gluconate (e.g. Hibitane)

0.02% - 0.05% sodium hypochlorite (e.g. Milton)

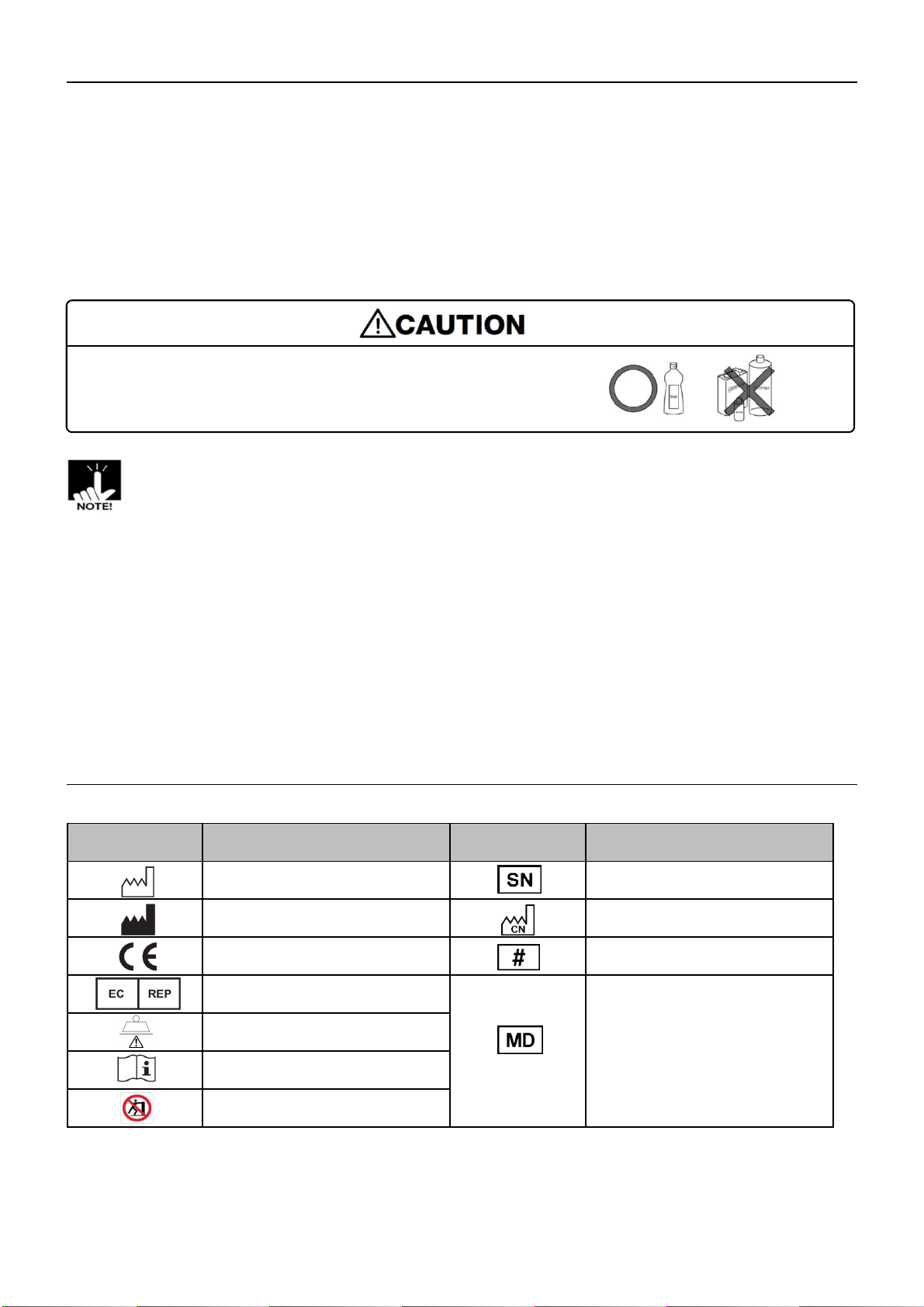

●Do not use volatile cleaning fluids (such as paint thinner,

benzene or gasoline) and cresol. Discoloration or

deterioration could result.

●The product cannot be used with an ozone sterilizer or an autoclave sterilizer,etc.

<Long-term storage>

■Do not place location that tend to be exposed to high temperatures, high humidity, low

temperatures, dry or dusty conditions.

Store at a temperature between -10℃and 50℃, humidity between 20%RH and 90%RH at 30℃,

and atmospheric pressure between 700hPa and 1060hPa.

■Keep the instruction manual insert in a safe place so that they do not become lost.

Daily maintenance / Long-term strage / Disposal

■Dispose of the product in accordance with local laws and regulations. Contact Paramount Bed

or your distributor (see "Contact information" as shown below) for any quaries.

< Disposal >

Product symbol definitions

■The symbols below are used for the product.

[Location in Japan] [Location in China]

PARAMOUNT BED CO., LTD.

14-5, 2-chome, Higashisuna, Koto-ku,

Tokyo, 136-8670, Japan

TEL : +81-(0)3-3648-2961

FAX : +81-(0)3-3648-5781

PARAMOUNT BED (CHINA) CO., LTD.

Plot A-105, Wuxi National Hi&New Tech

Industrial Development Zone, Wuxi, Jiangsu,

214028, China

TEL : +86-510-85323205

FAX : +86-510-8532-3212

After-sales service

1.When requesting repairs

Contact Paramount Bed or your distributor (see "Contact information" as shown below) for repair.

Details necessary when requesting repair

・Product name, model number, safety label number

・Date of purchase

・Details of fault or problem (please provide as much detail as possible)

・Your name, organization, address, and phone number

2.Minimum stock availability period

Paramount Bed keeps replacement parts (necessary to maintain oxygen cylinder holder performance)

in stock for at least 8 years after the discontinuation of production.

3.Questions regarding after-sales service

Contact Paramount Bed or your distributor (see "Contact information" as shown below).

Contact information

For any quaries, contact to the address or telephone number listed below.

N TES

2023-03

PARAMOUNTBED CO., LTD. [Revised: March 2023]

INSTRUCTION MANUAL

7F13016600A

KC-562E*1) / KC-562U*2) / EC-562

IV pole

*1) Not available for sale in the United States and Europe.

*2) Not available for sale in Europe.

Preface

Thank you for your purchase of the IV pole.

This instruction manual describes precautions and how to safely use and operate the

IV pole

To ensure safe and proper use of the product, be sure to read this instruction manual and the

instruction manual for the medical device to be used together with this product before use.

The safe and correct operating procedures should be explained not only to the persons using the IV

pole but also to caregiver.

After reading this instruction manual, store it in a place that can be easily accessed for later reference.

Some of the descriptions in this instruction manual may differ from the product you have purchased

due to model refinements.

Values described for the operation range, dimensions, angles, and weights are subject to normal

manufacturing tolerances. Except for special cases, words such as approximately and about are

omitted in this instruction manual to improve readability.

For any queries, contact Paramount Bed (see "Contact Information" as shown below) or your

distributor.

Users and/or patients are requested to report information about any serious incident that occurs within

the EU to the regulating authority of the member country of residence.

Serious incident means any incident that directly or indirectly resulted in, may have resulted in, or may

result in any of the following.

•Death of a patient, user, or other person

•Serious temporary or permanent adverse effects on the health of a patient, user, or other person

•Serious public health threat

Contact Information

PARAMOUNT BED CO., LTD.

14-5, 2-chome, Higashisuna, Koto-ku, Tokyo, 136-8670, Japan

Tel : +81-(0)3-3648-2961

FAX : +81-(0)3-3648-5781

For other contact information, please visit the website.

Website : https://www.paramount.co.jp/english/

INTENDED USE

This IV pole is designed to be attached to the medical device to be used together with this product

when giving an intravenous drip to a patient.

[Intended users]

Medical professionals

[Patient target group]

Refer to the instruction manual for the medical device to be used together with this product.

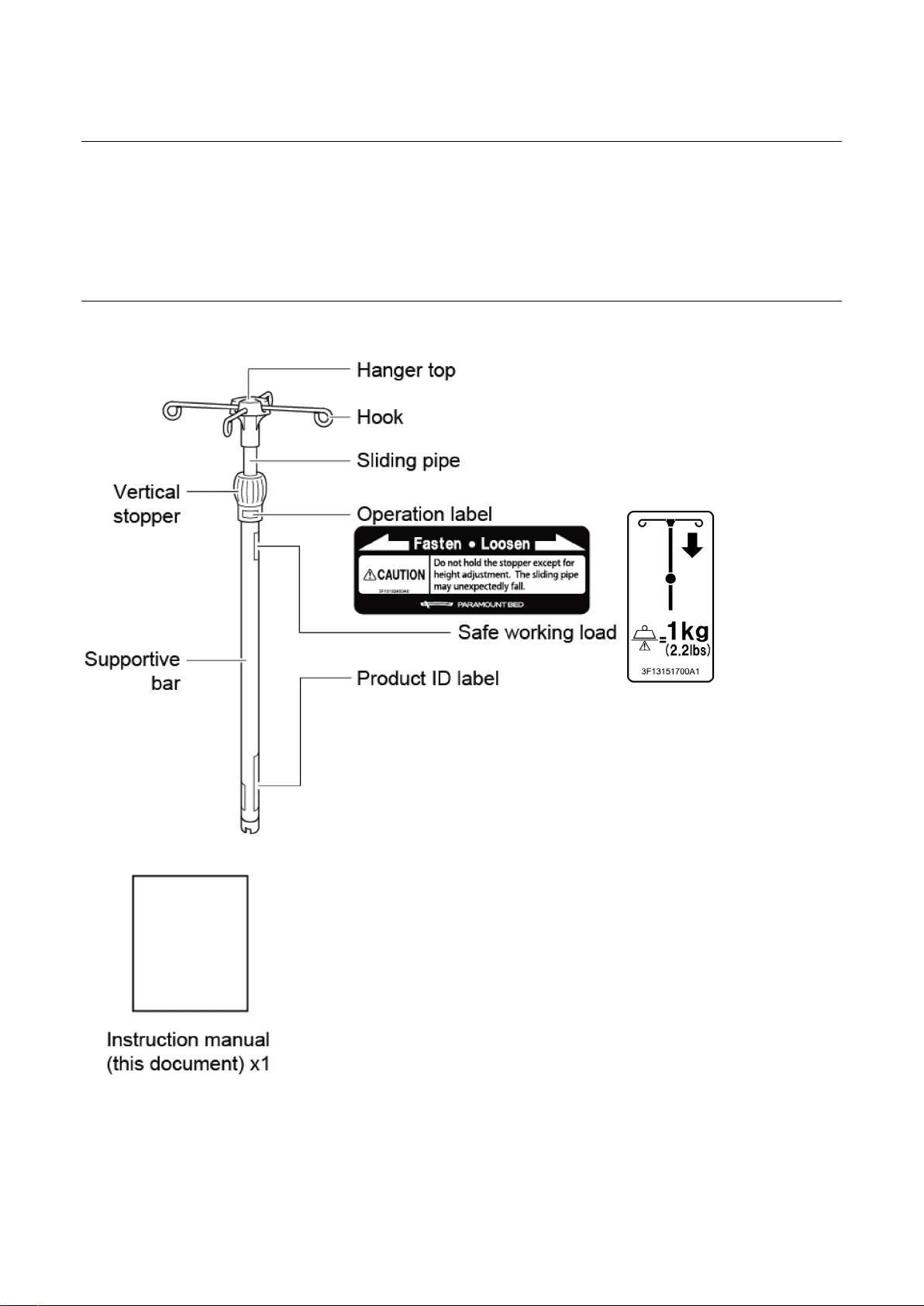

UNPACKING THE PRODUCT AND CHECKING THE PARTS

After unpacking, check that there are no missing or damaged parts. If any parts are missing or

damaged, contact Paramount Bed (see "Contact Information" on p. 6).
