Paramount Fitness EDC Istruzioni operative
INSTALLATION &
OWNER’S MANUAL
8175 W. Buckeye Rd., Phoenix, AZ 85043
Toll Free: 1.800.621.5886 • Phone: 480.893.7607 • Fax: 480.753.3397
US and Foreign patents and patents pending
see www.1paramount.com/support/patent-numbers/
Paramount products are designed by Paramount in Phoenix, Arizona, United States of America
004-027-8703-00 R02 ECN_2208 PUB111821 ©2021 Hayward Industries, Inc.
2
Table Of Contents
Installing The Canister ................................................................................................. 6
Plumbing The Canister ................................................................................................ 7
Plumbing Before The Equipment Header Or Pump ............................................ 7
Plumbing After The Suction Side Header And Before The Pump..................... 8
Pressure Testing............................................................................................................ 9
Home Owner Instructions: Cleaning The Basket................................................10
Winterizing The EDC Canister ................................................................................11
3
PLEASE REVIEW THE OWNER’S MANUAL AND INSTALLATION GUIDE
IN ITS ENTIRETY AND HEED ALL SAFETY INFORMATION. Failure to follow
these instructions and warnings can result in SEVERE PERSONAL INJURY OR
DEATH.
DANGER DANGER indicates a hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING WARNING indicates a hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION CAUTION indicates a hazardous situation which,
if not avoided, could result in minor or moderate
injury.
NOTICE NOTICE is used to address practices not related to
physical injury.
Signal Words and Symbols Used In This Manual
This Owner’s Manual and Installation Guide contains specific precautions and
symbols to identify safety-related information. You will find DANGER, CAUTION,
WARNING, NOTICE and SAFETY INSTRUCTIONS symbols which require
special attention. Please read them carefully and follow these precautions as
indicated! They will explain how to avoid hazards that may endanger you or
persons using or maintaining your pool or spa.
4
Do not remove this lid when this canister is
under pressure. Removing this lid with the
canister under pressure will result in serious
injury or death.
DANGER
Fully secure lid assembly to canister before
proceeding. Do not exceed 50 psi. when
pressure testing. Failure to do so will result
in serious injury or death.
DANGER
Fully secure lid assembly to canister before
applying pressure. If lid isn’t fully secured it will
result in serious injury or death.
DANGER
Do not stand over this lid when this canister is
under pressure. Doing so could result in serious
injury or death.
WARNING
This canister is under pressure during pressure
test. Removing the lid or standing over the lid
while the unit is under pressure could result in
serious injury or death.
WARNING
This debris canister should only be installed on
the suction side of the system. Failure to do so
could result in serious injury or death.
WARNING
5
3 Mounting Feet
2 ports for
plumbing in the
optional Clear
O3 ozone water
purifier or vacuum
gauge
The inlet port
is 2½"
schedule 40
pipe size on
the ID. The OD
accepts a 3"
coupler (spigot)
The outlet port
is 2½"
schedule 40
pipe size on
the ID. The OD
accepts a 3"
coupler (spigot)
Clear lid
& bayonet
assembly
6
LOCATING THE CANISTER FOR BELOW GRADE
INSTALLATION
The EDC canister can be installed below grade. The minimum hole footprint is
24" x 24". The hold depth varies for per your requirements. Backfill the hole after
plumbing; be sure to compact the soil around the canister to ensure stability.
2½" or 3" PIPE TO
SUCTION LINES
FROM POOL
SET AT HEADER PIPE LEVEL
2½"or 3" PIPE TO
SUCTION OF PUMP
DEPTH WILL VARY
INSTALLING THE EDC AT GRADE
Set the canister at the desired position on the pad. Then anchor with appropriate
hardware using the three mounting feet. Failure to anchor the canister puts
undue stress on glue joints when removing the lid. Over time this can result
in leaks. Also, anchoring the canister reduces vibration and aids in quieter
operation of the equipment.
7
PLUMBING THE EQUIPMENT SIDE CANISTER
WARNING This debris canister should only be installed
on the suction side of the system.
8" Minimum
Straight Pipe
Filter
All Suction Header
Pump
OPTION 1:
ALL SUCTION PIPES
GOING TO EDC
Plumb the suction header as you
normally would. From the suction
header plumb the suction line into
the inlet port of the EDC. There
must be 8" of straight pipe between
the pump and any fittings.
OPTION 2:
SINGLE SUCTION
ITEM ON EDC
Plumb a suction line from an outlet
fitting to the inlet port of the EDC.
From the bottom outlet of the EDC
go directly into the header with
other suction items. There must
be 8" of straight pipe between the
pump and any fittings.
8" Minimum
Straight Pipe
Filter
Isolated
Suction Port
Pump
Other Suction
Header Items
8
8" Minimum
Straight Pipe
Apply primer twice before gluing
pipe or fittings to EDC canister
Pump
Install 3 Way Valve
Ahead of the LeafVac O N LY
Suction From the
Skimmer, Main Drain
or Spa
NOTICE Always be sure to have a minimum of 8
inches of pipe between the suction inlet of
the pump and the first connection whether
it is an EDC or a plumbing manifold.
The EDC canister is made of a 30% glass filled Noryl material for strength.
This requires priming the sockets two times, before applying the PVC glue.
Fittings, unions and pipe are not included.
9
PRESSURE TESTING
Fully secure lid assembly to canister before
proceeding. Do not exceed 50 psi. when
pressure testing. Failure to do so will result
in serious injury or death.
DANGER
¼" NPT
Accepts ½" pipe or
3
/
4
" fitting
Optional Ports:
The EDC canister has 3 optional ports. Two of the optional ports are ¼" NPT
blind ports located approximately 18" from the base. The third optional port is
located on the bottom side of the EDC. It is sized to accept ½" pipe or a ¾"
fitting.
If pressure testing is required, you can use the system pressure gauge to
determine testing pressure or you may use one of the ¼" NPT blind ports of
the EDC canister. This requires the ¼" NPT port be drilled through. Use a 1/8"
drill bit being careful not to damage the threads. The bottom of the ¼" port has
a drill point for centering your drill bit. Use thread sealant (DO NOT use Teflon
tape) on the pressure gauge. If you use this port for pressure testing at startup
you can either plug the port or install a vacuum gauge for normal operation.
The ¼" NPT ports can be used for a pressure gauge during pressure testing
or a vacuum gauge during normal operation. Another use would be for a
suction side device such as the Paramount Clear03 ozone generator.
The single ½" pipe ¾" fitting port can also be used for suction side devices.
10

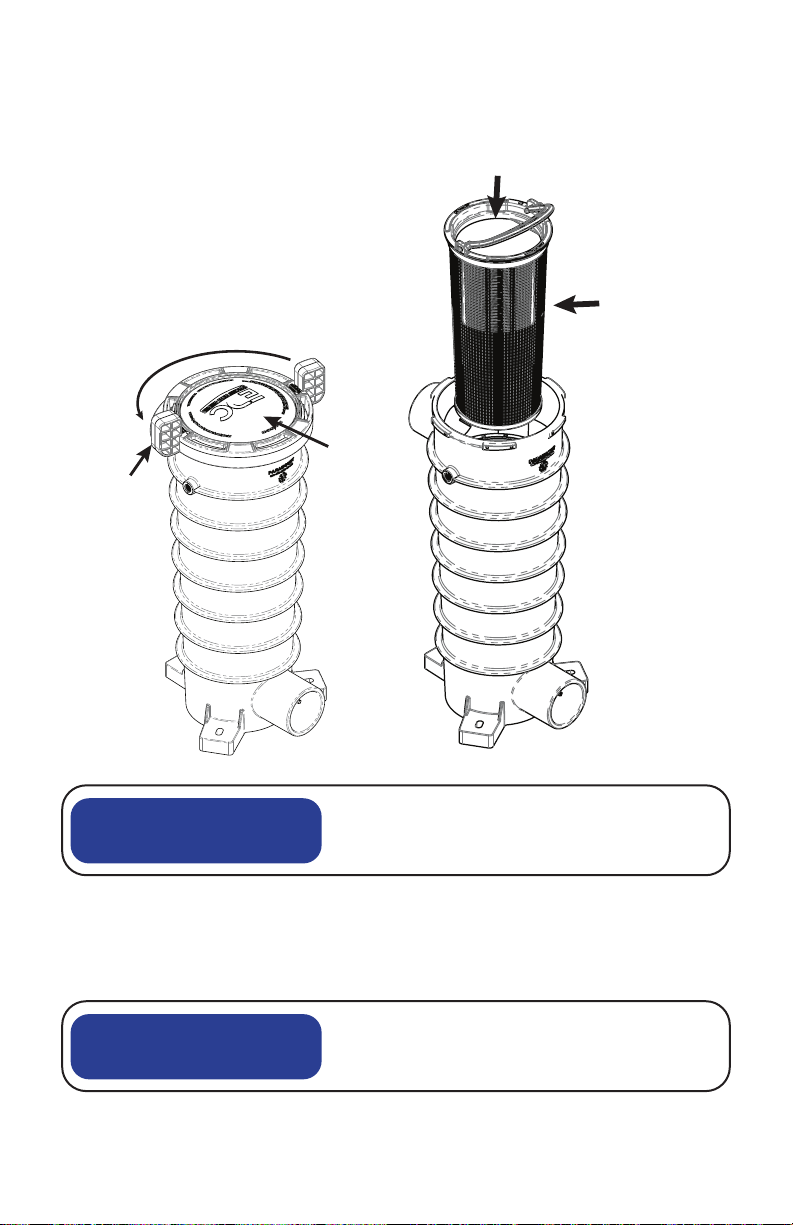

HOME OWNER INSTRUCTIONS:
CLEANING THE BASKET
Ring
Lid
Fine mesh bag
Debris
basket
NOTICE Make sure to turn off the pump.
To clean the basket you must remove the lid. Turn the two handles
counterclockwise one quarter turn. Set the lid aside making sure to keep the
o-ring clean.
NOTICE The lid cannot be removed from the ring.
