Parkside PDSS 16 A1 Manuale utente

AIR DIE GRINDER SET PDSS 16 A1

IAN 327359_1904

AIR DIE GRINDER SET

Translation of the original instructions

ПНЕВМАТИЧЕН МУЛТИШЛАЙФ

Превод на оригиналното ръководство за

експлоатация

SET POLIZOR AXIAL

PNEUMATIC

Traducerea instrucţiunilor de utilizare original

ΣΕΤ ΑΕΡΟΤΡΟΧΟΣ

Μετάφραση των αυθεντικών οδηγιών

λειτουργίας

PNEUMATSKA ŠTAPNA BRUSI-

LICA U SETU S PRIBOROM

Prijevod originalnih uputa za uporabu

DRUCKLUFT-STABSCHLEIFER-SET

Originalbetriebsanleitung

PNEUMATSKA BRUSILICA U SETU

SA PRIBOROM PNEUMATIC

Prevod originalnog uputstva za upotrebu

GB/CY Translation of the original instructions Page 1

HR Prijevod originalnih uputa za uporabu Stranica 27

RS Prevod originalnog uputstva za upotrebu Strana 53

RO Traducerea instrucţiunilor de utilizare originalPagina 79

BG Превод на оригиналното ръководство за

експлоатация Cтраница 105

GR/CY Μετάφραση των αυθεντικών οδηγιών

λειτουργίας Σελίδα 135

DE/AT / CH Originalbetriebsanleitung Seite 161

Before reading, unfold the page containing the illustrations and familiarise

yourself with all functions of the device.

Prije nego što pročitate tekst, otvorite stranicu sa slikama i upoznajte se na

osnovu toga sa svim funkcijama uređaja.

Pre čitanja rasklopite obe strane sa slikama te se upoznajte sa svim funkcijama

uređaja.

Înainte de a citi instrucţiunile, priviţi imaginile şi familiarizaţi-vă cu toate funcţiile

aparatului.

Преди да прочетете отворете страницата с фигурите и след това се

запознайте с всички функции на уреда.

Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειω-

θείτε με όλες τις λειτουργίες της συσκευής.

Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen

Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

PDSS 16 A1 GB│CY │ 1 ■

Contents

Introduction...................................3

Intended use..........................................3

Features .............................................4

Package contents ......................................5

Technical data ........................................5

General safety instructions

forcompressed air tools ........................7

Hazards caused by ﬂying parts ...........................8

Hazards caused by entanglement .........................8

Hazards during operation ...............................9

Hazards caused by repetitive movements ..................10

Hazards caused by accessories..........................10

Hazards in the workplace ..............................11

Hazards caused by dust and vapours .....................12

Hazards caused by noise...............................13

Hazards caused by vibrations ...........................13

Additional safety instructions ............................14

Additional safety notices ...............................15

Before use ...................................16

Lubrication ..........................................16

Reﬁlling oil ..........................................16

Connecting to a compressed air source....................17

Operation ...................................18

Changing/inserting the tool/collet chuck. . . . . . . . . . . . . . . . . . . 18

Switching on and oﬀ ..................................18

PDSS 16 A1

■ 2 │ GB│CY

Maintenance and cleaning......................19

Troubleshooting ..............................20

Disposal.....................................21

Kompernass Handels GmbH warranty ...........22

Service ......................................24

Importer ....................................24

Translation of the original Conformity Declaration ..25

PDSS 16 A1 GB│CY │ 3 ■

AIR DIE GRINDER SET PDSS 16 A1

Introduction

Congratulations on the purchase of your new appliance. You have

chosen a high-quality product. The operating instructions are part of

this product. They contain important information about safety, usage

and disposal. Before using the product, please familiarise yourself

with all operating and safety instructions. Use the product only as

described and for the range of applications speciﬁed. Please also

pass these operating instructions on to any future owner.

Intended use

This appliance is suitable for ﬁne grinding work with sanding pens

for shaped polishers, felt polishers and lamellar grinding wheels.

The tool may only be operated with a compressed air supply. The

maximum permissible operating pressure speciﬁed on the tool must

not be exceeded.

This tool must not be operated with explosive, ﬂammable or health-

damaging gases.

Do not use as a lever, crusher or striking tool.

Any other usage or modiﬁcation of the tool is deemed to be

improper and carries a signiﬁcant risk of accidents. The manufacturer

accepts no responsibility for damage(s) resulting from improper

usage. This tool is intended for domestic use only.

PDSS 16 A1

■ 4 │ GB│CY

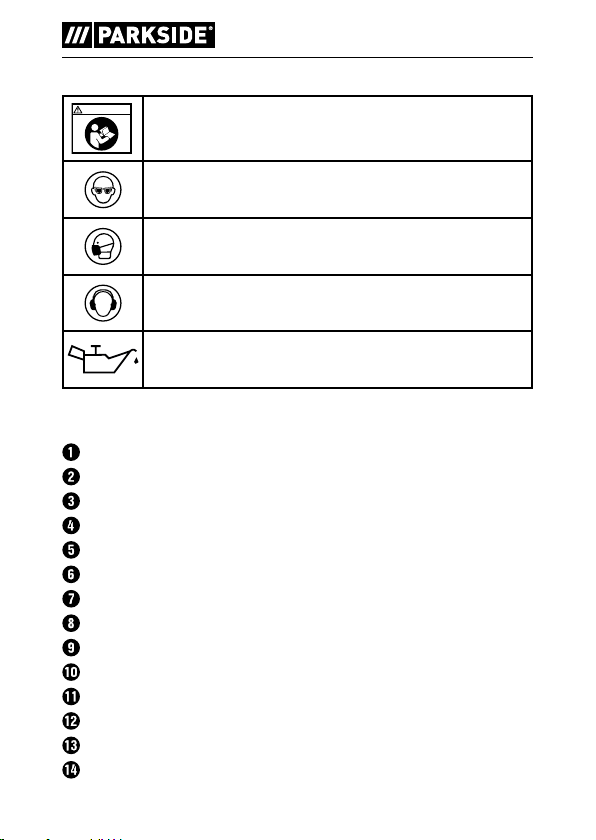

Symbols on the compressed air tool:

WARNING!

Read the operating instructions before use.

Always wear eye protection when using or maintaining

the compressed air appliance.

Always wear a dust mask in situations in which dust is

being generated.

Always wear hearing protection.

Oil daily

Features

Compressed air appliance

Air inlet

Connector nipple (pre-assembled)

Trigger lock

Trigger

Spindle

Collet chuck nut

Collet chuck 1/4” (pre-assembled)

Collet chuck 1/8”

Teﬂon tape (not included)

Assembly tool (SW 19)

Assembly tool (SW 14)

5x grinding bits (6 mm)

5x grinding bits (3 mm)

PDSS 16 A1 GB│CY │ 5 ■

Package contents

1 air die grinder set PDSS 16 A1

2 assembly tools

1 connector nipple 6.35 mm (1/4”) (pre-assembled)

5 grinding bits (3 mm)

5 grinding bits (6 mm)

1 collet chuck 1/4” / Ø 6.35 mm (pre-assembled)

1 collet chuck 1/8” / Ø 3.2 mm

1 carrying case

1 set of operating instructions

Technical data

Rated air pressure: max. 6.3 bar

Air consumption: 198 l/min

Max. rotational speed: 22500 rpm

Tool ﬁtting: Ø 6.35 mm (1/4”) (collet chuck)

Ø 3.2 mm (1/8”) (collet chuck)

Noise emission values:

Noise measurement determined in accordance with ISO15744:

Sound pressure level: LpA = 88.2 dB (A)

Uncertainty: KpA = 3 dB

Sound power level: LWA = 99.2 dB (A)

Uncertainty: KWA = 3 dB

Wear hearing protection!

PDSS 16 A1

■ 6 │ GB│CY

Vibration emission value:

Vibration values determined in accordance with ISO 28927-12 and

EN 12096:

ah= 3.34 m/s2

Uncertainty K = 0.87 m/s2

WARNING!

► The noise emission levels speciﬁed in these instructions have

been measured in accordance with the standardised measuring

procedure speciﬁed in ISO 15744 and can be used to make

equipment comparisons. The noise emission values vary in

accordance with the use of the compressed air tool and may

be higher than the values speciﬁed in these instructions in some

cases. It is easy to underestimate the noise emission load if the

compressed air tool is used regularly in a certain manner.

NOTE

► For an accurate estimate of the noise emission load during a

certain working period, the times during which the appliance

is switched oﬀ or is running but not actually being used must

also be taken into consideration. This can signiﬁcantly reduce

the noise emission load over the total working period.

PDSS 16 A1 GB│CY │ 7 ■

WARNING! General safety instructions

forcompressed air tools

WARNING!

►Read all safety warnings and all instructions. Failure to

follow the warnings and instructions may result in electric

shock, ﬁre and/or serious injury.

NOTE

► The terms "compressed air tool" or "tool" used in the following

text refer to the compressed air tools speciﬁed in these operating

instructions.

Save all warnings and instructions for future reference.

■ The user must evaluate the speciﬁc risks that may arise due to

diﬀerent kinds of use.

■ Please ensure that you have read and understood the safety

instructions before ﬁtting, operating, repairing, servicing or

replacing any accessories and before working near the

compressed air tool. Failure to do this can result in serious

bodily injury.

■ The compressed air tool should only be set up, adjusted or used

by adequately qualiﬁed and trained operators.

■ The compressed air tool may not be modiﬁed. Modiﬁcations can

reduce the eﬀectiveness of the safety measures and increase the

risks for the operator.

■ Never use damaged compressed air tools. Maintain compressed

air tools with care. Check regularly whether moving parts function

correctly and do not jam; check whether any parts are broken or

damaged to an extent that the compressed air tool will no longer

operate correctly. Check signs and labels for completeness and
