Table of contents

Introduction

Proper use ...............................................................................Page 7

Features and equipment.........................................................Page 8

Included items.........................................................................Page 8

Technical information .............................................................Page 8

Safety advice

1. Workplace safety...............................................................Page 9

2. Electrical safety..................................................................Page 9

3. Personal safety ...................................................................Page 10

4. Careful handling and use of electrical power tools........Page 12

Original accessories/attachments.......................................Page 13

Before ﬁrst use

Fitting the helical spring .........................................................Page 13

Inserting/replacing soldering tips........................................Page 13

Operation

Switching on and oﬀ ..............................................................Page 14

Third hand ...............................................................................Page 14

Solder sponge.........................................................................Page 14

Soldering.................................................................................Page 15

Maintenance and cleaning.................................Page 16

Service centre ................................................................Page 17

Warranty ...........................................................................Page 17

Disposal...............................................................................Page 18

Declaration of conformity/Producer........Page 19

6 GB

Introduction

The following pictograms are used in these operating

instructions/on the device:

Read instruction manual!

Observe caution and safety notes!

Caution–electric shock! Danger to life!

Risk of explosion!

Risk of ﬁre!

Warning - Hot surfaces!

V~Volt (AC)

WWatts (Eﬀective power)

Wear a breathing/dust mask, protective glasses,

gloves and clothing.

Keep children away from electrical power tools!

For indoor use only!

Check that the device, mains lead and plug are in

good condition!

Do not smoke!

7GB

Introduction

Do not eat!

Do not drink!

Dispose packaging and appliance in an

environmentally-friendly way!

Soldering iron with holder

Introduction

Please make sure you familiarise yourself fully with the way

the device works before you use it for the ﬁrst time and that

you understand how to handle it correctly. Please read the

operating instructions below. Be careful to keep these advice notes

and if necessary pass them on to a third party.

 Proper use

The appliance is intended for electronic soldering for leisure and DIY

purposes. It is designed for uses such as soldering work, wood-engrav-

ing, welding and gluing plastics and the application of decorations.

Use the device only as described and for the indicated purposes. The

device is not intended for commercial use. Any other use or modiﬁca-

tion to the device shall be considered as improper use and could give

rise to considerable dangers. The manufacturer will not accept

liability for loss or damage arising from improper use.

8 GB

Introduction

 Features and equipment

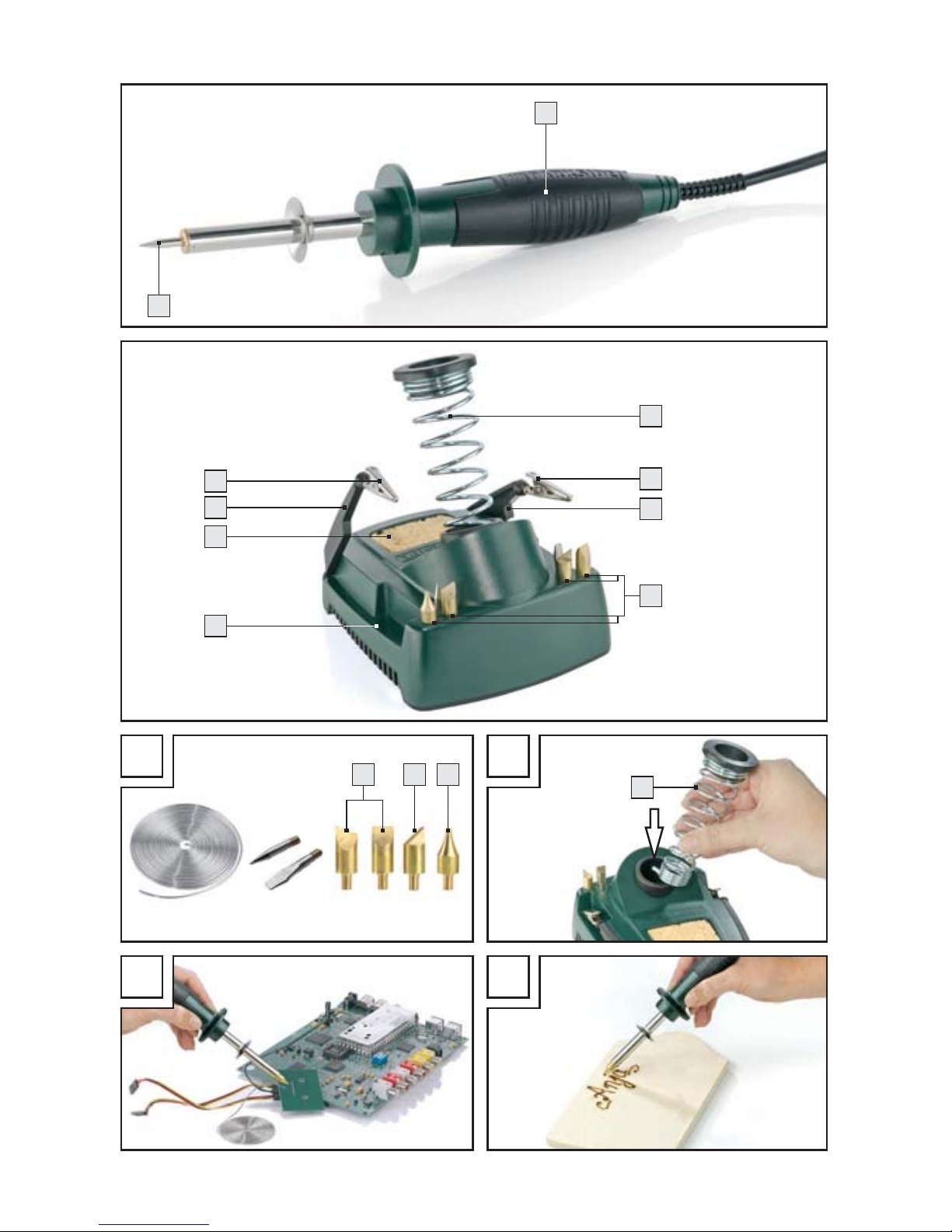

1Soldering pencil

2Soldering tip

3Helical spring

4Clips

5Third hand

6Holder for copper attachments

7Multifunctional holder

8Soldering sponge

9Universal attachment

10 Pointed attachment

11 Conical attachment

 Included items

1 Soldering pencil

1 Multifunctional holder

1 Tin solder, 10grams

2 Soldering tips (1x installed)

4 Copper attachments (engraving tips)

1 Solder sponge

1 Operating instructions

 Technical information

Electricity supply: 230V~

Frequency: 50Hz

Power consumption: 30W

9GB

Safety advice

CAUTION! Failure to observe the instructions and advice given

below may result in electric shock, ﬁre and/or serious injury.

1. Workplace safety

a) Keep your working area clean and well lit. Untidy or

poorly lit working areas can lead to accidents.

b) Do not work with the device in potentially

explosive environments in which there are

inflammable liquids, gases or dusts. Electrical

power tools create sparks, which can ignite dusts or fumes.

c) Keep children and other people away

while you are operating the electrical tool.

Distractions can cause you to lose control of the device.

2. Electrical safety

To avoid danger to life from electric shock:

The mains plug on the device must match

the mains sock-

et. The plug must not be modified in any way. Do not

use an adapter plug with devices fitted with a protec-

tive earth. Unmodiﬁed plugs and matching sockets reduce the

risk of electric shock.

b) Keep the device away from rain or moisture. Water

entering an electrical device increases the risk of electric shock.

10 GB

Safety advice

c) Use a residual current device (RCD) for protection if

operating the electrical power tool in a moist envi-

ronment is unavoidable. The use of an RCD reduces the risk

of electric shock.

d) Do not use the mains lead for any purpose for

which it was not intended, e.g. to carry the

device, to hang up the device or to pull the

mains plug out of the mains socket. Keep the mains

lead away from heat, oil, sharp edges or moving parts

of the device. Damaged or tangled mains leads increase the

risk of electric shock.

e) Do not operate the device if the mains lead or mains plug is

damaged.

WARNING! A damaged mains lead presents a serious

danger to life from electric shock.

f) Always keep the mains lead out of the operating area and run it

away from the rear of the device.

g) Always pull out the mains plug if you are about to leave the device

unattended or wish to carry out any tasks on the device.

3. Personal safety

a) Children or persons who lack the knowledge or ex-

perience to use the device or whose physical, sensory

or intellectual capacities are limited must never be

allowed to use the device without supervision or in-

struction by a person responsible for their safety.

Children must never be allowed to play with the device.

b) Remain alert at all times, watch what you are doing

and always proceed with caution. Do not use the

device if you are tired or under the influence of

11GB

Safety advice

drugs, alcohol or medication. One moment of carelessness

when using the device can lead to serious injury.

DANGER OF BURNS! Never touch the hot soldering

tip or the molten solder. You could suﬀer burn injuries.

Always let the device cool before you replace components

on the device, clean it or check its condition.

After use let the soldering pencil cool down in air only. Under no

circumstances quench the tip in water!

CAUTION! DANGER OF FIRE! Place the soldering

pencil down only in the special multifunctional holder

or on a ﬁre-resistant pad.

Place the soldering pencil in the multifunctional holder during

pauses in your work.

Keep the device away from combustible material.

Never leave the device switched on and unattended.

CAUTION! DANGER OF INJURY! Keep your hands away

from the hot workpiece. The heat from soldering can be conducted

through the workpiece. For this reason you should use the third

hand to hold small workpieces.

Avoid placing the hot soldering tip in contact with the plastic parts

of the multifunctional holder. Failure to observe this advice may

result in damage to the device.

If a dangerous situation arises, pull the mains plug immediately

out of the mains socket.

CAUTION! DANGER OF POISONING! Do not breathe air

contaminated with soldering fumes.

When working with the device for long periods do not

allow the fumes from soldering to build up. They may

be hazardous to health. Always provide adequate

ventilation of your working area. In addition, it is recommended

that you wear protective gloves, a face mask and a protective

apron.
