Parkside PLP 100 Manuale utente

PLP 100

LÖTPISTOLE

Bedienungs- und Sicherheitshinweise

LODDEPISTOL

Brugs- og sikkerhedsanvisninger

ΠΙΣΤΟΛΙ ΣΥΓΚΟΛΛΗΣΗΣ

Υποδείξεις χειρισμού και ασφαλείας

SOLDERING GUN

Operation and Safety Notes

GB/IE/CY Operation and Safety Notes Page 5

DK Brugs- og sikkerhedsanvisninger Side 19

GR/CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 33

DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 47

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions

of the device.

Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.

Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις

λειτουργίες της συσκευής.

Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend

mit allen Funktionen des Gerätes vertraut.

1 2

5GB/IE/CY

Introduction.....................................................................Page 6

Proper use ..............................................................................Page 7

Description of parts and features.........................................Page 8

Included items........................................................................Page 8

Technical data........................................................................Page 8

Safety advice

1. Workplace safety..............................................................Page 9

2. Electrical safety.................................................................Page 10

3. Personal safety ..................................................................Page 11

4. Careful handling and use of electrical power tools.......Page 12

Original accessories/attachments......................................Page 13

Use

Switching on and oﬀ .............................................................Page 13

Replacing a soldering tip......................................................Page 14

Maintenance and cleaning.................................Page 14

Service centre ................................................................Page 14

Warranty ...........................................................................Page 15

Disposal...............................................................................Page 16

Declaration of conformity/Producer........Page 16

Table of contents

6 GB/IE/CY

Introduction

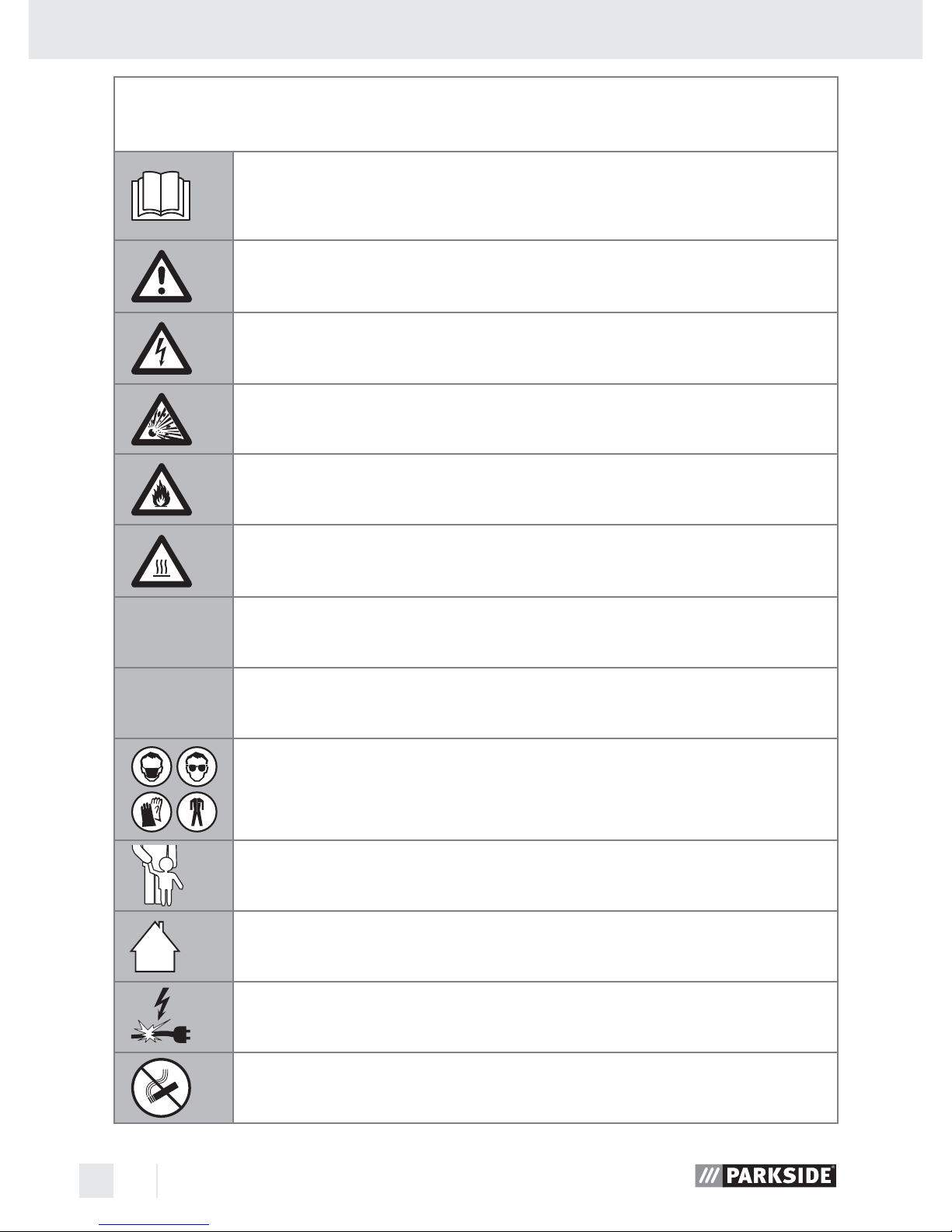

The following pictograms are used in these operating

instructions/on the device:

Read instruction manual!

Observe caution and safety notes!

Caution–electric shock! Danger to life!

Risk of explosion!

Risk of ﬁre!

Warning - Hot surfaces!

V~Volt (AC)

WWatts (Eﬀective power)

Wear a breathing/dust mask, protective glasses,

gloves and clothing.

Keep children away from electrical devices!

For indoor use only!

Check that the device, mains lead and plug are in

good condition!

Do not smoke!

7GB/IE/CY

Introduction

Do not eat!

Do not drink!

Dispose packaging and appliance in an

environmentally-friendly way!

Soldering gun PLP 100



Introduction

Please make sure you familiarise yourself fully with the way

the device works before you use it for the ﬁrst time and that

you understand how to handle it correctly. Please read the

operating instructions below. Be careful to keep these advice notes

and if necessary pass them on to a third party.



Proper use

The device is intended for soldering tasks in a DIY environment. Soft

soldering takes place at temperatures below 450C°. Suitable solders

have typical melting temperatures around 200C°. Use the device only

as described and for the indicated purposes. The device is not intend-

ed for commercial use. Any other use or modiﬁcation to the device shall

be considered as improper use and could give rise to considerable

dangers. The manufacturer will not accept liability for loss or damage

arising from improper use.

8 GB/IE/CY

Introduction



Description of parts and features

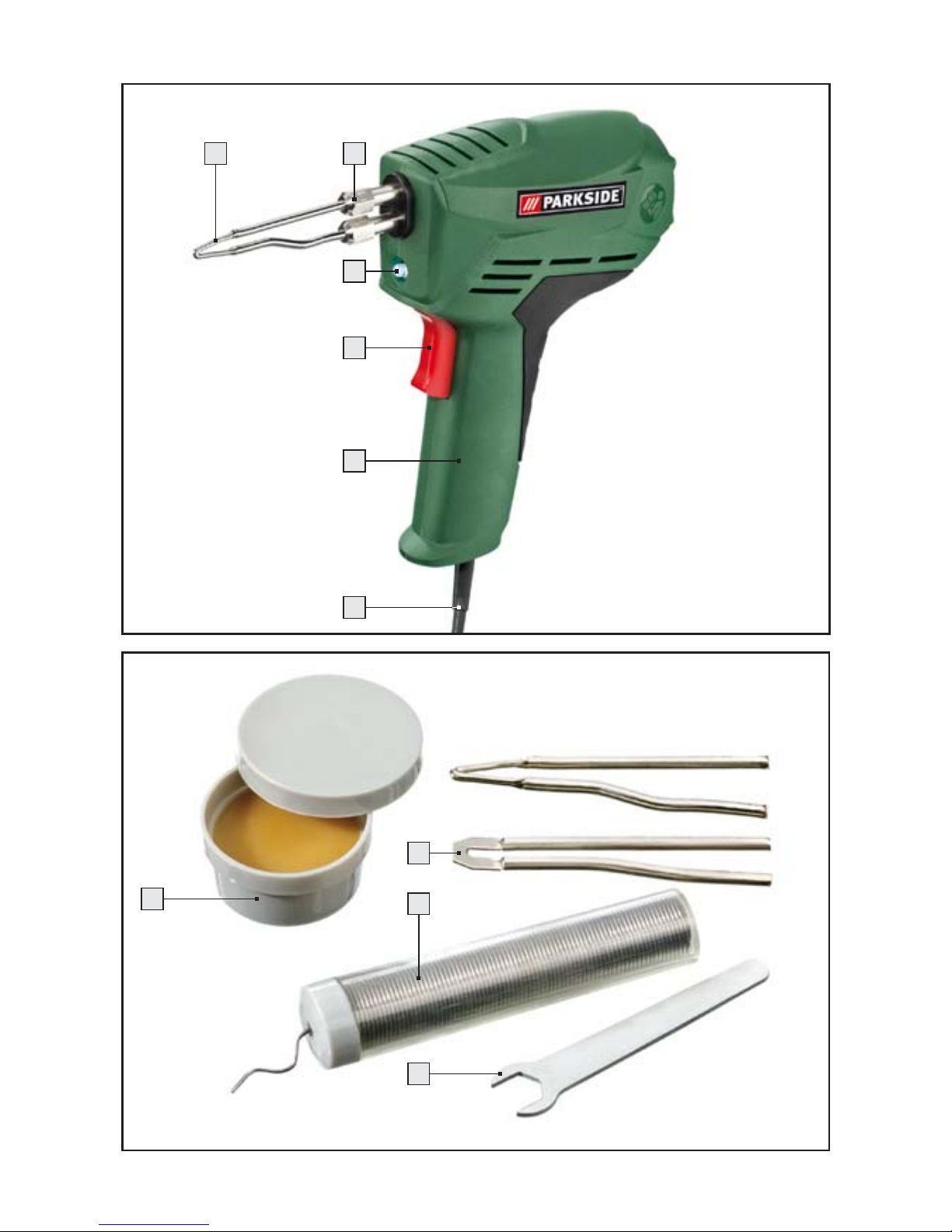

1Soldering tip

2Union nut

3Soldering light

4ON/OFF switch

5Handle

6Mains lead

7Cutting tip

8Solder wire

9Open spanner

10 Solder ﬂux



Included items

1x Soldering gun

1x Carry case

2x Soldering tips (1 cutting tip 7premounted)

1x Open spanner

20g Solder wire

10g Solder ﬂux

1x Operating instructions



Technical data

Rated voltage: 230V~

Frequency: 50Hz

9GB/IE/CY

Introduction/Safety advice

Power: 100W

Max. soldering tip temperature: 540°C

ON max. 12 sec./OFF min. 48 sec.

Safety advice

 CAUTION! Failure to observe the instructions and advice given

below may result in electric shock, ﬁre and/or serious injury.

1. Workplace safety

a) Keep your working area clean and well lit. Untidy or

poorly lit working areas can lead to accidents.

b) Do not work with the device in potentially

explosive environments in which there are

inflammable liquids, gases or dusts. Electrical

power tools create sparks, which can ignite dusts or fumes.

c) Keep children and other people away

while you are operating the electrical tool.

Distractions can cause you to lose control of the device.

10 GB/IE/CY

Safety advice

2. Electrical safety

To avoid danger to life from electric shock:

The mains plug on the device must match

the mains sock-

et. The plug must not be modified in any way. Do not

use an adapter plug with devices fitted with a protec-

tive earth. Unmodiﬁed plugs and matching sockets reduce the

risk of electric shock.

b) Keep the device away from rain or moisture. Water

entering an electrical device increases the risk of electric shock.

c) Use a residual current device (RCD) for protection if

operating the electrical power tool in a moist envi-

ronment is unavoidable. The use of an RCD reduces the risk

of electric shock.

d) Do not use the mains lead for any purpose for

which it was not intended, e.g. to carry the

device, to hang up the device or to pull the

mains plug out of the mains socket. Keep the mains

lead away from heat, oil, sharp edges or moving parts

of the device. Damaged or tangled mains leads increase the

risk of electric shock.

e) Do not operate the device if the mains lead or mains plug is

damaged.

WARNING! A damaged mains lead presents a serious

danger to life from electric shock.

f) Always keep the mains lead out of the operating area and run it

away from the rear of the device.

g) Always pull out the mains plug if you are about to leave the device

unattended or wish to carry out any tasks on the device.

11GB/IE/CY

Safety advice

3. Personal safety

a) Children or persons who lack the knowledge or ex-

perience to use the device or whose physical, sensory

or intellectual capacities are limited must never be

allowed to use the device without supervision or in-

struction by a person responsible for their safety.

Children must never be allowed to play with the device.

b) Remain alert at all times, watch what you are doing

and always proceed with caution. Do not use the

device if you are tired or under the influence of

drugs, alcohol or medication. One moment of carelessness

when using the device can lead to serious injury.

 Never touch the hot soldering tip or the molten solder.

You could suﬀer burn injuries. Always let the device cool

before you replace components on the device, clean it

or check its condition.

 After use let the soldering gun cool down in air only. Under no cir-

cumstances quench the tip in water!

 When allowing the device to cool or when taking a break from

using it, always stand the device up vertically with the soldering tip

at the top.

 Keep the device away from combustible materials.

CAUTION! DANGER OF INJURY! Keep your hands away

from the hot workpiece. Avoid contact with the hot soldering tip.

 If a dangerous situation arises, pull the mains plug immediately

out of the mains socket.

CAUTION! DANGER OF POISONING! Do not breathe air

contaminated with soldering fumes.

 When working with the device for long periods do not

allow the fumes from soldering to build up. They may

be hazardous to health. Always provide adequate
