Parkside PDAP 75 A1 Manuale utente

AIR POLISHING SET / DRUCKLUFT-POLIERSET

POLISSEUSE PNEUMATIQUE PDAP 75 A1

DRUCKLUFT-POLIERSET

Originalbetriebsanleitung

AIR POLISHING SET

Translation of the original instructions

POLISSEUSE PNEUMATIQUE

Traduction des instructions d’origine PERSLUCHT-POLIJSTSET

Vertaling van de originele gebruiks-

aanwijzing

ZESTAW DO POLEROWANIA

NA SPRĘŻONE POWIETRZE

Tłumaczenie oryginalnej instrukcji obsługi

PNEUMATICKÁ LEŠTICÍ SADA

Překlad originálního provozního návodu

PNEU SÚPRAVA NA LEŠTENIE

Preklad originálneho návodu na obsluhu

IAN 354115_2010

PULIDORA NEUMÁTICA

CON ACCESORIOS

Traducción del manual de instrucciones

original

TRYKLUFTS-POLERSÆT

Oversættelse af den originale driftsvejledning

GB Translation of the original instructions Page 1

DE Originalbetriebsanleitung Seite 25

FR Traduction des instructions d’origine Page 51

NL Vertaling van de originele gebruiksaanwijzing Pagina 81

CZ Překlad originálního provozního návodu Strana 107

PL Tłumaczenie oryginalnej instrukcji obsługi Strona 133

SK Preklad originálneho návodu na obsluhu Strana 159

ES Traducción del manual de instrucciones original Página 183

DK Oversættelse af den originale driftsvejledning Side 209

PDAP 75 A1 GB│IE │ 1 ■

Contents

Introduction...................................3

Intended use..........................................3

Features .............................................4

Included in delivery ....................................4

Technical data ........................................4

General safety instructions forcompressed air tools .6

Hazards caused by ﬂying parts ...........................7

Hazards caused by entanglement .........................7

Hazards during operation ...............................7

Risks due to repetitive movements. . . . . . . . . . . . . . . . . . . . . . . . . . 8

Hazards caused by accessories...........................9

Hazards in the workplace ...............................9

Hazards caused by dust and vapours .....................10

Risks due to noise.....................................11

Risks due to vibrations .................................12

Additional safety instructions for pneumatic machines.........12

Appliance-speciﬁc safety instructions for grinders ............13

Before use ...................................13

Assembly/disassembly of the polishing disc ................13

Fitting the polishing attachments..........................14

Lubrication ..........................................15

Topping up the oil ....................................15

Connecting to a compressed air source....................16

PDAP 75 A1

■ 2 │ GB│IE

Operation ...................................16

Switching on and oﬀ ..................................16

Polishing ............................................16

Maintenance and cleaning......................18

Troubleshooting ..............................19

Disposal.....................................20

Kompernass Handels GmbH warranty ...........21

Service ......................................23

Importer ....................................23

Translation of the original Conformity Declaration. .24

PDAP 75 A1 GB│IE │ 3 ■

AIR POLISHING SET PDAP 75 A1

Introduction

Congratulations on the purchase of your new appliance. You have

chosen a high-quality product. The operating instructions are part of

this product. They contain important information about safety, usage

and disposal. Before using the product, please familiarise yourself

with all operating and safety instructions. Use the product only as

described and for the range of applications speciﬁed. Please also

pass these operating instructions on to any future owner.

Intended use

This compressed air polisher is designed for polishing various

surfaces. Any other usage or modiﬁcation of the appliance is

deemed to be improper and carries a signiﬁcant risk of accidents.

The manufacturer accepts no responsibility for damage(s) resulting

from improper usage. This appliance is intended for domestic use only.

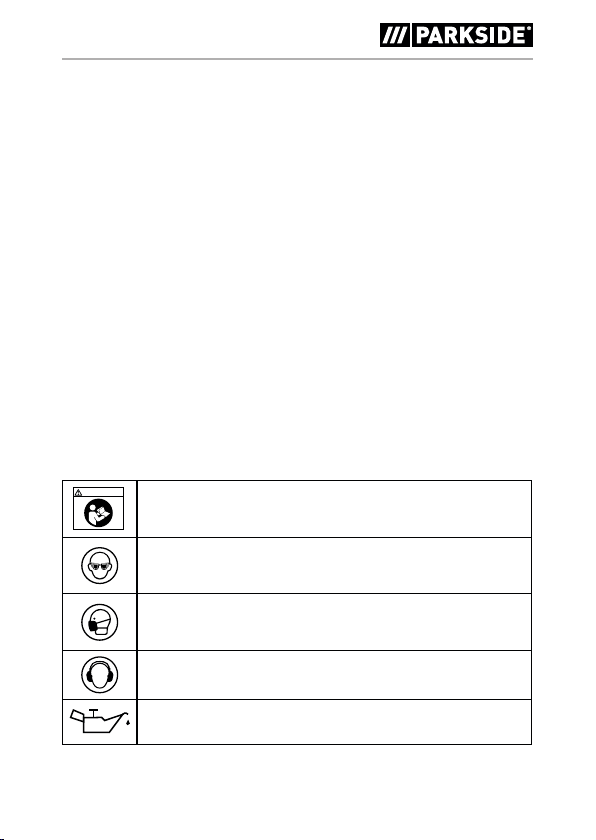

Symbols on the compressed air tool

WARNING!

Read the operating instructions before use.

Always wear eye protection when using or maintaining

the compressed air polisher.

Always wear a dust mask in situations in which dust is

being generated.

Always wear hearing protection.

Oil daily

PDAP 75 A1

■ 4 │ GB│IE

Features

Air inlet

Connector nipple (preassembled)

Trigger

Thread

Polishing disc

Polishing hood black

Polishing hood orange

Fake fur attachment

Assembly spanner

Included in delivery

1 air polishing set PDAP 75 A1

1 polishing disc Ø 75 mm (with Velcro fastener)

1 polishing hood, orange (for pre-polishing)

1 polishing hood, black (for ﬁnal polishing)

1 fake lambskin

1 connector nipple 6.35 mm (1/4”, preassembled)

1 assembly wrench

1 operating manual

Technical data

Rated frequency max. 2500 rpm

Rated air pressure max. 6.3 bar

Grinding disc Ø 75mm

Weight (without accessories) approx. 740 g

PDAP 75 A1 GB│IE │ 5 ■

Noise emission values

Noise measurement determined in accordance with ISO15744:

Sound pressure level LpA = 84.1 dB(A)

Uncertainty KpA = 3 dB

Sound power level LWA = 95.1 dB(A)

Uncertainty KWA = 3 dB

Wear ear protection!

Vibration emission value

Vibration values determined in accordance with ISO 28927-3 and

EN 12096: ah= 0.25 m/s2

Uncertainty K = 0.52 m/s2

WARNING!

► The noise emission levels speciﬁed in these instructions have

been measured in accordance with the standardised measur-

ing procedure speciﬁed in ISO 15744 and can be used to

make equipment comparisons. The noise emission values vary

in accordance with the use of the compressed air tool and may

be higher than the values speciﬁed in these instructions in some

cases. It is easy to underestimate the noise emission load if the

compressed air tool is used regularly in a certain manner.

NOTE

► For an accurate estimate of the noise emission load during a

certain working period, the times during which the appliance is

switched oﬀ or is running but not actually being used must also

be taken into consideration. This can signiﬁcantly reduce the

noise emission load over the total working period.

PDAP 75 A1

■ 6 │ GB│IE

WARNING! General safety instructions

forcompressed air tools

WARNING!

► For multiple hazards: Please ensure that you have read and

understood the safety instructions before adjusting, operating,

repairing, maintaining or replacement of accessories on the

polisher as well as before working in the vicinity of the ma-

chine. Failure to do this can result in serious bodily injury.

■ The sander or the polisher should only be adjusted, set or used

by adequately qualiﬁed and trained operators.

■ This sander or this polisher may not be modiﬁed. Modiﬁcations

can reduce the eﬀectiveness of the safety measures and increase

the risks for the operator.

■ The safety instructions should not be lost – give them to the

operator.

■ Never use damaged sanders or polishers.

■ The appliance must be inspected regularly to ensure that it is

labelled with the required rated values and markings given in

this manual. The user must contact the manufacturer to obtain

replacement labels if necessary.

PDAP 75 A1 GB│IE │ 7 ■

Hazards caused by ﬂying parts

■ If a workpiece or accessory or even part of the machine tool itself

breaks, parts can be ﬂung out at high speeds.

■ When operating the sander or the polisher or when exchanging

accessories on the appliance, always wear eye protection. The

degree of necessary protection must be evaluated separately for

each individual task.

■ Wear a safety helmet if working above head height. In this case,

the risks for others should also be assessed.

■ You must ensure that the workpiece has been securely ﬁxed.

Hazards caused by entanglement

■ Suﬀocation, scalping and/or cut wounds can occur if loose cloth-

ing, jewellery, necklaces, hair or gloves are not kept away from

the machine and its accessories.

Hazards during operation

■ When using the machine, the operator’s hands can be subject to

hazards such as cuts, grazing and heat. Wear suitable gloves to

protect your hands.

■ The operator and maintenance personnel must be physically

capable of handling the size, mass and power of the machine.

■ Hold the machine correctly: be ready to counteract any normal

or sudden movements - have both hands ready.

■ Ensure that your body is balanced and that you have a secure

standing position.

■ Release the start/stop control in case of a disruption to the

electricity supply.

■ Use only the lubricants recommended by the manufacturer.
