Installation manual:
Parrot ASTEROID
CLIO 3
The brand name RENAULT CLIO 3 and the RENAULT logo are the property of RENAULT.
This document is only valid for the vehicle model CLIO 3® year 2006 to 2011, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.
CLIO 3
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

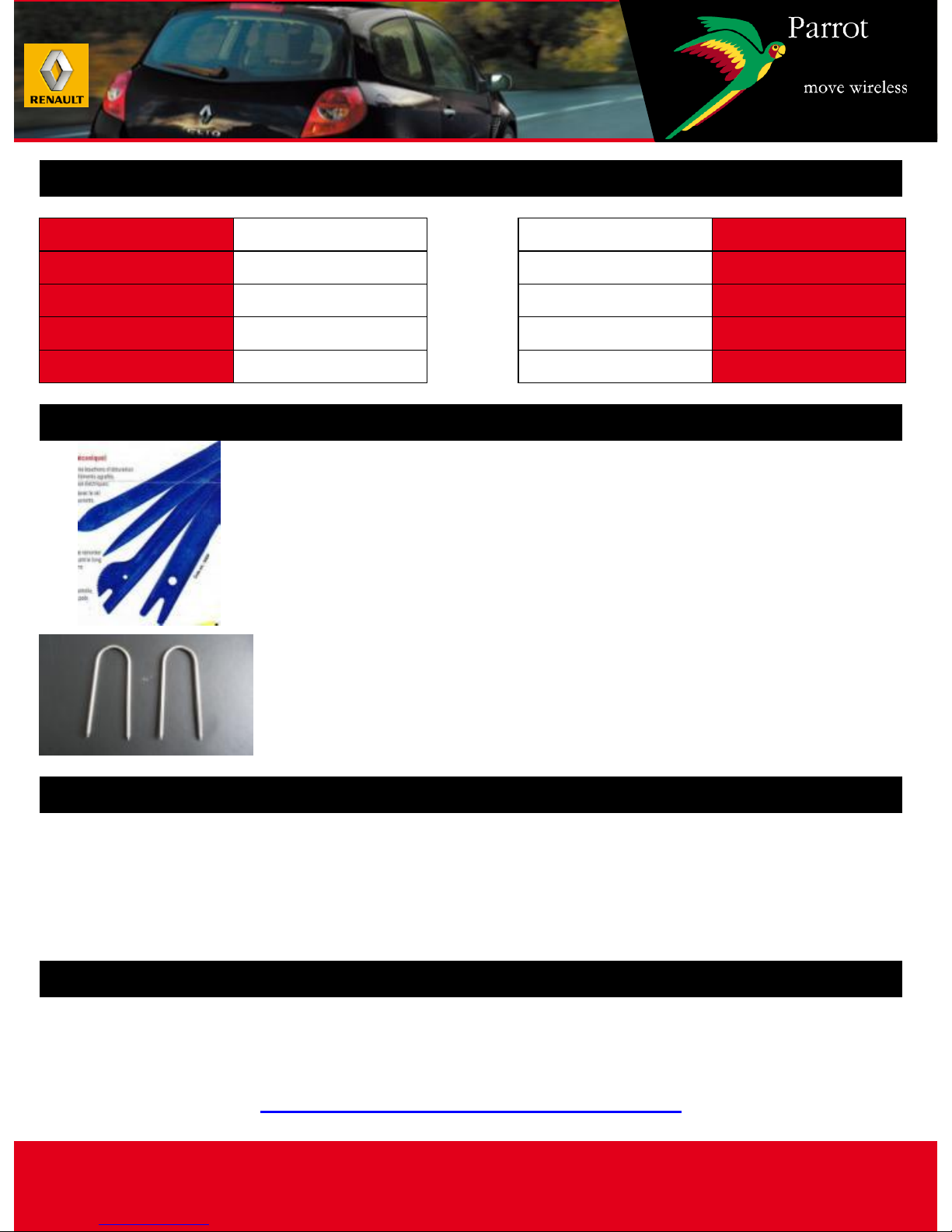

Accessories required
Disassembly
15min
Kit installation
30min
Refitting
15min
Testing
15min
Total
1h15min
YES
ACC wire
YES
ISO
N/A
UNIKA
FRONT SPEAKER
TEL mode
ALL
MUSIC mode
Fitting time (estimated) / Main features
Tools
-Multimeter or Test lamp
-Hose clamp
- Electrical tape
"Please contact your Wholesaler to purchase accessories."
Updating
Plastic trim removal tools
FACOM / BERNER
FACOM DX-25 kit (n°4 tools)
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
www.parrot.com/usa/support/downloads
CLIO 3
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Disassembly
CLIO 3
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.

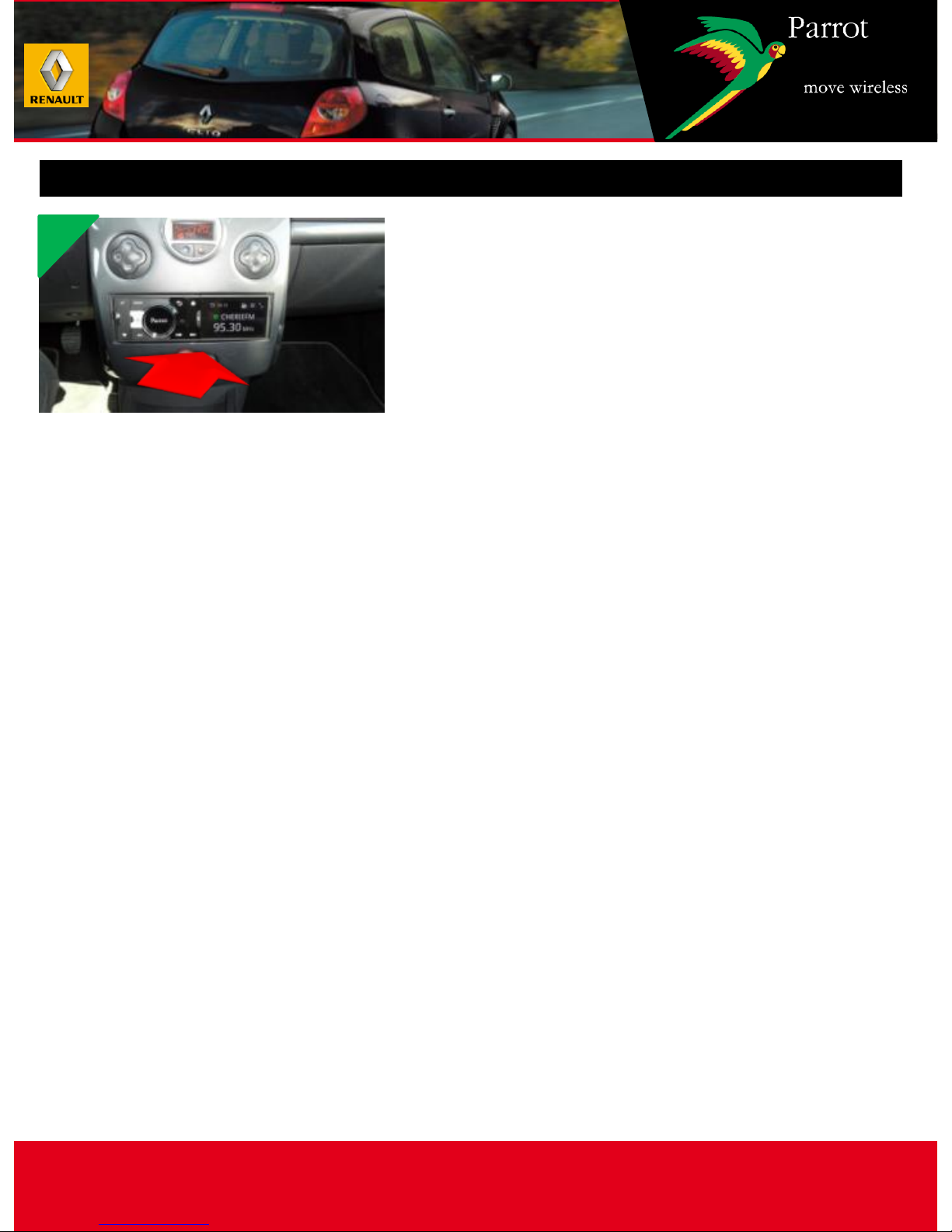

Disassembly 1 / 2
Insert the removal tools into the
slots on each side of the radio.
Carefully release the radio, without
pulling it out completely, so that
you can disconnect the connectors
and the antenna. Then completely
remove the radio.
Using the plastic trim tools,
unclip the car stereo and air
conditioning surround.
Disconnect the WARNING
connector.
1
3
2
4
5 6
Using the plastic trim tools,
unclip and remove the central air
vent.
Using the plastic trim tools,
unclip the panel located on the
left side of the dashboard.
CLIO 3
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Disassembly 2 / 2
Remove the door seal on the
driver’s side.
Using the plastic trim tools, unclip
and open (without removing) the
panel in between the two sun
visors.
7 8
CLIO 3
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Affix the bracket provided after
cleaning the sun visor support.
Then run the cable under the
headliner .
Microphone passage
Using a guide, feed the cable
inside the sun visor support
towards the windscreen.
Reclose the sun visor support
panel . (BE CAREFUL not to cut
the cable.)
Run the cable along the driver's side
windscreen support while replacing the
door seal.
1
3
2
4
5 6
Pass the cable into the
dashboard on the left side.
Run the cable under the steering
wheel panel towards the radio
housing, attaching with wire ties.
!
CLIO 3
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Feeding the GPS antenna
Run the cable under the headliner
towards the driver's side door.
Stick the antenna to the windscreen.
(If necessary use windscreen
adhesive for a better grip.)
Run the cable along the driver's side
windscreen support while replacing
the door seal.
Pass the cable into the dashboard on
the left side. (Connect the USB
extension.)
1
3
2
4
5
Run the cable under the steering
wheel panel towards the radio
housing, attaching with wire ties.
CLIO 3
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Feeding the accessory cable
On the top side of the glove box,
insert the cable into the hole.
Then bring it out leaving sufficient
length.
1 2
CLIO 3
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Fitting the radio 1 / 2
Attach the yellow connector to
the ISO cable using a wire tie or
tape.
Fit the radio drawer onto the
centre console surround.
1 2
3
CLIO 3
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
Fitting the radio 2 / 2
4
Insert the radio and test.
