Wireless Temperature Sensor (PS-3201)

Battery Status LED

Indicates the battery level of the sensor by blinking red

when the battery is low on charge.

ON button

Press to turn the sensor on. Press and hold to turn the

sensor off. Note that the sensor automatically turns itself off

after several minutes of inactivity if not connected, or after

about one hour of inactivity if connected.

Bluetooth Status LED

Indicates the status of the sensor’s Bluetooth connection.

Bluetooth LED Status

Red blink Ready to pair

Green blink Connected

Yellow blink Logging data

For information on remote data logging, see the PASCO

Capstone or SPARKvue online help.

Device ID

Use this to identify the sensor when connecting via

Bluetooth.

Water-resistant gasket

Protects the sensor from damage in the event of exposure

to water.

Sensor Housing

Tolerates temperatures between -15 °C and 50 °C.

Temperature Probe

Tolerates temperatures between -40 °C and 125 °C.

Introduction

The Wireless Temperature Sensor measures temperature over a

range of -40 °C to 125 °C. The stainless steel temperature probe

is more durable than a glass thermometer and is able to work in

a wide variety of situations. The temperature measurement is

transmitted wirelessly through Bluetooth and is recorded and

displayed by PASCO Capstone or SPARKvue on a connected

tablet or computer. Since each sensor has a unique device ID

number, more than one can be connected to the same computer

or tablet at a time.

The Wireless Temperature Sensor is powered by a replaceable

three volt coin cell battery and is well-suited for continuous

recording and discrete measurements. The sensor is designed

to optimize the battery usage time.

The sensor housing is water resistant, but immersing it in water

may cause a loss of wireless connection. Only the Temperature

Probe should be exposed to the substance being measured. Do

not immerse the sensor housing in boiling hot water.

Get the software

You can use the sensor with SPARKvue or PASCO Capstone

software. If you’re not sure which to use, visit

pasco.com/products/guides/software-comparison.

SPARKvue is available as a free app for Chromebook, iOS, and

Android devices. We offer a free trial of SPARKvue and

Capstone for Windows and Mac. To get the software, go to

pasco.com/downloads or search for SPARKvue in your device’s

app store.

If you have installed the software previously, check that you have

the latest update:

SPARKvue

Go to Main Menu > Check for Updates

PASCO Capstone

Go to Help > Check for Updates.

Check for a firmware update

SPARKvue

1. Press the power button until the LEDs turn on.

2. Open SPARKvue.

3. Select Sensor Data on the Welcome Screen.

4. From the list of available devices, select the sensor that

matches your sensor’s device ID. A notification appears if a

firmware update is available. Click Yes to update the

firmware.

5. Close SPARKvue once the update is complete.

PASCO Capstone

1. Press and hold the power button until the LEDs turn on.

2. Open PASCO Capstone.

3. Click Hardware Setup.

4. From the list of available devices, select the sensor that

matches your sensor’s device ID. A notification appears if a

firmware update is available. Click Yes to update the

firmware.

5. Close Capstone once the update is complete.

Product Guide | 012-14647D

Set up the software

SPARKvue

Connecting the sensor to a tablet or computer via

Bluetooth:

1. Turn on the Wireless Temperature Sensor. Check to make

sure the Bluetooth Status LED is blinking red.

2. Open SPARKvue, then click Sensor Data.

3. From the list of available wireless devices on the left, select

the device which matches the device ID printed on your

Wireless Temperature Sensor.

Collecting data using SPARKvue:

1. Select the measurements you intend to record from the

Select Measurements for Templates menu by clicking the

check box next to the relevant measurements' names.

2. Click Graph in the Templates section to open the

Experiment Screen. The graph’s axes will auto-populate

with the selected measurements.

3. Click Start to begin recording data.

PASCO Capstone

Connecting the sensor to a computer via Bluetooth:

1. Turn on the Wireless Temperature Sensor. Check to make

sure the Bluetooth Status LED is blinking red.

2. Open Capstone, then click Hardware Setup in the

Tools palette.

3. From the list of Available Wireless Devices, click the

device which matches the device ID printed on your

Wireless Temperature Sensor.

Collecting data using Capstone:

1. Double-click the Graph icon in the Displays palette to

create a new blank graph display.

2. To assign measurements to the graph’s axes, click each

<Select Measurement> box and select an appropriate

measurement from the list.

3. Click Record to begin collecting data.

Calibration

Calibration is generally not necessary when using the Wireless

Temperature Sensor, especially if you are measuring a change

in temperature rather than absolute temperature values.

However, it is possible to calibrate the sensor using the following

procedures.

Prepare for Calibration

Calibration will require an ice water bath, a container of hot

water, and a thermometer. The sensor will need to be connected

to PASCO Capstone or SPARKvue for these procedures; see

Set up the software for details on connecting the sensor.

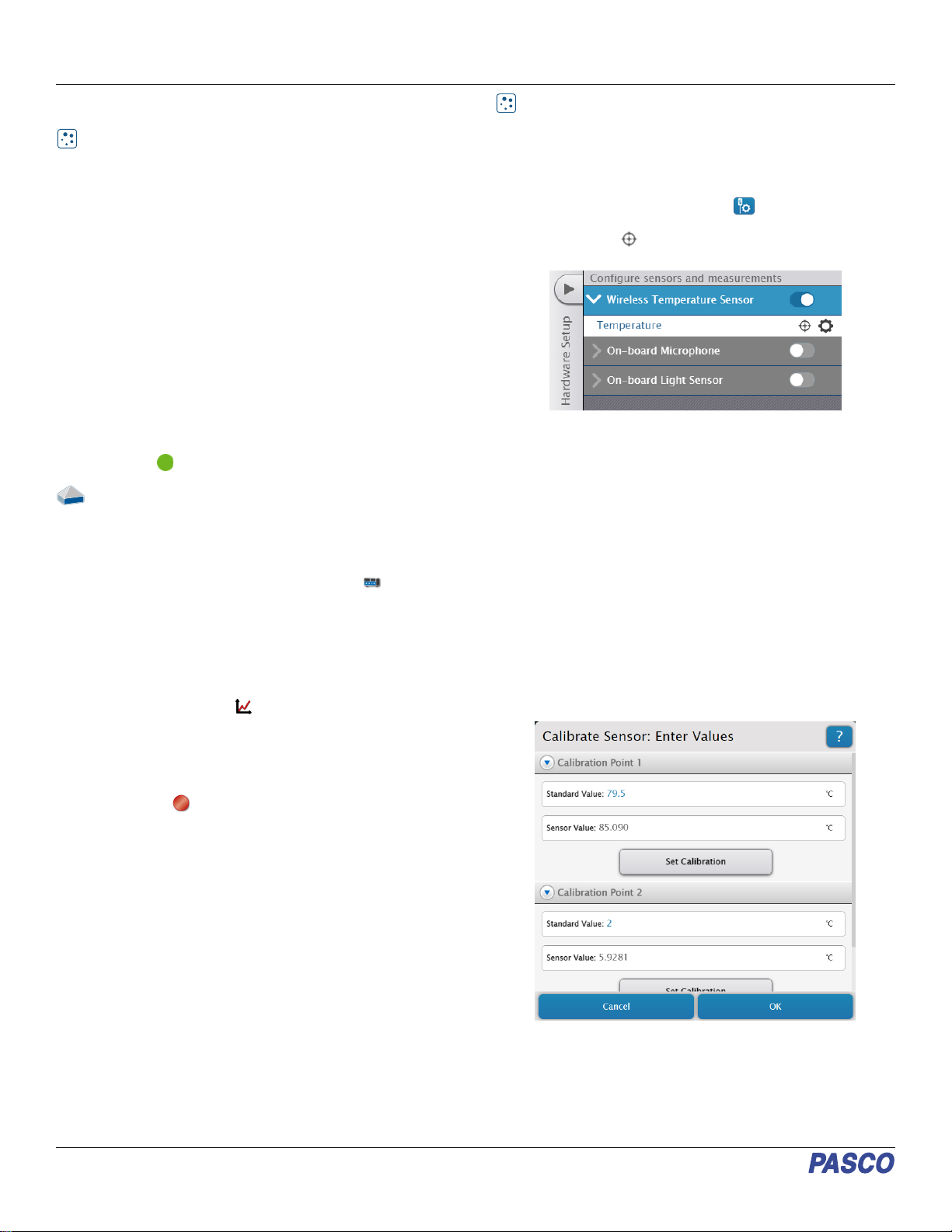

SPARKvue

1. Place the thermometer into the container of hot water.

2. Create a Graph display with Temperature as one of the

measured quantities, as described under the SPARKvue

section of Set up the software.

3. Click the Show Hardware Setup button in the bottom

right of the Experiment Screen, then click the Calibrate

measurement icon next to Temperature to open the

Calibrate Sensor menu.

4. Check to make sure that the selected sensor is Wireless

Temperature Sensor, the measurement is Temperature

(°C), and the Calibration Type is 2 point (Adjust Slope

and Offset), then click Continue.

5. Place the Wireless Temperature Sensor into the container

of hot water. Wait for the temperature reading to stabilize.

6. Using the thermometer, determine the temperature of the

hot water. Enter this value into the Standard Value box

under Calibration Point 1, then click Set Calibration.

7. Remove the thermometer and Temperature Sensor from

the hot water container, wipe them both dry, and place

them into the ice water bath. Wait for both the thermometer

measurement and the sensor reading to stabilize.

8. Using the thermometer, determine the temperature of the

ice water. Enter this value into the Standard Value box

under Calibration Point 2, then click Set Calibration.

9. Check your new calibration for accuracy, then click OK.

Wireless Temperature Sensor | PS-3201

PASCO Capstone

1. Place the thermometer into the container of hot water.

2. Select Calibration from the Tools palette.

3. Select Temperature from the dropdown box, then click

Next.

4. Ensure that Two Standards (2 point) is selected from the

list of calibration types, then click Next.

5. Place the Wireless Temperature Sensor into the container

of hot water. Wait for the temperature reading to stabilize.

6. Using the thermometer, determine the temperature of the

hot water. Enter this value into the Standard Value box,

then click Set Current Value to Standard Value.

7. Remove the thermometer and Temperature Sensor from

the hot water container, wipe them both dry, and place

them into the ice water bath. Wait for both the thermometer

measurement and the sensor reading to stabilize.

8. Using the thermometer, determine the temperature of the

ice water. Enter this value into the Standard Value box,

then click Set Current Value to Standard Value.

9. Review your calibration to ensure it is accurate, then click

Finish.

Battery usage

The Wireless Temperature Sensor contains a three volt coin cell

battery (CR2032). Battery life is very important to making the

sensor simple and always ready to use. Therefore, like all

PASCO wireless products, the Wireless Temperature Sensor is

designed for long battery life. For example, after several minutes

of inactivity, the sensor turns itself off to preserve the battery.

The included battery should provide more than one year of

battery life, but the actual amount depends on factors such as

the data collection sampling rate.

Sensor storage

If the sensor will be stored for several months, we recommended

that you remove the battery and store it separately to avoid

damaging the sensor in case of a battery leak.

Battery removal and replacement

If the sensor’s Battery Status LED blinks red, the battery may

need to be replaced. Replacing the battery requires removing

the Battery Compartment Door on the bottom of the sensor,

removing the old battery, installing a new battery of the same

type, and replacing the Battery Compartment Door. This

procedure requires a coin and a CR2032 three volt battery, such

as those included in the PS-3504 Coin Cell Battery Pack.

NOTE: This type of battery is also commonly

available in electronic and commercial stores.

Removing the Battery Compartment Door

Hold the sensor with the

bottom side up. Insert a

coin into the slot and use it

to turn the Battery

Compartment Door

counterclockwise until the

indicator on the door is

aligned with the second

mark on the sensor.

Turn the sensor so the

bottom side is down,

allowing the Battery

Compartment Door to drop

into the palm of your hand. Make sure that the battery door

gasket stays on the door. The gasket is an "O-ring" that is held

in place by the tabs on the door. Do not touch the inside of the

battery compartment, as this may damage the sensor.

Replacing the battery

Remove the used battery from the Battery Compartment Door

and replace it with a new battery of the same type. Note that the

battery is held in place by the small tabs on the door. The side of

the battery with the "+" on it should be against the door.

Product Guide | 012-14647D

Replacing the Battery Compartment Door

Put the Battery Compartment Door,

along with the new battery, back onto

the sensor. Align the indicator on the

door with the second mark, then use

the coin in the slot to turn the door

clockwise until the indicator is aligned

with the first mark on the sensor.

When disposing of the battery, follow

the battery disposal guidelines under

Regulatory information.

Temperature Probe Maintenance

Rinse and dry the temperature probe before storing the sensor.

The probe is stainless steel and the diameter (5 mm, or 0.197")

is compatible with standard stoppers.

Troubleshooting

•If the sensor loses Bluetooth connection and will not

reconnect, try cycling the ON button. Press and briefly hold

the button until the status LEDs blink, then release the

button.

•If the sensor stops communicating with the computer

software or tablet application, try restarting the software or

application and attempting to connect again.

•If the problem persists, press and hold the ON button for

ten seconds, then release the button and start the sensor in

the usual way.

•If the above steps do not fix the connection problem, turn

Bluetooth off and back on for your computer or tablet, then

retry.

Software help

The SPARKvue and PASCO Capstone Help provide additional

information on how to use this product with the software. You

can access the help within the software or online.

SPARKvue

Software: Main Menu > Help

Online: help.pasco.com/sparkvue

PASCO Capstone

Software: Help > PASCO Capstone Help

Online: help.pasco.com/capstone

Specifications and accessories

Visit the product page at pasco.com/product/PS-3201 to view

the specifications and explore accessories. You can also

download experiment files and support documents from the

product page.

Experiment files

Download one of several student-ready activities from the

PASCO Experiment Library. Experiments include editable

student handouts and teacher notes. Visit

pasco.com/freelabs/PS-3201.

Technical support

Need more help? Our knowledgeable and friendly Technical

Support staff is ready to answer your questions or walk you

through any issues.

Chat pasco.com

Phone 1-800-772-8700 x1004 (USA)

+1 916 462 8384 (outside USA)

Email support@pasco.com

Regulatory information

Limited warranty

For a description of the product warranty, see the Warranty and Returns page at

www.pasco.com/legal.

profit educational institutions for reproduction of any part of this manual, providing

the reproductions are used only in their laboratories and classrooms, and are not

sold for profit. Reproduction under any other circumstances, without the written

consent of PASCO scientific, is prohibited.

Trademarks

PASCO and PASCO scientific are trademarks or registered trademarks of PASCO

scientific, in the United States and in other countries. All other brands, products, or

service names are or may be trademarks or service marks of, and are used to

identify, products or services of, their respective owners. For more information visit

www.pasco.com/legal.

Product end-of-life disposal

This electronic product is subject to disposal and recycling regulations

that vary by country and region.

It is your responsibility to recycle your electronic equipment per your

local environmental laws and regulations to ensure that it will be

recycled in a manner that protects human health and the environment.

To find out where you can drop off your waste equipment for recycling, please

contact your local waste recycle or disposal service, or the place where you

purchased the product.

The European Union WEEE (Waste Electronic and Electrical Equipment) symbol

on the product or its packaging indicates that this product must not be disposed of

in a standard waste container.

CE statement

This device has been tested and found to comply with the essential requirements

and other relevant provisions of the applicable EU Directives.

FCC statement

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired

operation.

Battery disposal

Batteries contain chemicals that, if released, may affect the environment

and human health.

Batteries should be collected separately for recycling and recycled at a

local hazardous material disposal location adhering to your country and

local government regulations.

To find out where you can drop off your waste battery for recycling, please contact

your local waste disposal service, or the product representative.

The battery used in this product is marked with the European Union symbol for

waste batteries to indicate the need for the separate collection and recycling of

batteries.

Wireless Temperature Sensor | PS-3201

Altri manuali PASCO Regolatori di temperatura

PASCO

PASCO PasPort K Manuale utente

Manuali Regolatori di temperatura popolari di altre marche

Swegon

Swegon LUNAd MB Manuale utente

Lucky Reptile

Lucky Reptile Thermo Control II Manuale utente

SENSORMETRIX

SENSORMETRIX Argon 100 Manuale utente

Fuji Electric

Fuji Electric PXE4 Manuale utente

Yuyao gongyi

Yuyao gongyi XMT-808 series Manuale utente

Selec

Selec TC544C Manuale utente

P.W. KEY

P.W. KEY rt-208gt Manuale utente

Future Design

Future Design FDC-9200 Manuale utente

BH Thermal

BH Thermal BriskONE Manuale utente

Omron

Omron E5EX-H Manuale utente

West Control Solutions

West Control Solutions KS 45 Guida rapida

MCS

MCS RITC-15B Manuale utente

SMC Networks

SMC Networks Thermo-con INR-244-639 Manuale utente

eltherm

eltherm Ex-TC It Series Manuale utente

Omron

Omron C200H-TV Series Manuale utente

industrie technik

industrie technik CA1 Manuale utente

KRAL

KRAL EET 32 Manuale utente

dixell

dixell XR420C Schema elettrico
