4-Step Ladder Assembly Instructions
Rubber Mallet

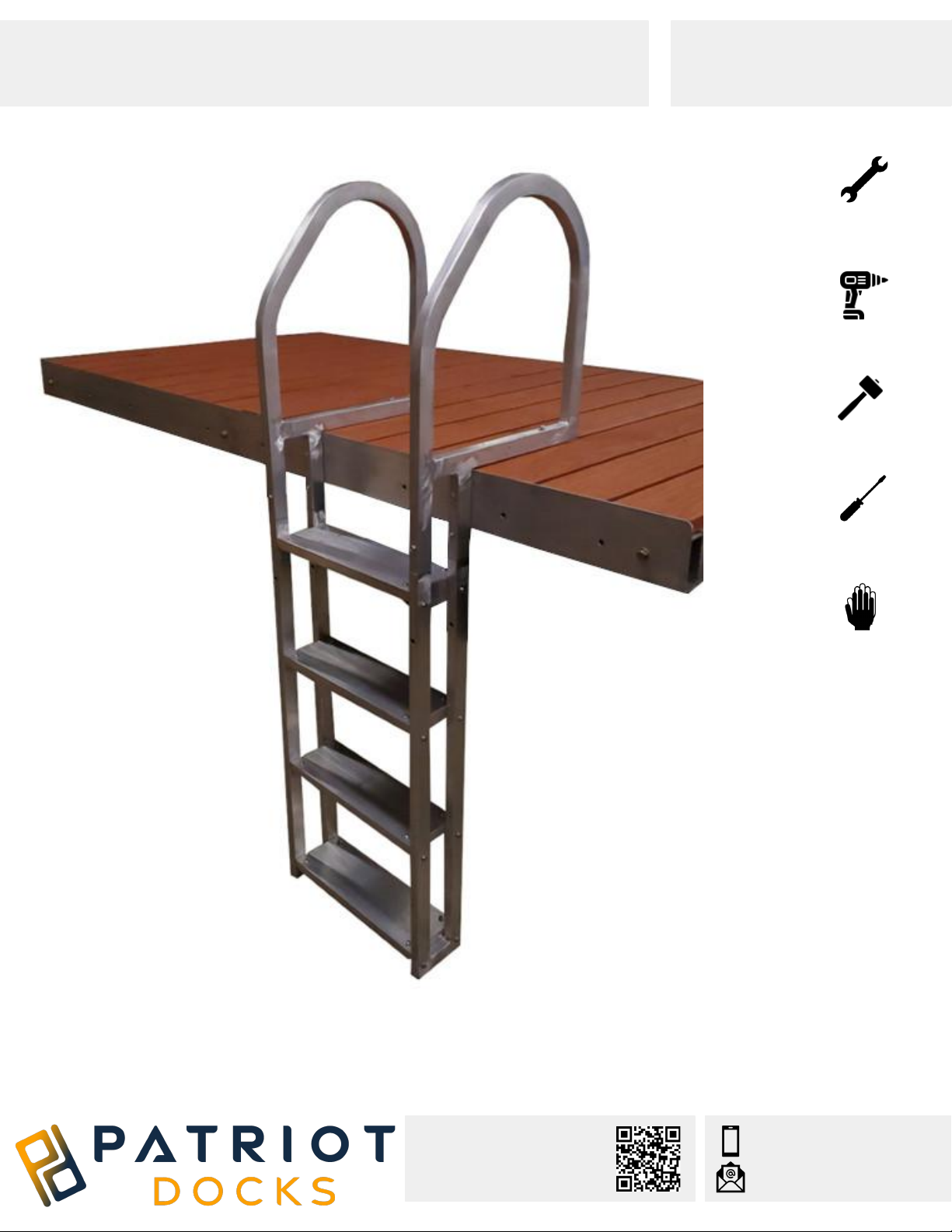

RECOMMENDED TOOLS
Cordless Drill
7/16” Drill Bit
Wrenches or sockets:
M14 (or 13/32”)
M15 (or 5/8”)
Screwdriver
(Phillips)
Work Gloves
PN 10827
*Requires Mounting hole in dock frame be drilled out.
Scan for Online Help:
FAQ, Online support
(651) 674-2450

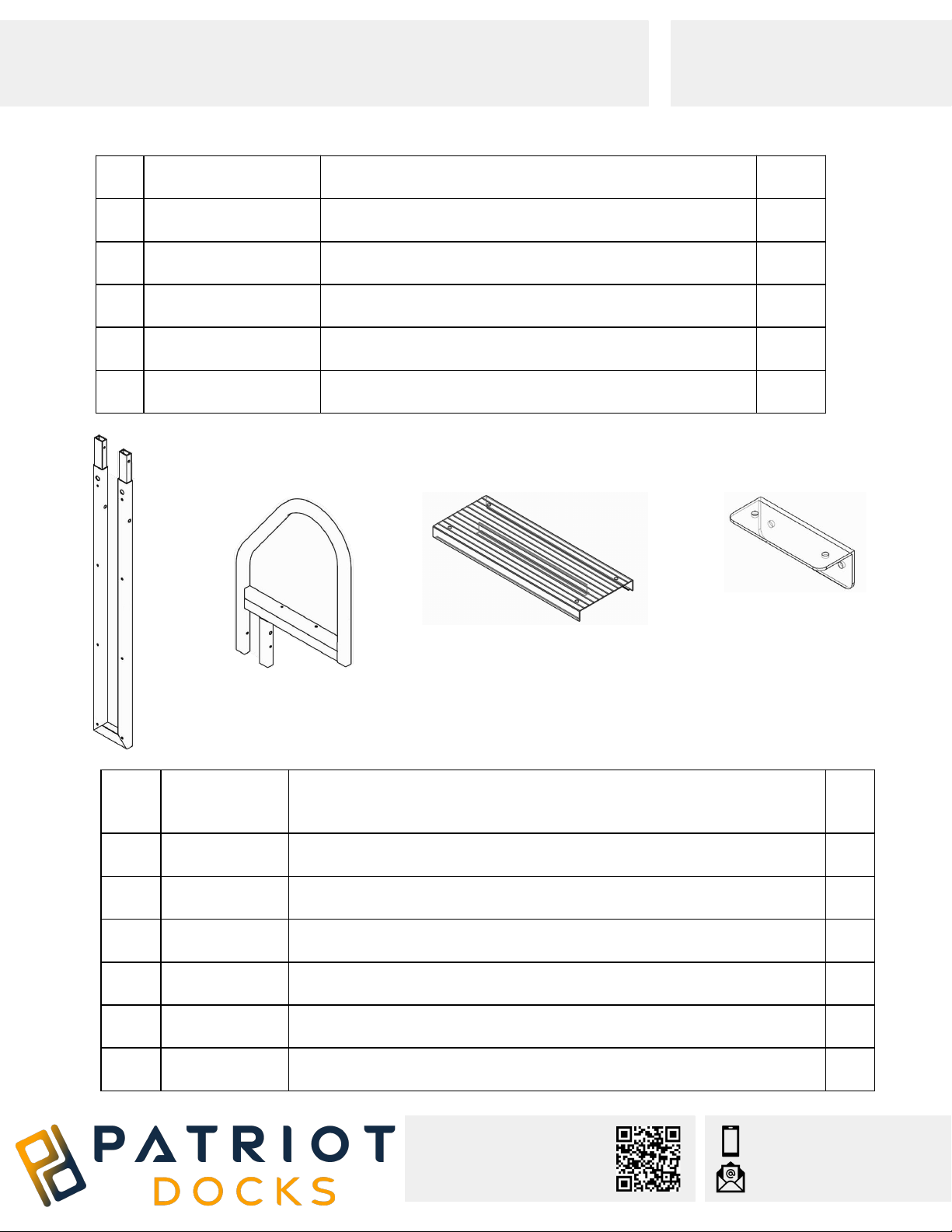

4-Step Ladder Components
Part Number Description Qty.
A 10827-12 Ladder Frame 2
B 10827-11 Shepherd Handle 2
C 10827-3 Step Board 4
D 10827-2 Step Bracket 8
E NA Pinch Plate - Low Profile only 2
Size Description Qty
.
AA M6x20mm Fasten Step Boards to Step Brackets 16
BB M6x40mm Fastens Step Bracket to Ladder Frame 16
CC M6x50mm Secures Ladder Frame to Shepherd Handle 4
DD M10x60mm Mounting Assembled Ladder to Truss Frame 4
EE M6x80mm Low Profile only - Mount to Pinch Plate 2
FF M10x90mm Low Profile only - Mounting Assembled Ladder to Low Profile Frame
A
B
CD
Scan for Online Help:
FAQ, Online support
(651) 674-2450
4-Step Ladder Assembly Instructions

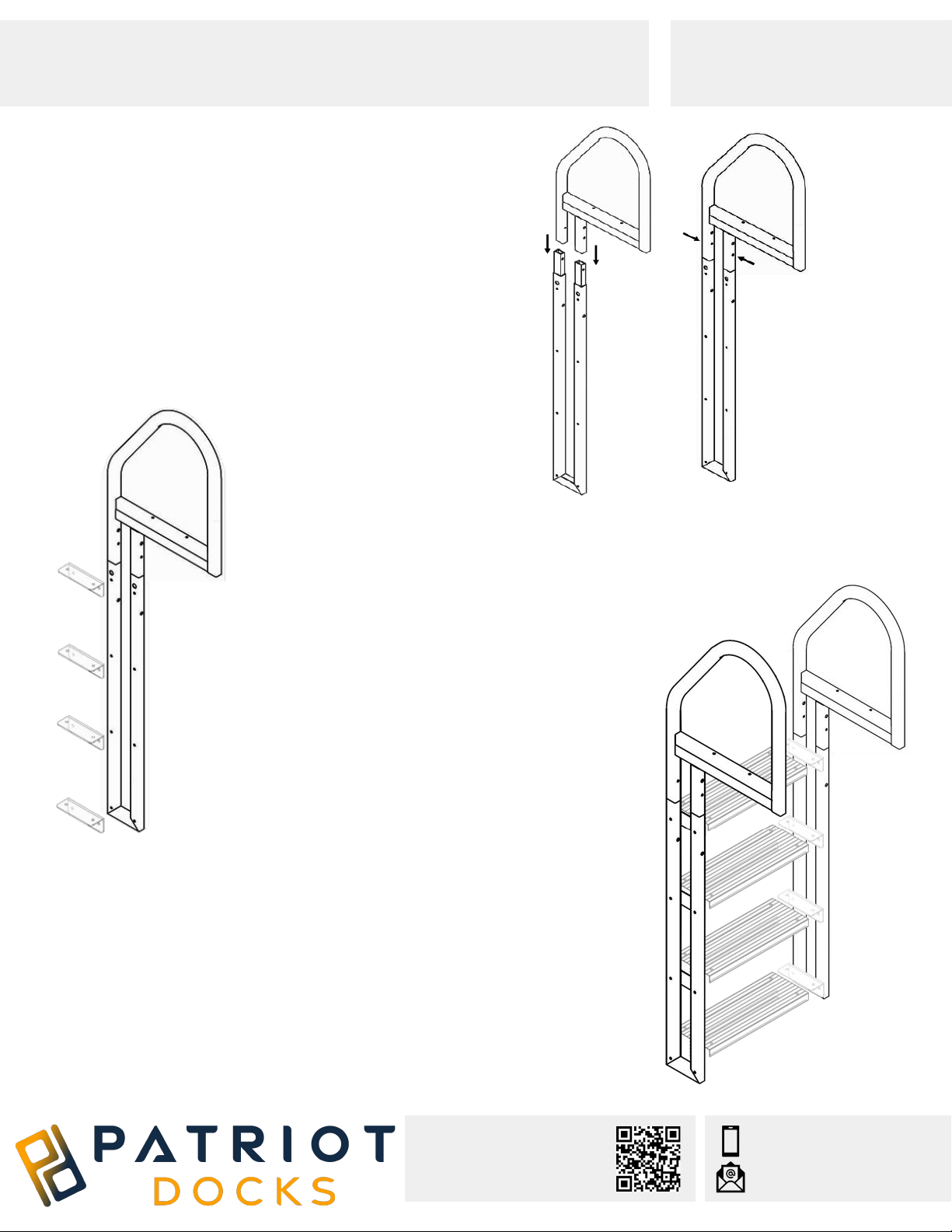

Join the Ladder Frame (A) to the Shepherd Handle (B) by
sleeving the Shepherd Handle over the insert on the end of the
Ladder Frame. Secure using two M6x50mm bolts/nuts. Repeat
for second side.
Mount the Step Brackets (D) to the Ladder Frame
by aligning the pre-drilled holes and fastening with
M6x40mm bolts/nuts (BB). Repeat for second
side.
The Step Boards (C) will sleeve over the Step Bracket (D) and are
fastened using two M6x20mm bolts/nuts (AA) on each side of the
Step Board. Attach each Step Board to one of the Side Frame
assemblies then position the second Side Frame assembly inside the
Step Boards, tighten all bolts/nuts to complete assembly.
1
2
3
Scan for Online Help:
FAQ, Online support
(651) 674-2450

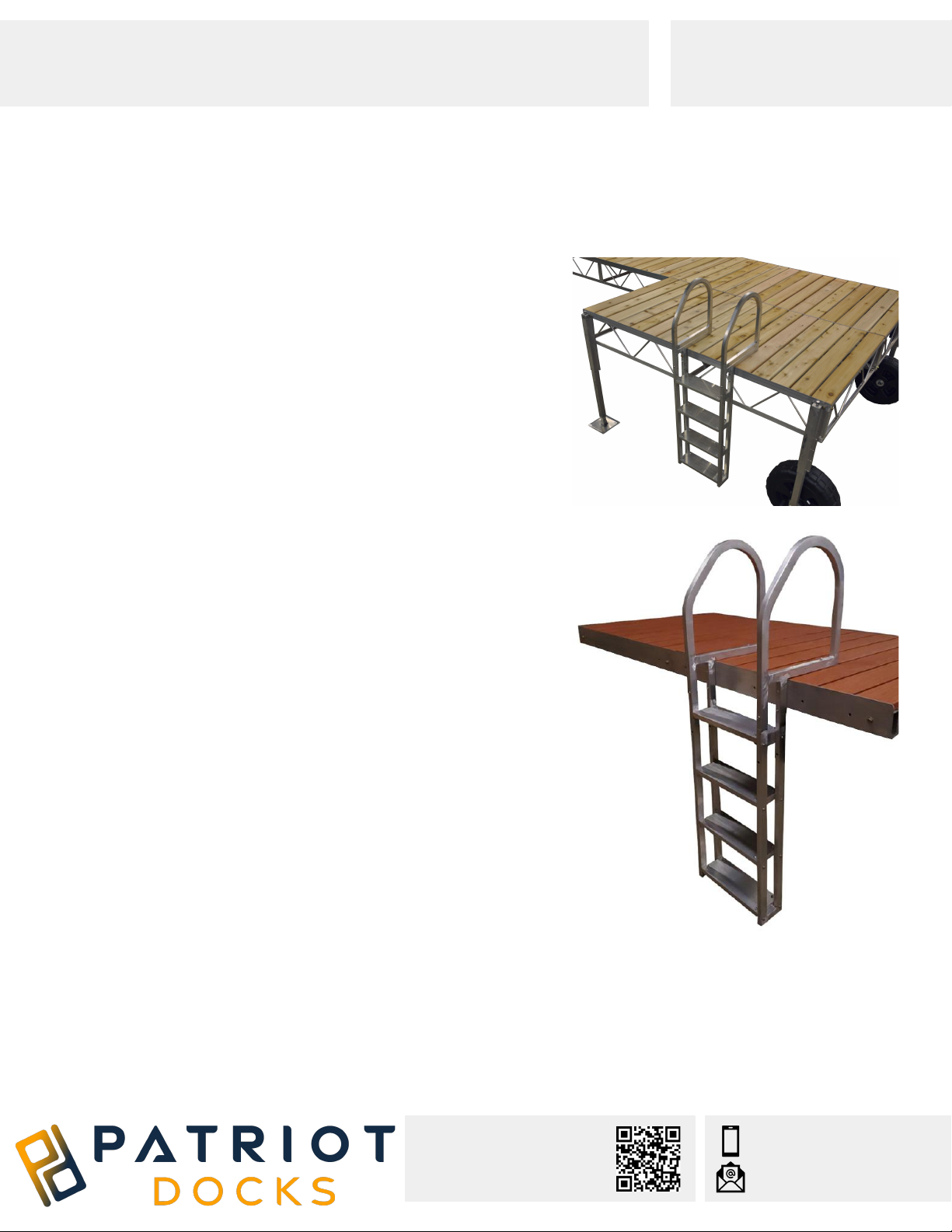

4-Step Ladder Installation
Mounting to Truss Frame:
To mount the 4-Step Ladder to PN10800 Patriot Truss Frame first choose
the desired location. Align one side with the 7/16” holes in the vertical
angle on the Truss Side Frame. Mark the hole locations on the opposite
side of the ladder, set ladder aside and drill 7/16” holes. Mount Ladder
using four M10x60mm mounting bolts (DD).
Tip: Each box will come with a template built into it, cut out template and
use to mark mounting hole locations. Some templates may be damaged
during shipping, if so use original method above.
Mounting to Low Profile Frame:
To mount the 4-Step Ladder to PN10835 Low Profile Frame first choose the
desired location. Some things to consider when choosing your location. The
Shepherd Handle must line up with the open gaps in the 4’x4’ deck panel. This is
so you can run a bolt through and attach the Pinch Plate (E). Once location is
determined place ladder on frame, use pre-drilled mounting hole if available. If
none are available mark hole locations and drill 7/16” holes. Mount ladder using
M10x90mm bolt/nuts (FF). Next, secure ladder to decking using Pinch Plate (E)
under the Shepherd Handles and the decking. Secure Pinch Plate to the Shepherd
Handle using M6x80mm bolt/nuts (EE).
Mounting to a Wood Dock:
To mount the 4-Step Ladder to a wooden dock, choose desired location and either mark and pre-drill 7/16” holes for mounting with
bolts/nuts or us 3/8” lag screws. The 4-Step Ladder also has mounting holes in the Shepherd Handles for fastening between deck
boards or directly to the deck board for added support.
Mount the ladder to the dock frame.
4
Scan for Online Help:
FAQ, Online support
(651) 674-2450
