MODEL 1170M SERIES
EthernetFiberModems
(1170M,1171M,1172M)
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007
Part# 07M1170M
Doc# 077351U Rev. A
Revised 4/14/03
An ISO-9001
Certified Company
2
CONTENTS
1.0 Warranty Information ................................................................. 3
1.1 Radio and TV Interference............................................................ 3
1.2 CE Notice...................................................................................... 3
1.3 Service.......................................................................................... 4
2.0 General Information.................................................................... 5
2.1 Features........................................................................................ 5
2.2 Description.................................................................................... 6
3.0 Installation................................................................................... 8
3.1 Installing a Fiber Modem .............................................................. 8
3.2 End-to-end connection................................................................ 11
4.0 Operation................................................................................... 12
4.1 LED indicators ............................................................................ 12
A Specifications ........................................................................... 14
A.1 Interfaces/Connectors ................................................................ 14
A.2 Interface Speed .......................................................................... 14
A.3 Transmission Mode ..................................................................... 14
A.4 Twisted-Pair/Copper Cable Type* .............................................. 14
A.5 Fiber Cable Type ........................................................................ 14
1.6 Fiber Wavelength........................................................................ 14
A.7 Fiber Optic Link Budget .............................................................. 15
Transmit power........................................................................... 15
Receiver Sensitivity.................................................................... 15
Delay Time ................................................................................. 15
Typical Fiber Max. Distance....................................................... 15
A.8 Standards ................................................................................... 15
A.9 LED Status Indicators ................................................................. 15
A.10 Compliance ................................................................................. 16
A.11 Power .......................................................................................... 16
A.12 Packaged Weight ....................................................................... 16
A.13 Dimensions ................................................................................. 16
A.14 Environment ................................................................................ 16
3
1.0 WARRANTY INFORMATION
Patton Electronics
warrants all Model 1170M Series components to be
free from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment.
This warranty is limited to defects in workmanship or materials, and does
not cover customer damage, abuse, or unauthorized modification. If this
product fails or does not perform as warranted, your sole recourse shall
be repair or replacement as described above.Under no condition shall
Patton Electronics
be liable for any damages incurred by the use of this
product.These damages include, but are not limited to, the following:lost
profits, lost savings and incidental or consequential damages arising
from the use of or inability to use this product.
Patton Electronics
spe-
cifically disclaims all other warranties, expressed or implied, and the
installation or use of this product shall be deemed an acceptance of
these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 1170M Series generates and uses radio frequency energy,
and if not installed and used properly—that is, in strict accordance with
the manufacturer's instructions—may cause interference to radio and
television reception.The Model 1170M Series has been tested and
found to comply with the limits for a Class A computing device in accor-
dance with the specifications in Subpart B of Part 15 of FCC rules, which
are designed to provide reasonable protection from such interference in
a commercial installation. However, there is no guarantee that interfer-
ence will not occur in a particular installation.If a 1170M Series unit does
cause interference to radio or television reception, which can be deter-
mined by disconnecting the cables, the user is encouraged to try to cor-
rect the interference by one or more of the following measures: moving
the computing equipment away from the receiver, re-orienting the receiv-
ing antenna, and/or plugging the receiving equipment into a different AC
outlet (such that the computing equipment and receiver are on different
branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates that it is
in compliance with the Electromagnetic Compatibility (EMC) directive
4
and the Low Voltage Directive (LVD) of the Union European (EU).A Cer-
tificate of Compliance is available by contacting Technical Support.
1.3 SERVICE
All warranty and nonwarranty repairs must be returned freight prepaid
and insured to Patton Electronics. All returns must have a Return Materi-
als Authorization number on the outside of the shipping container.This
number may be obtained from Patton Electronics Technical Services at:
• Tel:
+1
(301) 975-1007
• Email:
• URL:
http://www.patton.com
Note
Packages received without an RMA number will not be
accepted.
Caution
This device is not intended to be connected to the public
telephone network.
5
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product.It has
been thoroughly inspected and tested and is warranted for
one year
for
parts and labor. If you have any questions about this product, please call
Patton Electronics Technical Support at (301) 975-1007.
2.1 FEATURES
• Cost effective plug and play solution for extending your 10Base-T and
100Base-TX using 10Base-FL, 100Base-FX, and 100Base-SX fiber
• Supports 802.3 and 802.3u, 10Base-T, 10Base-FL, 100Base-TX,
100Base-FX, and 100Base-SX industry standards
• Extends network connections up to 2 km (1.24 miles) over multi-mode
fiber media.
• Low power consumption
• Auto-sensing full or half duplex Ethernet operation
• Twisted Pair MDI/MDI-X switch
• ST or SC connectors for connecting to multimode fiber media
• Ultra-miniature MicroPak Chassis
• LED indicators for Power, Fiber Link and Activity, andTwisted-pair Link
and Activity
• External power supply adapter with AC and DC options
6
2.2 DESCRIPTION
There are three base models in the Patton Model 1170M Series of stan-
dards compliant Ethernet Fiber Modems (see Table 1) that convert and
extend the reach of copper Ethernet over multi-mode fiber.
• The Model 1170M converts 100Base-TX to 100Base-FX and extends
up to 1.24 miles (2.0 km).
Note
The Model 1172M can be used to connect auto-sensing 10/100
and 100Base-TX/100Base-FX network devices only; it is not
capable of connecting to 10Base-T/10Base-FL network devices.
• The Model 1171M converts 10Base-T to 10Base-FL and extends up to
1.24 miles (2.0 km).
Note
The Model 1171M can be used to connect auto-sensing 10/100
and 10Base-T/10Base-FL network devices only;it is not capable
of connecting to 100Base-TX/100Base-FX or SX network
devices.
• The Model 1172M auto-negotiates and converts 10Base-T/100Base-
TX to 10Base-FL/100Base-FX and extends up to 1.24 miles (2.0 km).
Note
The Model 1172M can be used to connect auto-sensing 10/100,
10Base-T/10Base-FL, and 100Base-T/100Base-FX network
devices.The Model 1172M cannot connect a 10Base network
device on one side to a 100Base network device on the other.
If a 10Base network device is on one side of the Model 1172M,
there must be another 10Base or an auto-sensing 10/100 net-
work device on the other. If a 100Base network device is on one
side of the Model 1172M, there must be another 100Base or an
auto-sensing 10/100 network device on the other.
The Model 1172M is the ideal product for customers who currently have
10Base-T networks and/or equipment and are planning to upgrade to
100Base-TX in the future.The Model 1172 provides a migration path
Table 1:
Model 1170M configurations
Model Twisted-Pair
Standard Fiber
Standard Connector Distance Wavelength
1170M-ST 100Base-TX 100Base-FX ST 2 km 1300nm
1170M-SC 100Base-TX 100Base-FX SC 2 km 1300 nm
1171M-ST 10Base-T 10Base-FL ST 2 km 850nm
1171M-SC 10Base-T 10Base-FL SC 2 km 850nm
1172M-ST 10Base-T/
100Base-TX 10Base-FL/
100Base-FX ST 2 km 1300nm
1172M-SC 10Base-T/
100Base-TX 10Base-FL/
100Base-FX SC 2 km 1300nm
7
from 10Base-T/10Base-FL to 100Base-TX/100Base-FX, which elimi-
nates the need to upgrade and lowers the overall cost of ownership.
All Patton 1170M Series models are packaged in an ultra-miniature
MicroPak chassis and feature power, fiber link and activity, and twisted-
pair link and activity LED indicators.The Model 1170M Series of Ether-
net Fiber Modems can be ordered with ST or SC fiber optic connectors
and with 120VAC, 220VAC, universal interface (UI), -48 VDC, -24VDC,
or -12 VDC power supply adapters. Power cord designations for
220 VAC and UI models must be specified at the time of purchase.
8
3.0 INSTALLATION
The following sections describe installing and configuring the Model
1170M Series of Ethernet Fiber Modems
3.1 INSTALLING A FIBER MODEM
Do the following to install the Model 1170M Series of Ethernet Fiber
Modems:
1. The MDI/MDI-X switch enables you to connect the 1170M models to
different types of network devices using a standard (straight-
through) network patch cable.
To connect the 1170M models to a terminal, transceiver, or network inter-
face card (NIC), set the switch to the MDI-X (lefthand) position (see
Figure 1).
Otherwise, to connect to a hub or switch, set the switch to the MDI (right-
hand) position (see Figure 1).
Figure 1.
MDI/MDI-X switch, Ethernet RJ-45 jack, and power jack locations
9
2. The Fiber Modem comes equipped with a shielded RJ-45 Jack for
Ethernet connections (see Figure 1 on page 8).
Connect the Ethernet RJ-45 jack to the appropriate 802.3 compliant
network equipment via a standard network patch cable (not pro-
vided).The pinout diagrams in Figure 2 reflect the pinouts of the
Ethernet RJ-45 jack when switched to MDI and MDI-X settings.
Note
Twisted-pair connections from the Ethernet RJ-45 Jack to the
network device should be 802.3 compliant (Category 5 STP or
UTP recommended) and must not exceed 100 meters (328
feet). Do not use flat or satin cable.
Figure 2.
Shielded Ethernet RJ-45 Jack pin-outs with different MDI/MDI-X switch settings
T+
12345678
T+ R+ R-
MDI
R+
12345678
R+ T+ T-
MDI-X
10
3. Connect the dual fiber ST or SC connectors on the Fiber Modem
(see Figure 3) directly to the 802.3 compliant multi-mode fiber cable
equipped with male ST or SC connectors or via 802.3 compliant
multi-mode fiber patch cord (not provided) and corresponding ST or
SC fiber wall jacks.
Note
Verify that the cable connecting theTX and RX of the 1170M
Series unit is connected to the RX and TX respectively on the
remote 1170M Series unit or network device. End-to-end multi-
mode fiber connections between two Model 1170M Series
Ethernet Fiber Modems or between one Model 1170M Series
Fiber Modem and other network devices must not exceed 2 km
(1.24 miles), 298.7 m (980 ft) in 100Base-SX mode (Model
1172M only).

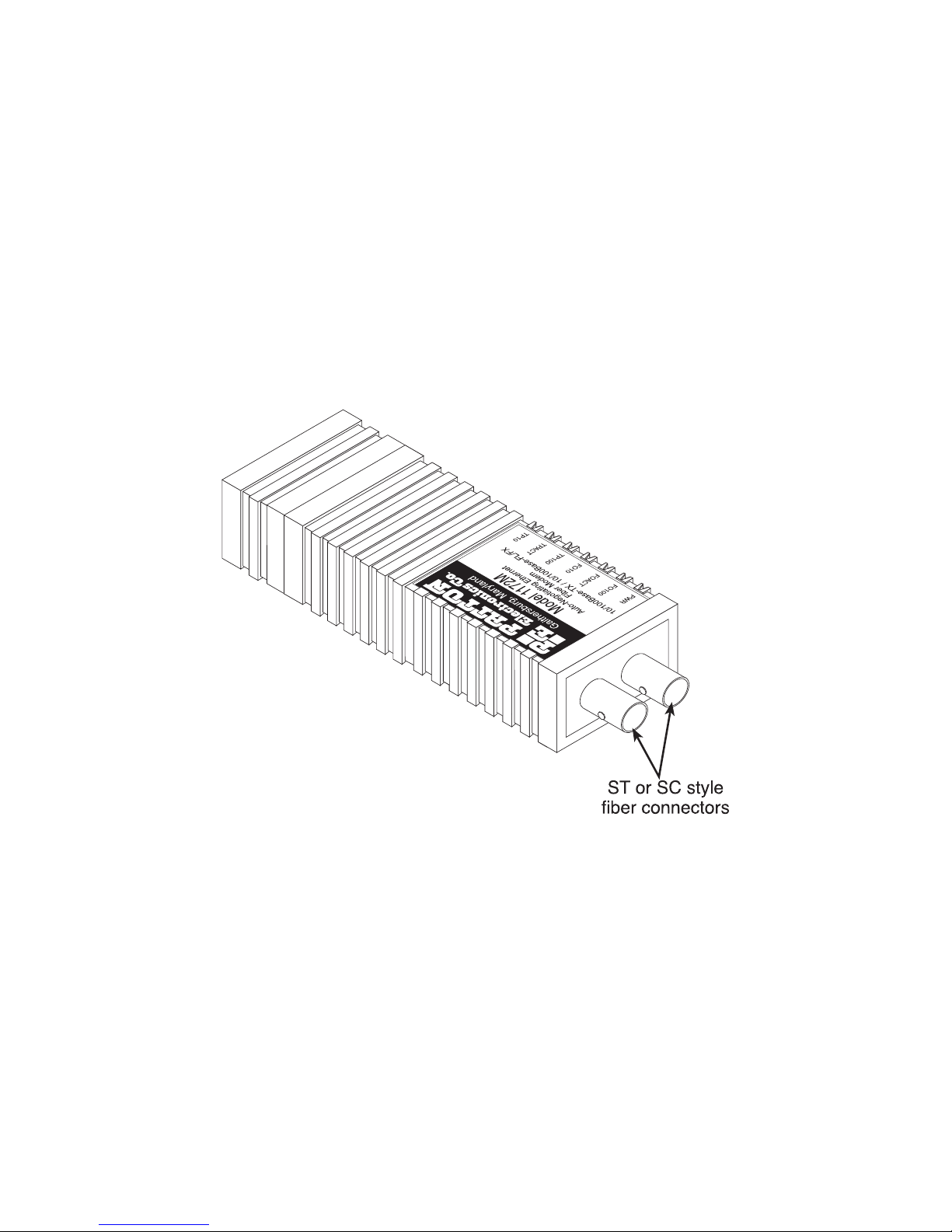

Figure 3.
Fiber connector locations
4. Connect the DC power output side of the power supply adapter to
the power jack (see Figure 1 on page 8) on the 1170M Series unit.
5. Connect the AC power side/cord of the power supply adapter to the
appropriate AC power source.
The Ethernet Fiber Modem will power up and LED indicators will illumi-
nate once connected to the power source.
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali Patton electronics Modem
Patton electronics
Patton electronics 1000 Manuale utente
Patton electronics
Patton electronics NetLink 1082/144 Manuale utente
Patton electronics
Patton electronics 1000 Manuale utente
Patton electronics
Patton electronics 1090 Manuale utente
Patton electronics
Patton electronics OnSite 1069 Manuale utente
Patton electronics
Patton electronics 1015 Manuale utente
Patton electronics
Patton electronics 2703-X21 Manuale utente
Patton electronics
Patton electronics 1088/C Manuale utente
Patton electronics
Patton electronics 1060 Manuale utente
Patton electronics
Patton electronics 2703 Manuale utente
Patton electronics
Patton electronics DIAMONDLINK 3201 Manuale utente
Patton electronics
Patton electronics 1070RC Manuale utente
Patton electronics
Patton electronics 1010B Manuale utente
Patton electronics
Patton electronics Model 1065 Manuale utente
Patton electronics
Patton electronics 1088/I Manuale utente
Patton electronics
Patton electronics 1140RC Manuale utente
Patton electronics
Patton electronics ParaLink 1225 Manuale utente
Patton electronics
Patton electronics RocketLink 3202 Manuale utente
Patton electronics
Patton electronics SMARTNODE 1200 Manuale utente
Patton electronics
Patton electronics 1202 Manuale utente
