Patton electronics OnSite 2884 Manuale utente

OnSite 2884

T1/E1 Channelized Gigabit Router

Quick Start Guide

Important

—This is a Class A device and is intended for use in a light industrial environment. It is not

intended nor approved for use in an industrial or residential environment.

Part Number: 07M2884-QS, Rev. D

Revised: February 23, 2012

Sales Office: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: [email protected]

WWW: www.patton.com

2OnSite 2884 Quick Start Guide

1.0 Powering up the OnSite

1.1 Connecting the power supply

AC Power

1. Connect the AC power cord female plug directly to the OnSite AC connector.

2. Connect the AC power cord male plug to an AC power outlet (120–240 VAC).

The Power LED blinks as the OnSite is powering up. When the Power LED stops blinking and remains lit, the

OnSite is ready for user configuration. (See Figure 2 on page 3).

DC Power

The 36-60 VDC DC to DC adapter is supplied with the DC version of the Model 2884. The black and red leads

plug into a DC source (nominal 48VDC) and the barrel power connector plugs into the barrel power supply jack

on the 2884. (See Figure 1 on page 3).

• The OnSite contains no user serviceable parts. The equipment shall be

returned to Patton Electronics for repairs, or repaired by qualified

service personnel.

• Mains Voltage: Line voltages are present when the power cord is con-

nected. The mains outlet shall be within 10 feet (3 meters) of the

device, shall be easily accessible, and protected by a circuit breaker.

• For AC powered units, ensure that the power cable used meets all

applicable standards for the country in which it is to be installed, and

that it is connected to a wall outlet which has earth ground.

• Hazardous network voltages are present in WAN ports, regardless of

whether power to the OnSite is ON or OFF. To avoid electric shock,

use caution when near WAN ports. When detaching the cables, detach

the end away from the OnSite first.

• Do not work on the system or connect or disconnect cables during

periods of lightning activity.

• For units with an external power adapter, the adapter shall be a

listed Limited Power Source.

The interconnecting cables shall be acceptable for external use and shall be rated for

the proper application with respect to voltage, current, anticipated temperature, flam-

mability, and mechanical serviceability.

WARNING

CAUTION

IPLink 2884/2888 Quick Start Guide 3

Figure 1. Connecting DC Power to the 2884 DC Power Supply

Figure 2. 2884 rear panel

There are no user-serviceable parts in the power supply section of the Model 2884.

Contact Patton Electronics Technical support at (301)975-1007, via our web site at

http://www.patton.com, or by e-mail at support@patton.com, for more information.

To Power

Supply Jack To -48VDC

Source

-Vin

+Vin

Black lead (-V

)

Red lead (+V)

Barrel power connector

SWITCHING POWER SUPPLY

MODEL : SYD1106-2012

INPUT : 36-60V 0.8A MAX

OUTPUT : +12V 1.67A

OUTPUT POWER : 20W MAX

SN:

MADE IN CHINA BY SUNNY

X X X

WARNING

RS-232

Console

ETH 1

ETH 0

Reset

T1/E1

Power

(~120–240V, 50/60 Hz, 1A)

T1/E1

Ports 0-3

Console

RS-232 port

ETH 0

10/100/1000Base-T port

ETH 1

10/100/1000Base-T port

RESET

button

120-240V, 50/60 Hz, 1A

Power

4OnSite 2884 Quick Start Guide

2.0 Setting the IP address

2.1 Default IP configuration

The factory default IP settings are as follows:

•

LAN port (ETH 0): IP address: 192.168.200.10, Netmask: 255.255.255.0, DHCP client

If this address conflicts or does not match with your network, it must be changed.

2.2 Connecting to the PC and logging in via the Ethernet port

1. To access the OnSite configuration, connect a PC’s Ethernet port to the OnSite’s LAN port (see Figure 3).

Use the black Ethernet cable included with your OnSite for this purpose.

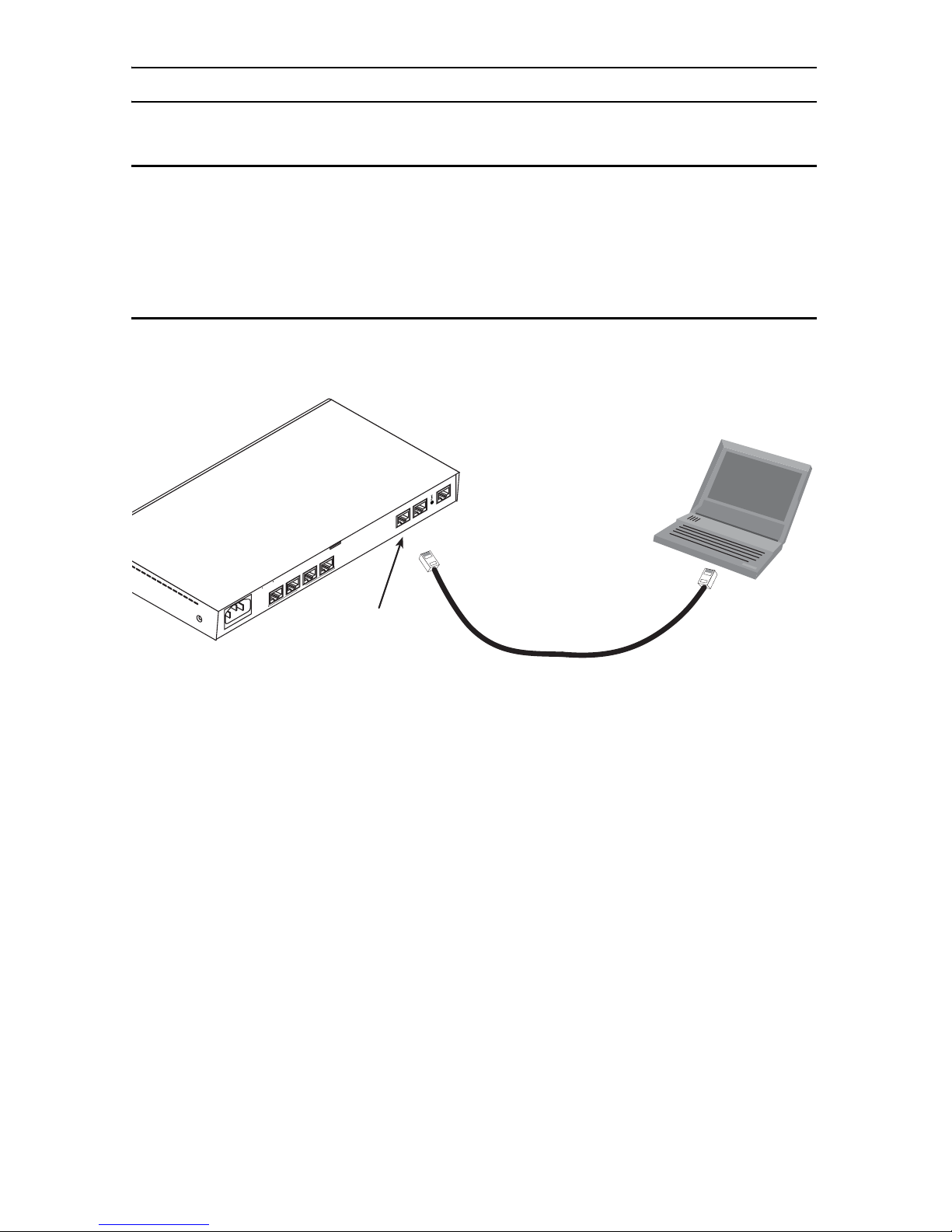

Figure 3. Connecting to the PC’s ENET port

2. Configure your PC’s Ethernet port to be on the same subnet as the OnSite.

3. Open a Telnet connection to the default LAN IP address of the OnSite (192.168.200.10).

Log into the unit using the following:

password:

Connect to Ethernet LAN

ports, ETH 0 and ETH 1

IPLink 2884

192.168.200.10

Ethernet port

ETH 0/0 ETH 0/1 Console

RS-232

Power

~ 120-240V,50/60 Hz, 1A

0/0 0/1 0/2 0/3

T1/E1

IPLink 2884/2888 Quick Start Guide 5

2.3 Connecting to the PC and logging in via the Console port

1. To access the OnSite configuration via the console port, connect the DB9-RJ45 adapter to the DB-9 serial

port on the PC or dumb terminal. Use the RJ45 straight-through cable between the adapter and the con-

sole port on the 2884. (see Figure 4).

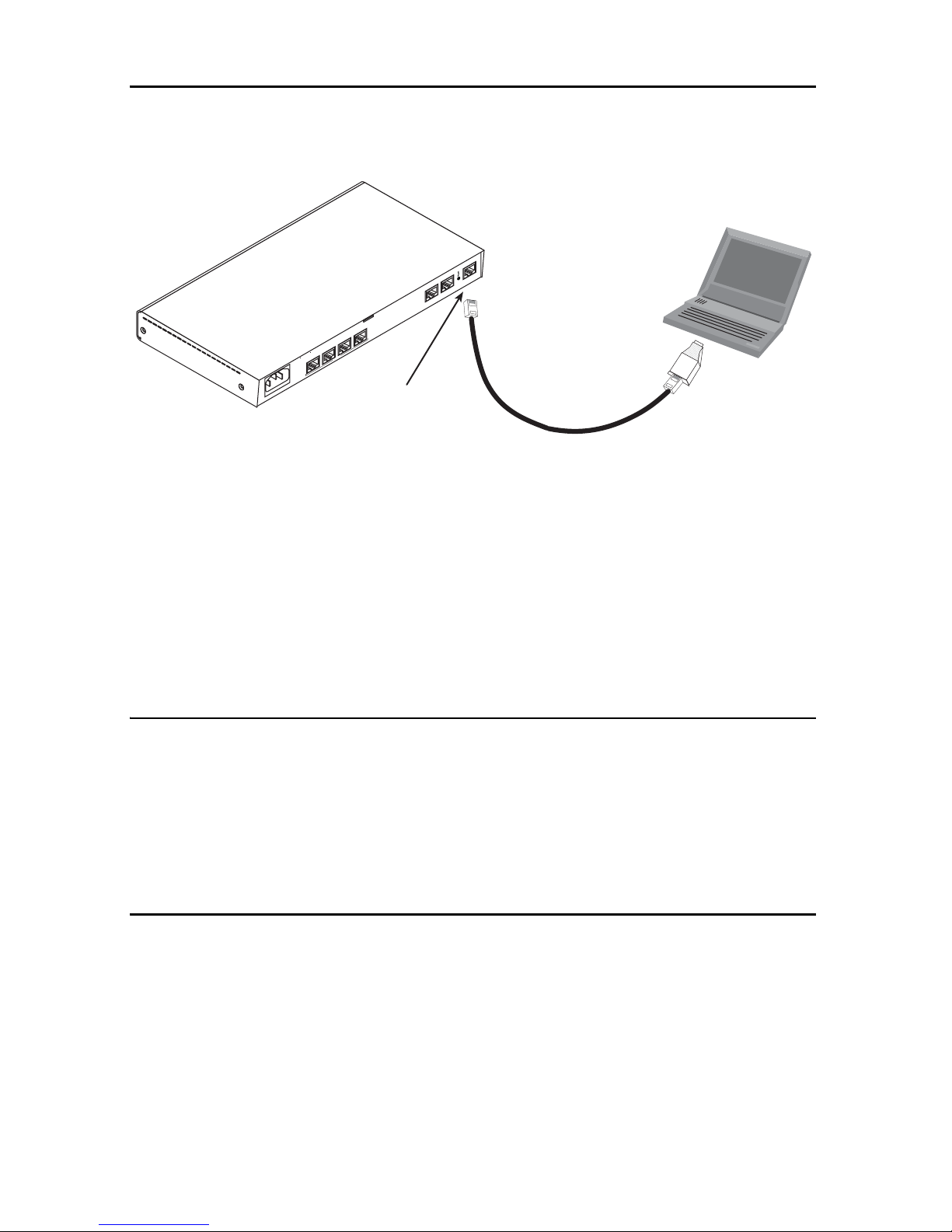

Figure 4. Connecting to the PC’s Console port

2. Do NOT connect the device to the Ethernet LAN now.

3. On the PC, start a HyperTerminal session at 19200 bps, 8 data bits, 1 stop bit, no flow control , and no

parity.

4. Log into the unit using the following:

password:

2.4 Changing the IP address

To change the OnSite’s IP address:

1. Login to the unit using admin, then use the following set of commands:

Trinity# configure

Trinity[config]# interface ethernet eth0

Trinity[eth-eth0]# no ip address 192.168.200.10

Trinity[eth-eth0]# ip address 192.168.1.1 netmask 255.255.255.0

2.5 Saving the IP address

To save the OnSite’s IP address:

1. Login to the unit using admin, then use the following set of commands:

Trinity# [eth-eth0]# end

Trinity# copy running-config startup-config

Trinity#

Connect to Console port

IPLink 2884

192.168.200.10

DB-9 serial port

ETH 0/0 ETH 0/1 Console

RS-232

Power

~ 120-240V,50/60 Hz, 1A

0/0 0/1 0/2 0/3

T1/E1

RJ45 to DB-9 adapter

6OnSite 2884 Quick Start Guide

3.0 Connecting the T1/E1 ports

The 2884 comes with either two or four T1/E1 ports.

Figure 5. Connecting the T1/E1 ports

To connect the twisted pair cable to the T1/E1 port:

1. Attach the male connector of the twisted pair cable to the female connector on the OnSite.

2. Attach the other end of the cable to the serial connector on the local T1/E1 unit.

4.0 Additional information

For detailed information about configuring and operating guidance, set up procedures and troubleshooting,

refer to the OnSite Model 2884 User Manual available online at www.patton.com/manuals/2884.pdf.

RS-232

Console

ETH 1

ETH 0

Reset

T1/E1

120-240V, 50/60 Hz, 1A

Power

T1/E1

Ports 0-3

IPLink 2884/2888 Quick Start Guide 7

A.0 Compliance Information

A.1 Compliance

EMC:

•

FCC Part 15, Class A

•

EN55022, Class A

•

EN55024

Safety:

•

UL 60950-1/CSA C22.2 N0. 60950-1

•

IEC/EN60950-1

•

AS/NZS 60950-1

PSTN Regulatory:

•

FCC Part 68

•

CS-03

•

TBR 12 & 13 (E1)

•

AS/ACIF S016:2001 (E1)

A.2 CE Declaration of Conformity

Product Description: OnSite 2884

We certify that the apparatus identified above conforms to the requirements of Council Directive 1999/5/EC on

the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equip-

ment and the mutual recognition of their conformity.

The safety advice in the documentation accompanying this product shall be obeyed. The conformity to the above

directive is indicated by the CE sign on the device.

The signed Declaration of Conformity can be downloaded from www.patton.com/certifications/.

A.3 Authorized European Representative

D R M Green, European Compliance Services Limited.

Oakdene House, Oak Road , Watchfield, Swindon, Wilts SN6 8TD, UK

The safety advises in the documentation accompanying the products shall be obeyed.

The conformity to the above directive is indicated by the CE sign on the device.

8OnSite 2884 Quick Start Guide

The information in this document is subject to change without notice. Patton Electronics assumes no

liability for errors that may appear in this document.

Trademarks statement

The term OnSite is a trademark of Patton Electronics Company. All other trademarks presented in this document

are the property of their respective owners.

Patton support headquarters in the USA

•

Online support: Available at www.patton.com

•

E-mail support: E-mail sent to support@patton.com will be answered within 1 business day

•

Telephone support: Standard telephone support is available five days a week—from 8:00 am to

5:00 pm EST (1300 to 2200 UTC/GMT)—by calling +1 (301) 975-1007

•

Support via VoIP: Contact Patton free of charge by using a VoIP ISP phone to call sip:[email protected]m

•

Fax: +1 (253) 663-5693

Alternate Patton support for Europe, Middle East, and Africa (EMEA)

•

Telephone support: Standard telephone support is available five days a week—from 8:00 am to

5:00 pm CET (0900 to 1800 UTC/GMT)—by calling +41 (0)31 985 25 55

•

Fax: +41 (0)31 985 25 26

Note For additional service and support information, refer to the “Contacting Patton for assistance” chapter

of the OnSite Model 2884 User Manual available online at www.patton.com/manuals/

2884.pdf.

Warranty, Compliance Information

For warranty, trademark and compliance information, refer to the OnSite Model 2884 User Manual available

online at www.patton.com/manuals/2884.pdf.

In accordance with the requirements of council directive 2002/96/EC on Waste of Elec-

trical and Electronic Equipment (WEEE), ensure that at end-of-life you separate this

product from other waste and scrap and deliver to the WEEE collection system in your

country for recycling.
