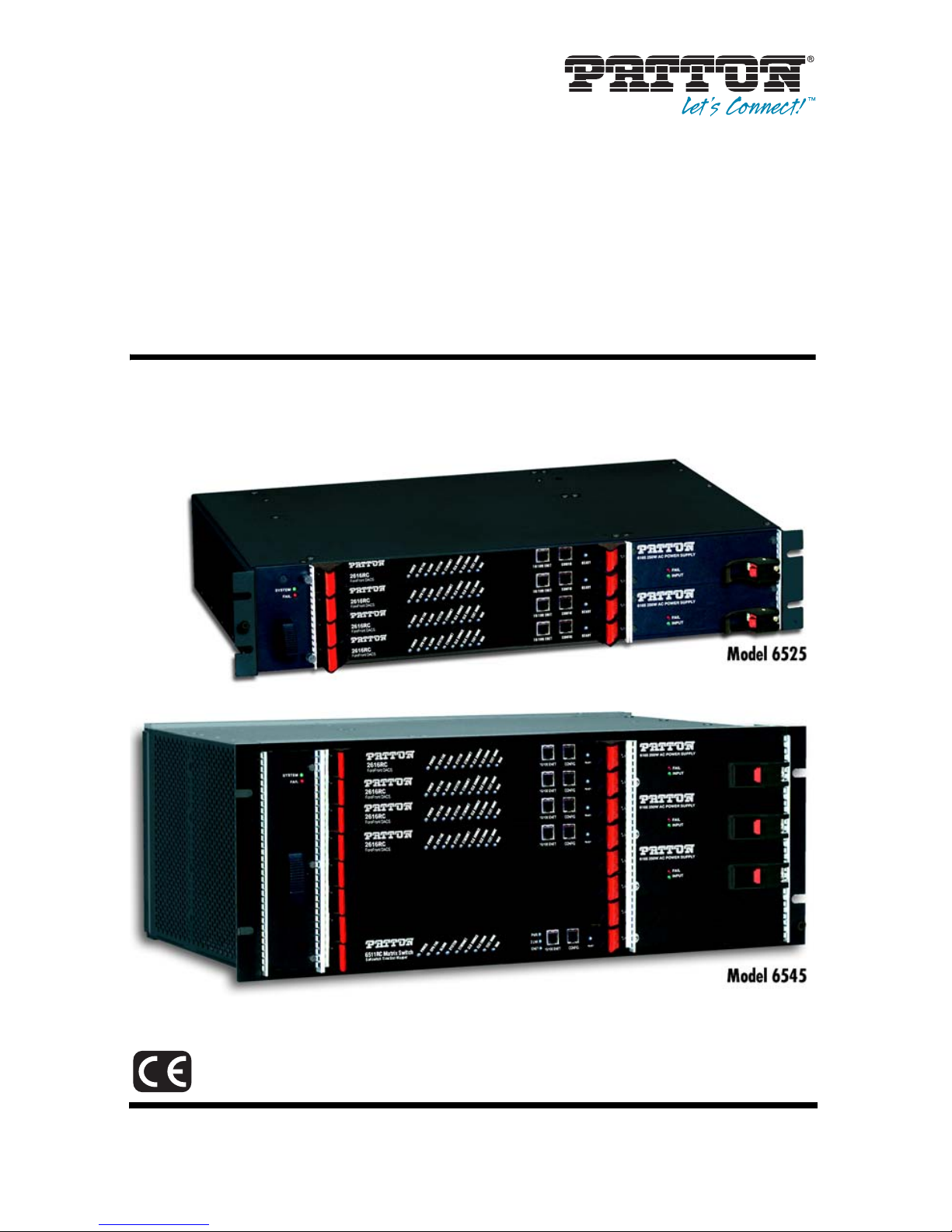

Patton ForeFront 6500 Manuale utente

ForeFront™ DACS

Model 6500 DACS Bundles

Quick Start Guide

Part Number: 07M6500-QS, Rev. B

Revised: February 20, 2012

Sales Office: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: [email protected]

WWW: www.patton.com

2ForeFront 6500 Bundles Quick Start Guide

1.0 Powering up the ForeFront DACS chassis

Your 6500 ForeFront DACS bundle comes with AC or DC power supplies.

1.1 AC power supplies

1. If your 6500 ForeFront DACS bundle is equipped with a 6276 2U chassis, refer to section “Installing the

power cables—AC unit” on page 37 of the Model 6276 ForeFront Half-Pipe Chassis Assembly User Guide

available online at www.patton.com/manuals/6276_UG.pdf.

2. If your 6500 ForeFront DACS bundle is equipped with a 6476 4U chassis, refer to section “Installing the

power cables—AC unit” on page 36 of the Model 6476 ForeFront FullPipe Chassis Assembly User Guide

available online at www.patton.com/manuals/6476_UG.pdf.

• The Model 6500 ForeFront DACS Bundles contains power modules and

cards which may be removed to send for repair. However the individ-

ual modules and cards contain no user serviceable parts. The equip-

ment shall be returned to Patton Electronics for repairs, or repaired

by qualified service personnel.

• For DC powered units, an approved external power source that incor-

porates a disconnect device shall be used and positioned within easy

reach of the operator.

• For AC powered units, the power cable used to connect the power

supply shall meet all applicable standards for the country in which it

is to be installed, and be connected to a wall outlet which has

earth ground.

• Line voltages are present within the power supply when the power

cords are connected. The mains outlet that is utilized to power the

devise shall be within 10 feet (3 meters) of the device, shall be easily

accessible, and protected by a circuit breaker.

• Hazardous network voltages are present in WAN ports regardless of

whether power to the unit is ON or OFF. To avoid electric shock, use

caution when near WAN ports. When detaching the cables, detach the

end away from the ForeFront chassis first.

• Do not work on the system or connect or disconnect cables during

periods of lightning activity.

The interconnecting cables shall be acceptable for external use and shall be rated for

the proper application with respect to voltage, current, anticipated temperature, flam-

mability, and mechanical serviceability.

WARNING

CAUTION

ForeFront 6500 Bundles Quick Start Guide 3

3. After reading all appropriate information in the ForeFront Chassis User Manual (including information on

proper grounding techniques

)

continue on to section, 2.0 “Connecting to the ForeFront chassis”.

1.2 DC power supplies

4. If your 6500 ForeFront DACS bundle is equipped with a 6276 2U chassis, refer to section “Installing the

power cables—DC unit” on page 37 of the Model 6276 ForeFront Half-Pipe Chassis Assembly User Guide

available online at www.patton.com/manuals/6276_UG.pdf.

5. If your 6500 ForeFront DACS bundle is equipped with a 6476 4U chassis, refer to section “Installing the

power cables—DC unit” on page 36 of the Model 6476 ForeFront FullPipe Chassis Assembly User Guide

available online at www.patton.com/manuals/6476_UG.pdf.

6. After reading all appropriate information in the ForeFront Chassis User Manual (including information on

proper grounding techniques

)

continue on to section, 2.0 “Connecting to the ForeFront chassis”.

2.0 Connecting to the ForeFront chassis

With only a single Ethernet connection to the ForeFront chassis, you can manage all the cards in the chassis. After

connecting, you may verify or change the configuration to function in your application.

If your ForeFront DACS bundle is a Model 6525 Series, go to section 2.1 “Connecting to the 6081RC

(Model 6525 Series)”.

If your ForeFront DACS bundle is a Model 6545/1S64E Series, go to section 2.2 “Connecting to the

6511RC (Model 6545/1S64E Series)” on page 4.

2.1 Connecting to the 6081RC (Model 6525 Series)

1. Configure your PC as follows:

— 192.168.201.1/24

— Enter a route to the 192.168.200.0/24 subnet

The interconnecting cables shall be acceptable for external use and shall be rated for

the proper application with respect to voltage, current, anticipated temperature, flam-

mability, and mechanical serviceability.

CAUTION

4ForeFront 6500 Bundles Quick Start Guide

Figure 1. ForeFront Router bundle setup—Model 6525 Series

2. Connect the RJ45–RJ45 cable included with your ForeFront Router bundle between your PC and the front

panel Ethernet port of the Model 2616RC (bottom slot) (see figure 1).

3. Enter the 2616RC’s IP address (192.168.200.4) into the browser. Type in the username (superuser) and

password (superuser). You should see the Home Page of the 2616RC.

4. You can access the other cards’ management web pages by entering the card’s IP address using the same

username and password.

— 2616RC, Slot #3: 192.168.200.3/24 (Models 6525/32E, -/48E, -/64E)

— 2616RC, Slot #2: 192.168.200.2/24 (Models 6525/48E, -/64E)

— 2616RC, Slot #1 (top): 192.168.200.1/24 (Model 6525/64E only)

5. Refer to section 3.0 “Default clocking parameters” on page 6 for the default clocking

configuration parameters.

6. For complete details in configuring the cards in the ForeFront chassis, consult the appropriate manual

available online at http://www.patton.com/manuals.

2.2 Connecting to the 6511RC (Model 6545/1S64E Series)

1. Configure your PC as follows:

— 192.168.200.10/24

DSL

T1/E1 Concentrator

2616RCT

-DAC

POWER

ETHERNET

CLK ERROR

SYSTEM

TEST MODE

CPU FAIL

ALARM

CLK SOURCE

T1/E1 CONNECTION

2345678

10 11 12 13 14 15 16

CONFIG

10/100 ENET

READY

DSL

T1/E1 Concentrator

2616RCT

-DAC

POWER

ETHERNET

CLK ERROR

SYSTEM

TEST MODE

CPU FAIL

ALARM

CLK SOURCE

T1/E1 CONNECTION

2345678

10 11 12 13 14 15 16

CONFIG

10/100 ENET

READY

DSL

T1/E1 Concentrator

2616RCT

-DAC

POWER

ETHERNET

CLK ERROR

SYSTEM

TEST MODE

CPU FAIL

ALARM

CLK SOURCE

T1/E1 CONNECTION

2345678

10 11 12 13 14 15 16

CONFIG

10/100 ENET

READY

DSL

T1/E1 Concentrator

2616RCT

-DAC

POWER

ETHERNET

CLK ERROR

SYSTEM

TEST MODE

CPU FAIL

ALARM

CLK SOURCE

T1/E1 CONNECTION

2345678

10 11 12 13 14 15 16

CONFIG

10/100 ENET

READY

SYSTEM

FAIL

192.168.201.1

2616RC ENET p

192.168.200.2

2616RC ENET p

192.168.200.1

2616RC ENET p

192.168.200.3

2616RC ENET p

192.168.200.4

ForeFront 6500 Bundles Quick Start Guide 5

Figure 2. ForeFront Router bundle setup—Model 6545/1S64E Series

2. Connect the RJ45–RJ45 cable included with your ForeFront Router bundle between your PC and the front

panel Ethernet port of the Model 6511RC (bottom slot) (see figure 2).

3. Enter the 6511RC’s IP address (192.168.200.1) into the browser. Type in the username (superuser) and

password (superuser). You should see the Home Page of the 6511RC.

4. You can access the 2616RCs’ management web pages by entering the card’s IP address using the same

username and password.

— 2616RC, Slot #8 (top slot): 192.168.200.8/24

— 2616RC, Slot #7: 192.168.200.7/24

— 2616RC, Slot #6: 192.168.200.6/24

— 2616RC, Slot #5: 192.168.200.5/24

5. Refer to section 3.0 “Default clocking parameters” on page 6 for the default clocking

configuration parameters.

6. For complete details in configuring the cards in the ForeFront chassis, consult the appropriate manual

available online at http://www.patton.com/manuals.

6511RC Matrix Switch

SoftswitchTimeSlotMapper

POWER

CPU FAIL

ALARM

ETHERNET

SYSTEM

CLK SOURCE

CLK ERROR

TEST MODE

WAN

CONFIG

10/100 ENET

READY

T1/E1 Concentrator

2616RC T-DAC

T1/E1 Concentrator

2616RC T-DAC

T1/E1 Concentrator

2616RC T-DAC

T1/E1 Concentrator

2616RC T-DAC

DSL

T1/E1 Concentrator

2616RC T

-DAC

POWER

ETHERNET

CLK ERROR

SYSTEM

TEST MODE

CPU FAIL

ALARM

CLK SOURCE

T1/E1 CONNECTION

2345678

10 11 12 13 14 15 16

CONFIG

10/100 ENET

READY

DSL

T1/E1 Concentrator

2616RC T-DAC

POWER

ETHERNET

CLK ERROR

SYSTEM

TEST MODE

CPU FAIL

ALARM

CLK SOURCE

T1/E1 CONNECTION

2345678

10 11 12 13 14 15 16

CONFIG

10/100 ENET

READY

DSL

T1/E1 Concentrator

2616RC T

-DAC

POWER

ETHERNET

CLK ERROR

SYSTEM

TEST MODE

CPU FAIL

ALARM

CLK SOURCE

T1/E1 CONNECTION

2345678

10 11 12 13 14 15 16

CONFIG

10/100 ENET

READY

DSL

T1/E1 Concentrator

2616RC T-DAC

POWER

ETHERNET

CLK ERROR

SYSTEM

TEST MODE

CPU FAIL

ALARM

CLK SOURCE

T1/E1 CONNECTION

2345678

10 11 12 13 14 15 16

CONFIG

10/100 ENET

READY

SYSTEM

FAIL

192.168.201.10

6511RC ENET port

192.168.200.1

2616RC ENET port

192.168.200.8

2616RC ENET port

192.168.200.7

2616RC ENET port

192.168.200.6

2616RC ENET port

192.168.200.5

6ForeFront 6500 Bundles Quick Start Guide

3.0 Default clocking parameters

Two tables provide the default configuration of the system clocking. The first table applies to Models 6525/16E,

-/32E, -/48E, and -/64E having one to four 2616RC cards. The second table is for the Model 6545/1S64E with

one 6511RC card and four 2616RC cards.

6276 2U chassis.

Bottom slot.

Appears grayed out (Not configurable).

6476 4U chassis.

Bottom slot.

Appears grayed out (Not configurable).

4.0 Additional Information

Refer to the appropriate ForeFront manuals available online at http://www.patton.com/manuals for

detailed information about:

•

Installing, configuring, operating, and troubleshooting,

•

Warranty, trademark, & compliance

Table 1. Clocking defaults, Models 6525/16E, -/32E, -/48E, -/64E (

)

Slot Number Slot #4 (2616RC)

Slot #3 (2616RC) Slot #2 (2616RC) Slot #1 (2616RC)

Clock reference Master Secondary Slave Slave

Main reference WAN-1 WAN-1 n/a

n/a

Fallback reference WAN-2 WAN-2 n/a

n/a

Fallback active Enabled Enabled n/a n/a

Fallback autorecover Enabled Enabled n/a n/a

Table 2. Clocking defaults, Model 6545/1S64E (

)

Slot Number Slot #1

(6511RC)

Slot #8

(2616RC)

Slot #7

(2616RC)

Slot #6

(2616RC)

Slot #5

(2616RC)

Clock reference Master Secondary Slave Slave Slave

Main reference WAN WAN-1 n/a

n/a

Fallback reference WAN WAN-2 n/a

n/a

Fallback active Enabled Enabled n/a n/a n/a

Fallback autorecover Enabled Enabled n/a n/a n/a

ForeFront 6500 Bundles Quick Start Guide 7

A.0 Customer and Technical Support

Toll-Free VoIP support: call sip:su[email protected] with a VoIP SIP phone

Online support: www.patton.com

E-mail support: [email protected]om—answered within 1 business day

Telephone support:

•

Standard: +1 (301) 975-1007 (USA), Monday–Friday: 8:00 am to 5:00 pm EST (1300 to 2200 UTC/GMT)

•

Alternate: +41 (0)31 985 25 55 (Switzerland), Monday–Friday: 8:00 am to 5:00 pm CET (0900 to 1800

UTC/GMT)

Fax: +1 (253) 663-5693 (USA) or +41 (0)31 985 25 26 (Switzerland)

B.0 Compliance Information

B.1 Radio and TV Interference (FCC Part 15)

This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in

strict accordance with the manufacturer's instructions—may cause interference to radio and television recep-

tion. This equipment has been tested and found to comply with the limits for a Class A computing device in accor-

dance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable

protection from such interference in a commercial installation. However, there is no guarantee that interference

will not occur in a particular installation. If the equipment causes interference to radio or television reception,

which can be determined by disconnecting the cables, try to correct the interference by one or more of the fol-

lowing measures: moving the computing equipment away from the receiver, re-orienting the receiving antenna,

and/or plugging the receiving equipment into a different AC outlet (such that the computing equipment and

receiver are on different branches).

In order to comply with UL60950 leakage current requirements, it is recommended

that the AC inputs be supplied from separate and isolated sources.

IMPORTANT

8ForeFront 6500 Bundles Quick Start Guide

B.2 EC Declaration of Conformity

Product Description: Model 6500 ForeFront DACS Series

We certify that the apparatus identified above conforms to the requirements of Council Directive 1999/5/EC on

the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equip-

ment and the mutual recognition of their conformity.

The signed Declaration of Conformity can be downloaded from www.patton.com/certifications/.

B.3 FCC Part 68 (ACTA) Statement

This equipment complies with Part 68 of FCC rules and the requirements adopted by ACTA. On the bottom side of

this equipment is a label that contains—among other information—a product identifier in the format US:

AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.

The method used to connect this equipment to the premises wiring and telephone network must comply with the

applicable FCC Part 68 rules and requirements adopted by the ACTA.

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that

temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone com-

pany will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with

the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could

affect the operation of the equipment. If this happens, the telephone company will provide advance notice in

order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment, for repair or warranty information, please contact our company. If

the equipment is causing harm to the telephone network, the telephone company may request that you discon-

nect the equipment until the problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public ser-

vice commission or corporation commission for information.

The safety advises in the documentation accompanying the products shall be obeyed. The

conformity to the above directive is indicated by the CE sign on the device.

Users should not attempt to establish or modify ground connections themselves,

instead they should contact the appropriate electric inspection authority or electrician.

CAUTION

ForeFront 6500 Bundles Quick Start Guide 9

B.4 Industry Canada Notice

This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is con-

firmed by the registration number. The abbreviation, IC, before the registration number signifies that registra-

tion was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications

were met. It does not imply that Industry Canada approved the equipment.

This Declaration of Conformity means that the equipment meets certain telecommunications network protective,

operational and safety requirements. The Department does not guarantee the equipment will operate to the

user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to

the facilities of the local telecommunications company. The equipment must also be installed using an acceptable

method of connection. In some cases, the company’s inside wiring associated with a single line individual service

may be extended by means of a certified connector assembly (telephone extension cord). The customer should

be aware that compliance with the above condition may not prevent degradation of service in some situations.

Repairs to some certified equipment should be made by an authorized maintenance facility designated by the

supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give

the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for

their own protection that the ground connections of the power utility, telephone lines and internal metallic water

pipe system, are connected together. This protection may be particularly important in rural areas.

10 ForeFront 6500 Bundles Quick Start Guide

Notes

____________________________________________________________________

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Patton Router di rete

Patton

Patton SmartLink 4020 Manuale utente

Patton

Patton SmartNode 5200 Manuale utente

Patton

Patton SmartNode 4634 Series Manuale utente

Patton

Patton SmartNode SN4960 Manuale utente

Patton

Patton SL4020 Manuale utente

Patton

Patton SmartNode 5300 Manuale utente

Patton

Patton IPLink 2603 Series Manuale utente

Patton

Patton SmartNode 5400 Series Manuale utente

Patton

Patton SmartNode 4660 Series Manuale utente

Patton

Patton IPLink 2620/KK Manuale utente

Patton

Patton OnSite 2603 Manuale utente

Patton

Patton 2805 Manuale utente

Patton

Patton ForeFront 6400 Manuale utente

Patton

Patton OnSite 2701A/I Manuale utente

Patton

Patton SN5300/4B/EUI Manuale utente

Patton

Patton IPLINK 2800 series Manuale utente

Patton

Patton SmartNode 4900 Manuale utente

Patton

Patton OnSite 2603 Manuale utente

Patton

Patton OnSite OS3300 Manuale utente

Patton

Patton SmartNode 4660 Series Manuale utente

Patton

Patton SmartNode 4960 Series Manuale utente

Patton

Patton SmartNode 4980 series Manuale utente

Patton

Patton SmartNode 5300 Manuale utente

Patton

Patton SmartNode 5570 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
