Pax Technology A80 Manuale utente

20180831 v1.02

A80

Android Countertop Terminal

Supported by the PAXSTORE open software

distribution platform, within which payment service

providers create and manage their own independent

app store

marketplaces.

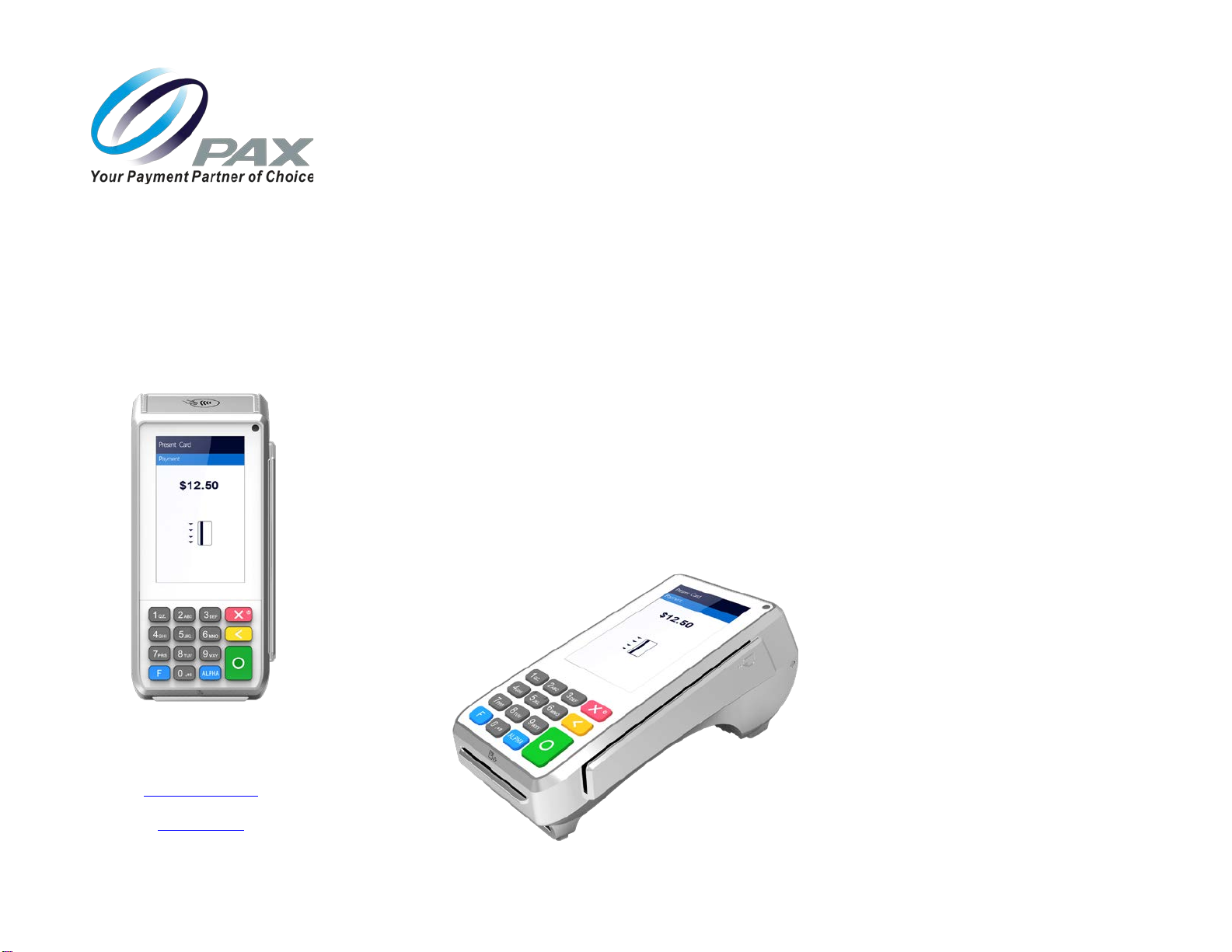

The A80 is a new generation terminal that functions

as a countertop device, packed with the latest PCI

PTS 5.x and NFC contactless certifications and

With a full range of communication options to c

hoose

from, including Wi

-Fi, Dial and Ethernet, and an

optional back

-up battery, the A80 is always

connected, ensuring peak performance during

business hours.

The A80 has a built

-in camera and comes with a

stunning high definition 4

-inch touchscreen display

which offers merchants and customers alike a

graphical user interface way superior to traditional

POS terminals.

The A80 Quick Reference Guide is to help

you

with step by step instructions for basic

transactions and functions.

*PAX Technology, Inc. is not responsible

for the content, quality, accuracy or

completeness of any information or

materials contained in on these

pages. PAX Technology, Inc. does not

endorse any content, viewpoints,

products, or services contained on these

pages and shall not be held liable for any

losses caused by reliance on the accuracy,

reliability or timeliness of such

information. Any person or entity that

relies on any information obtained from

these pages does so at his/her own risk.

PAX

TECHNOLOGY

A80 Quick Reference Guide

Retail

PAX Technology®

Customer Support

support@pax.us

(877) 859-0099

www.pax.us

A80 Basic Credit Sale

Step 1.

From the idle screen select the

transaction type

[Sale].

Step 2.

Please enter the sale amount and

select

[CONFIRM].

A80 Basic Credit Sale

Step 3.

Insert, swipe or manually

enter the card

number.

Step

4. Sign card holder signature on the

screen and then select

[CONFIRM] to

accept or [CLEAR] to clear the signature

and retry the signature again or

[CANCEL] to print the receipt with the

blank

signature line.

A80 Basic Credit Sale

Step

5. Please remove the card.

Step

6. The terminal will display the

transaction status.

PAX Technology, 8880 Freedom Crossing Trail,

Building 400, 3rd Floor, Suite 300, Jacksonville, FL 32256

A80 Credit Refund

tep 1. From the idle screen select the

transaction type

[Refund].

A80

Credit Refund

Step

2. Select the how the terminal will apply

the refund. Select [

By CardNum] to use the

original card number or select [RefNo] to use

the original

transaction reference number.

A80 Credit Refund

Step

3. Please enter the refund amount and

select

[CONFIRM].

Step

4. Swipe or manually enter the card

number.

A80 Credit Refund

Step

5. Sign card holder signature on the

screen and then select

[CONFIRM] to

accept or [CLEAR] to clear the signature

and retry the signature again or [CANCEL]

to print the receipt with the signature line.

Step

6. The terminal will display the

transaction status.

PAX Technology, 8880 Freedom Crossing Trail,

Building 400, 3rd Floor, Suite 300, Jacksonville, FL 32256

A80 Void Sale

Step

1. From the idle screen select the

transaction type

[Void Sale].

Step

2. Input the original transaction

number and then select

[CONFIRM].

A80 Void Sale

Step

3. Select [CONFIRM] if the displayed

transaction is the one to be voided. Scroll

screen up to locate the confirm button.

Step

4. Sign card holder signature on the

screen and then select

[CONFIRM]

to accept or

[CLEAR] to clear the signature and retry the

signature again or [CANCEL] to print the receipt

with the signature line.

A80 Void Sale

Step

5. The terminal will display the

ransaction status

A80 Forced Sale

Step

1. From the idle screen select the

transaction type

[Forced].

PAX Technology, 8880 Freedom Crossing Trail,

Building 400, 3rd Floor, Suite 300, Jacksonville, FL 32256

A80 Forced Sale

Step

2Please enter the sale amount

and select

[CONFIRM].

Step

3. Swipe or manually enter the

card number.

A80 Forced Sale

tep 4. Enter the Auth Code of the original

transaction and then select

[CONFIRM].

tep 5. Sign card holder signature on the

screen, then select

[CONFIRM] to accept or

[CLEAR] to clear the signature and retry the

signature again or [CANCEL] to print the receipt

with the blank signature line.

A80 Forced Sale

Step

6. The terminal will display the

transaction status.

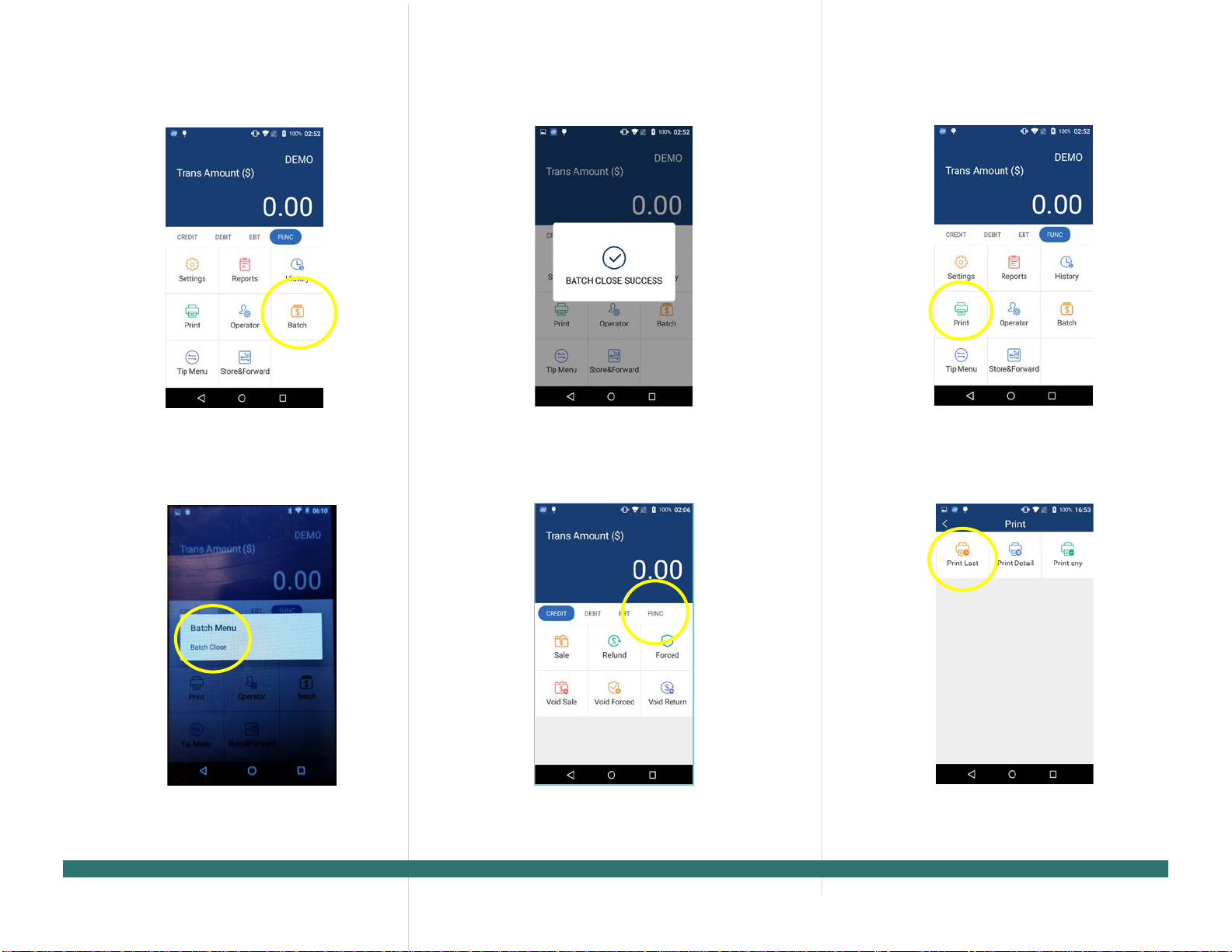

A80 Close Batch

Step

1. From the idle screen select the

[

FUNC]option.

PAX Technology, 8880 Freedom Crossing Trail,

Building 400, 3rd Floor, Suite 300, Jacksonville, FL 32256

A80 Close Batch

Step

2. Select the [Batch] option.

Step

3. When prompted “Batch Close”

select

[Batch Close]to close the batch

or select [X] to cancel the batch close.

A80 Close Batch

Step

The terminal will display the batch close

status.

A80 Reprint Last

tep 1. From the idle screen select the [FUNC]

option

A80 Reprint Last

tep 2. Select the [Print] option.

Step 3

.To reprint the last transaction,

select the

[Print Last] option.

PAX Technology, 8880 Freedom Crossing Trail,

Building 400, 3rd Floor, Suite 300, Jacksonville, FL 32256

PAX Customer Support

For quesons or help with the terminal

please contact your service provider or

PAX customer support.

PAX Technology Inc.

support@pax.us

T. (877) 859

-0099

www.pax.us

This document is provided to you for informaonal

purposes only. All features and speciﬁcaons are

subject to change without noce.

PAX are either trademarks or registered trademarks of

PAX Technology Limited in China and/or other

countries.

All other trademarks or brand names are

the

FCC Regulaons. This device complies with part

15 of the FCC Rules. Operaon is subject to the

following two condions:

(1) This device may not

cause harmful interference and (2) this device

must accept any interference received, including

interference that may cause undesired operaon.

This equipment complies with Part 68 of the FCC

rules and the requirements adopted by the ACTA.

On the body of this equipment is a label that

contains among other informaon a product

idenﬁer. If requested, this number must be

provided to the telephone company. RF Exposure

Informaon. This device meets the government’s

requirement for e

xposure to radio waves. This

device is designed and manufactured not to

exceed the emission limits for exposure to radio

frequency (RF) energy set by the Federal

Communicaons Commission of the U.S.

government.

PAX Technology, 8880 Freedom Crossing Trail,

Building 400, 3rd Floor, Suite 300, Jacksonville, FL 32256
