PAX SK700 Manuale utente
SK700 Smart Kiosk
Note: Product images shown may be different than actual product received
PAX TECHNOLOGY LIMITED
1、ContentsChecklist
Please check the components after unpacking. If any are missing, please contact the dealer.
Name
Qty
SK700 Smart Kiosk
1
SK700 Wall Bracket
1
Printer Key
2
Thermal Paper Roll
1
M4-10 Combination Screw
2
Expansion Screw
6
Plastic Packaging
1
Power Cable
1
Quick Setup Guide
1
2、Product Description

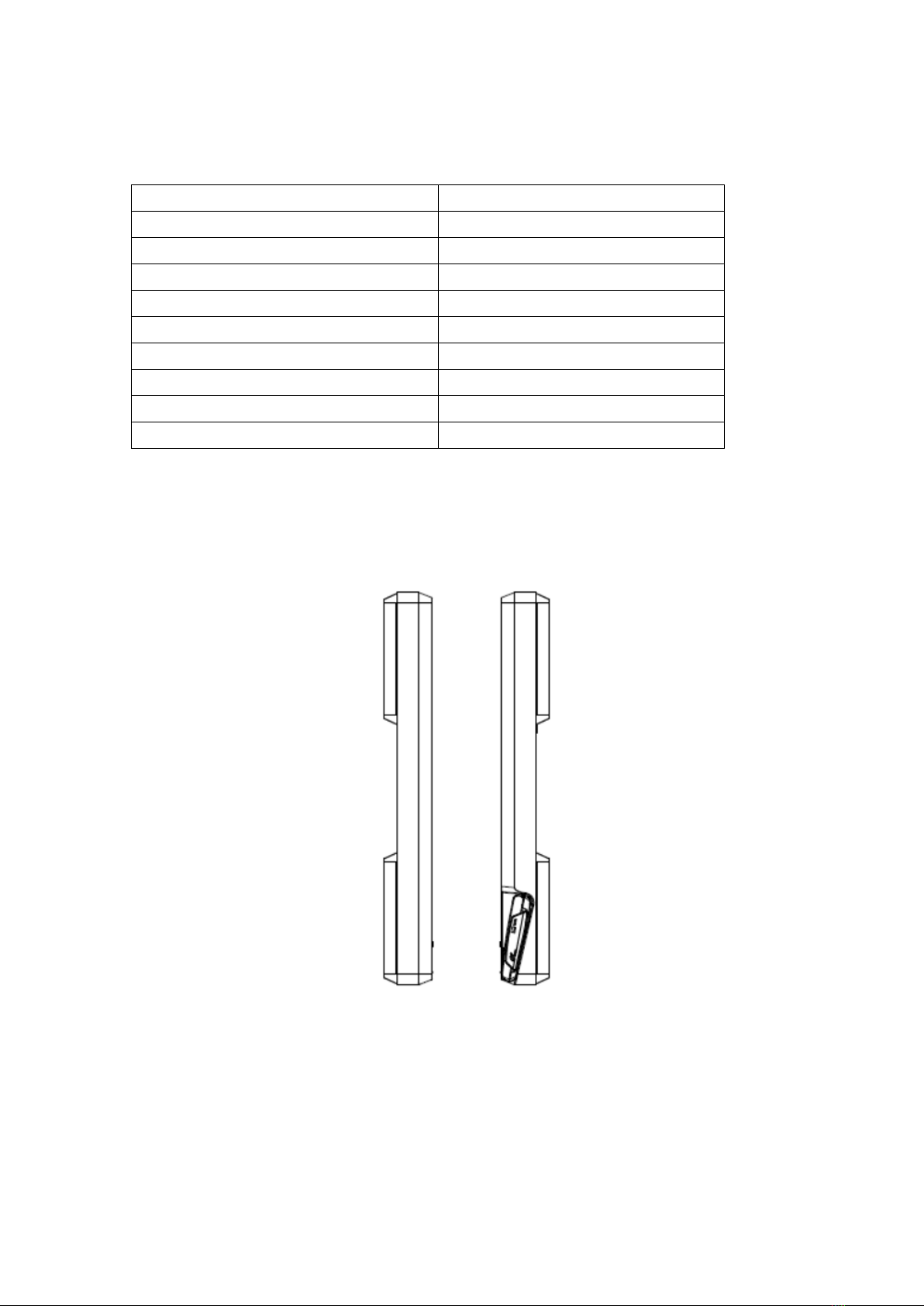

Side View

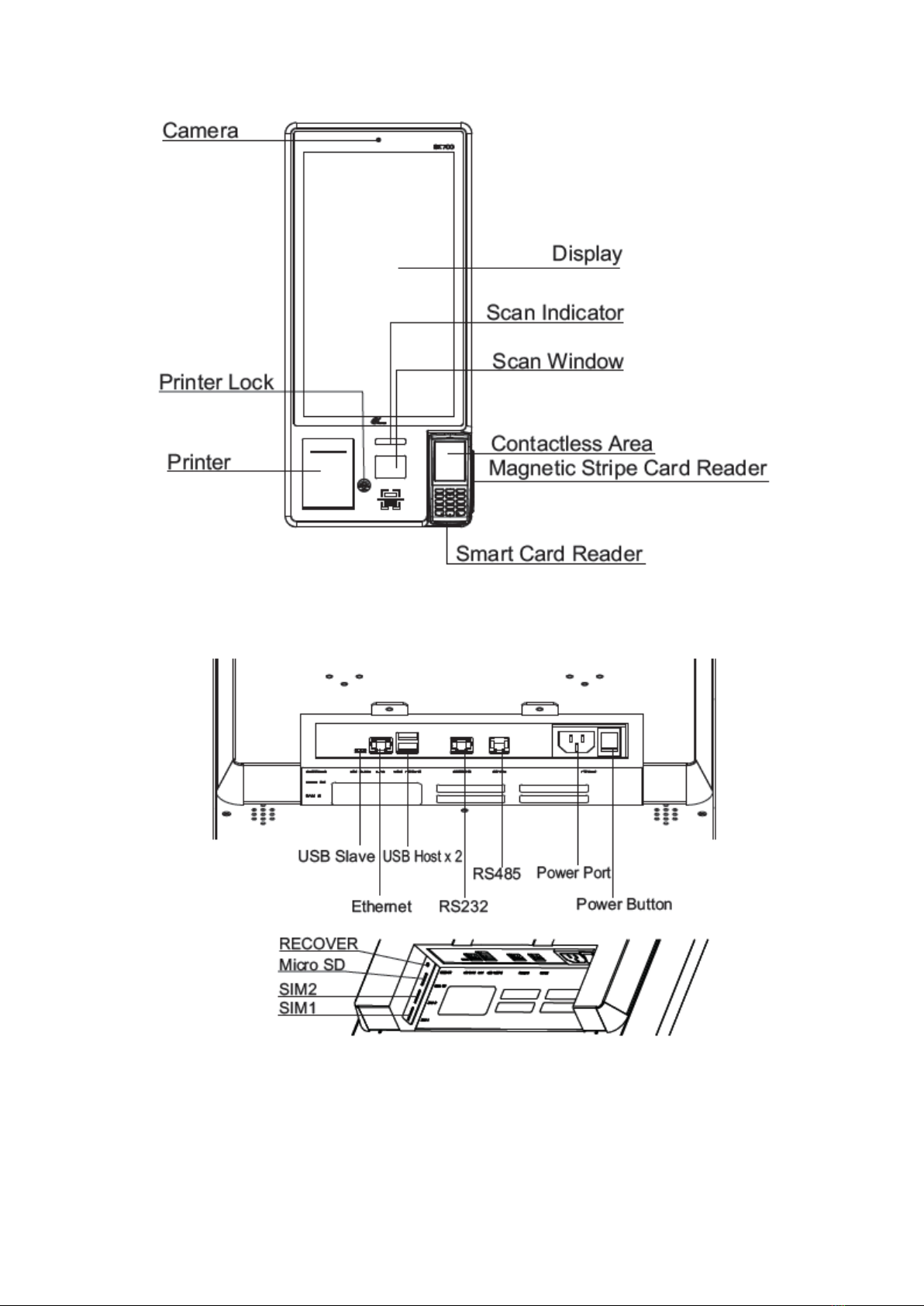

Front View
Interface Diagram
3.Operating Instruction
·Power on: Plug in the AC power cable, press and hold the Power button for
threesecondsuntil the boot animation appears.
Power off: Press and hold the Power button for threeseconds until the
shutdown menu displays. Select Power off. Theterminal turns off after a few
seconds.
4.Payment Options

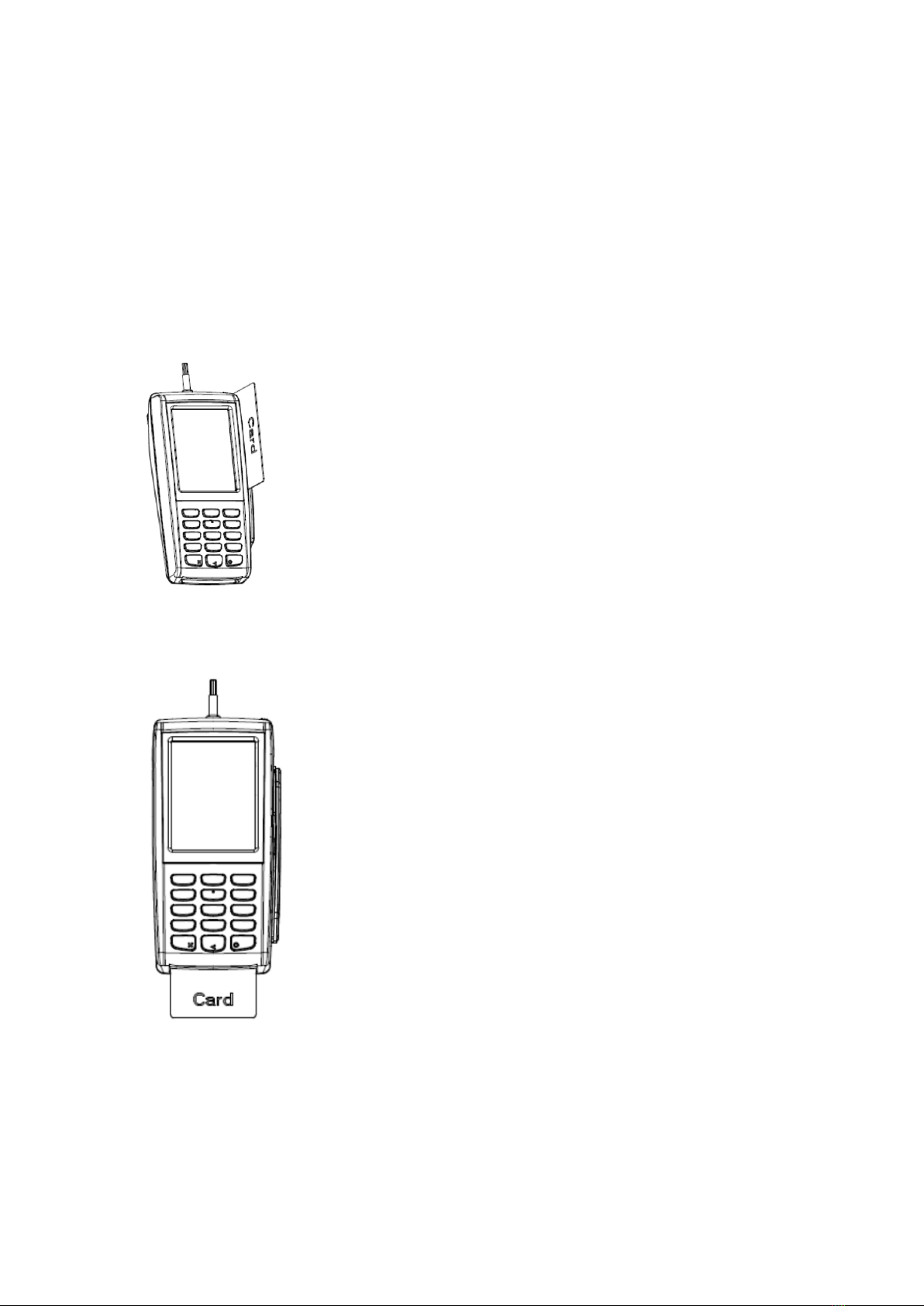

Magnetic stripe card
Insert magnetic stripe card into card slot and push to the end with magnetic stripe
facing down, then pull out the card at a constant speed to swipe card.
IC chip card
Insert card with IC chip facing up, then push it to theend of the card slot. Leave card inserted
until prompted to remove.

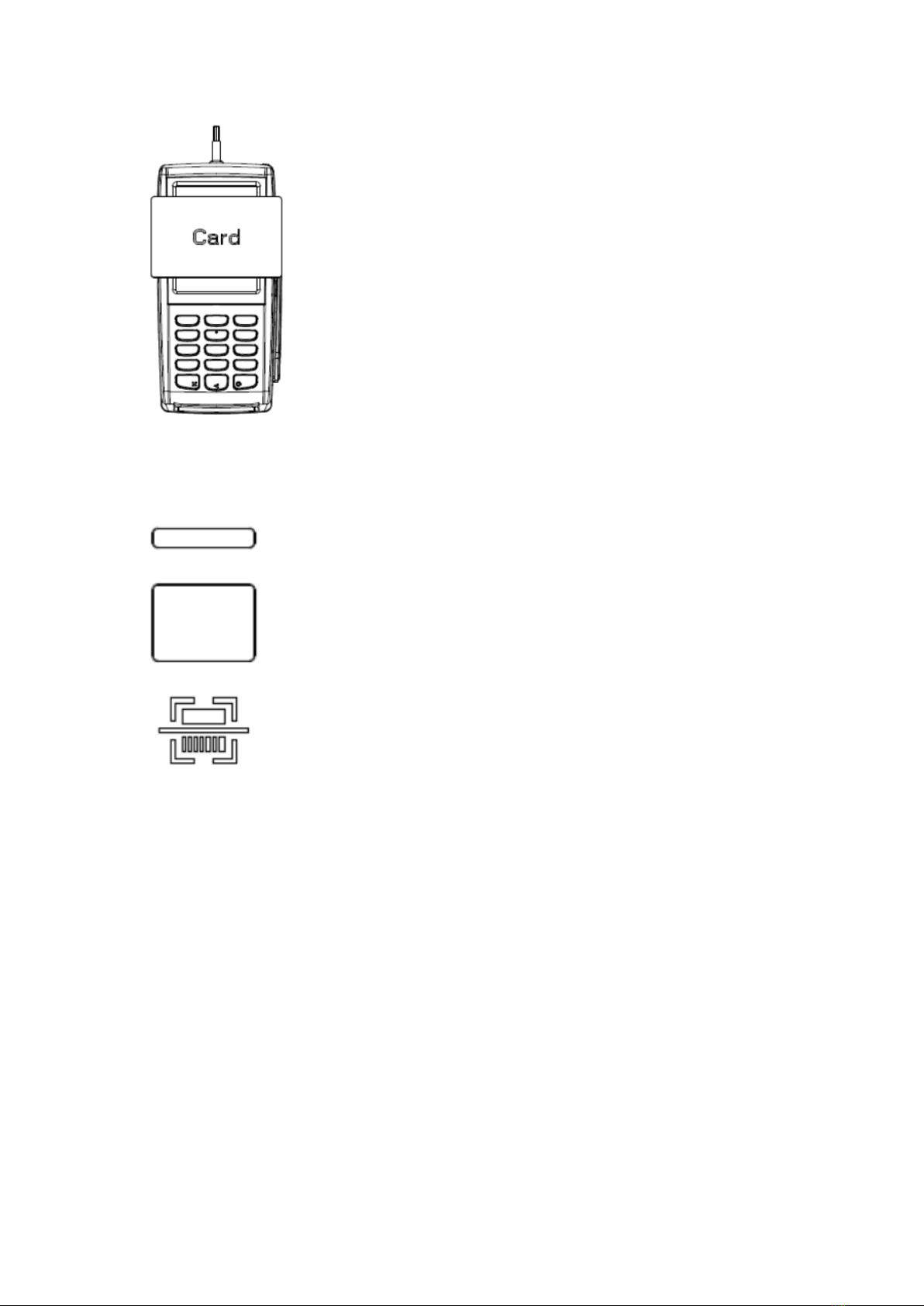

Contactless card
Place the contactless card over the center of contactless card reader logo area.
Scan
When the scan indicator is on, hold your QR code & bar code device in front of the scan
window to scan code.
5、Load Printer Paper

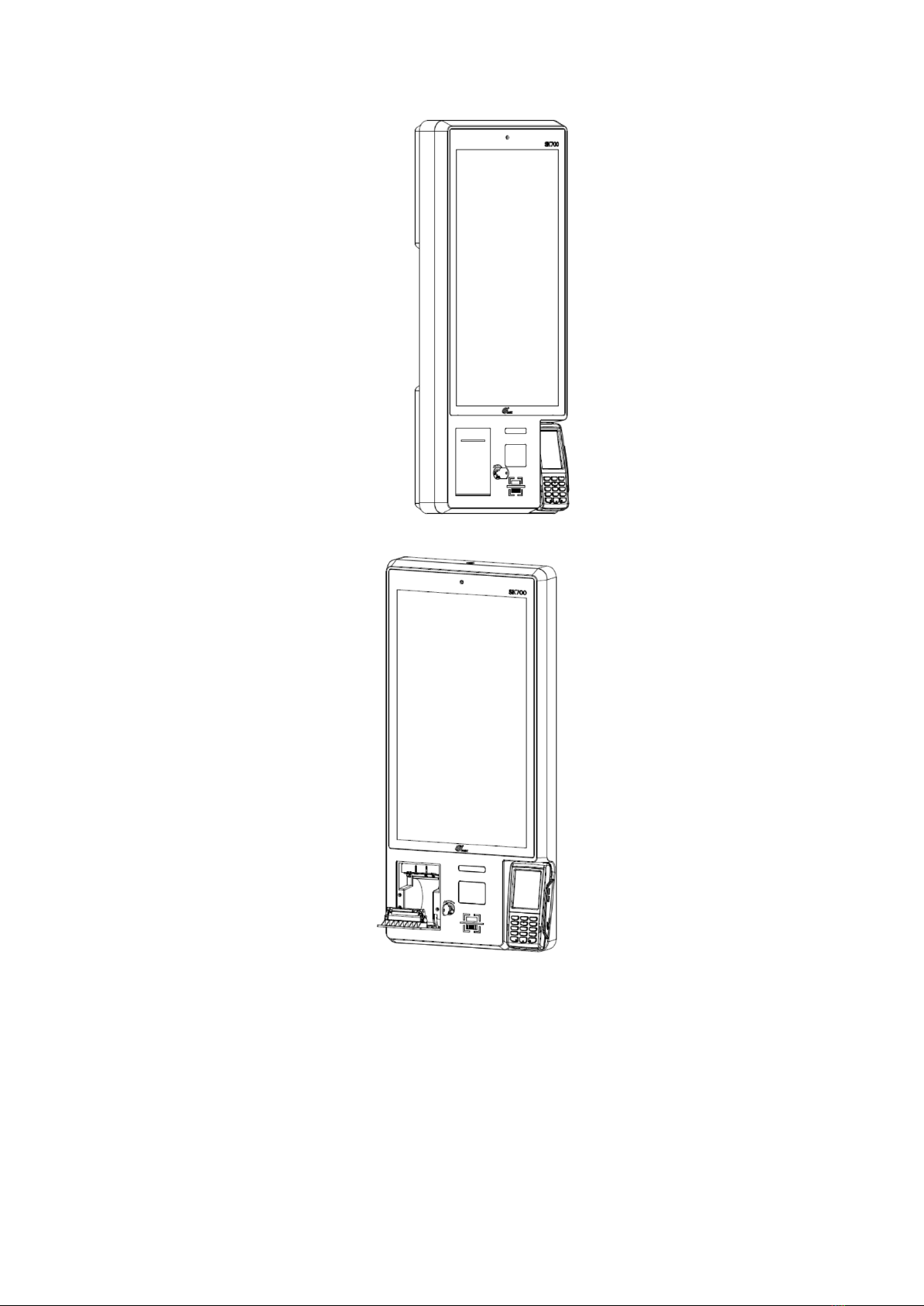

1. Insert the key into the keyhole and turn it counterclockwise to open printer cover.
2. Completely open the printer cover.

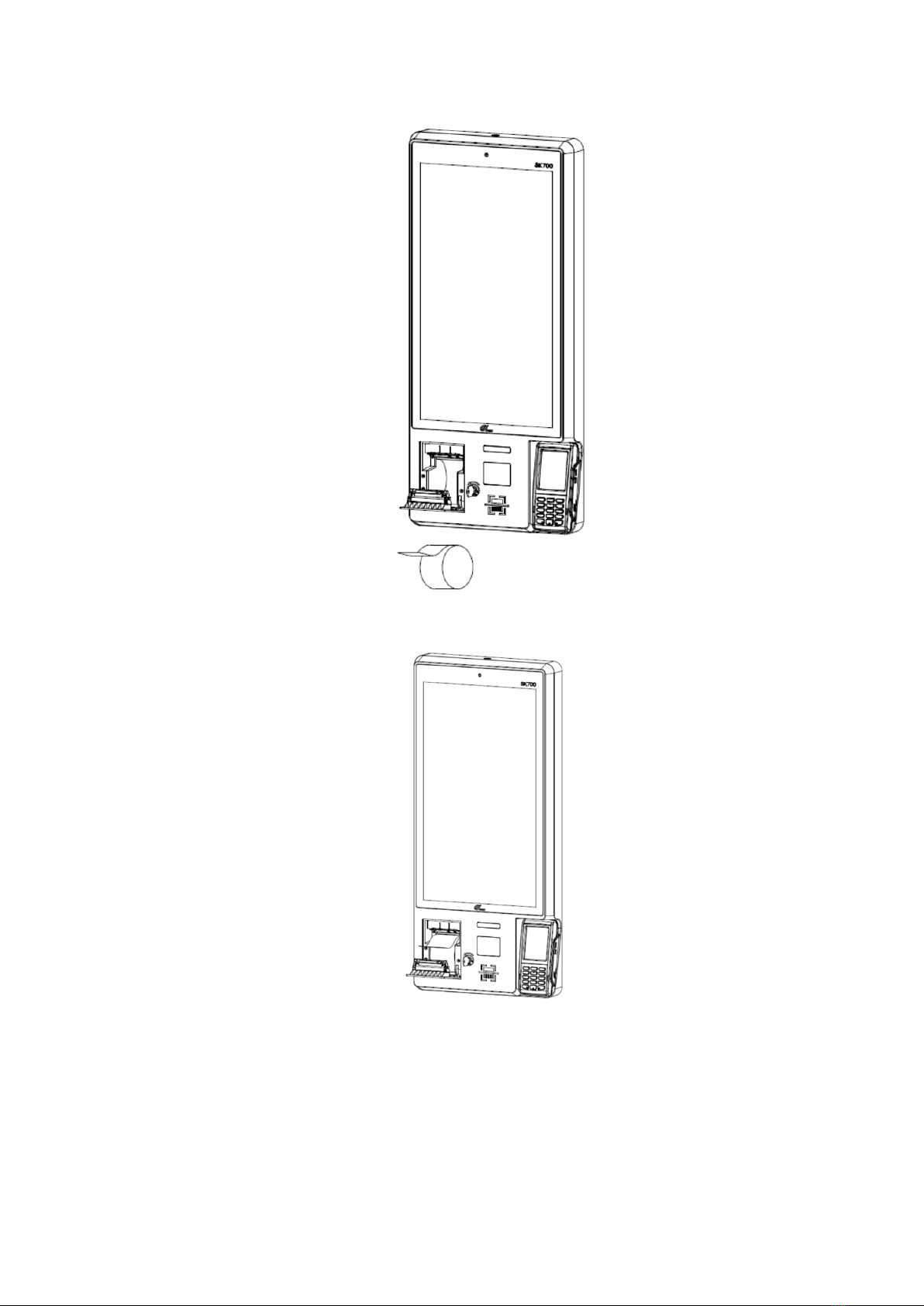

3. Insert the new paper roll into the printer.
4. Pull out the end of the paper so that itextends past the cutting blade, Make surethe paper
roll is placed in the direction asshown in the figure below.
5.Close the printer cover, and pull outthe key. Printer will automatically cut offthe extra paper,
the paper is changed successfully.
6、Wall-mounted Installation
Parts List
No.
Part
Qty/pcs
1 SK700Kiosk
1
2 Wall Bracket
1
3
M6-50
Expansion Screw 6
4
M4-10
Combination Screw
2
Installation Steps

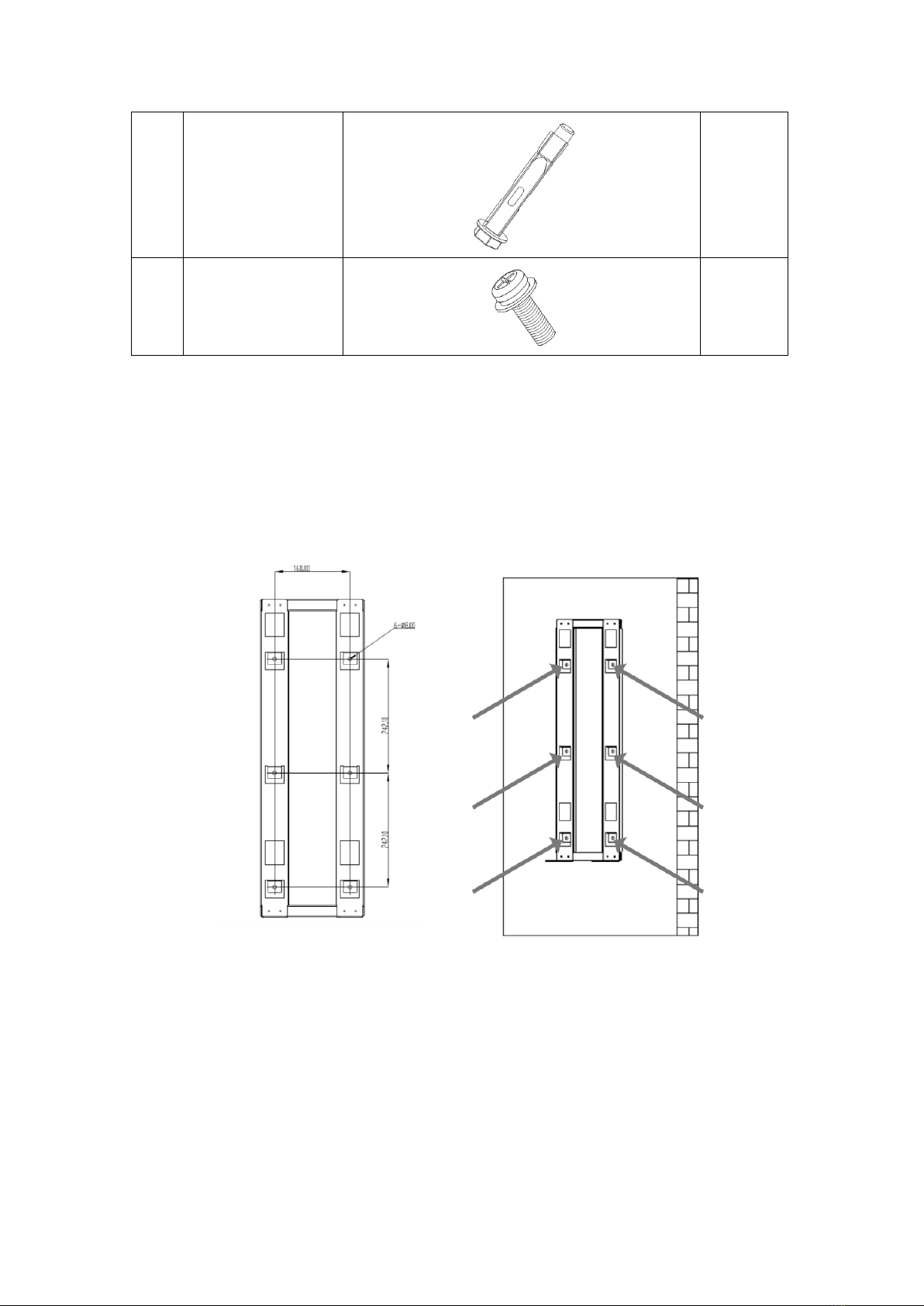

1. Use 6pcs expansion screws to fix the bracket on the wall.
•Use an 8.0 mm diameter drill bit to drill holes in the wall according to the position of the
bracket fixing hole. The size is shown in the figurebelow:
•Note: Holediameter is 8.0mm, Hole depth is above 60.0mm.

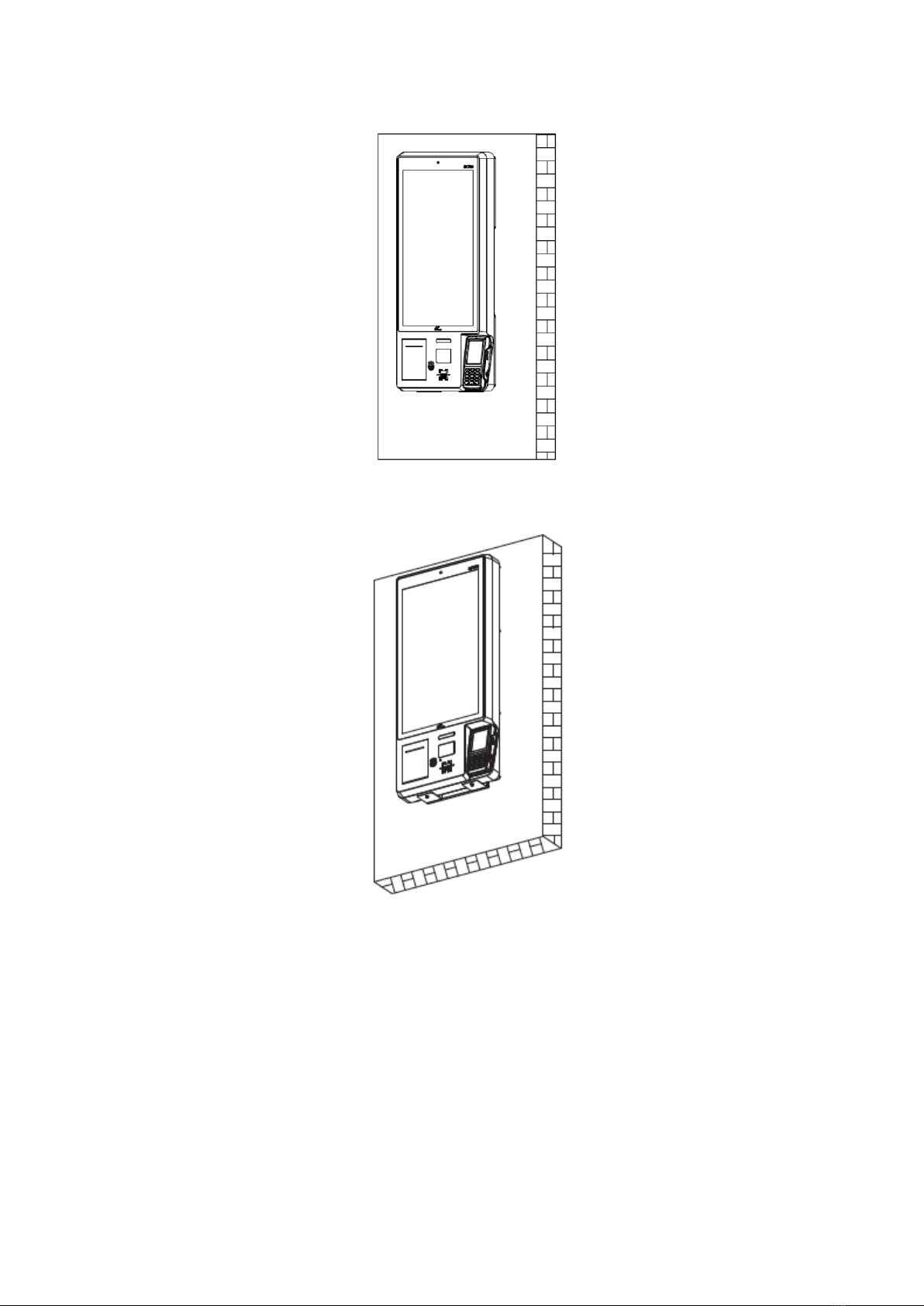

2.Use the 4pcs hooks on the back of the device to hang the whole device on the wall bracket.
3. Use 2pcs M4-12 combination 3screws to attach the machine to the wall bracket at the
bottom of the machine.
4. The device installation is completed.
7.Usage Tips
1) There is no built-in battery, and the device can only be powered by the power adapter.
2) Avoid exposing the device in overheated, humid, dusty, or strong electromagnetic
environment.
3) Do not vibrate, shake, or drop the device.
4) Do not insert or unplug any part of the device while it is powered on. Otherwise, it may
cause damage to the internal circuit.
5) If necessary, please contact PAX technical support for assistance with the device.
6) Before using the magnetic stripe /IC/contactless card, check if there is any suspicious
