Some worthwhile checks:
• Check the screen of the data cable is continuous
• Check that there are no screen shorts
• Check the resistance of the data line is between 50-70 ohms
90% of installation faults are caused by wiring errors on the RS485 dataline. Special attention to getting this
right first time saves a lot of time and effort.
Commissioning
1. Install the Net2 software from the CDROM.
2. Run the Net2 software and detect the ACUs (Access Control Units) in the Doors screen. Check that all
of the ACUs have been found. The software will update the firmware in all ACUs once they have been
detected
3. Each ACU must be configured:
4. The system must be checked by creating events (presenting a magstripe/proximity card) at each door.
All events should appear in the Events screen.
Things to look out for when commissioning
• Is there power to the RS232/485 convertor and is the polarity correct?
• Is the converter plugged into the correct COM port?
• Is the software in demo mode? (It shouldn’t be!) Click in the help menu and select about Net2 to check.
Using the system
1. Change the default password for the System engineer operator and set up other operators if required.
2. Set up time zones.
3. Set up access levels.
4. Users can be added and assigned to the required access level. Departments can be created if required.
Technical Helpline
Feel free to contact the Technical help line Mon-Fri from 08:30 to 17:30 on 01273 480291. You can contact us

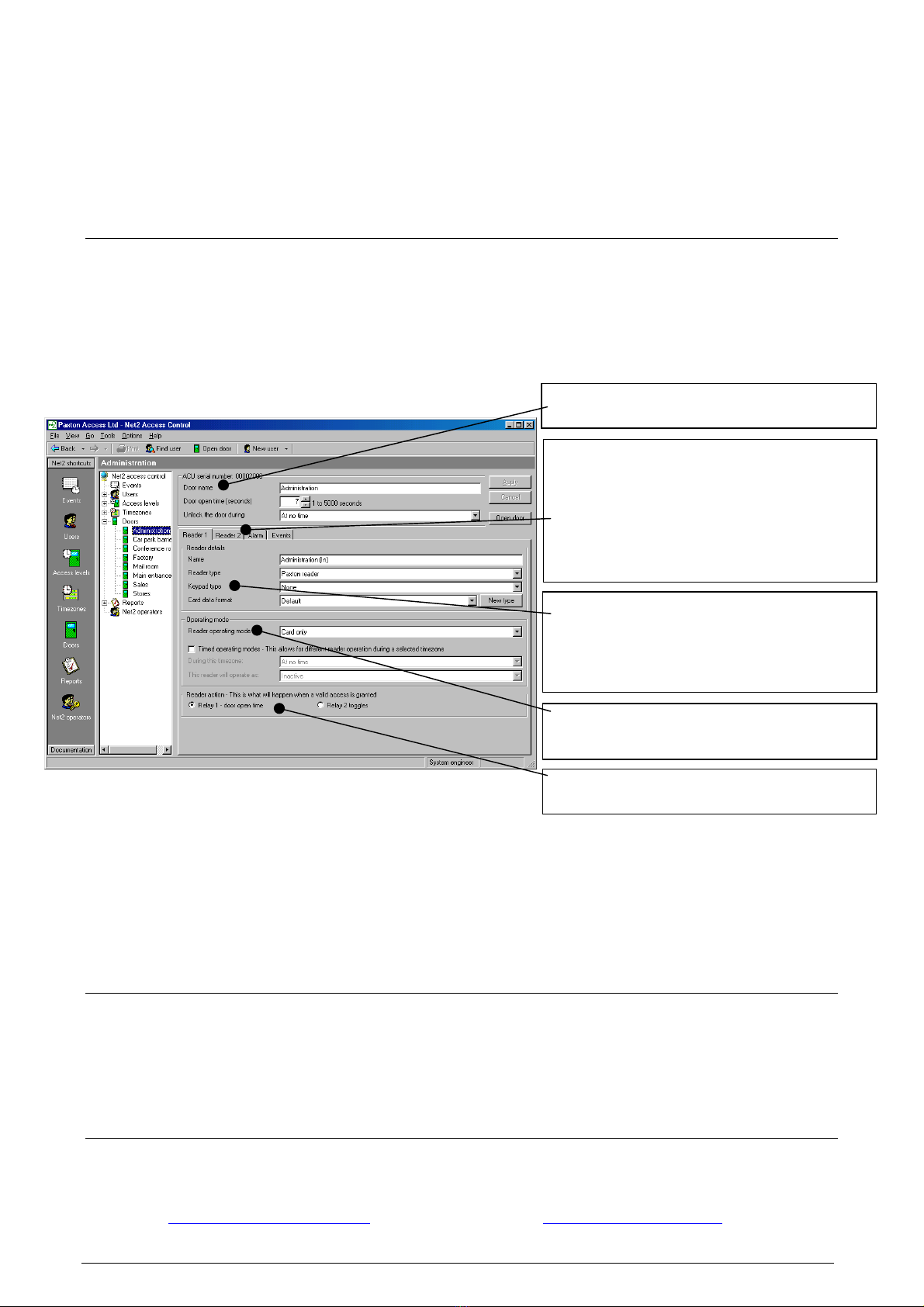

Door name: Name the ACU
Door open time: Set the door open time
Name: Each reader can be named individually if
required.
Reader type: Set the reader type, if applicable.
Keypad type: Set the keypad type, if applicable.
Card data format: Select the type of cards being used on
the s
stem.
New formats can be created
Reader 1: Refers to reader1 and keypad 1 on the ACU.
Reader 2: Refers to reader2 and keypad 2 on the ACU.
This is configured independently of reader 1.
Alarm: Contains settings for the different types of
alarm.
Codes: Valid codes can be viewed, added and removed.
(Can only be viewed when a keypad is being used)
Events: Shows the events in the local database for the
Reader operating mode: Set the operating mode.
Timed operating modes: A different operating mode
can be confi
ured within a time window.
Reader action: Set the action required when access is
granted.
