Peak JY-YWS03 Manuale utente
1
Peak Assist Transfer Trolley
Assist Transfer Trolley
JY-YWS03
Level 1, 149 Princes Highway
Unanderra NSW 2526
Australia
Tel: +61 2 4272 2688. Fax: +61 2 4272 2699
www.peak-care.com.au
Distributors:
2
Peak Assist Transfer Trolley
Instruction Manual
This manual provides information of JY-YWS03 Assist Transfer
Trolley and instruction for installation. Please read the manual
carefully and understand it sufficiently before attempting to use
the trolley. Must stand to NOTE in the manual.
3
Peak Assist Transfer Trolley
ontents
1. Explanation of symbols in the manual…………………………..…..4
2. Introduction of products……………………………………………….4
3. Main purposes and application scope……………………………….4
4. Main technical parameters……………………………………………4
5. Schematic diagram of product and annotations……….…………...5
6. Precautions……………………………………………………………..6
7. Operation methods…………………………………………………….6
7.1 Seat board turn……………………………………………………..6
7.2 Brake…………………………………………………………………7
7.3 Movement of the trolley………………………………………….…7
7.4 Leg open of the trolley……………………………………………..8
7.5 Height adjustment of knee support………………………………8
7.6 Angle adjustment of knee support……………………………….9
8. Conditions for operation, storage and transportation…………..…..9
9. Failure analysis and solutions…………………………………………9
10.Maintenance and service……………………………………………...9
4
Peak Assist Transfer Trolley
1. Explanation of symbols in the manual
This manual includes different font and symbol to improve readability and understanding. Please
refer to following sample:
·Standard font—general information
·Boldfaced font—important word or
phrase
·Note—important information or
indication
·The following symbol means “warning”
“Warning”means the operation may menace the safety of user or operator. Act against may
cause the damage to user or operator.
“Warning”includes
·Dangerous: beware of pinch
·Dangerous: beware of electricity shock
·The regulation or measure which the operator must obey to avoid damage of device.
2. Introduction of product
This trolley offers an easy way for persons who have a leg injury or who unable to transfer
independently from a chair, sofa, wheelchair, or toilet. It makes nursing much easier and safer
and makes it much easier for persons to participate in daily life and the Carer has a more
positive,easier and pleasant experience. It helps with OH&S issues.
3. Main purposes and application scope
The trolley is used in the family or nursing home where there is need to transfer patients.
4. Main technical parameters
Seat board turn:
150°
Trolley size: (Standard size)
800（L）±20*615（W）±20*1070（H）±20
Front castor diameter:
Φ75mm
Rear castor diameter:
Φ100mm with brake
Trolley weight:
24kg
Loading capacity:
200kg
Note: The parts which directly contact the human body is foamed PU material.
The parameters are subject to changes without prior notice.
5
Peak Assist Transfer Trolley
5. Schematic diagram of product and annotations (Fig. 1)
Fig.1
1. Base 2. Left support 3. Right support 4. Knee support
5. Seat board 6. Connecting rod 7. Front castor 8. Rear castor
6
Peak Assist Transfer Trolley
6. Precautions
1. When you move the trolley, please make sure no foreign objects are on the
floor.
2. When you use the trolley, please do not shake violently.
3. Please do not allow children to use trolley unattended.
4. Please do not attempt to disassemble the trolley.
5. If you try to carry items by trolley, please bundle them firmly.
7. Operation methods
7.1 Seat board turn
Please see Fig.2, outward turn.
Fig.2
7
Peak Assist Transfer Trolley
7.2 Brake
Step on the brake pedal at the rear castor to engage the brake, lift it up to release the
brake.
Fig.3
7.3 Movement of the trolley
Hold the armrests and push to move the trolley. (see Fig.4)
Peak Assist Transfer Trolley
Fig.4
7.4 Leg opening of the trolley
Step on the foot pedal to open or close the legs.(see Fig.5)
Fig.5
7.5 Height adjustment of knee support
Unscrew the screws on the two sides of knee support, then the height of trolley can be
adjusted. Finally, tighten the screws.
8
9
Peak Assist Transfer Trolley

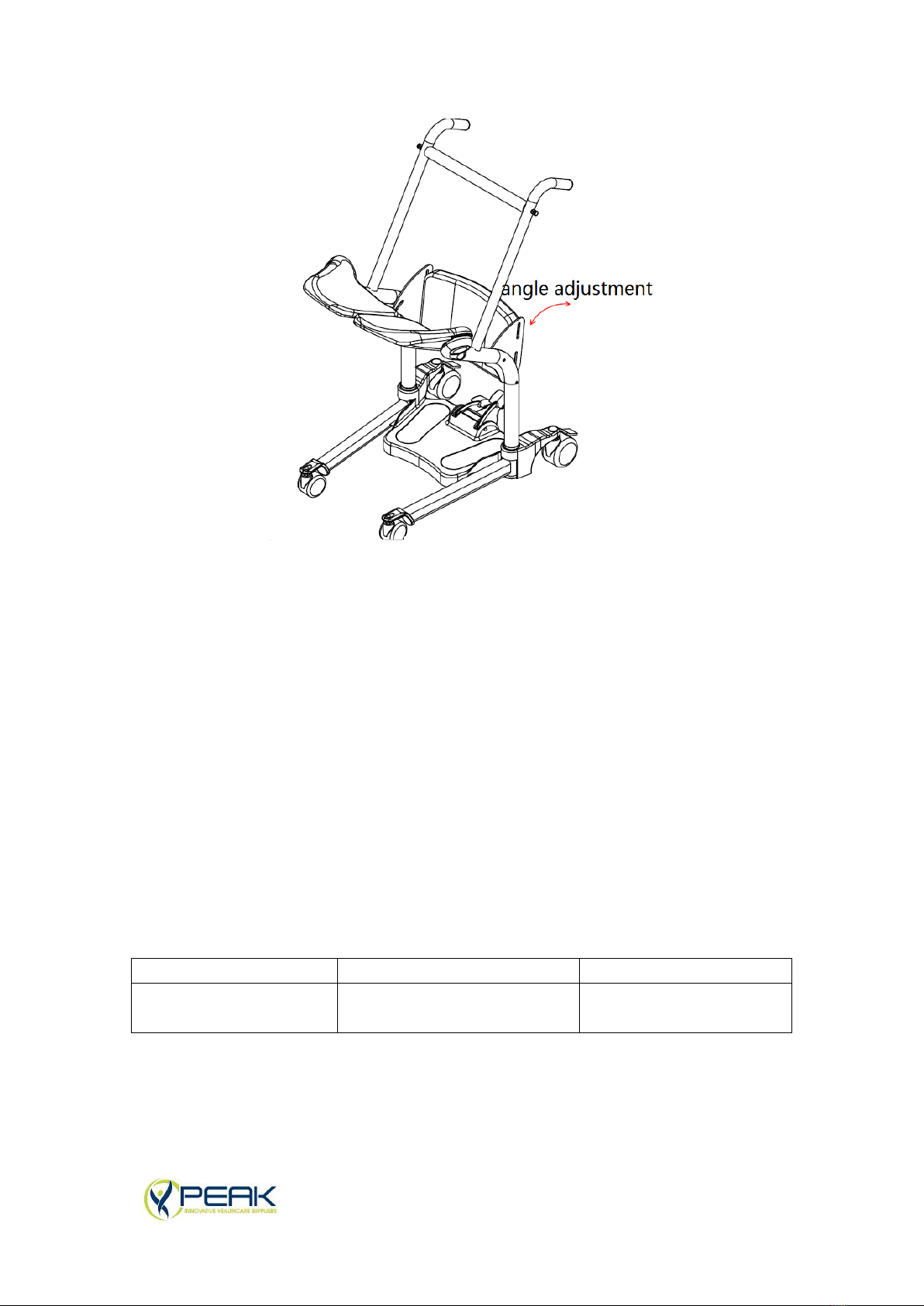

7.6 Angle adjustment of knee support
Screw off the nuts on the two sides of supports, then the angle of knee support can be adjusted.
Finally, tighten the nuts.
10
Peak Assist Transfer Trolley
8. Conditions for operation, storage and transportation
8.1 Conditions for normal operation
1. Ambient temperature: 5 0C ~ 400C
2. Relative humidity: ≤ 80%
3. Atmosphere pressure: 70kPa ~ 106kPa
8.2 Conditions for storage and transportation
1. Ambient temperature: -40 0C ~ 550C
2. Relative humidity: ≤ 95%
3. Atmosphere pressure: 50kPa ~ 106kPa
4. The packed assist transfer trolley should be stored in a room which has a relative
humidity less than 80%, no corrosive gas and well-ventilated condition.
9. Failure analysis and solutions
Fault Item that shall be confirmed Solutions
Noise of movement part
Lubrication scarcity.
Add the lubrication to the
movement part
10.Maintenance and service
Without consulting suppliers in advance, please do not use any detergent.
