Peavey TLS-4X Manuale utente

FFrreeqquueennccyy rraannggee ((--1100 ddBB,, hhaallff ssppaaccee))::

40 Hz to 21 Hz

FFrreeqquueennccyy rreessppoonnssee ((++//-- 33ddBB,, hhaallff

ssppaaccee))::

58 Hz to 18 Hz

SSeennssiittiivviittyy ((11ww//11mm))::

100 dB

PPoowweerr rraattiinngg ((pprrooggrraamm))::

800 Watts

PPeeaa ppoowweerr ccaappaacciittyy ((ppeeaa))::

1,600 Watts

MMaaxxiimmuumm SSPPLL::

131 dB

TTrraannssdduucceerr ccoommpplliimmeenntt::

Two Sheffield®Pro 1500 HO™15"

premium woofers, 14XT Plus™1.4"

titanium diaphragm dynamic

compression driver on a 90˚ x 40˚

coverage constant directivity horn

DDrriivveerr pprrootteeccttiioonn::

Sound Guard™IV for the

compression driver provides long-

and medium-term overload and

overdrive protection

NNoommiinnaall ccoovveerraaggee ppaatttteerrnn::

90˚ x 40˚

EElleeccttrroo--aaccoouussttiicc ccrroossssoovveerr

ffrreeqquueenncciieess::

300 Hz, 2.6 Hz

NNoommiinnaall iimmppeeddaannccee::

4 Ohms

IInnppuutt ccoonnnneeccttiioonnss::

Two 1/4" phone jac s in parallel

EEnncclloossuurree mmaatteerriiaallss aanndd ffiinniisshh::

Trapezoidal, blac carpet-covered

enclosure with dado joined 1/2"

MDF (Medium Density Fiberboard)

and a full-length blac powder-

coated steel grille

DDiimmeennssiioonnss ((HH xx WW xx DD))::

FFrroonntt::

44.75" x 18.25" x 17.563"

113.66 cm x 43.36 cm x 44.61 cm

RReeaarr::

44.75" x 12.25" x 17.563"

113.66 cm x 31.12 cm x 44.61 cm

WWeeiigghhtt::

81 lbs. (36.82 g)

BBuulllleettss::

• Quasi-three-way sound

reinforcement enclosure

• Peavey exclusive Sheffield

Pro 1500 HO woofers with 2.5"

voice coils

• 1.4" 14XT Plus™titanium

diaphragm compression driver

• Sound Guard IV tweeter

protection

• 800 Watts program/1600

Watts pea power handling

• Heavy duty crossover networ

for driver protection and EQ

• Rugged trapezoidal enclosure

• 90˚ x 40˚ coverage constant

directivity horn for better off-axis

tonality

SPECIFICATIONS TLS™4X

• High quality, heavy duty

carpet covering

• Steel handles

• Steel corners

• Rugged dado and rabbet

construction for light weight-yet-

strong joinery

• T-Nut spea er mounting

• Heavy duty, full-length steel grille

DDeessccrriippttiioonn

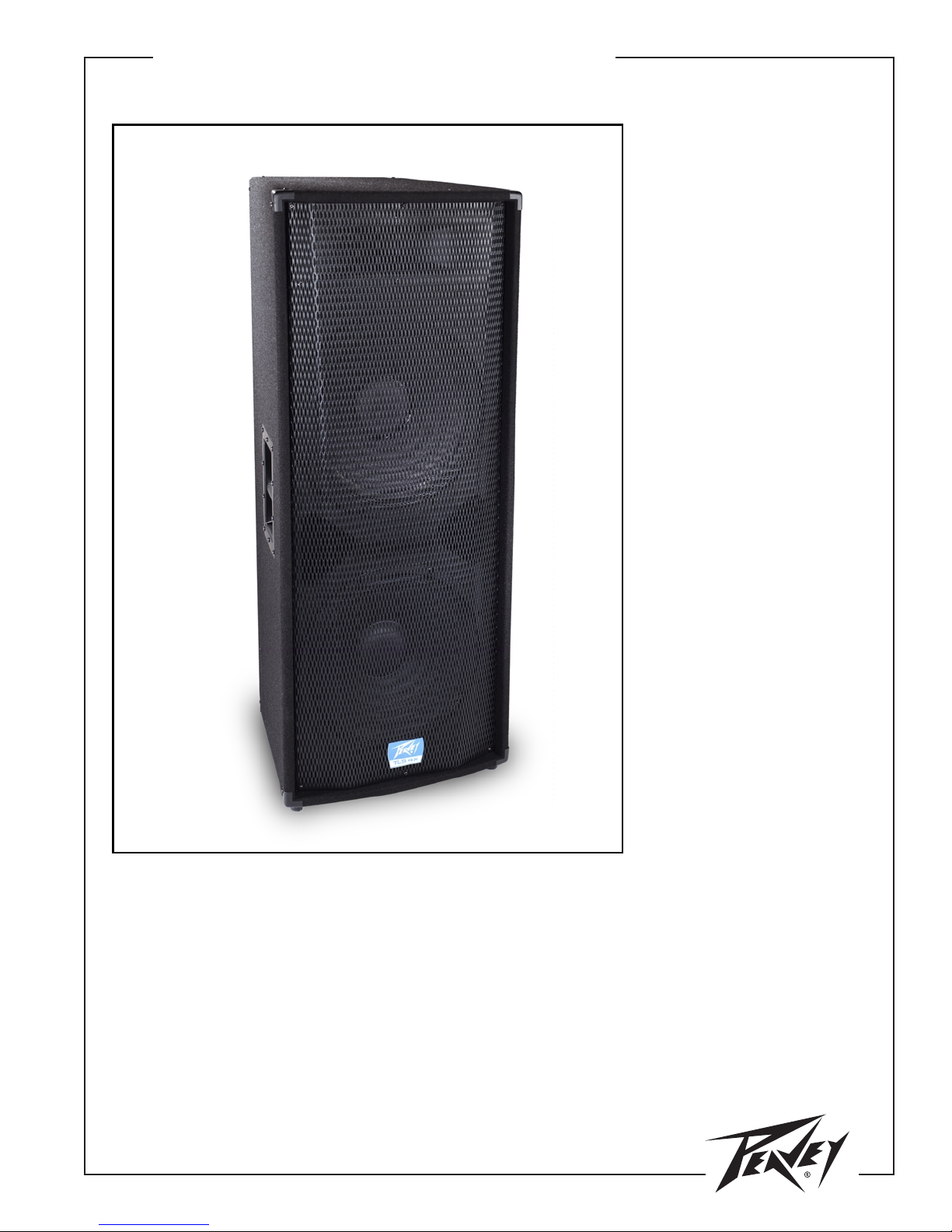

The TLS 4X is a quasi-three-way spea er

system utilizing two 15" Sheffield®Pro

1500 HO™woofers and a 14XT Plus™

titanium diaphragm dynamic

compression driver mounted on a 90˚ x

40˚ coverage constant directivity horn.

The rugged, carpet-covered trapezoidal

enclosure with steel handles facilitates

portable use for live music, speech

sound reinforcement and music

playbac . A full-length blac powder-

coated steel grille provides driver

protection and a professional

appearance.

The TLS™4X spea er system is rated at

800 Watts program power handling, and

the full crossover networ includes high

voltage film caps and Sound Guard™IV

tweeter protection for clear, punchy

sound and excellent long-term reliability.

Two 1/4" phone jac input connectors

ma e hoo -up a breeze.

33 ++ 22 YYEEAARR LLIIMMIITTEEDD WWAARRRRAANNTTYY

NNOOTTEE:: For details, refer to the

warranty statement. Copies of

this statement may be obtained

by contacting Peavey Electronics

Corporation, P.O. Box 2898, Meridian,

Mississippi 39301-2898.

SPECIFICATIONS TLS™4X

20 50 100 200 500 1k 2k 5k 10k 20k

Frequency (Hz)

100

110

dB SPL (re 20 Pa)

Amplitude Response (1W 1m On-Axis)

Figure 1

20 50 100 200 500 1k 2k 5k 10k 20k

Frequency (Hz)

100

140

180

300

360

Beamwidth (Degrees)

Beamwidth

Vertical

Horizontal

Figure 2

20 50 100 200 500 1k 2k 5k 10k 20k

Frequency (Hz)

100 Q & Directivity Index

Figure 3

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com

80305050
