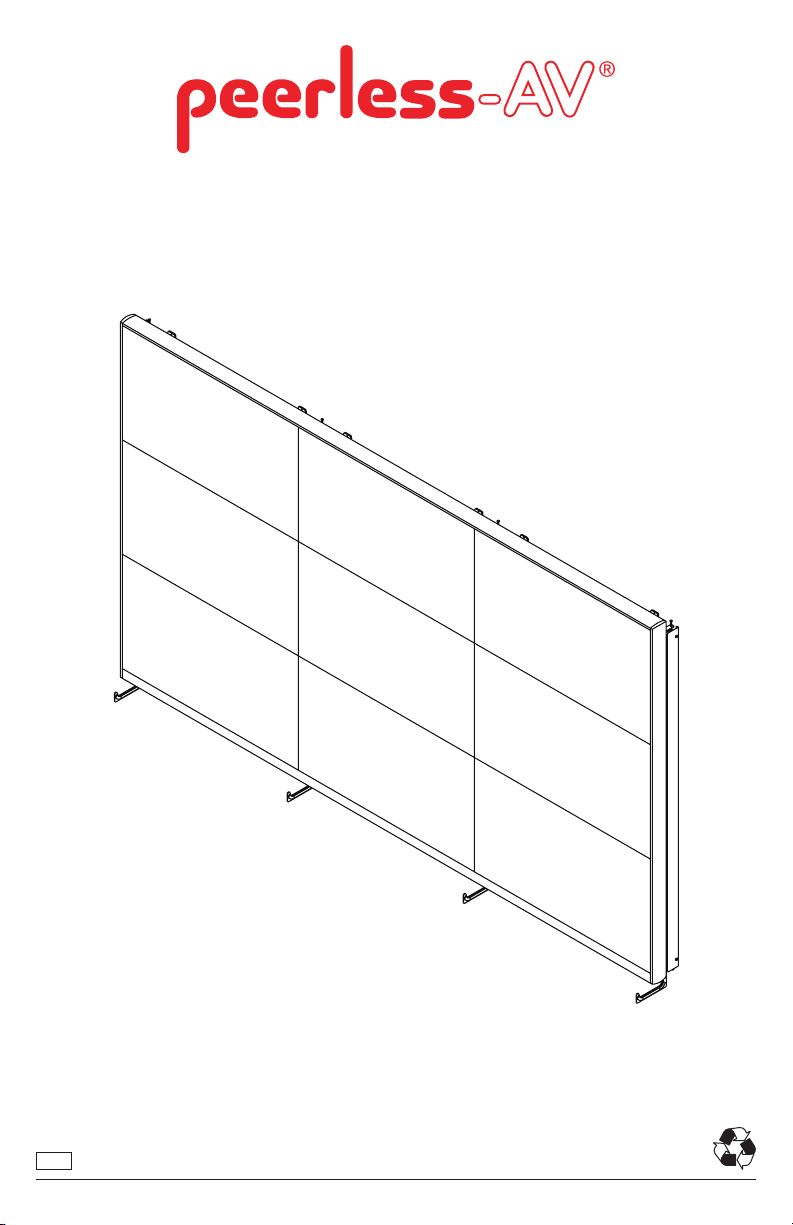

Peerless-AV DS-LEDFLAAF-3X3 Manuale utente

12019-11-15 #:146-9040-4 (2020-02-18)

ENG

DS-LEDFLAAF-3X3

22019-11-15 #:146-9040-4 (2020-02-18)

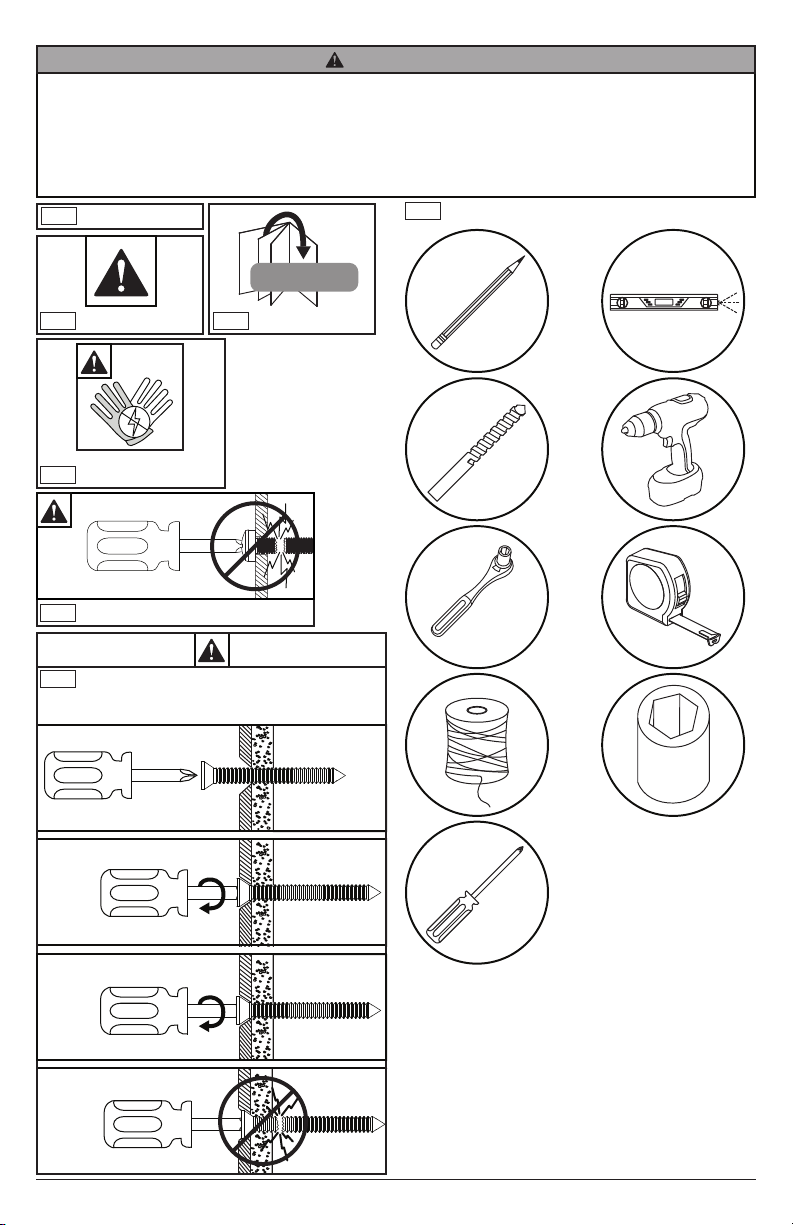

Tools Needed for Assembly.

ENG

5/32"

(4mm)

3/8"

(10mm)

ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation.

Before installing make sure the supporting surface will support the combined load of the equipment and

hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.

Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift

and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to



call customer care at 1-800-865-2112.

WARNING

Symbols

ENG

WARNING

ENG

Do not overtighten screws.

ENG

Skip to step.

ENG

Wear anti-static gloves.

ENG

ENG To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

32019-11-15 #:146-9040-4 (2020-02-18)

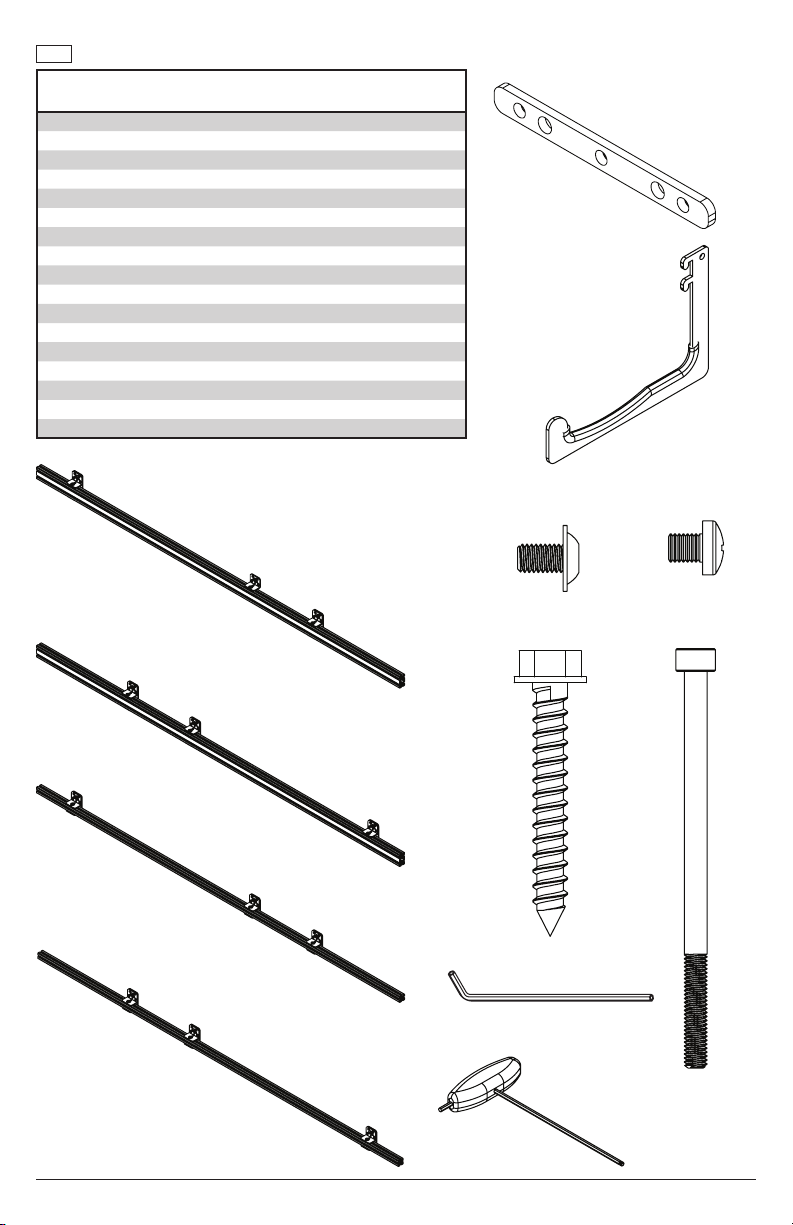

Parts (Before beginning, make sure you have all parts shown below).

ENG

Parts List

Part #Description Qty

Aconnector plate 19 096-1714

Bhorizontal spacer 2 096-1718

Cvertical spacer 3 096-1715

Dside trim 2 096-1716

Eharness holder 4 096-1731

Fupper left wall plate assembly 1 096-1719

Gupper right wall plate assembly 1 096-1720

Hlower left wall plate assembly 1 096-1721

Ilower right wall plate assembly 1 096-1722

Jvertical column double 2 096-1772

Kvertical column single 2 096-1771

LM5 x 8mm 38 520-1144

MM5 x 6mm 4 520-9504

Nwood screw 18 521-1688

OM4 x 75mm 36 521-1060

P4mm allen wrench 1 560-9646

Q3mm t-handle allen wrench 1 560-0435

N (18)

wood screw O (36)

M4 x 75mm

E (4)

harness holder

A (19)

connector plate

G (1)

I (1)

upper right wall plate assembly

lower right wall plate assembly

F (1)

upper left wall plate assembly

H (1)

lower left wall plate assembly

L (38)

M5 x 8mm M (4)

M5 x 6mm

P (1)

4mm allen wrench

Q (1)

3mm allen wrench

two-tip T-handle

42019-11-15 #:146-9040-4 (2020-02-18)

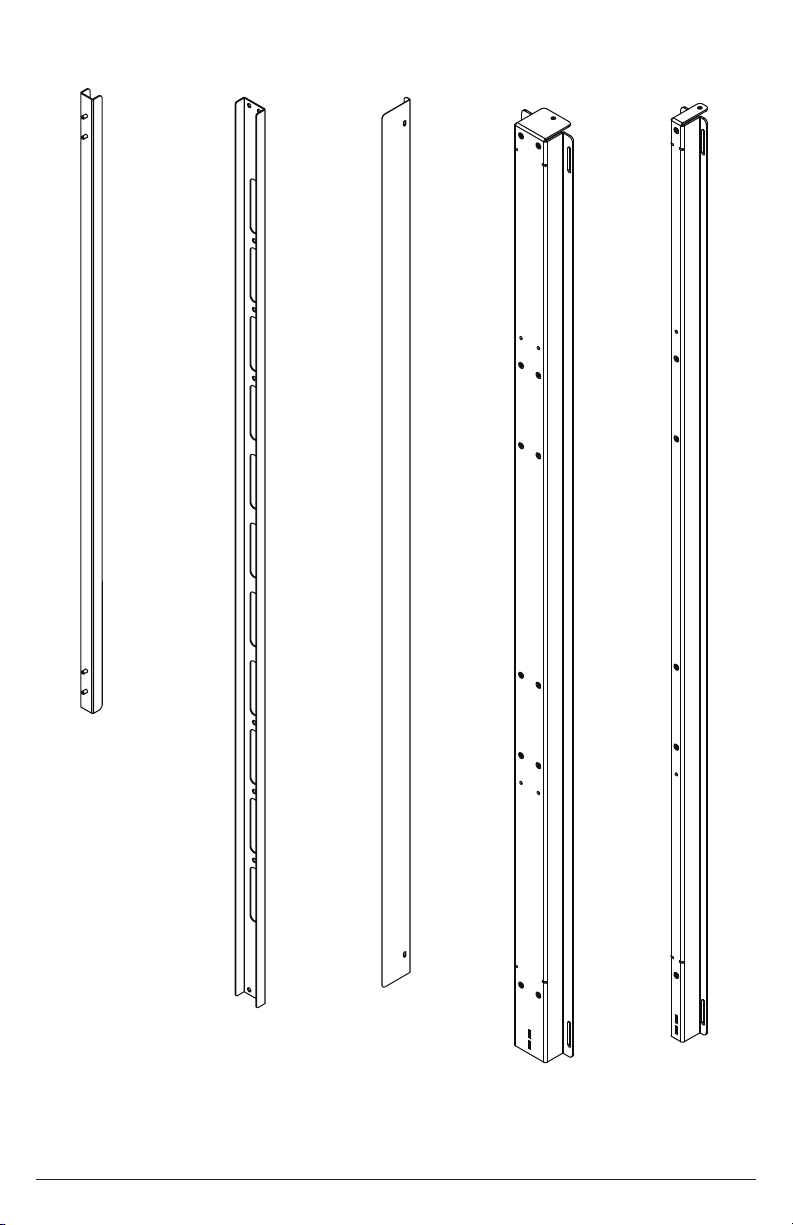

J (2)

vertical column

double

D (2)

side trim

C (3)

vertical spacer

B (2)

horizontal spacer K (2)

vertical column

single

52019-11-15 #:146-9040-4 (2020-02-18)

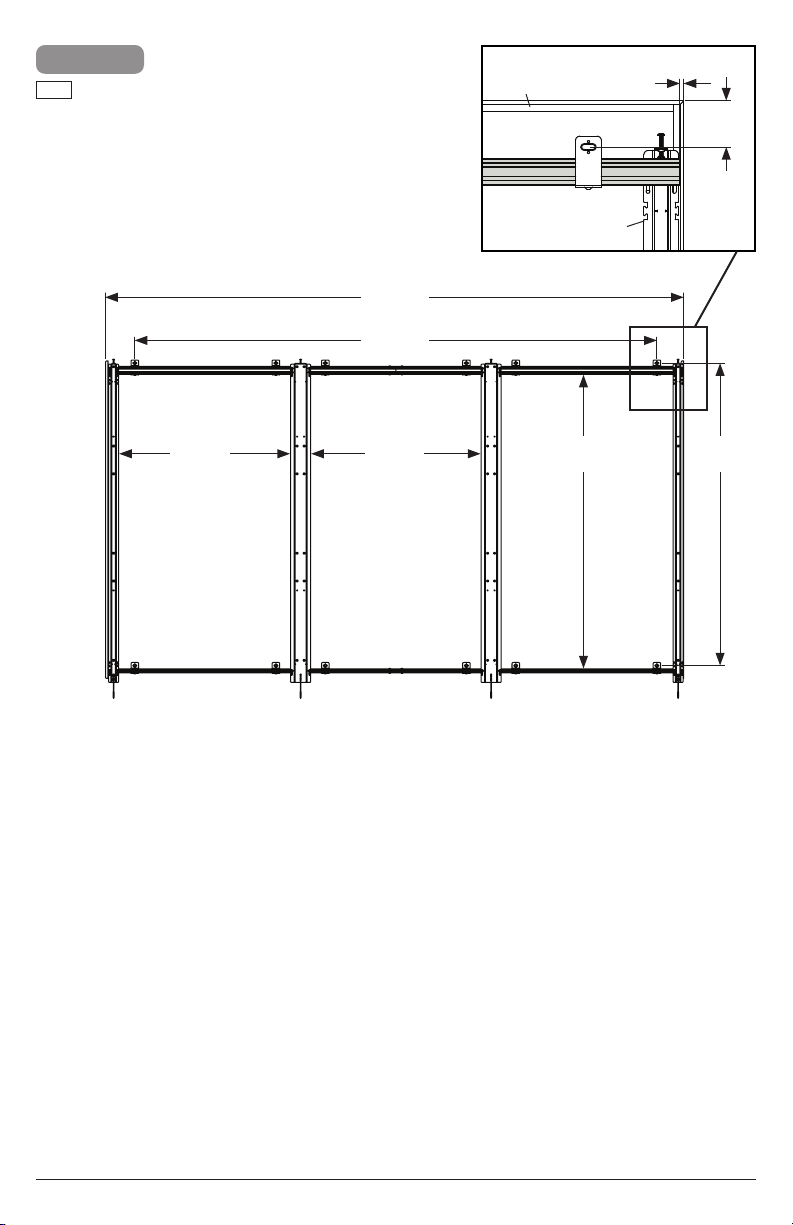

34.11"

(866mm)

33.80"

(858mm)

58.44"

(1484mm)

60.00"

(1524mm)

103.67"

(2633mm)

114.61"

(2911mm)

.21"

(5mm)

LED Trim

(not included)

3.04"

(77mm)

Dimensions are for reference only. Use spacers

provided.

ENG

62019-11-15 #:146-9040-4 (2020-02-18)

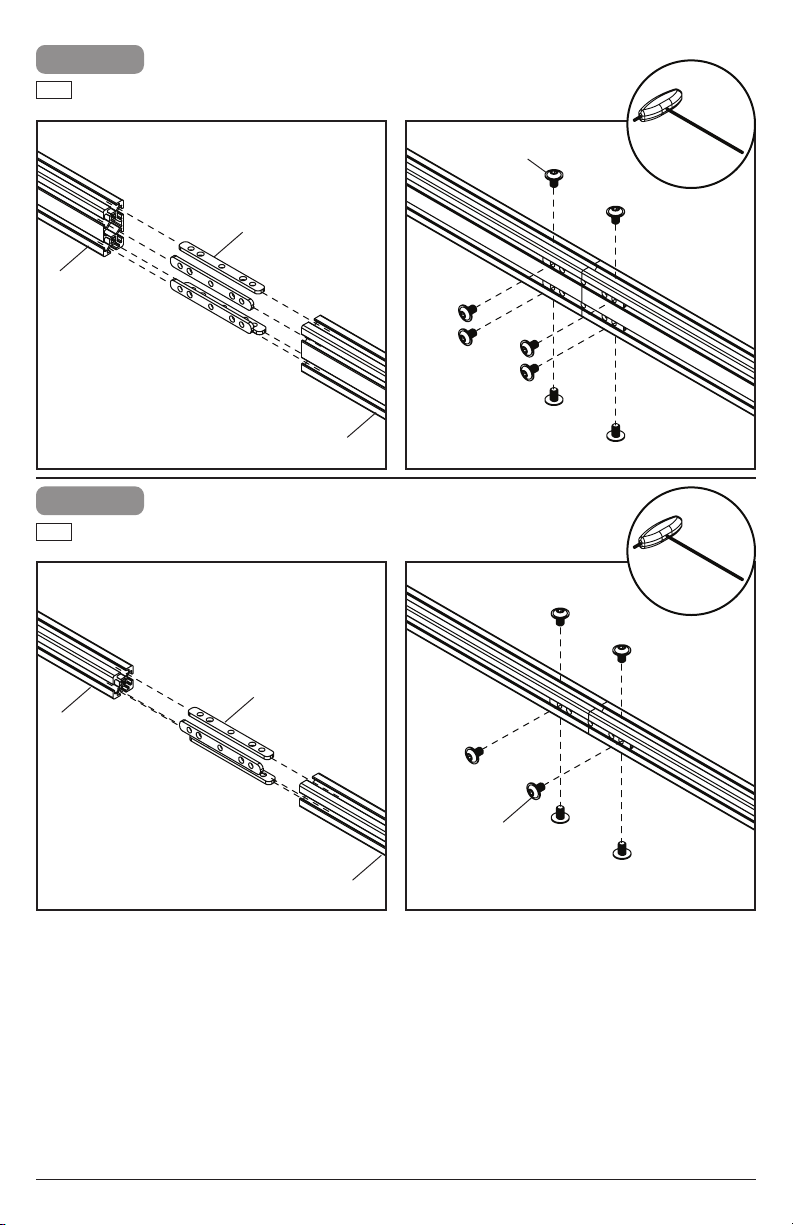

2-1

Use extrusion connectors to connect top horizontal

wall plate assemblies.

ENG

A (4)

L (8)

2-2

Use extrusion connectors to connect bottom wall

plate assemblies.

ENG

L (6)

A (3)

72019-11-15 #:146-9040-4 (2020-02-18)

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood

studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood

may be covered by gypsum board (drywall) up to 5/8" thick.

WARNING

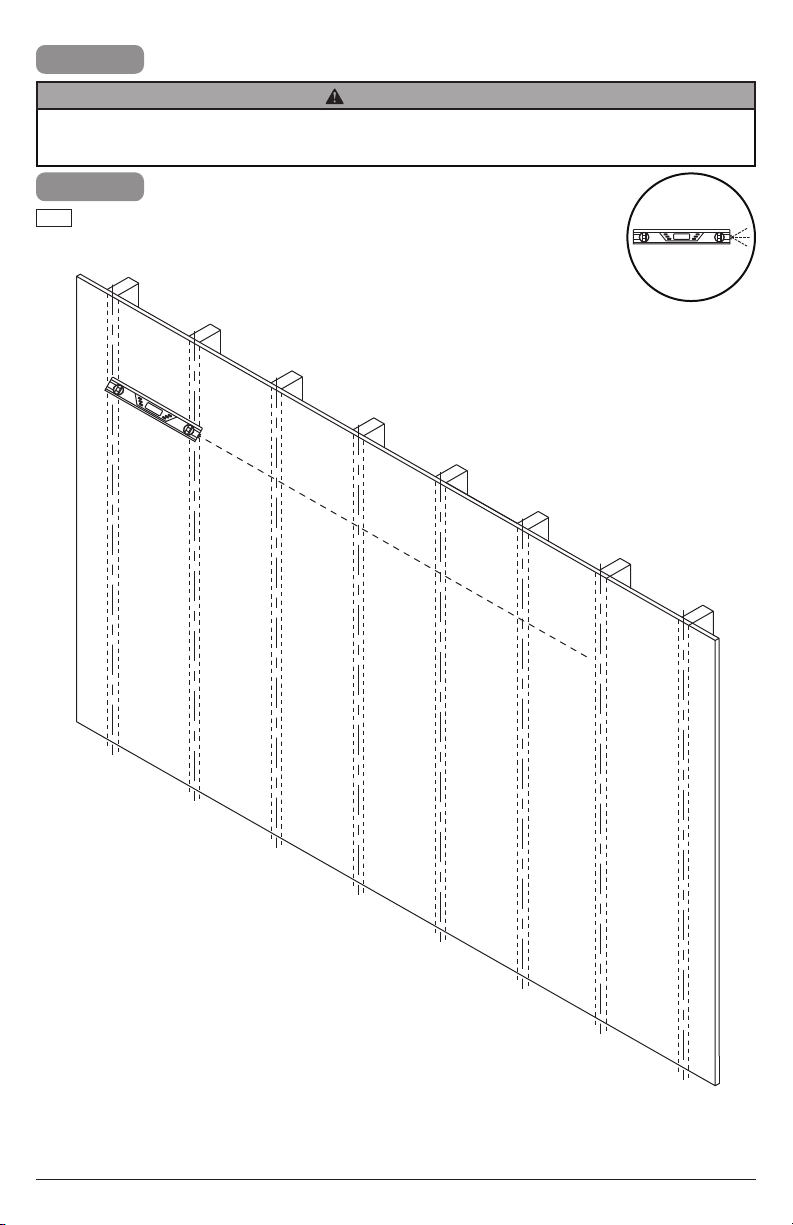

3-1

Use a laser level to keep mounting holes

level.

ENG

82019-11-15 #:146-9040-4 (2020-02-18)

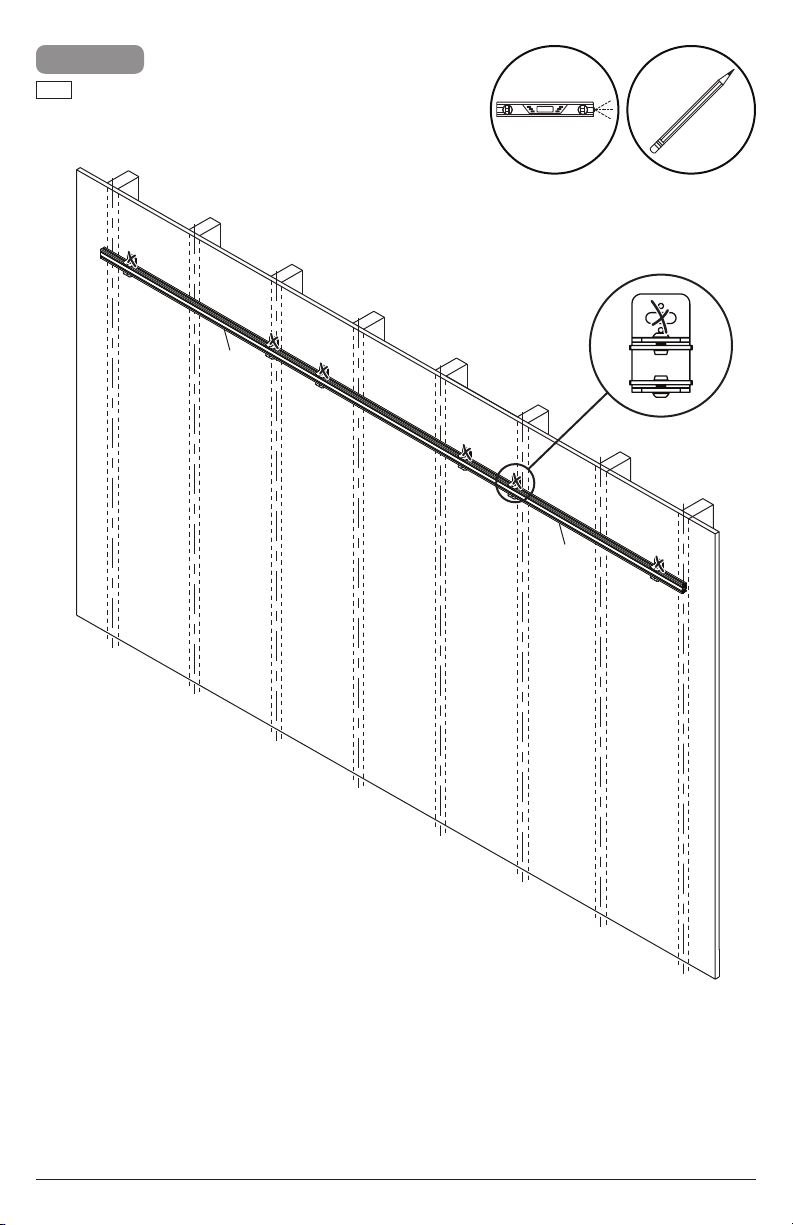

3-2

Level wall plates and mark mounting holes

on plywood (must be minimum Grade BC,

1/2" (13mm) thick.)

ENG

92019-11-15 #:146-9040-4 (2020-02-18)

N (6)

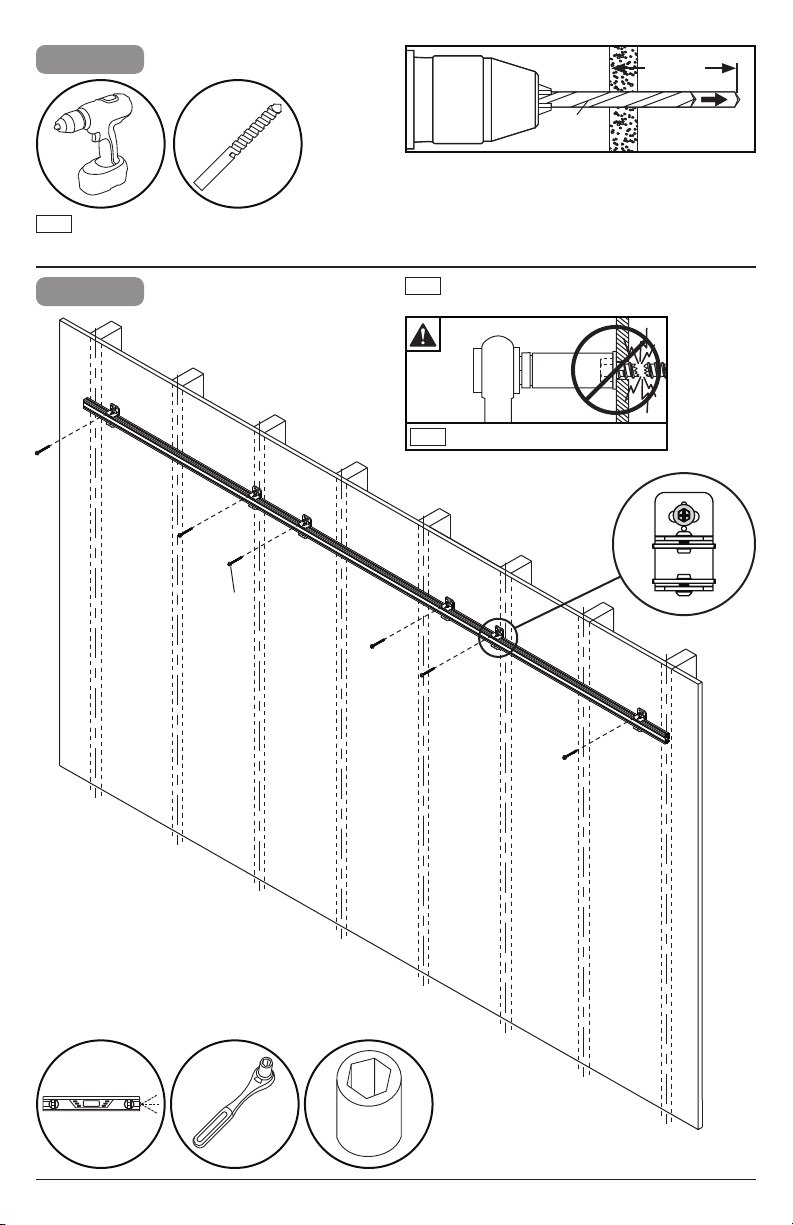

3-4 Level wall plates. Install using wood screws

provided.

ENG

3/8"

(10mm)

Maximum 80 in. • lb (9 N.M.).

ENG

3-3

Drill mounting holes into supporting surface

(2.5" (64mm) minimum depth required).

ENG

5/32"

(4mm)

2.5"

(64mm)

5/32"

(4mm)

10 2019-11-15 #:146-9040-4 (2020-02-18)



ENG

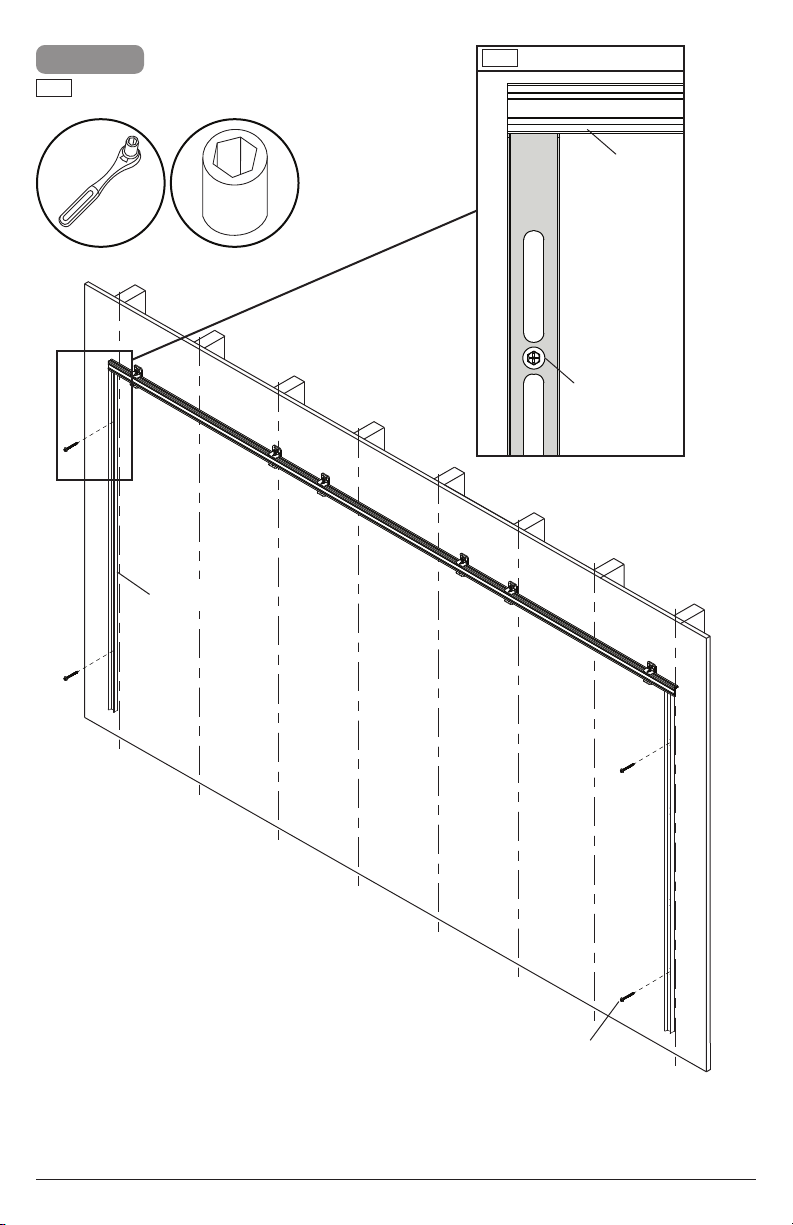

3-5



horizontal extrusion.

ENG

3/8"

(10mm)

C (2)

N (4)
