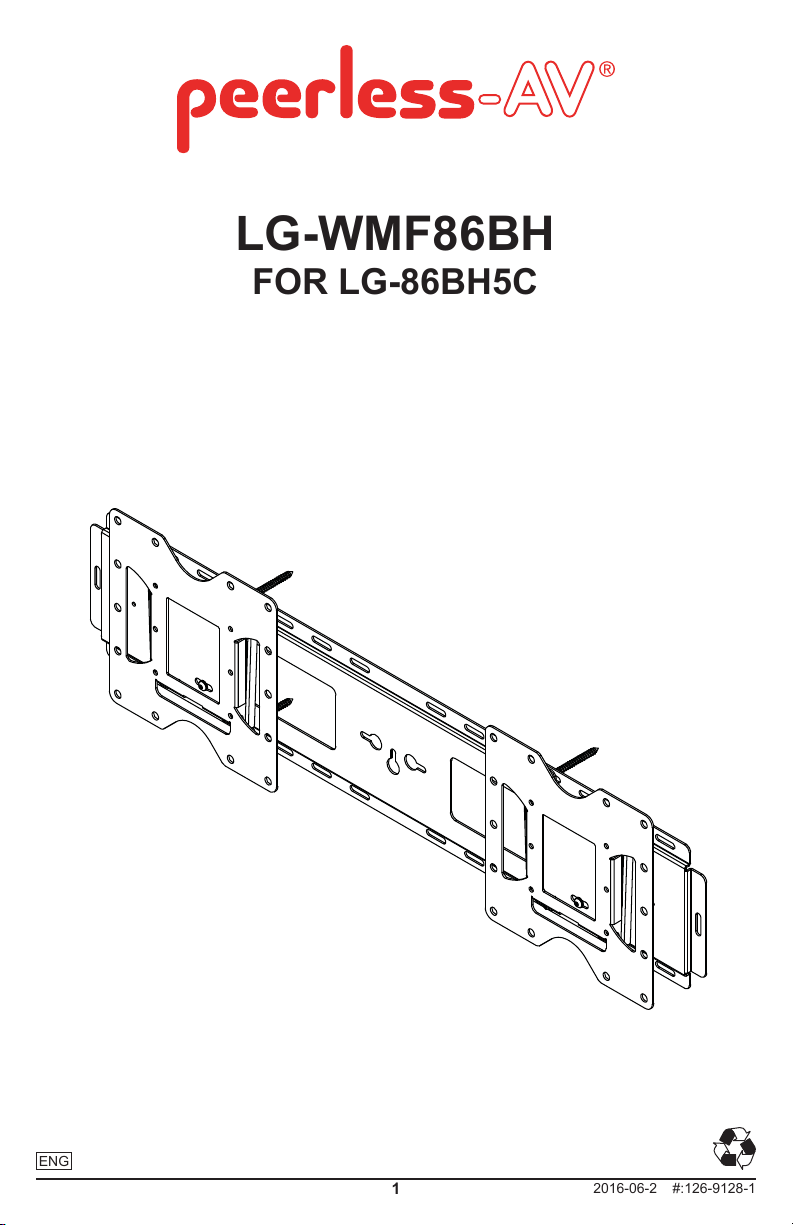

Peerless-AV LG-WMF86BH Manuale utente

12016-06-2 #:126-9128-1

ENG

LG-WMF86BH

FOR LG-86BH5C

22016-06-2 #:126-9128-1

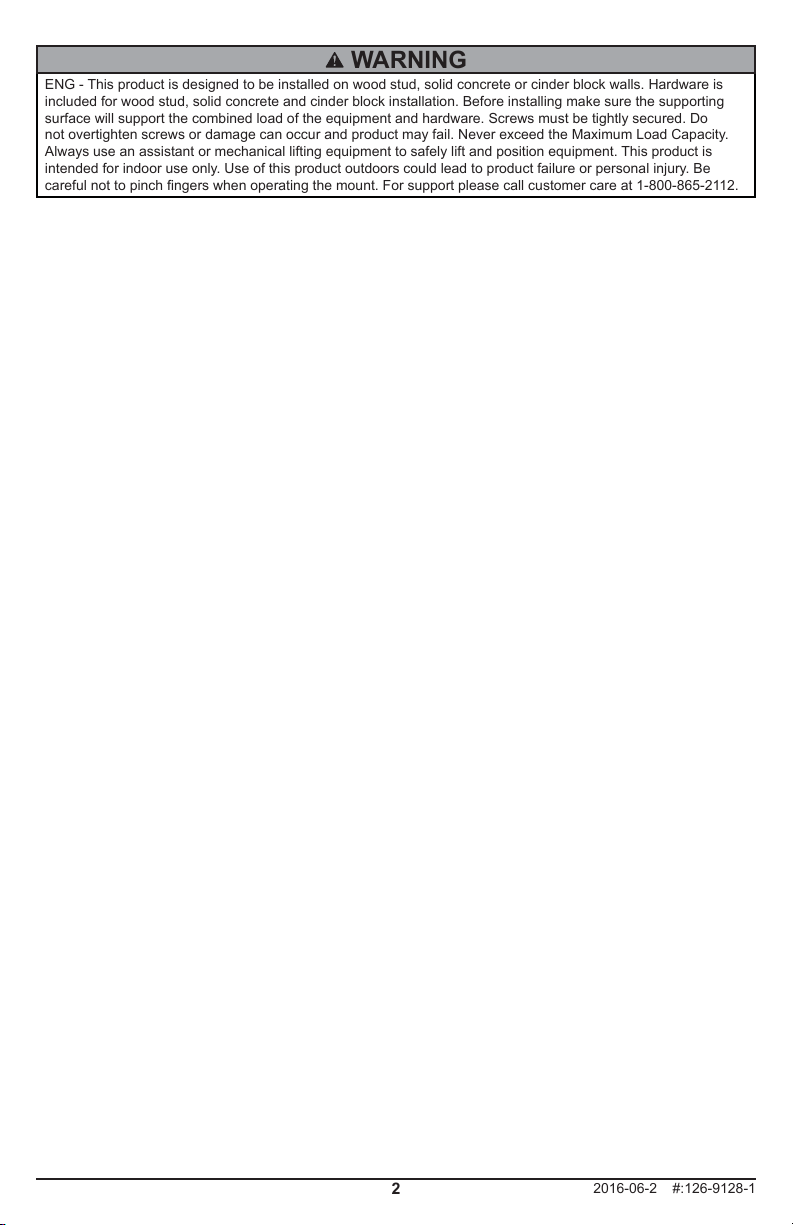

ENG - This product is designed to be installed on wood stud, solid concrete or cinder block walls. Hardware is

included for wood stud, solid concrete and cinder block installation. Before installing make sure the supporting

surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do

not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity.

Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is

intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Be

careful not to pinch ﬁngers when operating the mount. For support please call customer care at 1-800-865-2112.

WARNING

32016-06-2 #:126-9128-1

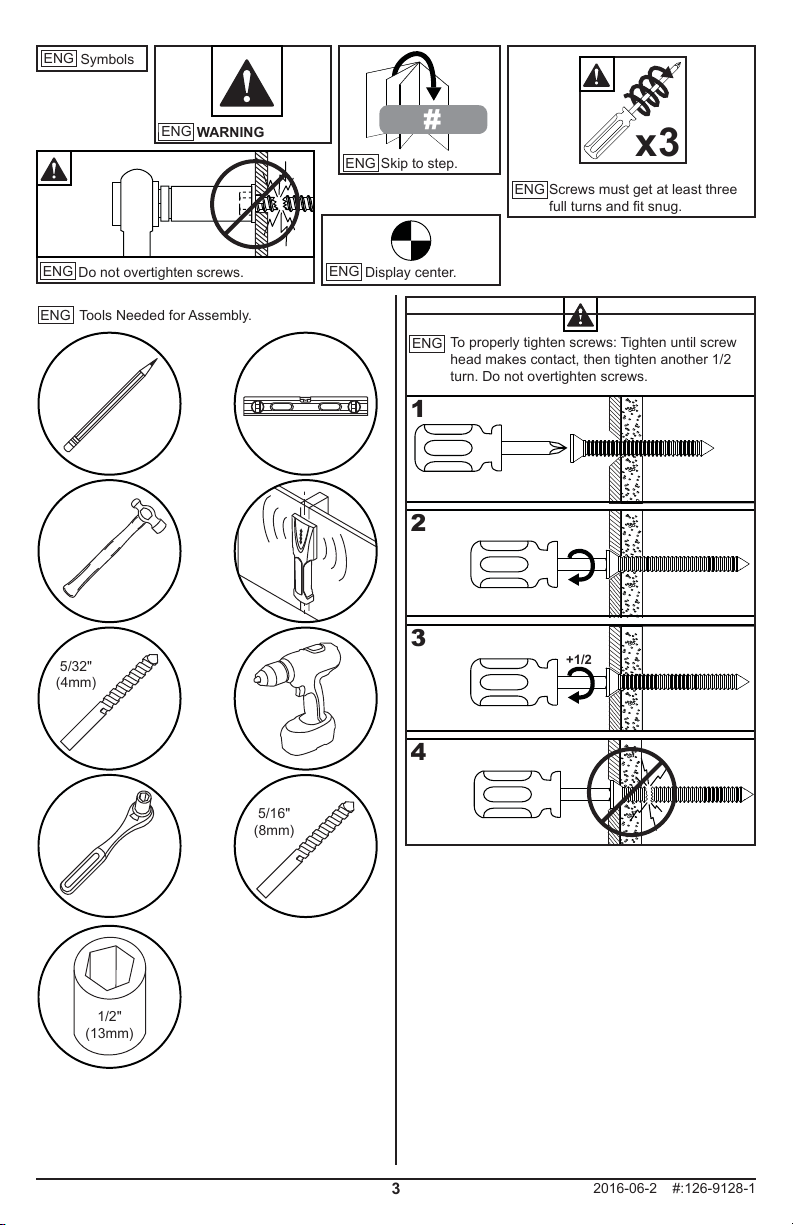

Symbols

ENG

WARNING

ENG #

Skip to step.

ENG x3

Screws must get at least three

full turns and ﬁt snug.

ENG

Tools Needed for Assembly.

ENG

ENG To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

5/32"

(4mm)

5/16"

(8mm)

1/2"

(13mm)

Display center.

ENG

Do not overtighten screws.

ENG

42016-06-2 #:126-9128-1

A (1)

wall plate

B (2)

PF632

C (4)

M5 x 6mm

D (1)

4mm allen wrench

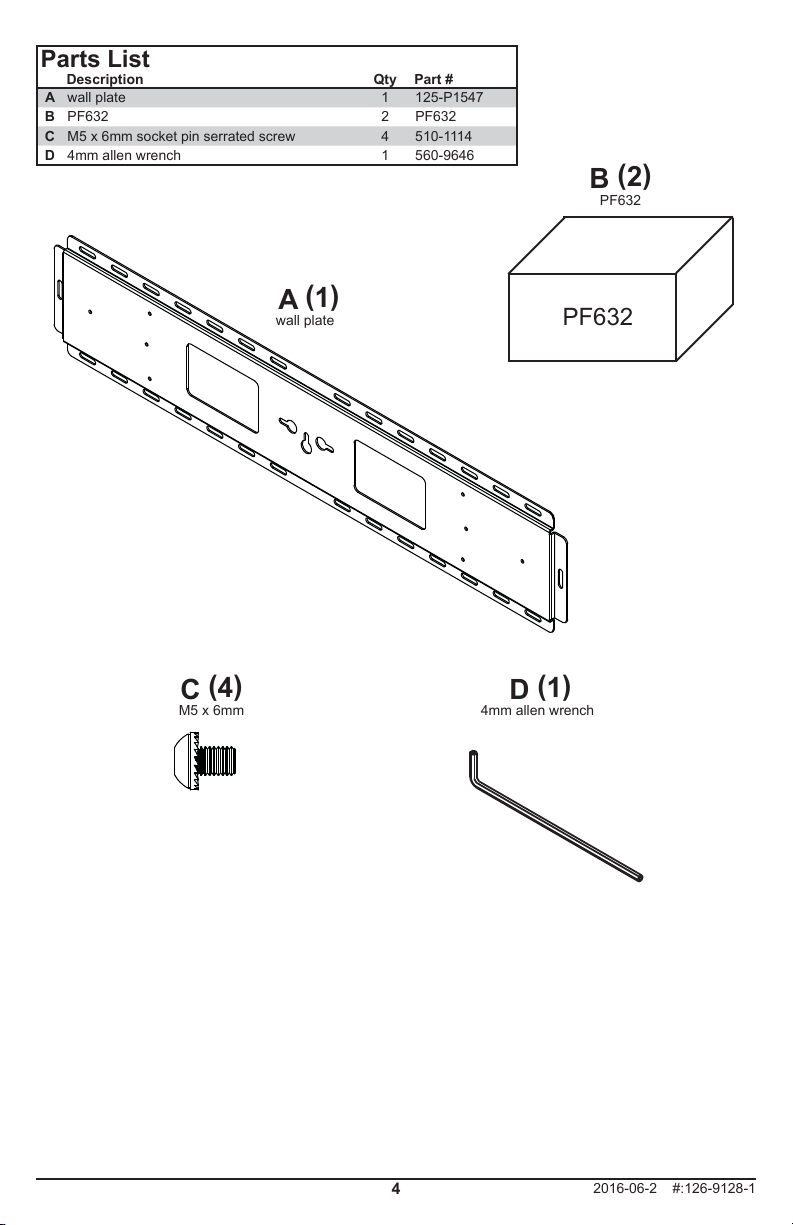

Parts List

Part #Description Qty

Awall plate 1 125-P1547

BPF632 2 PF632

CM5 x 6mm socket pin serrated screw 4 510-1114

D4mm allen wrench 1 560-9646

PF632

52016-06-2 #:126-9128-1

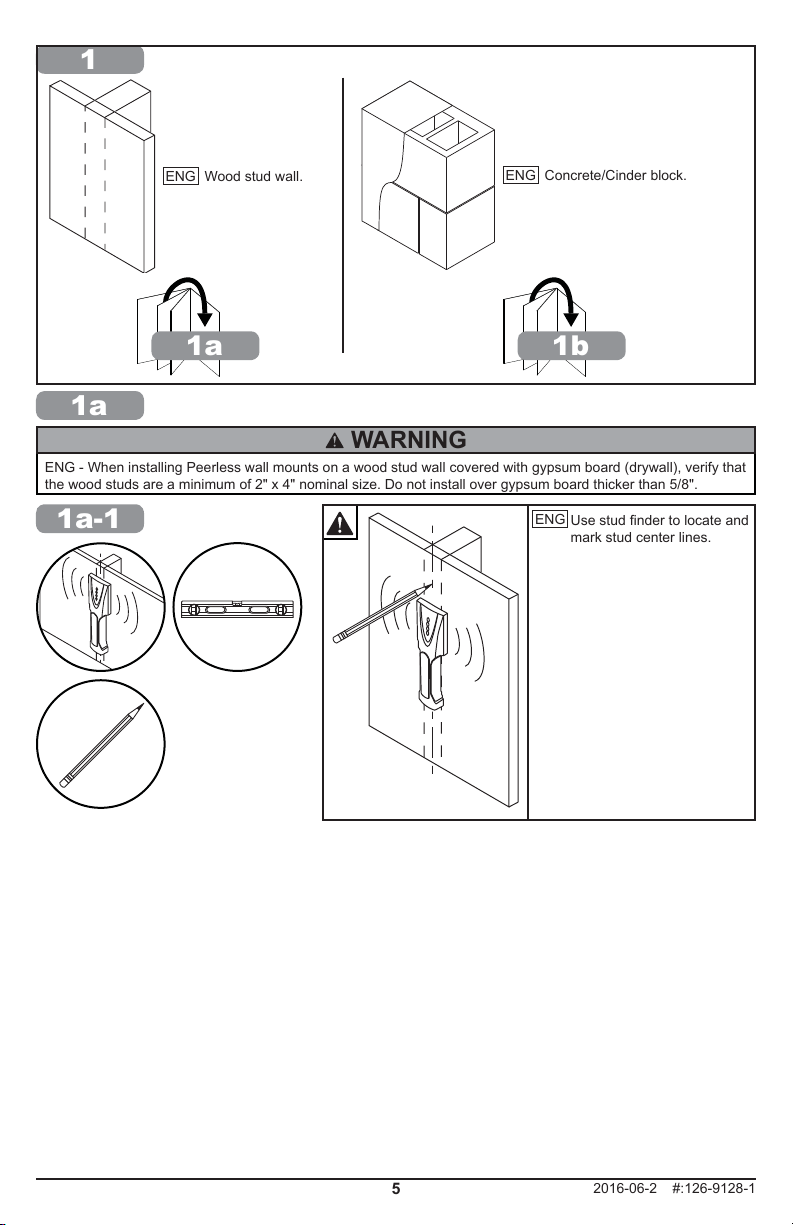

Wood stud wall.

ENG Concrete/Cinder block.

ENG

ENG - When installing Peerless wall mounts on a wood stud wall covered with gypsum board (drywall), verify that

the wood studs are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8".

WARNING

1a-1 Use stud ﬁnder to locate and

mark stud center lines.

ENG

62016-06-2 #:126-9128-1

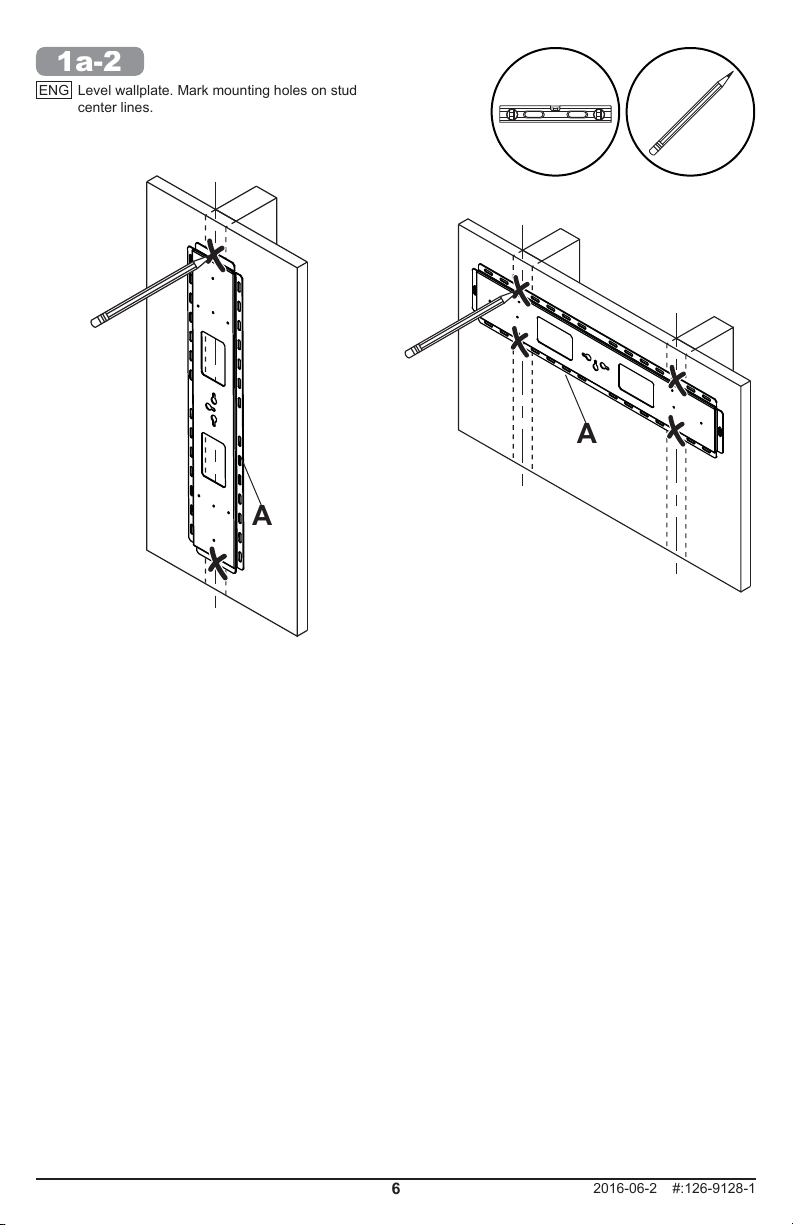

1a-2

Level wallplate. Mark mounting holes on stud

center lines.

ENG

72016-06-2 #:126-9128-1

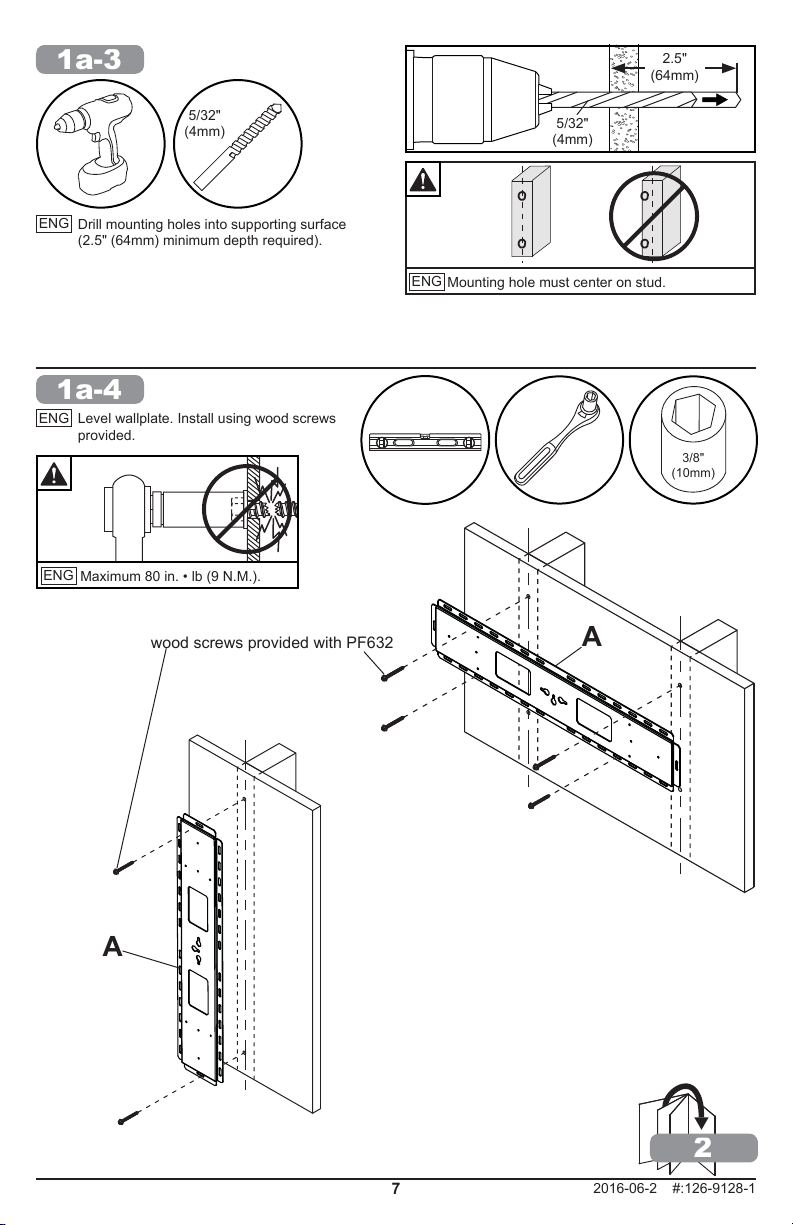

1a-3

2.5"

(64mm)

5/32"

(4mm)

5/32"

(4mm)

Mounting hole must center on stud.

ENG

Drill mounting holes into supporting surface

(2.5" (64mm) minimum depth required).

ENG

1a-4

Level wallplate. Install using wood screws

provided.

ENG

3/8"

(10mm)

Maximum 80 in. • lb (9 N.M.).

ENG

wood screws provided with PF632 A

82016-06-2 #:126-9128-1

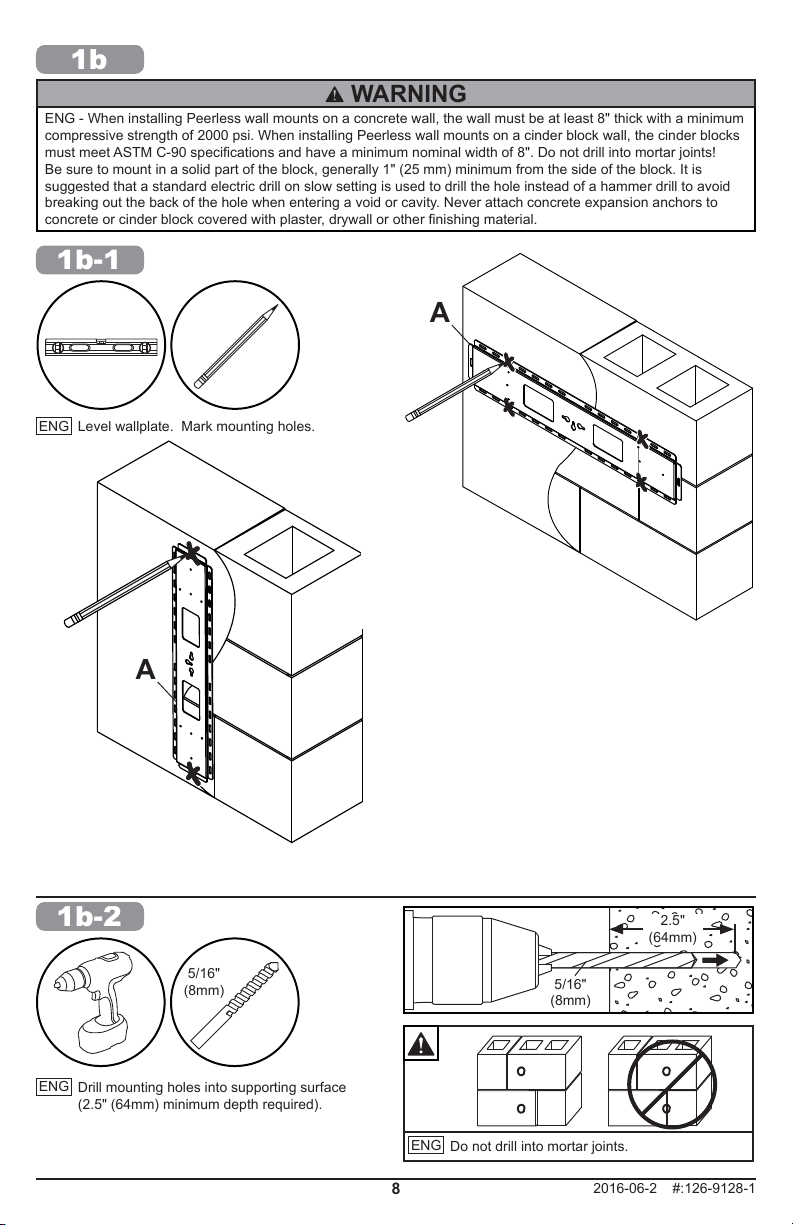

ENG - When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum

compressive strength of 2000 psi. When installing Peerless wall mounts on a cinder block wall, the cinder blocks

must meet ASTM C-90 speciﬁcations and have a minimum nominal width of 8". Do not drill into mortar joints!

Be sure to mount in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. It is

suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid

breaking out the back of the hole when entering a void or cavity. Never attach concrete expansion anchors to

concrete or cinder block covered with plaster, drywall or other ﬁnishing material.

WARNING

1b-1

1b-2

5/16"

(8mm)

Level wallplate. Mark mounting holes.

ENG

Drill mounting holes into supporting surface

(2.5" (64mm) minimum depth required).

ENG

2.5"

(64mm)

5/16"

(8mm)

Do not drill into mortar joints.

ENG

92016-06-2 #:126-9128-1

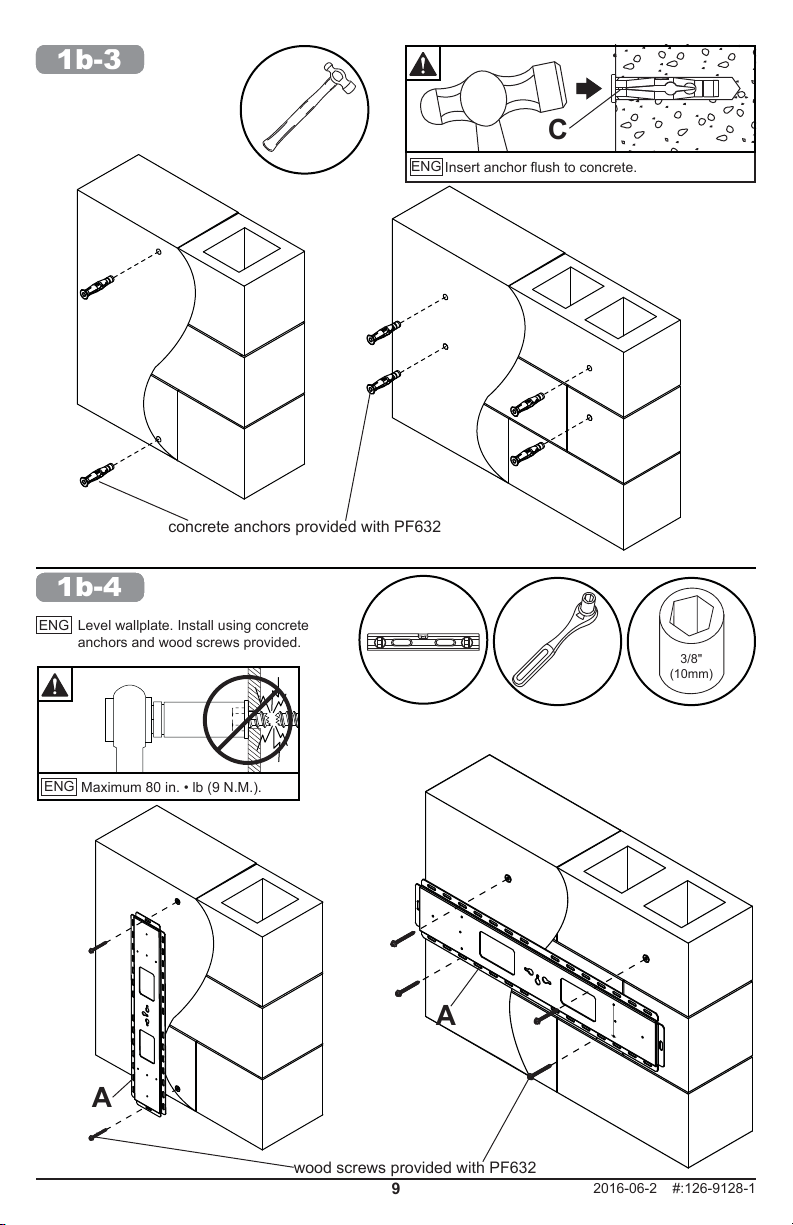

1b-41b-4

1b-31b-3

1b-41b-4

Level wallplate. Install using concrete

anchors and wood screws provided.

ENG

3/8"

(10mm)

Maximum 80 in. • lb (9 N.M.).

ENG

Insert anchor ﬂush to concrete.

ENG

wood screws provided with PF632

concrete anchors provided with PF632

10 2016-06-2 #:126-9128-1

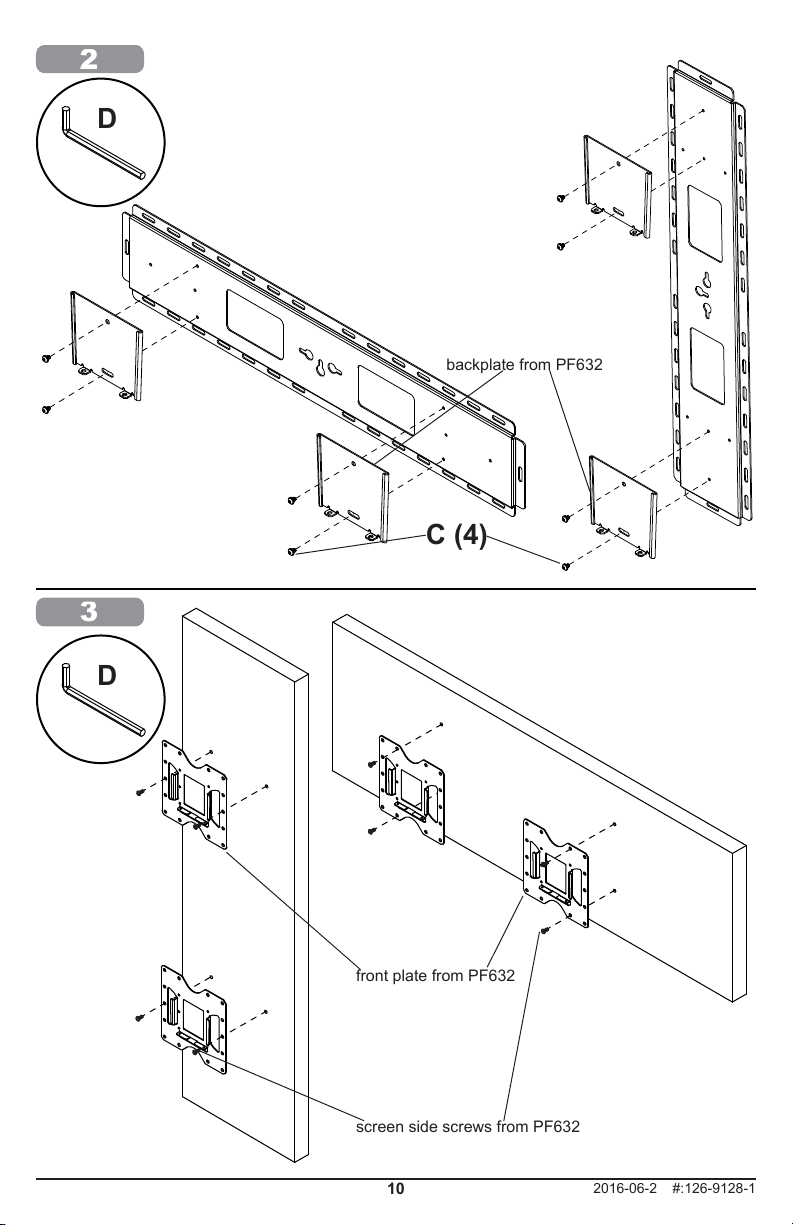

C (4)

backplate from PF632

front plate from PF632

screen side screws from PF632
