Peerless-AV PLA 60-UNL-S Guida

Models: PLA 60-UNL, PLA 60-UNL-S,

PLA 60-UNLP, PLA 60-UNLP-S,

PLAV 60-UNL, PLAV 60-UNL-S,

PLAV 60-UNLP, PLAV 60-UNLP-S

RTPLA 60, RTPLA 60-S, RTPLA UN7,

RTPLA UN7S, D-FPA-320, D-FPA-320S

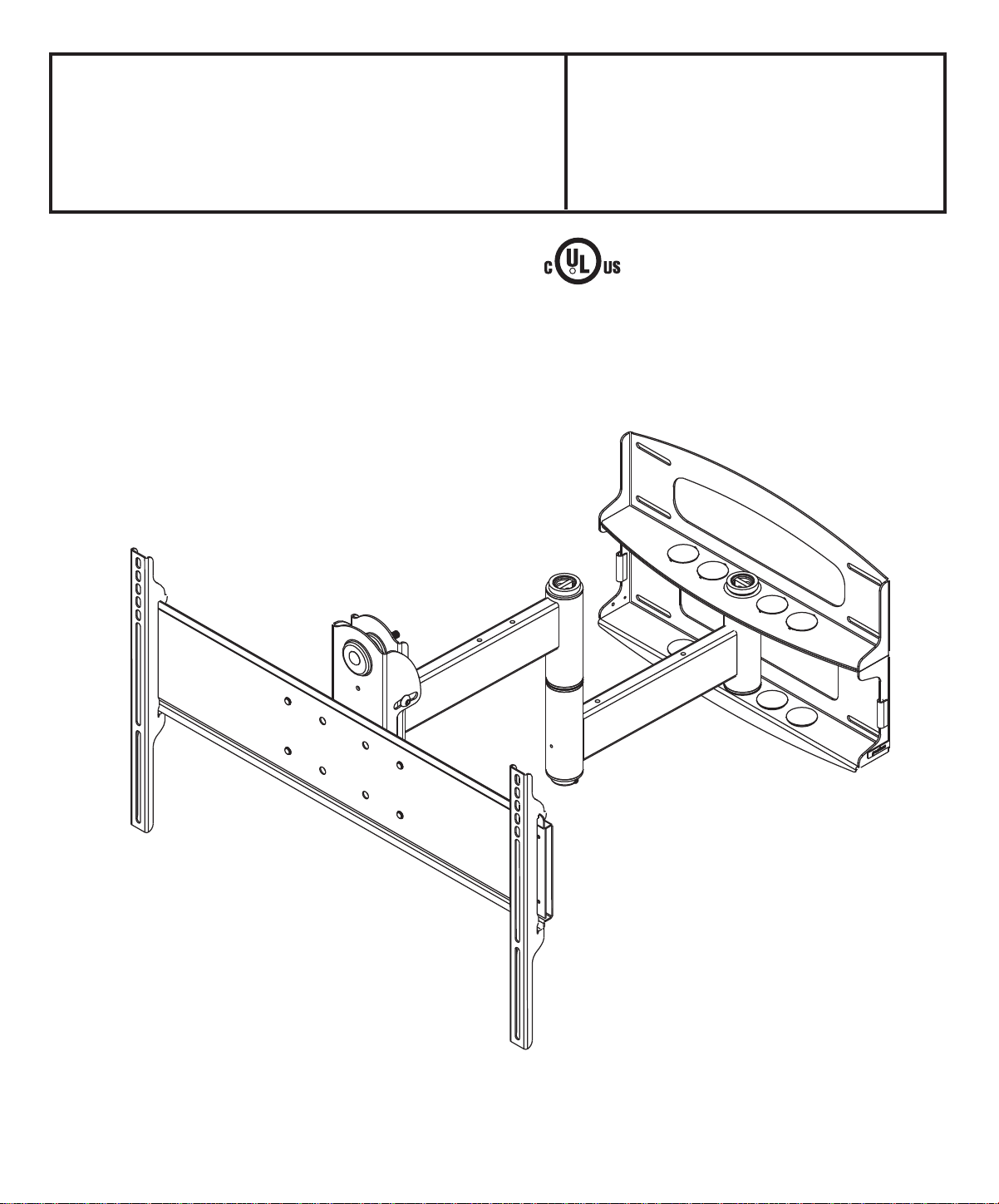

Installation and Assembly - Universal Articulating

SwivelArm for 37" - 60" Plasma Screens

This product is UL Listed. It must be

installed by a qualified professional

installer.

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

Maximum UL Load Capacity:175 lb (79 kg)

2 of 42 ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

Tools Needed for Assembly

•studfinder ("edge to edge"stud finder is recommended)

•drill

•7/32" drill bit for wood studs

•5/16" masonry drill bit for concrete

•7/16"socket wrench with extension (recommended)

•level

•phillipsscrewdriver

Accessories

•External Wall Plate (WSP716, WSP716-S, WSP724,

WSP724-S)(MetalStudnotevaluatedby UL)

• Donot begin to install yourPeerlessproduct until you have readandunderstood the instructions and warnings

containedin this Installation Sheet. If youhave any questions regarding any oftheinstructions or warnings, please

callPeerlesscustomercareat1-800-865-2112.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Makesure that the supportingsurface will safely support thecombined load of the equipmentand all attached hard-

wareandcomponents.

• Neverexceedthe Maximum ULLoadCapacity. See pageone.

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an

"edgetoedge" stud finder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tightenscrewsfirmly, but do not overtighten. Overtightening can damage the items, greatly reducingtheirholding

power.

• Thisproductwas designed and intended to be mounted to thefollowingsupportingsurfaceschecked below with the

hardware included in this product as specified in the installation sheet.To mount this product to an alternative support-

ingsurface,contactPeerlesscustomercareat1-800-865-2112.

• This product was designed to be installed on the following wall construction only;

WALLCONSTRUCTION ADDITIONALHARDWAREREQUIRED

xWoodStud None

xWoodBeam None

xSolidConcrete None

xCinderBlock None

MetalStud Do not attach except with Peerless accessory kit for metal studs;

Contact Customer Service for Peerless accessory kit for metal studs.

Brick ContactCustomerService

Otherorunsure? ContactCustomerService

WARNING

NOTE: Read entire instruction sheet before you start installation and assembly.

Table of Contents

Parts List..............................................................................................................................................................................3

Installation to Double Wood Stud Wall..................................................................................................................................6

Installation to Solid Concrete or Cinder Block .......................................................................................................................7

3 of 42 ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

Wall Mount Parts List

Some parts may appear slightly different than illustrated.

Before you start make sure all parts

listed are included with your product.

OUV

RTPLA 60 RTPLA 60-S

RTPLA UN7 RTPLA UN7S

D-FPA-320 D-FPA-320S

PLA60-UNL PLA60-UNL-S PLAV60-UNL PLAV60-UNL-S

PLA60-UNLP PLA60-UNLP-S PLAV60-UNLP PLAV60-UNLP-S

DESCRIPTION QTY. PART# PART# PART# PART#

Awallplate 1 201-1040 201-4040 201-1040 201-4040

Btilt-roll assembly 1 201-1093 201-4093 201-1048 201-4048

Carmassembly 1 201-1072 201-4072 201-1049 201-4049

Dwallsupportarmaxle 1 201-1041 201-1041 201-1041 201-1041

Evinyltrim 3 600-1012 600-1012 600-1012 600-1012

FM10 x 1.5 x 15 mm screw bolt 8 520-9262 520-9262 520-9262 520-9262

G.505 x .75 x .062" nylon washer 1 540-1074 540-1074 540-1074 540-1074

Htilt adjustment knob 1 560-0108 560-0108 560-0108 560-0108

Icarriage bolt 3/8"-16 x 3.25" 1 520-1315 520-1315 520-1315 520-1315

J1.525 x 2 x .062" delrin washer 2 540-1070 540-1070 540-1070 540-1070

K#8-32 x .375" socket cap screw 1 520-1210 520-1210 520-1210 520-1210

Lplastic finishing cap 8 590-1123 590-1123 590-1123 590-1123

Mholdingpin 1 580-1166 580-1166 580-1166 580-1166

Nretainerplug 1 590-1007 590-1007 590-1007 590-1007

O5/16 x 3" wood screw 8 520-1243 520-1243 520-1243 520-1243

P.250 x 1 x .068" washer 8 540-1063 540-1063 540-1063 540-1063

Q9/64"allenwrench 1 560-9728 560-9728 560-9728 560-9728

Rcablemanagementclips 4 590-1166 590-1166 590-1166 590-1166

Scable tie 4 590-1168 590-1168 590-1168 590-1168

T36"polyestermeshsleeve 1 600-1015 600-1015 600-1015 600-1015

U6mmallenwrench 1 560-9716 560-9716 560-9716 560-9716

V10mmallenwrench 1 n/a n/a 560-9727 560-9727

Wanchor 8 590-1025 590-1025 590-1025 590-1025

4 of 42 ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

CCBBAA

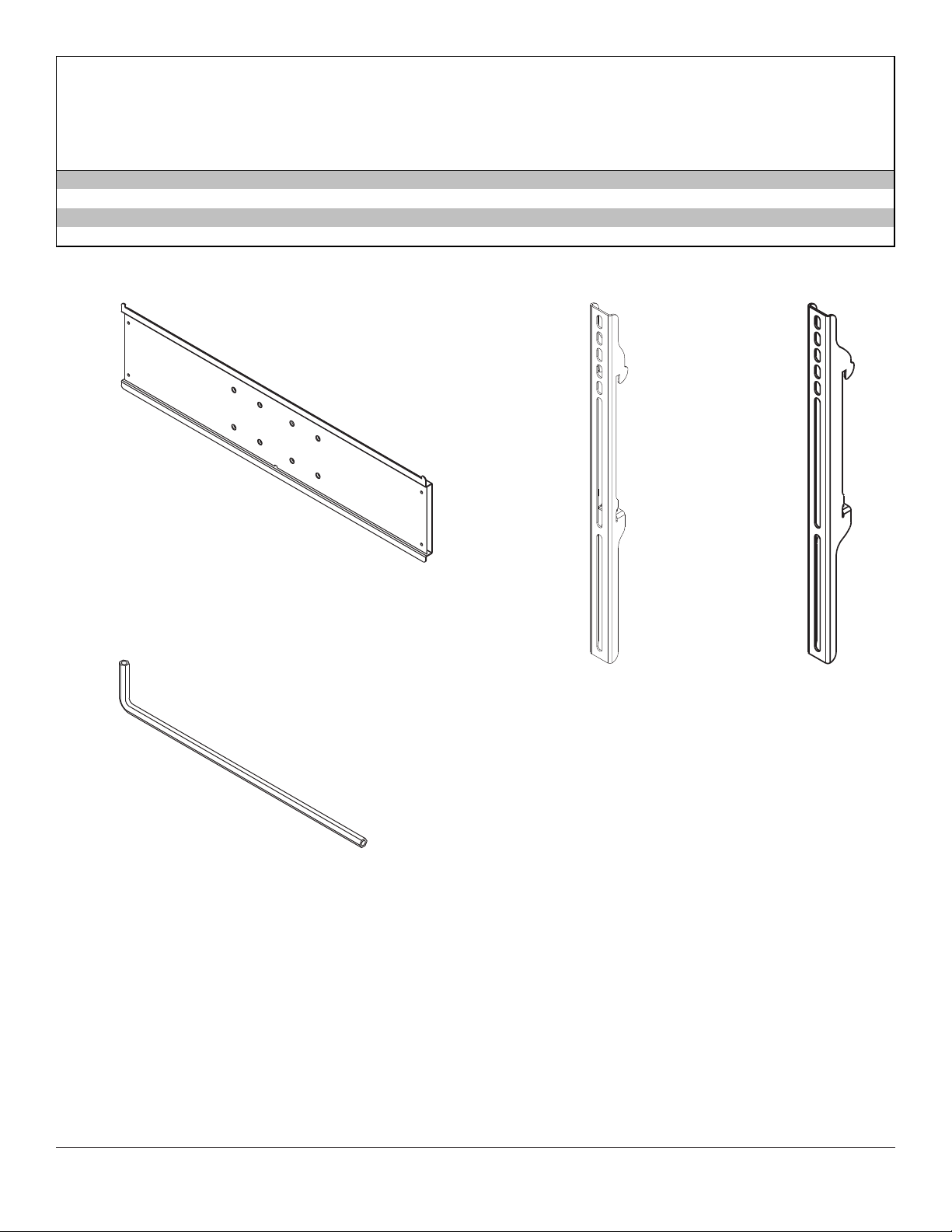

Before you begin, make sure all parts shown are included with your product. D-FPA-320 D-FPA-320S

RTPLA UN7 RTPLA UN7S

RTPLA 60 RTPLA 60-S

PLA 60-UNL PLA 60-UNL-S PLA 60-UNLP PLA 60-UNLP-S

PLAV 60-UNL PLAV 60-UNL-S PLAV 60-UNLP PLAV 60-UNLP-S

Description Qty Part # Part # Part # Part #

AA adapter bracket 1 201-1110 201-4110 201-1110 201-4110

BB shallow adapter bracket 2 201-1511 201-4511 201-1514 201-4514

CC deep adapter bracket 2 201-1510 201-4510 201-1513 201-4513

DD allen wrench 1 560-9646 560-9646 560-0072 560-0072

Adapter Bracket Parts List

5 of 42 ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

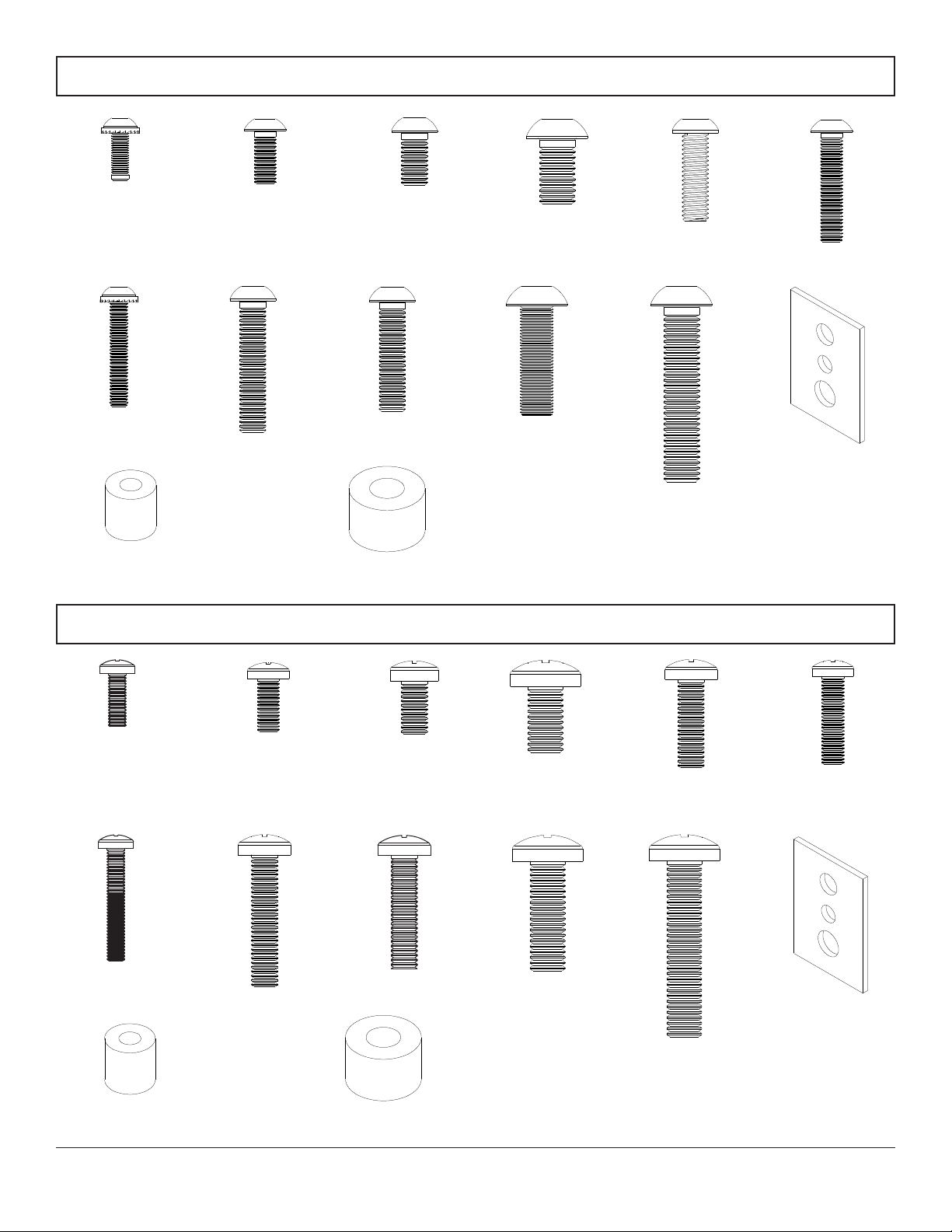

M5 x 25 mm (4)

520-1122

M4 x 12 mm (6)

510-1079

M4 x 25 mm (4)

510-1082

M5 x 12 mm (4)

520-1064 M6 x 12 mm (4)

520-1050

M6 x 25 mm (4)

520-1211 multi-washer(6)

580-1036

SecurityAdapter Bracket Fasteners

M6 x 20 mm (4)

520-9554

M6 x 30 mm (4)

520-1067

M8 x 15 mm (6)

520-1068

M8 x 40 mm (4)

520-1152

M8 x 25 mm (4)

520-1101

M6 x 20 mm (4)

520-9402

M6 x 30 mm (4)

510-9109 multi-washer(6)

580-1036

M8 x 16 mm (6)

520-9257

M8 x 40 mm (4)

520-1136

M4 x 12 mm (6)

504-9013

Phillips Adapter Bracket Fasteners

M4 x 25 mm (4)

504-1015

M5 x 12 mm (4)

520-1027 M5 x 25 mm (4)

520-9543

M6 x 12 mm (4)

520-1128

M6 x 25 mm (4)

520-1208 M8 x 25 mm (4)

520-1031

I.D. .22" (5.6 mm) (4)

540-1057 I.D. .34" (8.7 mm) (4)

540-1059

I.D. .22" (5.6 mm) (4)

540-1057 I.D. .34" (8.7 mm) (4)

540-1059

6 of 42 ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

• Never mount this product to metal studs without the

requiredaccessory.

• Installermustverify that the supporting surface willsafelysupportthe combined load of the equipmentandallattached

hardwareandcomponents.

• Tightenwoodscrews so that wall plate is firmlyattached,butdonot overtighten. Overtightening can damage the

screws,greatlyreducingtheirholdingpower.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Do not attach directly to a metal stud wall. Use of a triple stud WSP wall plate is required for attachment to metal

studs (contact customer care). Metal stud installation is not UL evaluated.

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is

highlyrecommended.

• Hardwareprovidedisfor attachment of mount through standard thickness drywall or plaster intowoodstuds.Installers

areresponsibletoprovidehardwareforothertypesofmountingsituations.

• Neverexceedthe Maximum UL Load Capacity of175lb(79 kg).

WARNING

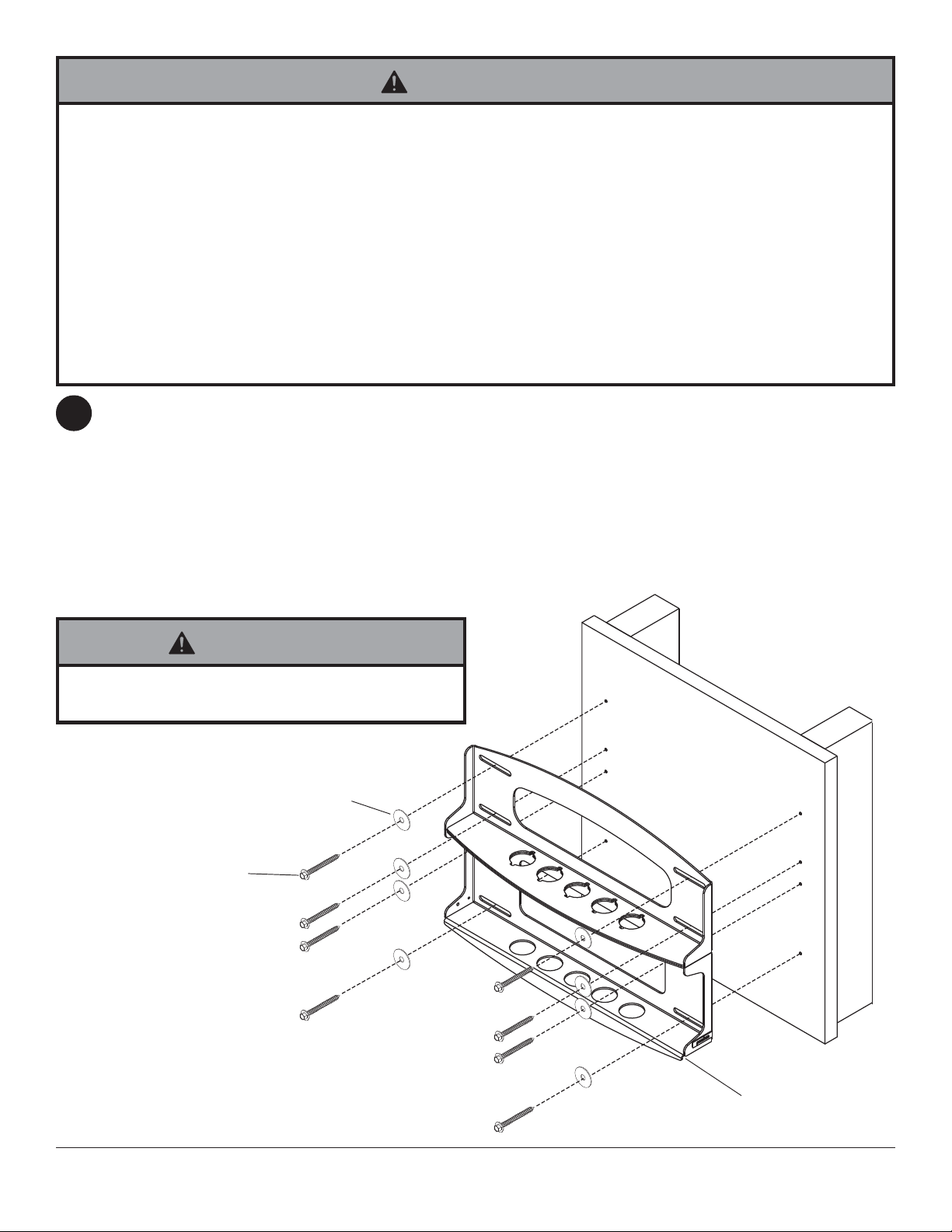

Installation to Wood Stud Wall

Wall plate (A) can be mounted to two studs that are 16" apart. Use a stud finder to locate the edges of the

studs. Use of an edge-to-edge stud finder is highly recommended. Based on their edges, draw a vertical line

down each stud’s center. Place wall plate on wall as a template. The top mounting slots should be located .36"

abovethedesired screen center for PLA60-UNL, PLA60-UNL-S,PLA60-UNLP,PLA60-UNLP-S, RTPLA60

RTPLA60-S and .43" below the desired screen center for PLAV60-UNL,PLAV 60-UNL-S, PLAV60-UNLP,PLAV

60-UNLP-S,RTPLAUN7, RTPLAUN7S, D-FPA-320,andD-FPA-320S. Level plate,andmark the center of the

eight mounting holes. Make sure that the mounting holes are on the stud centerlines. Drill eight 7/32" dia. holes

3" deep. Make sure that the wall plate is level, secure it using eight 5/16 x 3" wood screws (O) and washers (P).

Skip to step 2 on page 8.

WARNING

7 of 42 ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

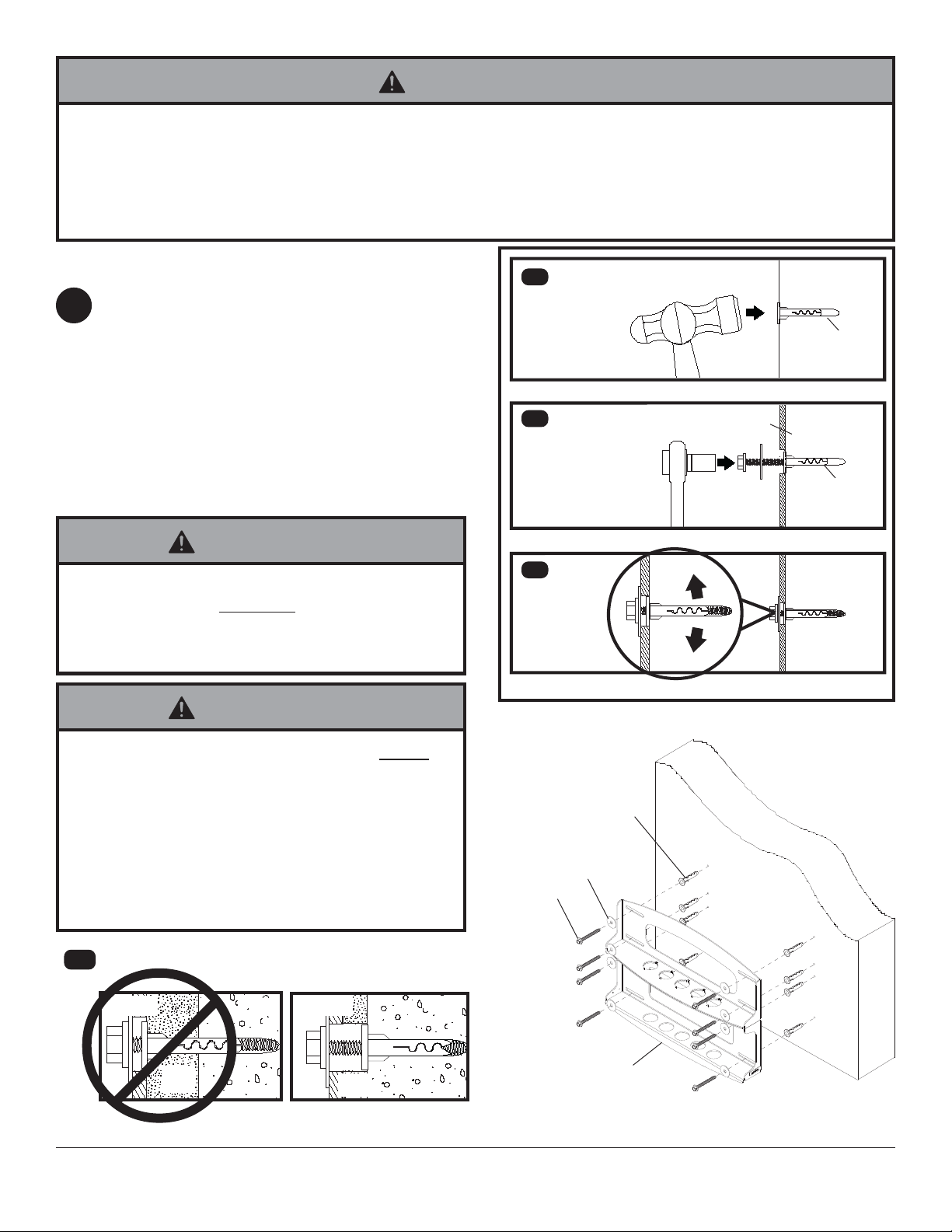

IMPORTANT!Concrete mustbe 2000 psidensity minimum.

Use wall plate (A), making sure that it is level, as a

template to mark holes. The top mounting slots should

be located .36" above the desired screen center for PLA

60-UNL,PLA60-UNL-S,PLA60-UNLP,RTPLA60,PLA

60-UNLP-SandRTPLA60-Sand.43"belowthedesired

screencenterforPLAV60-UNL,PLAV60-UNL-S,PLAV

60-UNLP,PLAV60-UNLP-S,RTPLAUN7,RTPLA

UN7S,D-FPA-320andD-FPA-320S.Usethemasonry

bit to drill 5/16" (8 mm) dia. holes to a minimum depth of

3" (76 mm). Insert anchors (W) in holes flush with wall as

shown(right).Place wallplate(A)over anchors(W)and

secure with 5/16 x 3" wood screws (O) and washers (P).

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardwareandcomponents.

• Neverexceedthe Maximum UL Load Capacity of175lb(79 kg).

• Never mount this product to metal studs.

WARNING

• Always attach concrete expansion anchors directly to

load-bearingconcrete.

• Neverattachconcreteexpansionanchorstoconcrete

coveredwithplaster,drywall,orotherfinishingmate-

rial.Ifmountingto concrete surfaces covered with a

finishingsurfaceisunavoidable,thefinishingsurface

mustbecounterboredasshown below.Ifplaster/

drywall is thicker than 5/8", custom fasteners must be

suppliedbyinstaller(NotevaluatedbyUL).

WARNING

• Tighten wood screws so that wall plate is firmly

attached,butdonotovertighten.Overtighteningcan

damagescrews,greatlyreducingtheirholdingpower.

• Never tighten in excess of 80 in • lb (9 N.M.).

WARNING

Installation to Concrete Wall

1-4

1-1

1-3

1-2

concrete

surface

Drill hole(s) and insert anchor(s) (W)

mounting

plate

Place plate over anchor(s) (W) and secure with screw(s)(O)

Tighten all fasteners

CUTAWAYVIEW

INCORRECT CORRECT

mounting

plate

plaster/

drywall

concrete mounting

plate concrete

plaster/

drywall

8 of 42 ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

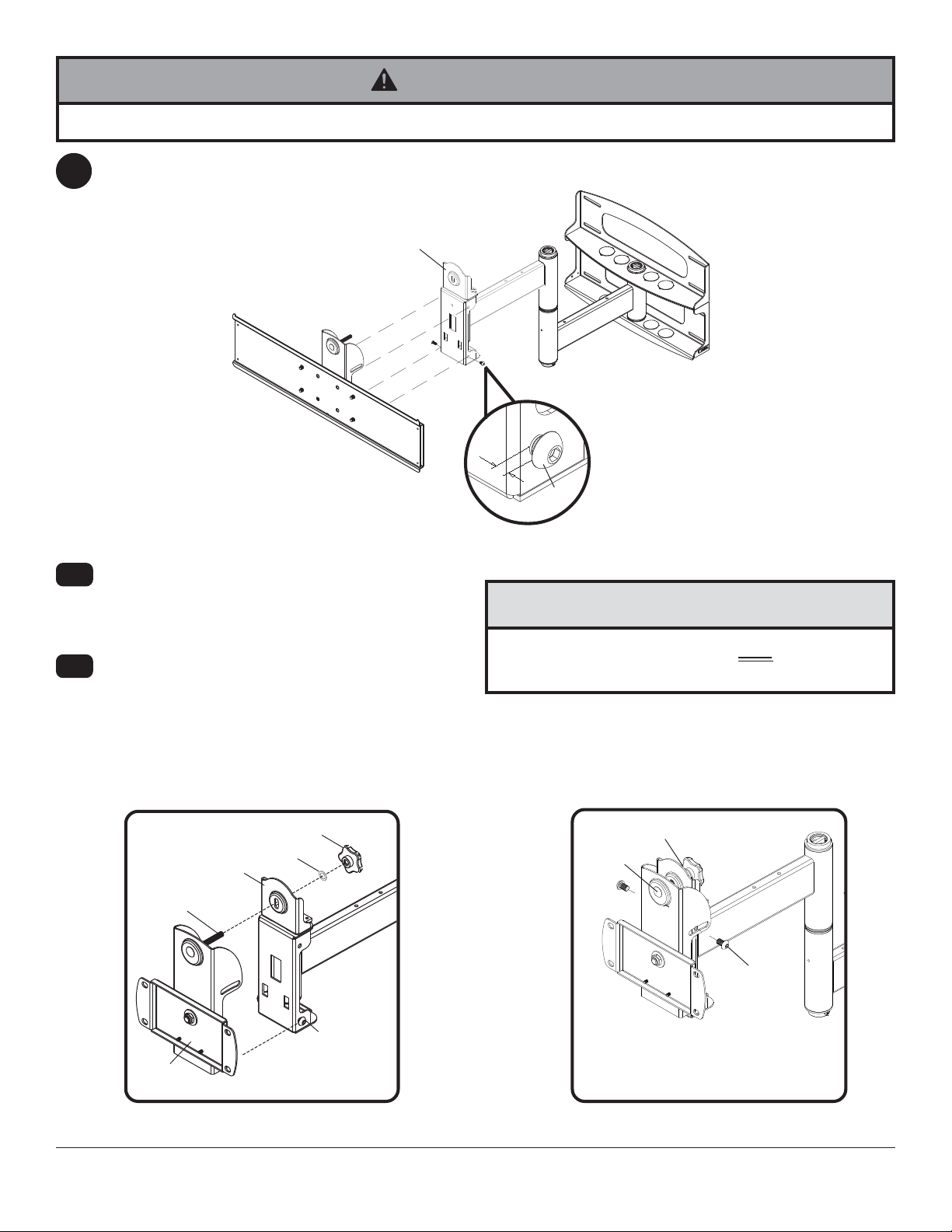

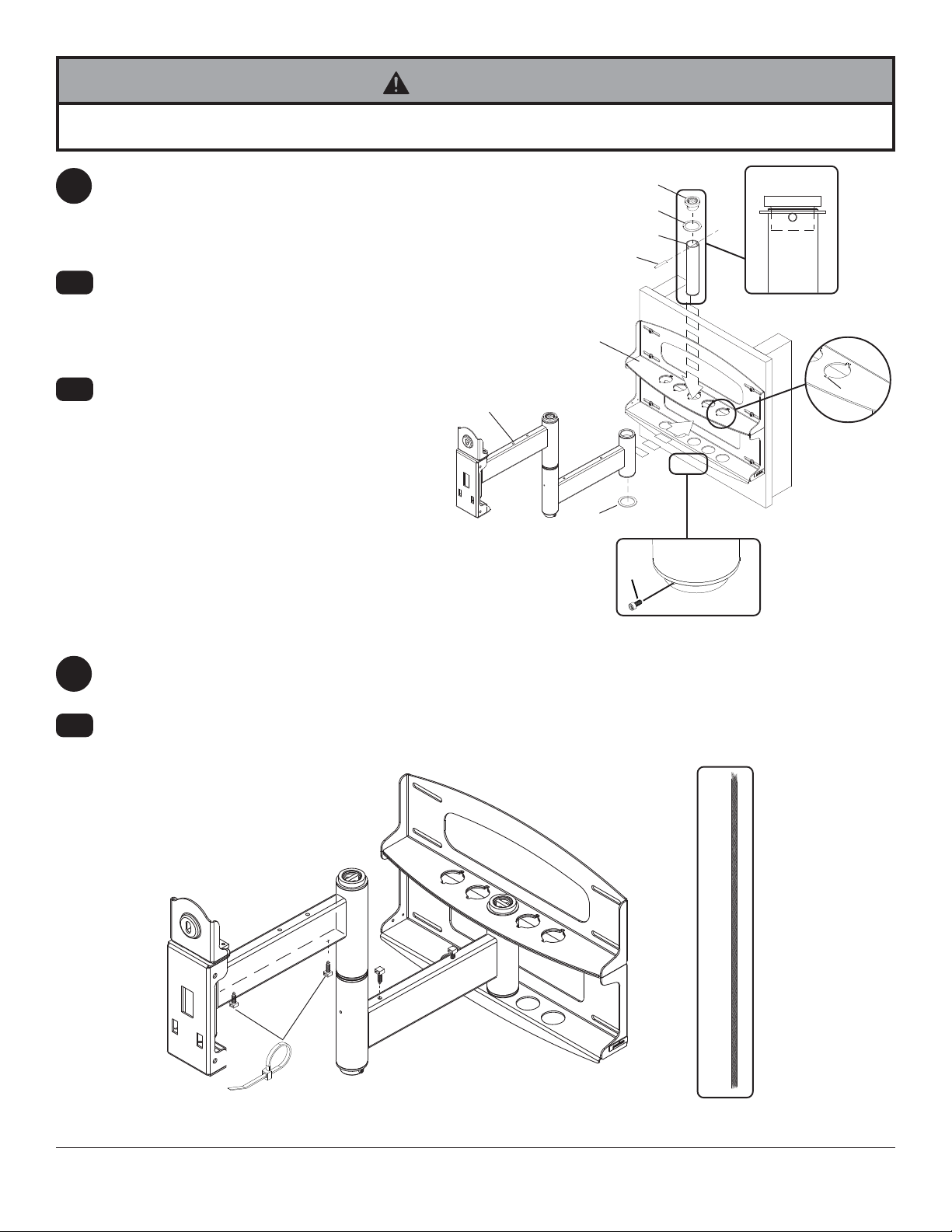

Snap four cable management clips(R)into top or bottom of arm assembly(C)as shown.Cable ties (S) are used

withclipsfor cord management.

Slide one mesh sleeve (T) over each cable. Use cable ties (S) to tighten mesh sleeves to cables.

3-1

DETAIL 3

Note: There are five mounting positions. The

center position is shown (right). Slidewasher(J)

over wall support arm axle (D). Next, insert plastic

cap (N) into axle. Then, insert holding pin (M) into

axle. See detail 1.

Note: Fit of axle (D) into wall plate (A) and arm

assembly (C) will be tight. Gently tap into place

with a hammer if necessary.

2-1

Insert socket cap screw (K) into hole at bottom of

wall support arm axle (D) as shown in detail 3.

Tightenscrewusing9/64"allenwrench(Q).

Place arm assembly (C) with washer (J) into wall

plate (A). Insert axle assembly shown in detail 1

throughwallplate (A), arm assembly (C), and

washer (J). Lock axle in place by aligning holding

pin (M) with notches shown in detail 2.

2-2

DETAIL 1

NOTCH

DETAIL 2

• If you are uncertain that product is properly installed, call customer care.

WARNING

9 of 42 ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

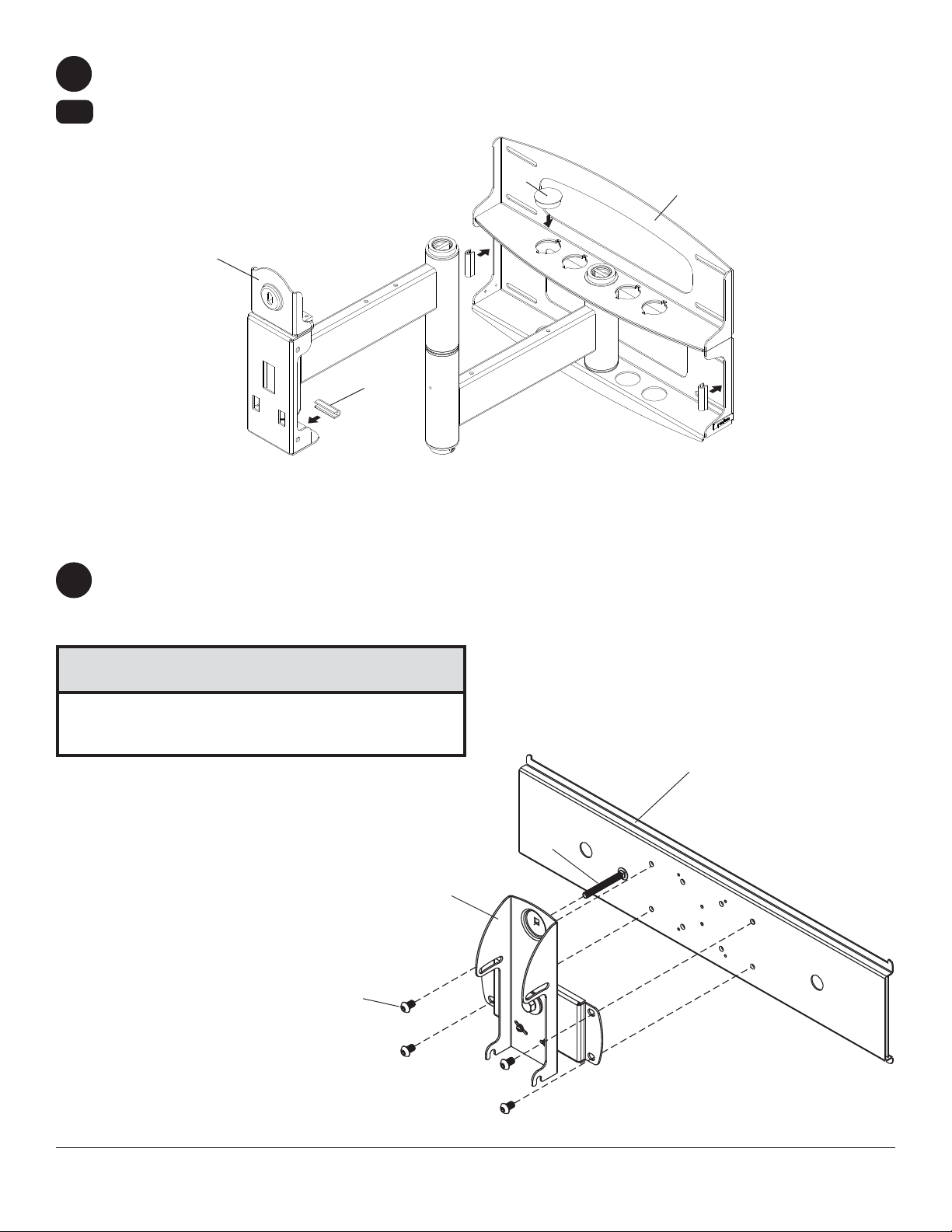

Insert and tape carriage bolt (I) into top hole of pitch-roll assembly (B).Attach tilt-roll assembly to adapter

bracket (AA) with four M10 socket screws (F). Tighten screws using 6 mm allen wrench (U).

• Donotovertightenscrews!Overtightening may hinder

rolloption.

CAUTION

Attach two pieces of vinyl trim (E) to wall plate (A). Next, attach one piece of vinyl trim to bottom of swivel box on arm

assembly(C).

4-1 Insertone finishing cap (L) intoeachunused hole of wall plate (A).

SWIVELBOX

10 of 42 ISSUED: 06-05-06 SHEET #: 202-9141-7 05-06-08

Insert two M10 screws (F) into swivel box on arm assembly (C) as shown. Leave approx. 1/4" of exposed thread.

.25"

• Use an assistant or mechanical lifting equipment to safely lift and position the plasma TV.

WARNING

• After tilt is adjusted, all fasteners must be tightened.

Failure to do so will result in damage to the mount.

CAUTION

6-1

6-2

fig. 6.1 fig. 6.2

SWIVELBOX

Hook tilt-roll assembly (B) onto M10 screws (F).

Insert carriage bolt (I) into slot of swivel box as

shown in figure 6.1. Install nylon washer (G) and tilt

adjustmentknob(H).

Install remaining two M10 screws (F) as shown in

figure6.2.HANDTIGHTENallfourM10screwsto

allowfortiltadjustment.Removetapefromcarriage

bolt (I). For tilt adjustment, push back on the top of

plasma to relieve pressure on knob.Adjust tilt to

desired position and tighten tilt adjustment knob (H),

then securely tighten all four M10 screws (F) using 6

mmallenwrench(U).

SWIVELBOX

Adapter bracket not shown for clarity. Adapter bracket not shown for clarity.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali peerless-AV Rack e supporto

peerless-AV

peerless-AV LCC 18-C Guida

peerless-AV

peerless-AV DS-OM46ND-CEIL Manuale utente

peerless-AV

peerless-AV SMARTMOUNT LT SAL724 Manuale utente

peerless-AV

peerless-AV DS-C555-3X3 Manuale utente

peerless-AV

peerless-AV ACC185 Manuale utente

peerless-AV

peerless-AV SMARTMOUNT XT STX645P Manuale utente

peerless-AV

peerless-AV MOD-FCSKIT300-B Manuale utente

peerless-AV

peerless-AV SS598ML3 Manuale utente

peerless-AV

peerless-AV ACC-GS1 Manuale utente

peerless-AV

peerless-AV TVA775 Manuale utente

peerless-AV

peerless-AV PRSS-1 Manuale utente

peerless-AV

peerless-AV SP840 Manuale utente

peerless-AV

peerless-AV KIP749-S Manuale utente

peerless-AV

peerless-AV HF642-003 Guida

peerless-AV

peerless-AV SEAMLESS Kitted 27BDL6119L/00 Manuale utente

peerless-AV

peerless-AV PA740-S Guida

peerless-AV

peerless-AV SUA746H Guida

peerless-AV

peerless-AV ACC557 Manuale utente

peerless-AV

peerless-AV SMARTMOUNT XT SFX645 Manuale utente

peerless-AV

peerless-AV SMARTMOUNT SA724P Manuale utente

peerless-AV

peerless-AV SMARTMOUNT XT SFX660 Manuale utente

peerless-AV

peerless-AV ACC973 Manuale utente

peerless-AV

peerless-AV MOD-FPSKIT100 Manuale utente

peerless-AV

peerless-AV Paramount PP730 Guida

Manuali Rack e supporto popolari di altre marche

Salamander

Salamander Acadia AC/W/L400/WH Manuale utente

Fohhn

Fohhn VAT-09 Guida utente

ricoo

ricoo FS0522 Manuale utente

AMSOIL

AMSOIL BMK-22 Guida rapida

Kargo Master

Kargo Master 48220 Manuale utente

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuale utente

ricoo

ricoo S1222 Manuale utente

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuale utente

VidaBox

VidaBox VB MNT FFS2 Manuale utente

Welch Allyn

Welch Allyn 48960 Manuale utente

Arkon

Arkon CM035-ST-2 Manuale utente

PROEL

PROEL PLWIN60C Manuale utente

Agilent Technologies

Agilent Technologies E2609B Manuale utente

Mustang

Mustang MV-ARM4 Manuale utente

Mounting Solutions

Mounting Solutions WRM-320 Manuale utente

Pyle

Pyle PMKSPAD1 Manuale utente

ShelterIt

ShelterIt 21208 Manuale utente

SPL

SPL RackPack?4 1040 Manuale utente

peerless-AV PLA 60-UNL-S Guida

Manuali Rack e supporto popolari di altre marche
