Peerless-AV PLP PAN42 Guida

1 of 2 ISSUED: 04-06-01 SHEET #: 200-9203-9 05-12-06

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

Used with specific

mounts onlyHH

PARTSLIST

PART# QTY. DESCRIPTION

AA 201-1122 1 adapter bracket

BB 590-1115 4 1/2" OD screw insulator

CC 590-1121 4 .52 ID x .8 OD x .5 H spacer

DD 520-1152 4 M8 x 40 mm socket pin screw

EE 560-9646 1 security allen wrench

FF 540-9406 4 5/16 washer

GG 540-1002 4 .34 ID x .75 OD x .25 H spacer

HH 520-1063 4 M5 x 10 mm socket pin screw

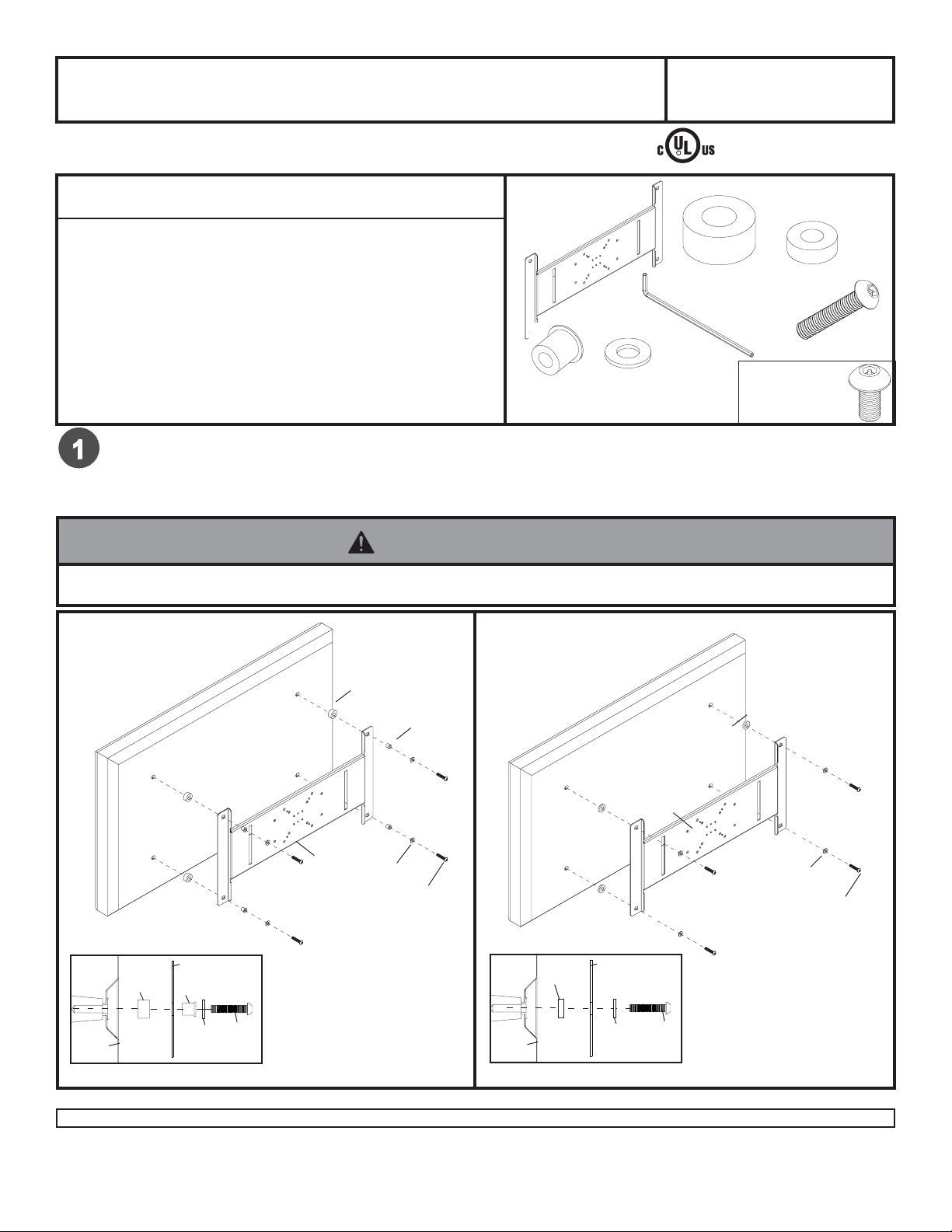

Installation and Assembly - Plasma Adapter Bracket for

Panasonic® 42" Plasma Screens

IMPORTANT! Read entire instruction sheet

before you start installation and assembly.

Parts List

Some parts may appear slightly different than illustrated.

Model: PLPPAN42

BB EE DD

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

DETAIL 1

*Place four .52 ID x .8 OD x .5 H spacers (CC) inside recesses in back of plasma. Attach adapter plate (AA) to back of

plasma using four M8 x 40 mm socket pin screws (DD), four 5/16 washers (FF), and four screw insulators (BB) as shown in

figure 1 and detail 1. *Note: For Panasonic®TH42PA2OUP and TH37PA2OUP plasmas, place four .34 ID x .075 OD x .25 H

spacers (GG) inside recesses in back of plasma. Attach adapter plate (AA) to back of plasma using four M8 x 40 mm socket

pin screws (DD) and four 5/16 washers (FF) as shown in figure 1.1 and detail 2.

Tighten M8 screws (DD) using 4 mm allen wrench (EE).

Plasma

(cut out)

fig. 1 fig. 1.1

DETAIL 2

Plasma

(cut out)

This product is UL Listed. It

must be installed by a qualified

professional installer.

• Donotovertighten!Overtighteningmaycausepermanentdamagetothescreen.Torqueto26-35in•lb(30-40kg•cm).

WARNING

2 of 2 ISSUED: 04-06-01 SHEET #: 200-9203-9 05-12-06

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

Used with specific

mounts onlyHH

DESCRIPTION QTÉ. Nº de PIÈCE

AA plaque adaptatrice 1 201-1122

BB isolateur de vis 1/2 4 590-1115

CC entretoise 1/2 4 590-1121

DD vis M8 x 40 mm 4 520-1152

EE clé 6 pans mâle de sécurité de 4 mm 1 560-9646

FF rondelle 5/16 4 540-9406

GG entretoise 3/4 4 540-1002

HH vis M5 x 10 mm 4 520-1063

Instructions d’assemblage - Plaque adaptatrice pour écran

plasma Panasonic®

IMPORTANT ! Veuillez lire toute la feuille d’instructions

avant de commencer l’installation et l’assemblage.

Liste des pièces

Remarque : Les pièces réelles peuvent paraître légèrement

différentes de celles qui sont illustrées

*Placez quatre entretoises (CC) à l’intérieur des renfoncements, à l’arrière de l’écran plasma. Fixez la plaque

adaptatrice (AA) à l’arrière de l’écran plasma, à l’aide des quatre vis M8 (DD), quatre rondelles (FF) et des isolateurs

de vis (BB) comme indiqué, sur l’illustration, détail 1. *Remarque: pour l’écran plasma Panasonic TH42PA2OUP y

TH37PA2OUP, placez quatre entretoises (GG) à l’intérieur des renfoncements, à l’arrière de l’écran plasma. Fixez la

plaque adaptatrice (AA) à l’arrière de l’écran plasma, à l’aide des quatre vise M8 (DD), et quatre rondelles (FF), comme

indiqué sur l’illustration 1.1, détail 2. Serrez les vis M8 (DD) en utilisant la clé pans mâle de sécurité.

Modèle: PLP PAN42

EE DD

Écran

plasma

(découpe)

DÉTAIL 1

fig. 1 fig. 1.1

DÉTAIL 2

Écran

plasma

(découpe)

This product is UL Listed. It

must be installed by a qualified

professional installer.

•Remarque : Ne serrez pas excessivement. Serrez à un couple de 26 à 35 po • lb (30 à 40 kg • cm).

AVERTISSEMENT
