PEERLESS Mounts Solid-Point PLA 2 Guida

1 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

Read instruction sheet before you start assembly and installation.

Maximum Load Capacity: 90 lb (40.9 kg)

Installation & Assembly - Solid•Point™Articulating Swivel Arm for Large

Flat Panel Screens Models:

PLA 2,

PLA 2S

Installations:

ToWoodStudWalls .......................................................................................................... page 2

ToSolid Concrete, ConcreteBlock, orBrick Walls ............................................................. page 3

Twoinstructionsheetsareincludedwithyourproduct.Beginwiththissheet.

• It is the responsibility of the installer to verify that the supporting surface will safely support the combined load of

allattachedhardwareandcomponents.

• Use an assistant or mechanical lifting equipment to safely lift and position the plasma screen.

• Do not attach directly to a metal stud wall. Use of a triple stud WSP wall plate is required for attachment to metal

studs (contact customer care).

WARNING

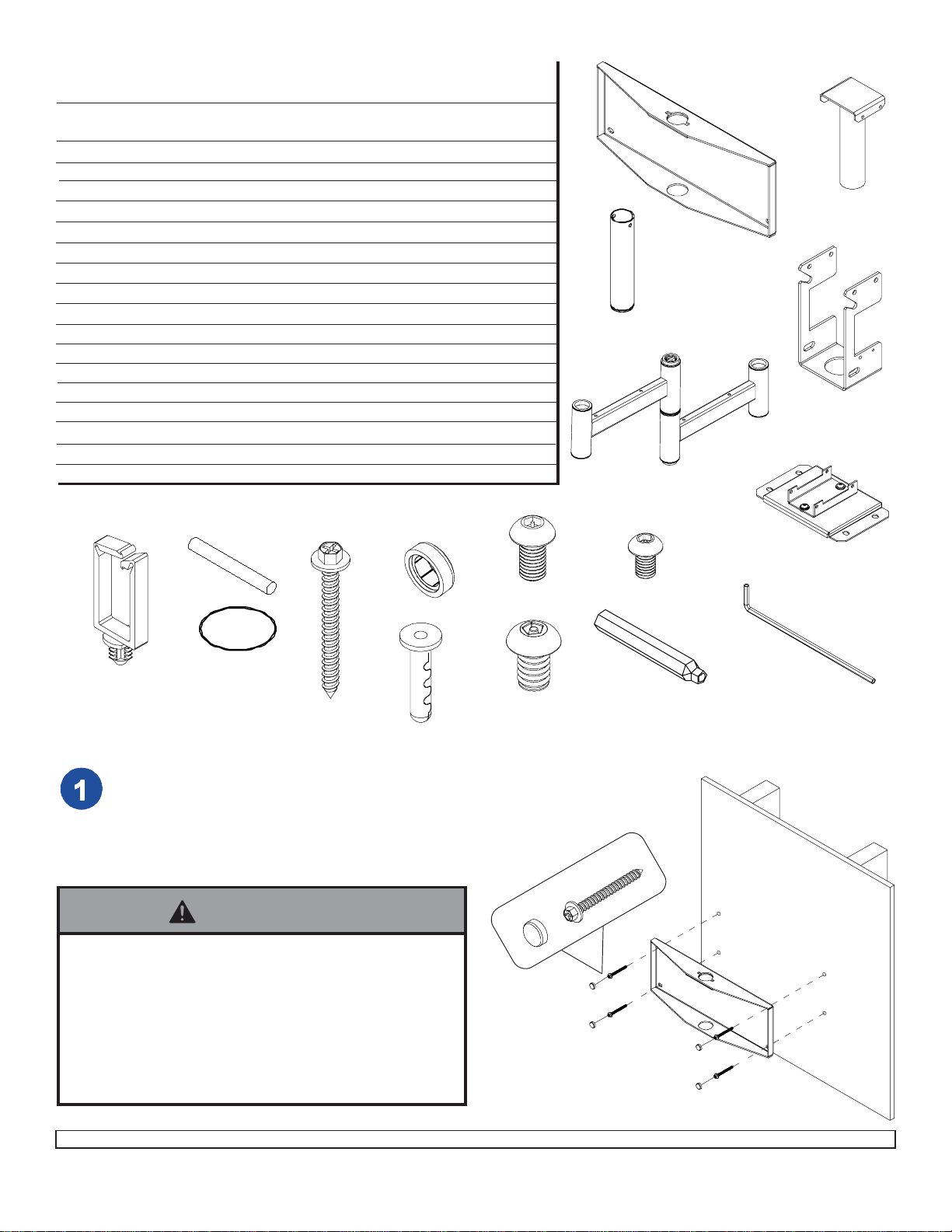

2 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

Use wall bracket as a template to mark and drill four

5/32" (4 mm) dia. holes to a minimum depth of 2.5"

(64 mm). Make sure wall plate (A) is level and attach

using #14 x 2 1/2" (6 mm x 38 mm) wood screws (J)

and screw head covers (K). Tighten screws with

phillips screwdriver (not provided) and push screw

head cover over wood screw heads.

Installation To Wood Stud Walls

Before you start make sure all parts

listed are included with your product.

PART # PART # QTY. DESCRIPTION

PLA 2 PLA 2S

A200-1413 200-4413 1 wall bracket

B200-1418 200-4418 1 swivel weldment

C200-1052 200-1052 1 wall support arm axle

D200-1483 200-4483 1 swivel bracket

E200-0437 200-0441 1 swing arm assembly

F200-0439 200-0440 1 roll pitch assembly

G590-1089 590-1089 4 cable clip

H5M9-025-X02 5M9-025-X02 1 holding pin

I560-9641 560-9641 1 snap ring

J5S1-015-C03 5S1-015-C04 4 #14 x 2.5" hex head phillips screw

K560-1029 560-2029 4 3/8" screw head cover

L520-1068 520-2068 4 M8 x 15 mm socket pin screw

M520-1066 520-2066 4 M6 x 10 mm socket pin screw

N590-0097 590-0097 4 alligator anchor

O520-9263 520-2176 4 M10 x 1.5" x 15 mm penta-pin screw

P520-9260 520-9260 1 M10 x 2" penta-pin driver

Q560-9646 560-9646 1 4 mm security allen wrench

Parts List

Some parts may appear slightly different than illustrated.

HJOP

• Tighten wood screws so that wall bracket is firmly

attached,butdonotovertighten. Overtightening can

damagescrews,greatlyreducingtheirholdingpower.

• Never tighten in excess of 80 in • lb (9 N.M.).

• Make sure that mounting screws are anchored into the

center of the studs. The use of an "edge to edge" stud

finderishighlyrecommended.

WARNING

3 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

CUTAWAYVIEW

INCORRECT

concrete

surface

Drill hole(s) and insert anchor(s)

mounting

plate

CORRECT

IMPORTANT!Concretemustbe2000psidensityminimum.

For Concrete Surfaces use wall bracket (A), making sure

that it is level, as a template to mark holes. Drill 1/4" (6 mm)

dia. holes to a minimum depth of 2.5" (64 mm). Insert

anchors (N) in holes flush with wall as shown (right). Place

wall bracket (A) over anchors (N) and secure with #14 x 2.5"

(6 mm x 65 mm) wood screws (J) and screw head covers

(K). Tighten screws with phillips screwdriver (not provided)

and push screw head covers over wood screw heads.

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1 5/8" of actual concrete

surface in the 1/4" diameter hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount

in a solid part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90

specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a

hammerdrill to avoid breaking outthe back ofthe holewhen entering avoid or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardwareand components.

• Neverexceed the Maximum Load Capacityof 90lb (40.9kg).

WARNING

Place plate over anchor(s) and secure with screw(s)

Tighten all fasteners

• Always attach concrete expansion anchors directly to

load-bearingconcrete.

• Neverattachconcreteexpansion anchors to concrete

coveredwithplaster,drywall, or other finishing mate-

rial.Ifmounting to concrete surfaces coveredwith a

finishingsurface is unavoidable, the finishing surface

mustbecounterbored as shown below.If plaster/

drywall is thicker than 5/8", custom fasteners must be

suppliedbyinstaller.

WARNING

mounting

plate

plaster/

drywall

concrete mounting

plate concrete

plaster/

drywall

• Tighten wood screws so that wall plate is firmly

attached,but do not overtighten.Overtightening can

damagescrews,greatlyreducingtheirholdingpower.

• Never tighten in excess of 80 in • lb (9 N.M.).

WARNING

4 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

Insert holding pin (H) into wall support arm axle (C). Insert axle (C)through wall bracket(A)and lower swing arm (E). Lock

axle (C) in place with holding pin (H). IMPORTANT: Be sure swing arm is in correct position shown below with plastic

cap at top.

Next thread snap ring (I) into groove at bottom of axle (C) protruding from wall bracket (A) as shown.

SNAP RING INSTALLATION: Pull snap ring apart. Wind it around the tube while feeding it into the groove. Finish by

snapping the end of the snap ring into groove.

NOTE: Fit of axle (C) into wall bracket (A) and lower swing arm (E) will be tight.

Gently tap into place with a hammer if necessary.

groove

Insert swivel weldment (B) through swing arm (E).

Align holes in swivel bracket (D) with holes in swivel weldment (B) and secure with four M6 x 10 mm socket pin screws (M)

as shown.

NOTE: Fit of rotation box

(B) into tube will be tight.

Gently tap into place with

a hammer if necessary

EMB

CORRECT POSITION

5 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

Attach roll pitch assembly (F) to adapter plate/plasma

screen assembly (not included) using four M10 x 15 mm

penta-pin screws (O).

BACK OF PLASMA

ADAPTER PLATE

ADAPTERPLATE AND SCREEN

MAYAPPEARDIFFERENTTHAN

ILLUSTRATED

Insert two M8 screws (L) into roll pitch assembly (F). Leave

approx. 1/4" of exposed thread as shown in detail.

Hook roll pitch assembly/monitor

onto swivel bracket (D).

Adjust tilt as needed and secure with two M8 x 15 mm

screws (L). Use allen wrench (Q) to tighten screws.

1/4" CUTAWAY

VIEW

• Use an assistant of mechanical lifting equipment to

safely lift and position the screen.

WARNING

6 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

Peerlessis aregistered trademarkof Peerless Industries,Inc.

Solid•Pointisa trademarkoftrademark ofPeerless Industries, Inc.

Allother brand andproduct names aretrademarks or registeredtrademarks of their respective owners.

Snap four cable clips (G) in to

swing arm assembly (E) as shown.
