PEERLESS PE 1120 Guida

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 07-11-06 SHEET #: 055-9462-1

Installation and Assembly:

Projector Enclosure

Models: PE 1120, PE 1120-W

2 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1

Note: Read entire instruction sheet before you start installation and assembly.

For customer care call (800) 729-0307 or (708) 865-8870.

Applications:

Suspended Ceiling.......................................................................................................................................... page 4

Extension Column ........................................................................................................................................... page 5

Flush Mount ..................................................................................................................................................... page 6

IMPORTANT! Turn to the appropriate page for your ceiling installation.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer care at 1-800-729-0307.

• This product should only be installed by a qualified professional.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

WARNING

Tools Needed for Assembly

•open-end 8 mm wrench

•open-end 1/2" wrench

3 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1

PE 1120 PE 1120-W

Description Qty. Part # Part #

Aprojector cage 1 055-1690 055-2690

Btop plate 2 055-0695 055-0697

Cpole clamp 1 055-0694 055-0696

D.5" dia. X 12" rod 8 580-1163 580-2163

EM5 x 10 mm penta pin screw 4 505-9010 500-2001

FM5 x 1" penta pin driver 1 520-9249 520-9249

G5/16-18 nylock nut 1 530-1009 530-1009

HM5 x 10 mm hex screw 3 520-1324 520-2324

Parts List

4 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1

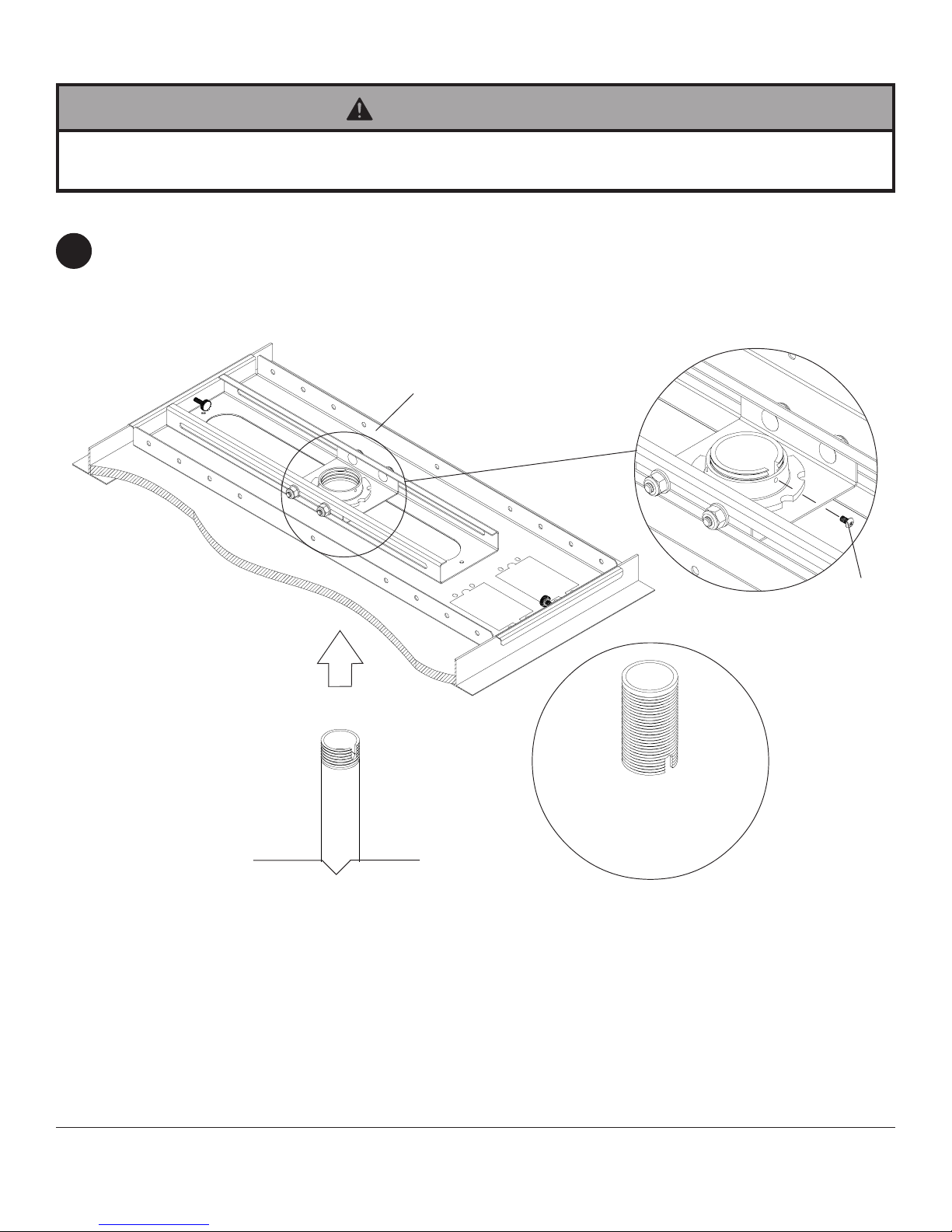

Suspended Ceiling Application

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

WARNING

Note: If flush mount tube has been installed in suspended ceiling mount, remove it before proceeding with this step.

From the bottom up, thread extension column (EXT 006, not included) up through retaining collar in adjustable collar

mount plate. Align notch in extension column with hole in collar and fasten using M5 x 10 mm security screw as

shown in detail 1.

continue to extension column application on page 5 for attachment of projector enclosure...

DETAIL 1

FLUSH MOUNT TUBE

CEILING MOUNT

M5 X 10 MM

SCREW

5 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1

Note: Refer to projector mount instruction sheet for attachment of projector mount to extension column.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

WARNING

Extension Column Application

Wrap pole clamp (C) around extension column (not

included) and secure with nylock nut (G). Hand

tighten all nylock nuts on pole clamp (C).

Note: Pole clamp (C) will work with 1" to 1-1/2"

NPT pipe.

1Slide top plates (B) together over pole clamp (C).

Slide M5 screws into keyhole slots and tighten as

shown in detail 1.

Note: If M5 screws are inaccessible from the top,

remove them from top plates and insert from the

bottom using bottom holes and keyhole slots.

Align slots in top plates (B) with holes in pole clamp (C) and insert three M5 x 10 mm hex screws (H). Tighten

screws using open-end 8 mm wrench (not provided).

EXTENSION

COLUMN

(NOT INCLUDED) B

M5 SCREW

KEYHOLE SLOT

DETAIL 1

1-3

1-1

1-2

BOTTOM HOLE

BOTTOM

KEYHOLE SLOT

Rotate top plates (B) and pole clamp (C) until top plates are parallel with projector. Then, tighten nylock nuts on pole

clamp using an open-end 1/2" wrench (not provided).

continue to step 2 on page 7...

6 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1

Note: Refer to projector mount instruction sheet for attachment of projector mount to ceiling.

1-2 Following projector mount instructions for flush mount applications, attach projector mount to ceiling through slots

indicated in figure 1.2.

CEILING

fig 1.2

PROJECTOR

MOUNT

fig 1.1

CEILING

Flush Mount Application

Remove M5 penta pin screws from top plates (B).

1Attach top plates (B) to ceiling using outer holes

indicated in figure 1.1.

Note: It is the responsibility of the installer to

provide fasteners appropriate for the mounting

surface.

1-1

M5 PENTA PIN

SCREW

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

WARNING

7 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1

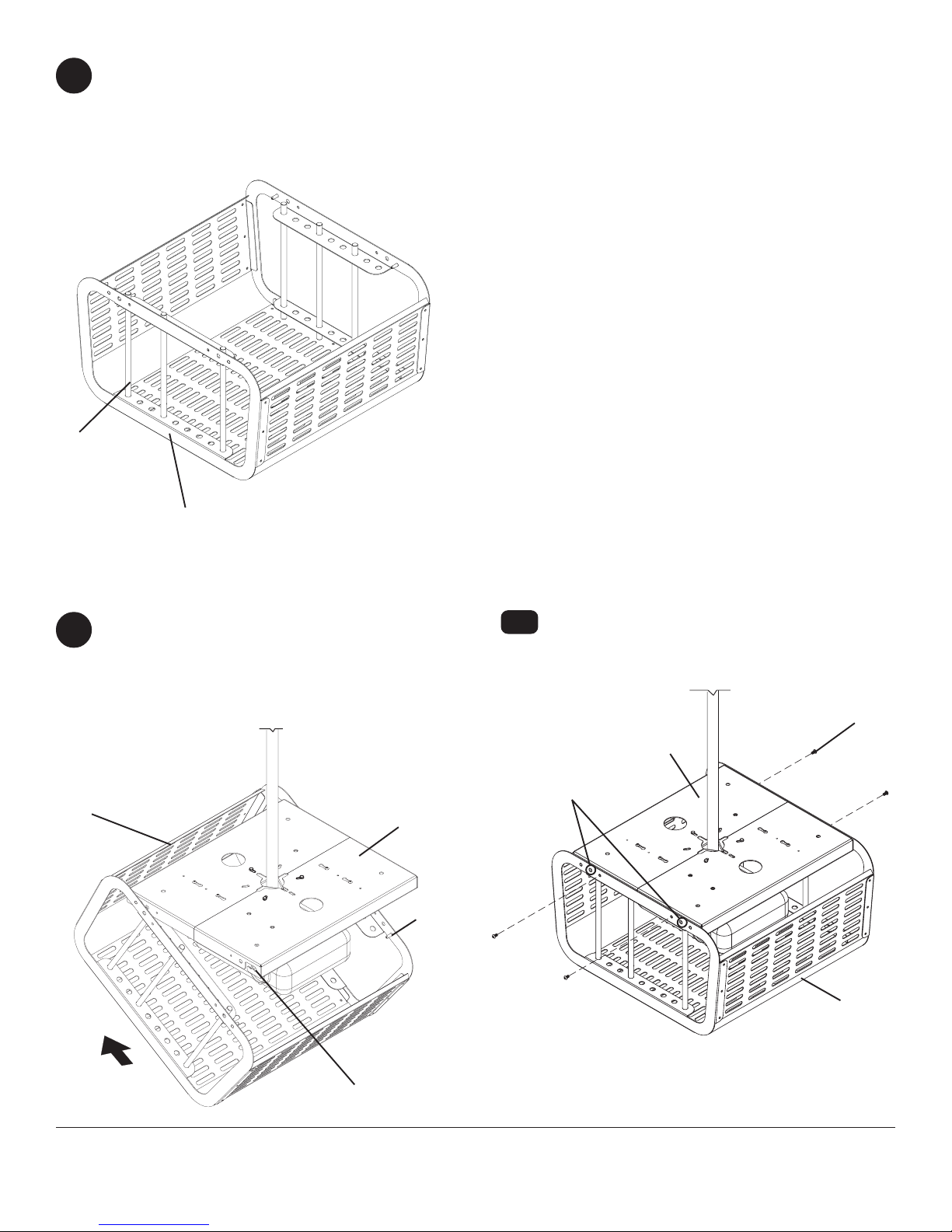

Secure projector cage (A) to top plates (B) using

four M5 x 10 mm penta pin screws (E). Tighten

screws using penta pin driver (F).

Insert pegs on one side of projector cage (A) into

slots of one top plate (B) and slide all the way to

last notch. Insert pegs on other side of projector

cage into slots of other top plate and slide over until

all pegs are resting on middle notches of slots.

Slide rods (D) into holes of projector cage (A). Use

as many rods as necessary to prevent projector

from being removed from projector cage.

Note: Position rods where projector lens will not be

obstructed.

3-1

Peerless is a registered trademark of Peerless Industries, Inc.

All other brand and product names are trademarks or registered trademarks of their respective owners.

PEG

SLOT

Note: Padlock may be

used for added security.
