PEERLESS PLCM-UNL Manuale di istruzioni

ISSUED: 07-31-06 SHEET NO: 200-9831-3 07-08-09

Peerless Industries, Inc.

3215 W. North Ave. Melrose Park, IL 60160

708-865-8870 800-865-2112 Fax 708-865-2941

www.peerlessmounts.com

page 1 of 3

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

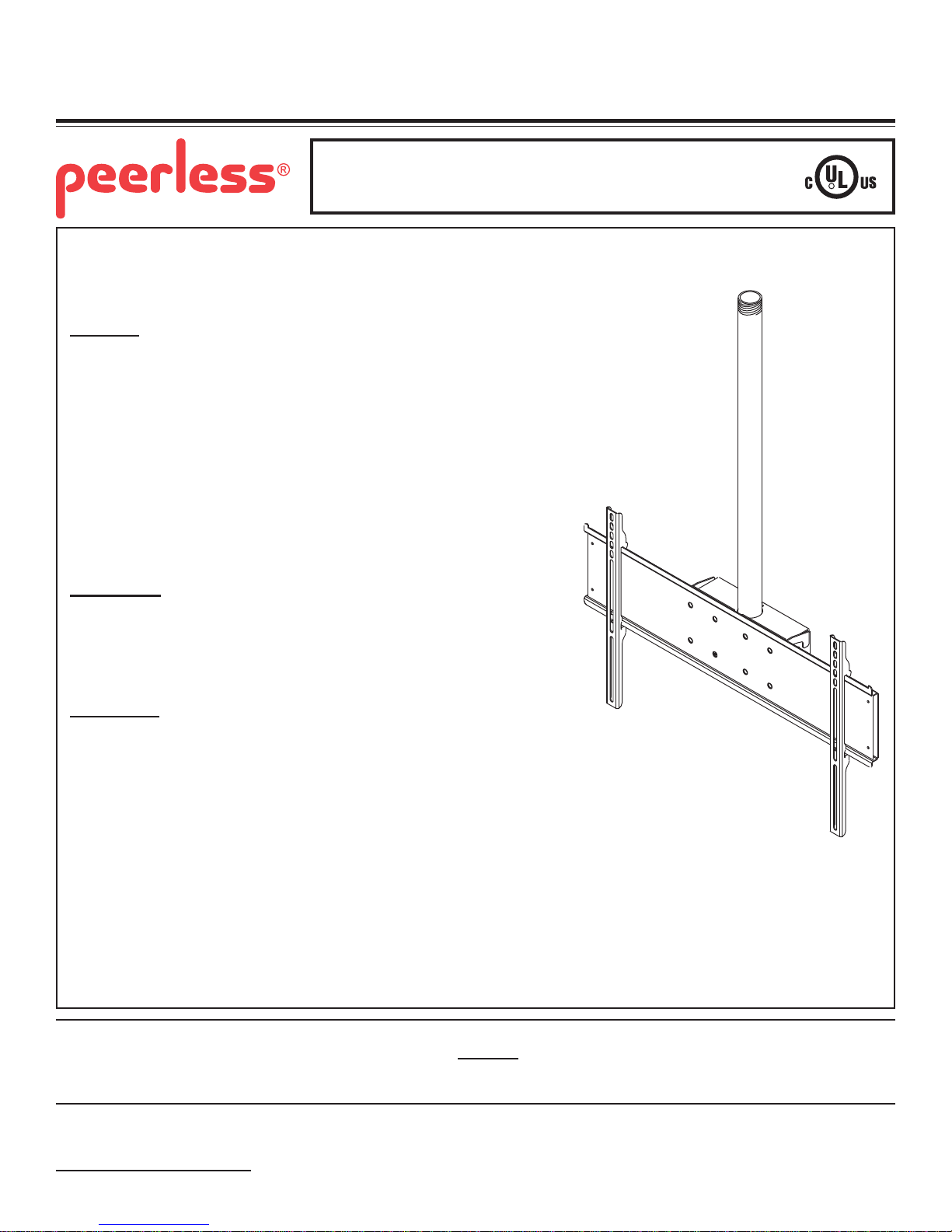

TheStraight ColumnCeiling Mount offersastraight columnfrom the

ceiling attachment point to the flat panel screen. The straight column

ceiling mount is ideal for sports facilities, airports, lobbies or retail

environments.

Features:

•PLCM-UNLmodelsincludeaPLP-UNLadapterplate(landscape

only)

• 0° to 20° adjustable tilt and 360° swivel

• Screenmountshorizontally

• Uses standard 1 1/2" – 11.5 NPT schedule 40 pipe

• Additionallengthcanbeaddedforlowering

• Theft-resistant security fasteners secure the screen to the mount

• Sold without ceiling plate

• Completedetailedinstallationinstructionsforwoodandconcrete

structures

Accessories:

•CeilingPlaterequired(soldseparately).Variousoptionsavailable.

Other ceiling accessories can be ordered separately to allow

mounting to I-beams, cathedral ceilings, trusses, etc.

Dimensions:

Weight:

23.1 lb (10.5 kg)

Shipping weight:

30.3 lb (13.7 kg)

Maximum Load Capacity:

200lb (90.7 kg)

ShippingCartondimensions:

L=38.0625"(967mm)

W=12"(305mm)

H= 8.125"(206mm)

MODEL:PLCM-UNL

A R C H I T E C T S S P E C I F I CA T I O N S

TheStraightColumnFlatPanelCeilingMountshallbeaPeerlessmodelPLCM-UNLandshallbemountedwhereindicatedontheplans.Itshallbe

constructedofheavygaugecoldrolledsteel,steeltubingandfinishedwithscratchresistantBlackFusedEpoxy.Itshallfeature360°swiveland0°

to20°rangeoftilt.Assemblyandinstallationshallbedoneaccordingtoinstructionsprovidedbythemanufacturer.

TECHNICAL DATA SHEET - Straight Column Flat Panel Ceiling Mount

for 32" to 60" LCD And Flat Panel Screens

TECHNICAL DATA SHEET MODEL:PLCM-UNL

page 2 of 3

ISSUED: 07-31-06 SHEET NO: 200-9831-3 07-08-09

Peerless Industries, Inc.

3215 W. North Ave. Melrose Park, IL 60160

708-865-8870 800-865-2112 Fax 708-865-2941

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

(UNLESS OTHERWISE SPECIFIED)

ALLDIMENSION= INCH

(MM)

FRONT VIEW

SIDE VIEW

0° to 20°

TILT

5.25

(133)

RANGE

3.75

(95)

RTO

Landscape: X = A - (1/2 ( height of screen)) - 2.68" (68 mm))

A = 34.26" (870 mm) when used with 33" (838 mm) extension

column Landscape: X = A - (1/2 ( height of screen)) - 2.68" (68 mm)

TOP VIEW

10.24

(260)

1.79

(46)

TECHNICAL DATA SHEET MODEL:PLCM-UNL

page 3 of 3

ISSUED: 07-31-06 SHEET NO: 200-9831-3 07-08-09

Peerless Industries, Inc.

3215 W. North Ave. Melrose Park, IL 60160

708-865-8870 800-865-2112 Fax 708-865-2941

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

(UNLESS OTHERWISE SPECIFIED)

ALLDIMENSION= INCH

(MM)

SIDE VIEW

WITH SHALLOW

BRACKET

ADAPTER BRACKET DETAIL

SIDE VIEW

WITH DEEP

BRACKET

3.26

(83)

1.25

(32)

(100)

30.75

(781)

3.25

(83) 2.63

(67)

28.7

(729)

max.

7.45

(189)

17.05

(433)

max.

(457)

(18)

1.18

(30) 1.68

(43)

(18)

(457) 18

(457)
