PEERLESS PLP-UNL Guida

1 of 4 ISSUED: 11-11-05 SHEET #: 202-9060-3 12-06-06

PLP-UNL PLP-UNL-S PLP-UNLP PLP-UNLP-

Description Qty Part # Part # Part # Part #

AA adapter bracket 1 201-1110 201-4110 201-1110 201-4110

BB shallow adapter bracket 2 200-0756 200-0757 200-0754 200-0755

CC deep adapter bracket 2 200-0752 200-0753 200-0750 200-0751

DD allen wrench 1 560-9646 560-9646 560-0072 560-0072

EE M5 x 10mm screw 4 520-1063 520-1063 520-9250 520-9250

Before you begin, make sure all parts shown are included with your product.

Parts List

Installation and Assembly - Universal Adapter

Bracket for 32" - 60" Flat Panel Screens Models: PLP UNL, PLP UNL-S,

PLP UNLP, PLP UNLP-S

IMPORTANT! Read instruction sheet before you start installation and assembly.

Used with specific

mounts only EE

2 of 4 ISSUED: 11-11-05 SHEET #: 202-9060-3 12-06-06

M5 x 25 mm (4)

520-1122

M4 x 12 mm (6)

510-1079

M4 x 25 mm (4)

510-1082

M5 x 12 mm (4)

520-1064 M6 x 12 mm (4)

520-1050

M6 x 25 mm (4)

520-1211

I.D. 5.6 mm (4)

540-1057

multi-washer(6)

580-1036

I.D. 8.7 mm (4)

540-1059

SecurityAdapter Bracket Fasteners

M6 x 20 mm (4)

520-9554

M6 x 30 mm (4)

520-1067

M8 x 15 mm (6)

520-1068

M8 x 40 mm (4)

520-1152

M8 x 25 mm (4)

520-1101

M6 x 20 mm (4)

520-9402

M6 x 30 mm (4)

510-9109 multi-washer(6)

580-1036

M8 x 16 mm (6)

520-9257

M8 x 40 mm (4)

520-1136

M4 x 12 mm (6)

504-9013

Phillips Adapter Bracket Fasteners

M4 x 25 mm (4)

504-1015

M5 x 12 mm (4)

520-1027 M5 x 25 mm (4)

520-9543

M6 x 12 mm (4)

520-1128

M6 x 25 mm (4)

520-1208

I.D. 5.6 mm (4)

540-1057

M8 x 25 mm (4)

520-1031

I.D. 8.7 mm (4)

540-1059

3 of 4 ISSUED: 11-11-05 SHEET #: 202-9060-3 12-06-06

Note: "X" dimensions should be equal.

• Tighten screws so adapter brackets are firmly

attached. Do not tighten with excessive force.

Overtightening can cause stress damage to

screws, greatly reducing their holding power

and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.)

maximum torque.

WARNING

Installing Adapter Brackets

Refer to Screen Compatibility Chart to determine the proper fasteners to use.

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place

screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.

Place adapter brackets (BB or CC) on back of screen, align to holes, and center on back of screen as shown in

figure 1.1.Attach the adapter brackets to the back of the screen using the appropriate combination of screws, multi-

washers, and spacers as shown in figure 1.3.

Note: Top and bottom holes must always be used.

Verify that allholes areproperlyaligned, andthen tighten screwsusing a phillipsscrewdriver.

Note:Tightenusingsecurityallenwrench(DD).

• If screws don't get three complete turns in the screen

inserts or if screws bottom out and bracket is still not

tightly secured, damage may occur to screen or

product may fail.

WARNING

MEDIUM HOLE FOR M5

SCREWS

SMALL HOLE FOR M4

SCREWS

LARGE HOLE FOR M6 SCREWS

fig. 1.2

CENTER BRACKETS

VERTICALLY ON BACK OF

SCREEN

fig 1.1

Notes:

• Thenumberof fasteners usedwillvary,

depending upon the type of screen.

• Multi-washers and spacers may not be

used, depending upon the type of screen.

• Use the corresponding hole in the multi-

washer that matches your screw size as

shownin figure1.2.

SCREWS

SPACERS

BB or CC

fig 1.3

MULTI-

WASHER

MULTI-WASHER

4 of 4 ISSUED: 11-11-05 SHEET #: 202-9060-3 12-06-06

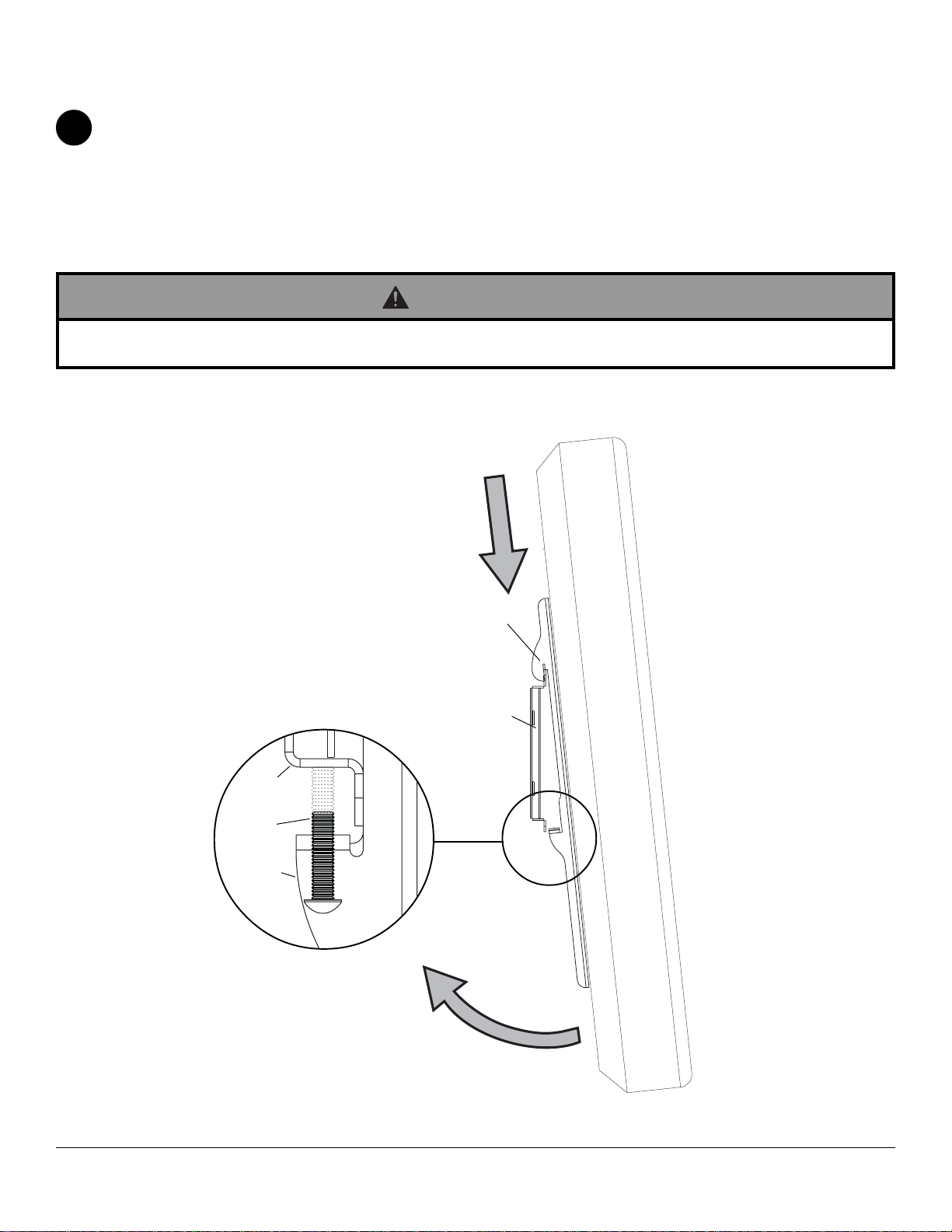

Mounting and Removing Flat Panel Screen

Referto mountinstruction sheetfor attachmentof adapterbracket tomount.

Hook adapter brackets (BB or CC) onto adapter bracket (AA), then slowly swing screen in as shown. Turnscrews

clockwise at least six times to prevent screen from being removed as shown in detail 1.

Note:Tightenusingsecurityallenwrench(DD).

Screen can be adjusted horizontally if desired.

Note: To lock the screen down, tighten screws to adapter bracket as shown in detail 1.

Toremovescreenfrommount,loosenscrews,swingscreenawayfrom mount, and liftscreenoffofmount.

BB or CC

DETAIL 1

SCREWS

• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.

WARNING

Peerless is a registered trademark and Smart mount is a trademark of Peerless Industries, Inc.

All other brand and product names are trademarks or registered trademarks of their respective owners.
