PEERLESS Smartmount ST670 Manuale utente

Universal Tilt Wall Mount

for 42" to 71" Flat Panel Screens

Enhance the installation experience with the ST670. Its wall plate holds screens weighing up to

250lb while featuring junction box access ports and horizontal screen adjustment up to 12" for

ideal screen positioning. Its exclusive pre-tensioned screen adapter design offers one-touch

tilt viewing adjustment enabling putting the nal touches on the installation increasingly fast

and simple.

Adjustable +15/-5° tilt

Screen size: 42"-71" Max load: 250lb (113kg)

ST670 / ST670-S

ST670P / ST670P-S

 Universal mount ts screens

with mounting patterns up to

36” W x 20” H (915 x 503mm)

Adjustable up to 15° of

forward tilt and -5° backward

tilt for optimal viewing angle

Pre-tensioned universal tilt

screen adapters allow for tilt

adjustment without the use of

tools

 Easy-grip lever locks the

screen position into place

Optional IncreLock™ feature

offers xed tilt angles of -5°, 0°,

5°, 10°, 15°

Horizontal screen adjustment

of up to 12" (304mm)

(depending on screen model)

for perfect screen placement

Universal screen adapters

easily hook onto wall plate for

fast installation

 Mounts to wood studs,

concrete, cinder block or

metal studs (metal stud

accessory required)

Comes with Peerless’

Sorted-for-You™ fastener

pack with all necessary screen

attachment hardware

 Integrated security options

available

UL listed

CLICK: www.peerlessmounts.com CALL: 800.865.2112 FAX: 708.865.2941

FEATURES

VIEWING FLEXIBILITY

Horizontal screen adjustment up to 12”

(304mm) for centering screen on wall

INCRELOCK

Optional tilt lock at 5°

increments

SCREEN ANGLE

ADJUSTMENT

Easy-grip lever

locks tilt angle into

place without the

use of tools

IDEAL VIEWING ANGLE

Pre-tensioned tilt

mechanism allows for

one-touch tilt adjustment

A R C H I T E C T S S P E C I F I C A T I O N S

The Smartmount®Universal Tilt Wall Mount shall be a Peerless model ST670 and shall be located where indicated on the plans.

It shall be constructed of heavy gauge cold rolled steel and nished with scratch resistant Black or Sliver Fused Epoxy.

Assembly and installation shall be done according to instructions provided by the manufacturer.

Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (708) 865-8870 Fax: (708) 865-2941 www.peerlessmounts.com

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

ST670(P)(-S) 46.75" x 8.63" x 3.88"

(119 x 219 x 99mm) 15.4lb (6.98kg)

ST670:

ST670-S:

ST670P:

ST670P-S:

735029242277

735029242291

735029242284

735029242307

Wall plate, universal

screen adapters,

mounting and screen

attachment hardware

Package Speciﬁcations

Accessories

DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS

ST670(P)(-S) 37.75" x 20.62" x 3.04"

(959 x 524 x 77mm) 12.97lb (5.8kg) 250lb (113kg)

Scratch

resistant

fused

epoxy

ST670(P):

ST670(P)-S:

Black

Silver

Product Speciﬁcations

Model Numbers WARRANTY: Limited 5-year

ACC415: 4-pack Metal Stud Fastener Kit

ACC615: 6-pack Metal Stud Fastener Kit

ACC309: Video Conference Shelf

All dimensions = inch (mm)

ST670(-S) Universal Tilt Wall Mount for 42" to 71" Flat Panel Screens - security models

ST670P(-S) Universal Tilt Wall Mount for 42” to 71” Flat Panel Screens - standard models

LIT-0604

19.80"

MAX.

(503mm)

36.04"

MAX.

(915mm)

40.16"

(1020mm)

2.50"

(64mm)

5.50"

(140mm)

4.00"

(102mm)

5.50"

(140mm)

3.04"

(77mm)

6.41"

(163mm)

15°

37.75"

(959mm)

5.00"

(127mm)

7.45"

(189mm)

1.00"

(25mm)

20.00"

(508mm)

24.00"

(610mm)

16.00" 16.00"

(406mm)(406mm)

20.63"

(524mm)

1.25"

(32mm)

0.85"

(22mm)

0.75"

(19mm)

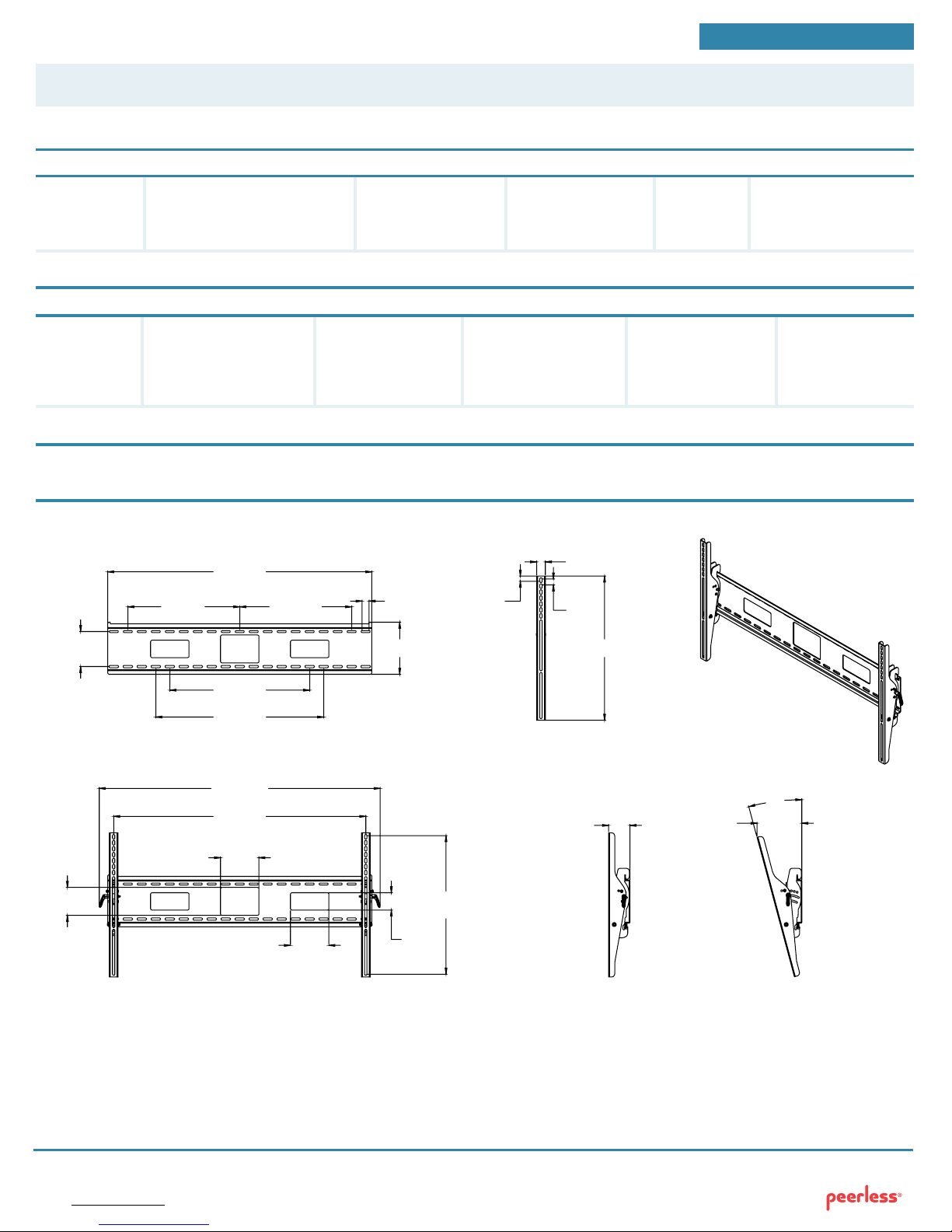

FRONT VIEW

SIDE VIEW

15° TILT

WALL PLATE

VERTICAL BRACKET

SIDE VIEW

ISOMETRIC VIEW
