Peg-Perego IGOD0510 Manuale utente

Model Number IGOD0510

USE AND CARE

UTILISATION ET ENTRETIEN

EMPLEO Y MANUTENCION

FIUS0802G120

MADE INMADE IN

USAUSA

See separate insert sheet

for more information

Vea la hoja separada del

separador de millares

para más información

Voir la feuille séparée

d'insertion pour plus

d'information

For more information see Steps 50-52

Para más informacíon vea el paso de progresión 50-52

Pour plus d’information voir l’étapes 50-52

For more information see Step 54

Para más informacíon vea el paso de

progresión 54

Pour plus d’information voir l’étape

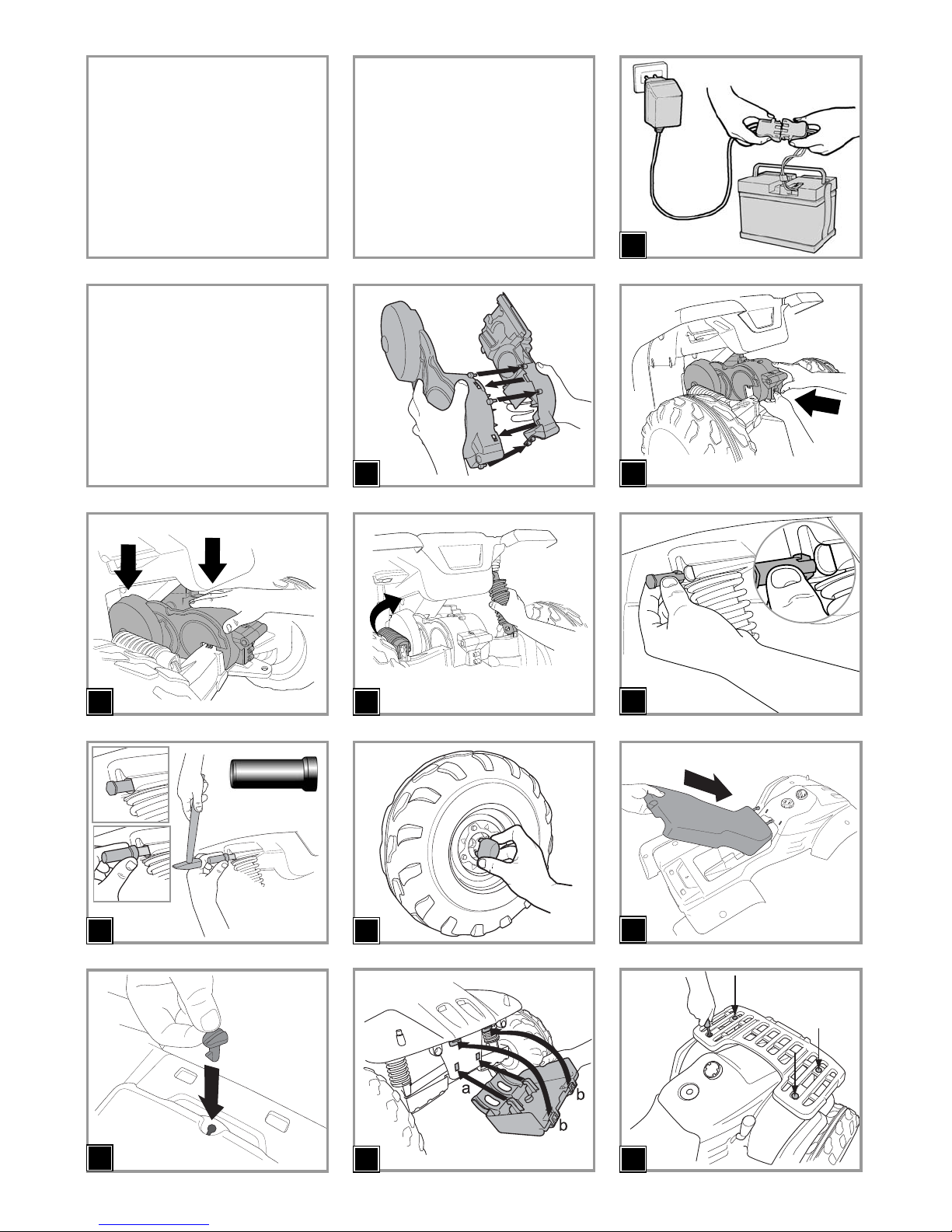

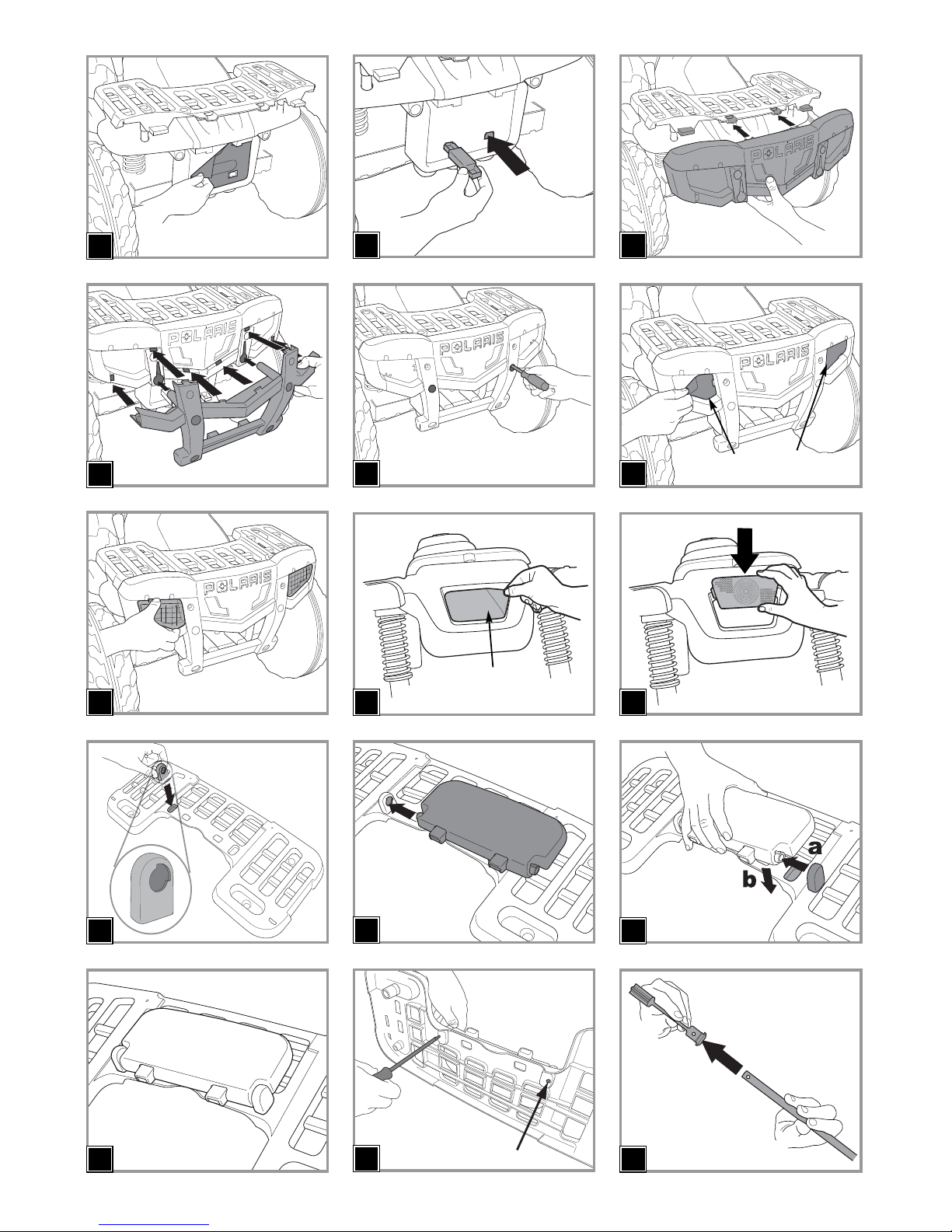

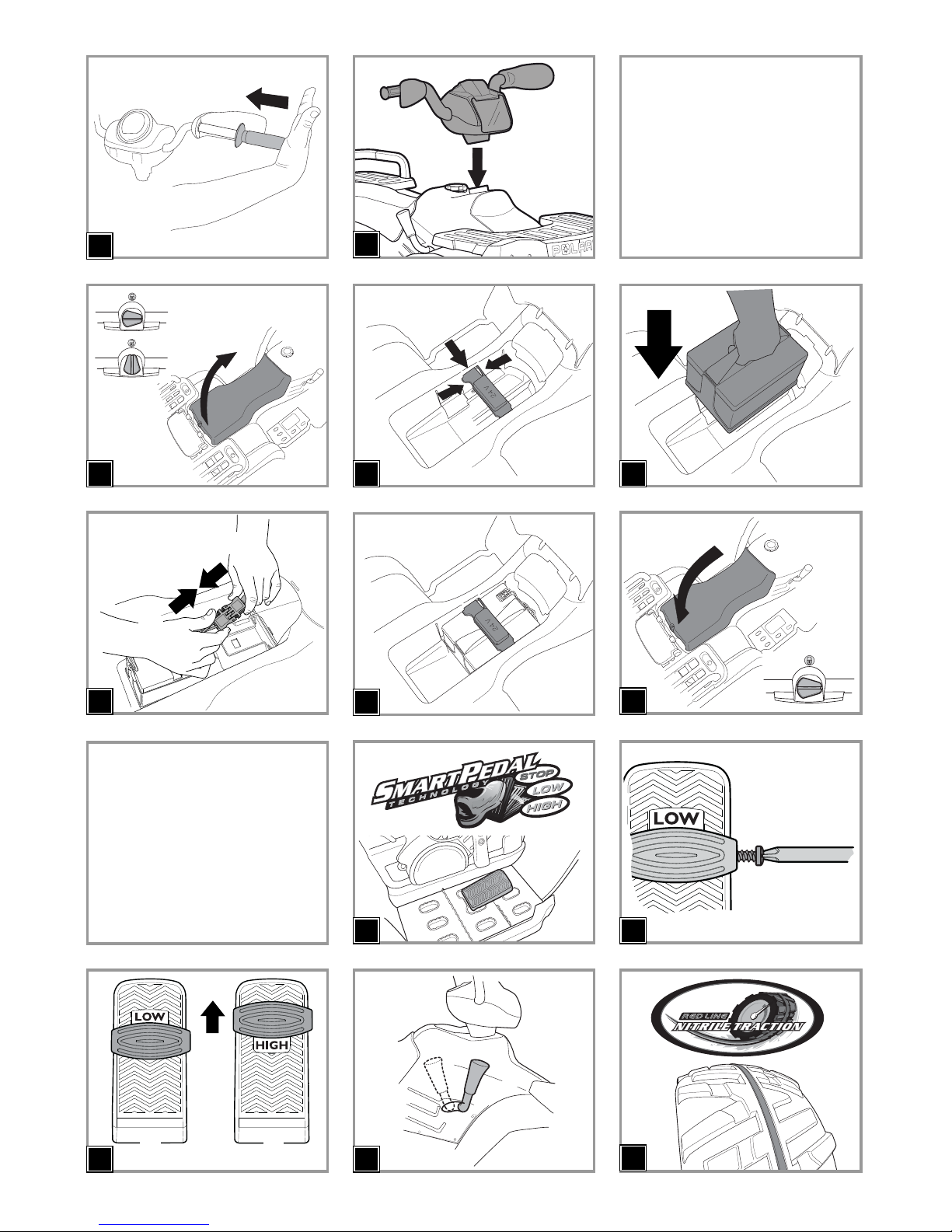

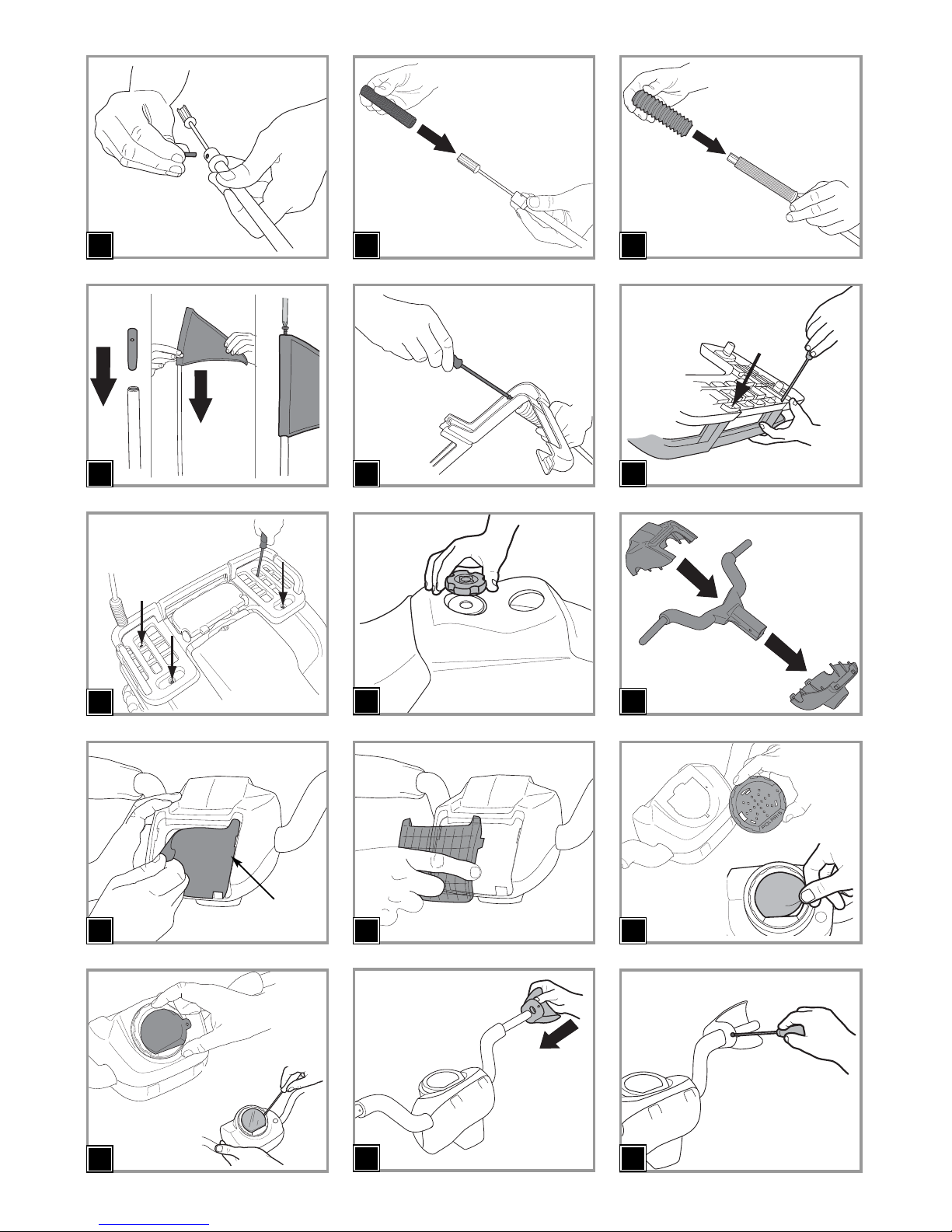

ASSEMBLY

MONTAJE

MONTAGE

345

SEE VERBAL INSTRUCTIONS

AFTER THE PICTURES

VER LAS INSTRUCCIONES

DESPUÉS DE LOS DISEÑOS

VOIR LES INSTRUCTIONS

APRÈS LES DESSINS

1110

INITIAL BATTERY CHARGE

PRIMERA CARGA DE LA

BATERÍA

PREMIÈRE CHARGE DE

BATTERIE

1716

201918

21 23

chrome decal

#28

24 25 26

1413

chrome decal

#8 & #9

39 40 41

chrome decal

VEHICLE FEATURES AND

INSTRUCTIONS FOR USE

CARACTERÍSTICAS Y USO

DEL VEHÍCULO

CARACTERÍSTIQUES ET

UTILISATION DU VEHICULE

BATTERY INSTALLATION

INSTALACIÓN DE LA BATERÍA

INSTALLATION DE LA BATTERIE

45 46

unlock

lock

BATTERY REPLACEMENT

CAMBIO DE LA BATERÍA

REPLACEMENT DE LA BATTERIE

57 59

lock

unlock

lock

BATTERY RECHARGE

CARGA DE LA BATERÍA

CHARGE DE LA BATTERIE

lock

unlock

lock

MEVA0054

ELECTRONIC BOARD

MASTER

ACCELERATOR

HOUSING

SAGI8960JNGL

POLARIS 800

MOTOR

LEFT

MEIE0827

SAGI9988

MOTOR

RIGHT

THERMO PROTECTOR

PUSH BUTTON

MEPU0003

REVERSE

r/r

b/b

REVERSE

CONNECTOR

PUSH BUTTON

MEIE0830

brbkw

POLYSWITCH

RUEF800

POLYSWITCH

b= blue

bk = black

r = red

w= white

b= bleu

bk = noir

r = rouge

w= blanc

b= azul

bk = negro

r = rojo

w= blanco

ELECTRICAL DIAGRAM DIAGRAMA ELÉCTRICO DIAGRAMME ÉLECTRIQUE

REPLACEMENT PARTS PIEZAS DE RECAMBIO PIÈCES DE RECHANGE

USA

Call toll free:

1-800-728-2108

Llame gratis:

1-800-225-1558

Canada

Call toll free:

Appelez le péage libre:

1-800-661-5050

Mexico

Llame gratis:

1-800-710-1369

ELECTRIC SYSTEM

INSTALACIÓN ELÉCTRICA

CIRCUIT ÉLECTRIQUE

DECAL

CALCOMANIAS

DECALCOMANIES

918

20R

21 22

40 L

40R

52 L

52 R

1SAGI8943N

2SPST8373N

3SPST8413N

4SPST8351N

5SPST8417AN •

6SPST8938AN •

7SPST8939

8SPST8378N

9SPST8370XAN •

10 SPST8406JN

11 SPST8942N

12 SPST8957N •

13 SPST8412 •

14 SPST8547GR

15 ASGI0202GR

16 SPST8396RF

17 MECB0111

18 SPST8392NP

19 SAGI8944NPGR

20 RSPST8946D

20 LSPST8946S

21 SPST8381SGR

22 SPST8389AN

23 SPST8369KN

24 SPST8393N

25 SPST8947N

26 SAGI8958N

27 SPST8766KGL

28 ASGI0147NGR

29 SAGI0060N

30 RSOGI0037DSL30

30 LSOGI0037SSL30

31 SPST8427AN

32 SPST8391KNP

33 ASGI5021JGR

34 SARP9037NGR

35 SPST8397GR

36 SPST8398AN

37 SPST8401KN

38 SAGI8735NGR

39 SPMV8376KGRS

40 RSPST8377KDMF

40 LSPST8377KSMF

41 MEIE0827

42 SPST8390KAN

43 SPST8381DGR

44 SPST8441N

45 SPST8371JGR

46 SOFF0180Z

47 SAGI8972XWTN

48 SOFF0178FL30

49 SARP9038NGR

50 SPST8975GR

51 SPST8384GR

52 RASGI0148DNGR

52 LASGI0148SNGR

53 MMEV0451

54 SPST8950NP

55 IAKB0018

56 SPST8955N

57 SAGI8960JNGL

BATTERY CHARGER

CARGADOR DE BATERIA

CHARGEUR DE BATTERIE

20L

ENGLISH

IMPORTANT INFORMATION

PEG PEREGO® thanks you for choosing this product. For almost 60 years, PEG PEREGO has been taking children for an outing: first with

its famous baby carriages and strollers, later with its pedal and battery operated toy vehicles.

•Read this instruction manual carefully to learn the use of the vehicle and to teach your child safe and enjoyable

driving. Please keep this manual (with your original sales receipt) for use as a reference in the future.

•DO NOT RETURN YOUR VEHICLE TO THE STORE. This product cannot be returned for a refund after it has

been used. If you have ANY questions,need replacement parts or need assistance,call us toll-free at 1-800-

728-2108.

•This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS,

including F 963, Consumer Toy Safety Specifications as well as C.R.C, c.931, the Canadian Hazardous Products (Toys)

Regulations.

•Tools needed for assembly: Phillips screwdrivers; medium and small. (not included)

•Your new vehicle is partially pre-assembled.It will require adult assembly. Please set aside at least 60 minutes for

assembly.

• Before the vehicle is used for the first time, charge your batteries for 18 hours to initiate them. Failure to do this

can result in permanent battery damage.

• Use only with the included Peg Perego 24 Volt lead-acid, rechargeable battery and a Peg Perego 24 Volt Charger

(both included).

•Years 5-10

•Weight capacity 150 lbs

• Do not exceed the maximum total weight capacity of 150 lbs (68 kg). This includes both riders and cargo.

Contents:

• 1 Polaris Ranger Sportsman 800 Twin children’s ride-in vehicle -- partially assembled

• 1 Rechargeable 24V 11Ah sealed lead-acid battery -- in packaging

• 2 heavy duty 280 W motors -- pre-installed

• parts to be assembled

• decals

• LOW speed: 3.5 mph - HIGH speed: 7 mph - Reverse: 3.5 mph

• For safety, this vehicle has been pre-set so it will only operate in LOW speed. See steps 58-60 to remove the HIGH

speed lock-out.

• To prevent damaging the motors and gears, teach your child to stop the vehicle befor switching direction.

• Use this vehicle ONLY outdoors.Most interior flooring can be damaged by riding this vehicle indoors.Peg Perego

will not be responsible for damage to the floor if the vehicle is used indoors.

• Peg Perego reserves the right to modify or change its product. Price, literature, manufacturing processes or

locations or any combination of the above mentioned entities may change at any time for any reason without

notice with impunity.

CAUTION:

ELECTRIC VEHICLE NOT RECOMMENDED FOR CHILDREN UNDER 5 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS,

PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. RECHARGER

INCLUDED.120 VOLTS, 60Hz, 33W INPUT, 24 VOLTS (DC) OUTPUT.
