Pegler Xia Manuale di manutenzione

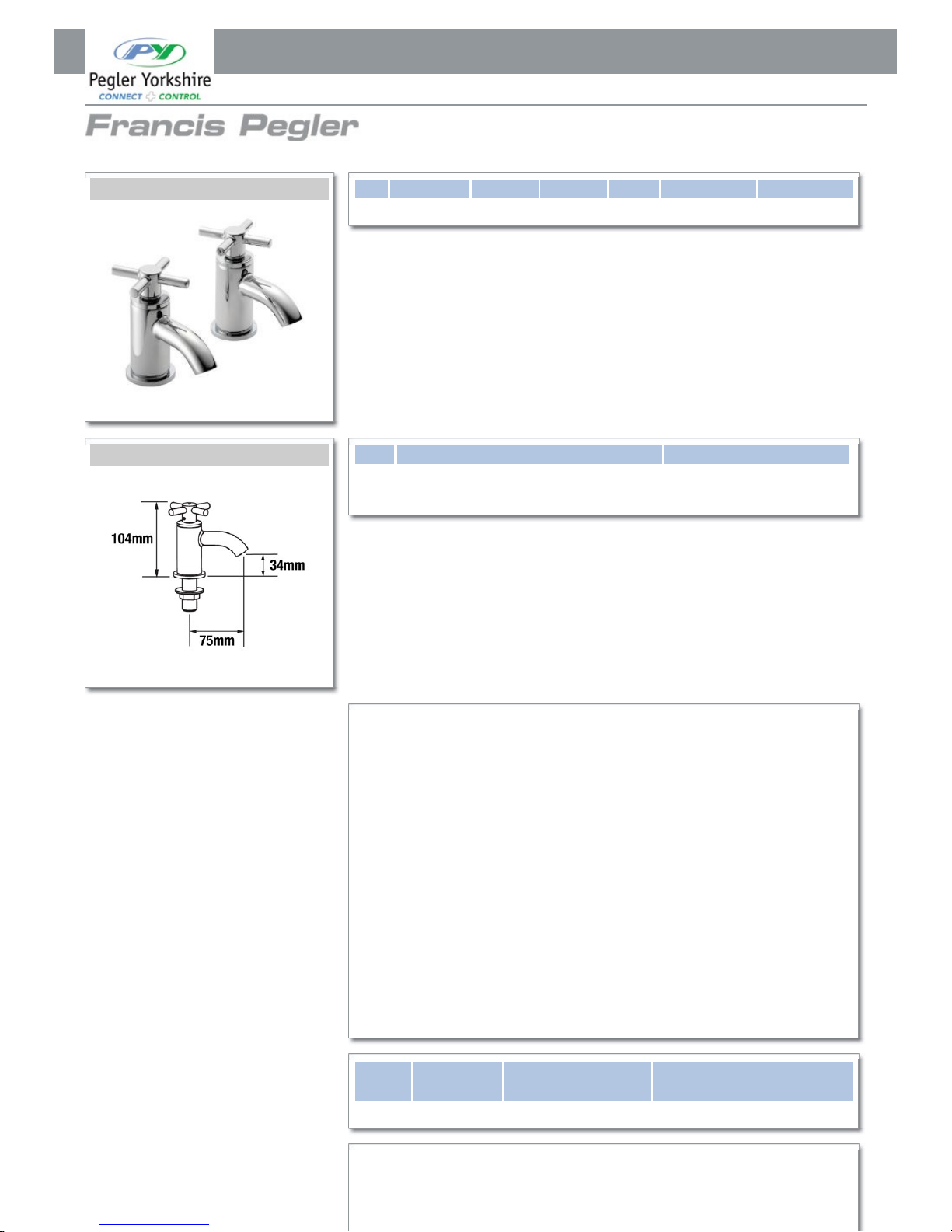

Xia Basin Tap
Basin Tap Size Pattern No. Pack 1 Qty Pack 2 Qty Code Barcode
NA Basin Tap CP 184K8005 5013866053412
Basin Tap Code
4K8005
Description Dimensions
BASIN TAP (PAIR) see image
Pegler Yorkshire reserve the right to change specifications
10 Year Guarantee
Luxury Taps and Mixers
Pegler Yorkshire Customcare 10 Year Guarantee - Terms and Conditions
Product are subject to a 10 year guarantee that is between Pegler Yorkshire and the final purchaser of the
product.
The guarantee is subject to proof of purchase being supplied.
This guarantee does not affect any statutory rights the consumer may have in law.
The guarantee covers manufacturing or material defects and does not cover parts subject to normal wear
and tear.
Finishes other than chrome are covered for a period of 3 years only and the guarantee on the finish is
subject to the cleaning instructions being followed.
The guarantee is not applicable where the product is fitted contrary to the conditions in the fitting
instructions.
Abusive behaviour and accidental damage to the product are not covered by this guarantee.
The extent of this liability is limited to the cost of the replacement of the defective item and not to fitting or
consequential damages.
Description Minimum
Operating
Pressure (bar)
Maximum Cold Working
Pressure (bar) Maximum Hot
Working Pressure (bar)
Basin Tap 0.1 bar 6.0 bar at temperatures up to 85oC Not Suitable for Maximum Hot Working Pressure
Care
To maintain the surface finish, simply wipe occasionally with a mild detergent on a soft damp cloth. Dry,
using a soft cloth. Never use abrasive cleaners or chemical household cleaners and avoid contact with
concentrated bleach.
Maintenance
No regular maintenance is required for this product.
In case of complete replacement Pegler recommend service valves should be fitted to the supply inlets.
For any further help or replacement parts please contact the Service Support Team on 0800 1560050.
Regulations
It is important to ensure that the water supplies to your taps and mixers are connected in accordance with
the water regulations (WRAS) requirements and good plumbing practice.
If the water flow streams are separate all the way to the outlet of the fitting, then there is no requirement to fit
check valves to the cold and hot pipes even if the supply pressures are unbalanced.
It is recommended that in all new and refurbishment installations a thermostatic mixing valve should be
installed on the hot inlet supply. The thermostatic mixing valve is designed to prevent scalding when using
the hot water supply.
Component Material
Body Cast Brass
Backnut Forged Brass
Anti-rotational washer Polyethelene
Head Brass Bar
Spindle Brass Bar
Seals Rubber
Seat Washer Rubber
Valve Brass Bar
Headwork Washer Stainless Steel
Basin Tap
Xia Basin Tap spares diagram
1
Spare Key Description Code Barcode Date From Date To Price(£)exVAT
1HD134 Handle Pair 854594 5022050027870 01/01/1900 To Current £80.64
2
Spare Key Description Code Barcode Date From Date To Price(£)exVAT
2HKS31 Headwork Shroud 854596 5022050184474 01/01/1900 To Current £8.65
3
Spare
Key Description Code Barcode Date From Date To Price(£)ex
VAT
3HKC28 CPT CD QT HEADWORK COLD
1/2 814042 5013866056390 01/01/1900 To
Current
£39.43
3HKH29 CPT CD QT HEADWORK HOT
1/2 814043 5013866056406 01/01/1900 To
Current
£39.43
4
Spare Key Description Code Barcode Date From Date To Price(£)exVAT
4FL40 Flange 854598 5022050232052 01/01/1900 To Current £12.95
5
Spare
Key Description Code Barcode Date From Date To Price(£)ex
VAT
5ARW2 1/2 ANTI ROTATIONAL
WASHER 814162 5013866056758 01/01/1900 To
Current
£1.64
6
Spare Key Description Code Barcode Date From Date To Price(£)exVAT
61/2 BN 915L BACKNUT 817074 5013866023385 01/01/1900 To Current £2.59
7
Spare Key Description Code Barcode Date From Date To Price(£)exVAT
7FS65 FLOW STRAIGHTENER 854245 5013866073366 01/01/1900 To Current £3.12
Pegler Yorkshire Group Ltd, St Catherine's Ave, Doncaster, S Yorkshire, DN4 8DF
Telephone: Phone +44 (0) 844 243 4400 Fax: +44 (0) 844 243 9870 Website: www.pegleryorkshire.co.uk
Registered office : Pegler Yorkshire Group Ltd, St Catherine's Ave, Doncaster, S Yorkshire, DN4 8DF Company no : 00401507
Your Guide to the installation, care
and maintenance of
Xia
Taps and Mixers
Pegler Limited, St. Catherine’s Avenue, Doncaster, South Yorkshire. DN4 8DF
Telephone: 01302 560560 Fax: 01302 560109
Basin Taps
Bath Taps
WATER REGULATION REQUIREMENTS
It is important to ensure that the water supplies to your taps and mixers are connected in accordance with the water
regulations (WRAS) requirements and good plumbing practice.
It is Pegler’s recommendation and good plumbing practice that the supplies of hot and cold water to the bath mixer
should be at equal (balanced) pressures in order to provide a consistent flow. Supplies should be from a common
source, either mains or tank fed. If supplies are not equal pressures then non return valves should be fitted.
WATER SUPPLY PRESSURES
Xia fittings have been designed to function under the following conditions.
Minimum supply pressure 0.1bar Maximum supply pressure 6 bar
Should excessive flow be experienced, then it may be necessary to install a Pressure reducing valve (Pegler PRV2). It is
our recommendation and good plumbing practice that a service valve (fig.806) should be installed in the inlet supply
line.
NOTE: On certain brassware the product is supplied with a flow straightner.
Pre-installation Checks:
1. Ensure that there is sufficient space to install the product without it hampering its operation. Ensure that
when fitting the basin / bath product that the product will not foul on the overflow. When fitting in a corner
position make sure there is sufficient clearance for the use of the handles.
2. Ensure that the outlet will protude sufficiently into the basin / bath and will clear any obstructions.
INSTALLATION
Pillar Taps ( Basin & Bath)
1. Remove backnut from tail
2. Fit tap through ware ensuring ‘O’ ring or anti rotational washer is positioned between flange base and ware.
Tighten backnut. It may be necessary to install a poly washer between ware and backnut.
3. Ensure pipework is thoroughly flushed to remove debris before connecting to water supplies.
4. For servicing or handle realignment, the brassware supplied will be snap on- (push on, pull off).
CARE AND MAINTENANCE
To maintain the surface finishes, simply wipe occasionally with a mild detergent on soft damp cloth Dry using soft cloth, never use
abrasive cleaners or chemical household cleaners, avoid contact with concentrated bleach. Xia products are manufactured to the
highest standards and should require little or no maintenance. In the unlikely event of any spare part requirements, please contact your
nearest stockist or the Pegler Sales Office, St. Catherine’s Avenue, Doncaster, DN4 8DF, telephone; 01302 560560.

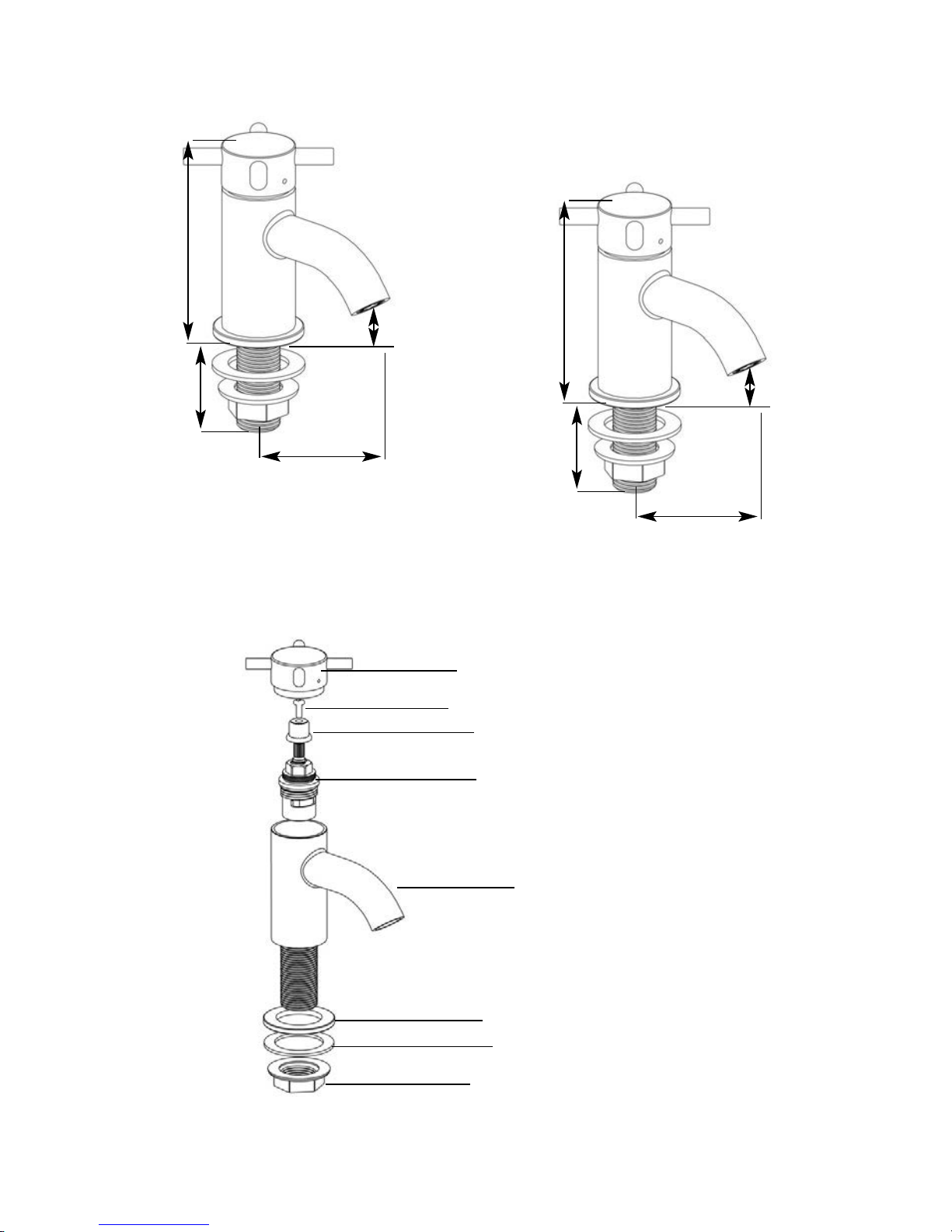

DIMENSIONAL INFORMATION
all measurements in mm
95
50
75
33
BASIN
112
50
90
41
BATH
Handle
Screw
Splined Adaptor
QT Headwork
Pillar for Body
Base Ring
Anti Rotational Washer
Backnut
Pegler taps and Mixers are guaranteed for 10 years
from the date of purchase.
YEAR
GUARANTEE
experience design innovation
For further information, please contact your appropriate sales office.
Technical customcare line 0870 1200285
www.pegler.co.uk
HEAD OFFICE
Pegler Limited,
St Catherine’s Avenue,
Doncaster,
South Yorkshire DN4 8DF.
Tel: 01302 560560
Fax: 01302 367661
Internet: www.pegler.co.uk
EXPORT
Tel: 44 (0)1302 855656
Fax: 44 (0)1302 730513
Email: export@pegler.co.uk
UK
Northern team:
Tel: 0870 1200281
Fax: 01302 560108
Southern team:
Tel: 0870 1200282
Fax: 01302 560458
Western team:
Tel: 0870 1200283
Fax: 01302 560109
Email: uk.sales@pegler.co.uk
