Pelonis PHTPU1501WC Manuale utente
pelonis.com
OWNER’S MANUAL
EN
PHTPU1501WC
Warning Notice: Before using
this product, please read this
manual carefully and keep it for
future reference. For additional
support, please call customer
service at 1-866-646-4332.
The design and specifications are
subject to change without prior
notice for product improvement.
Consult with your dealer or
the manufacturer for details.
Voltage: 120V~
Power: 1500W
Frequency: 60Hz
Digital Ceramic
Tower Heater
PHTPU1501WC
PLEASE READ AND SAVE THESE
IMPORTANT SAFETY INSTRUCTIONS
●
●
●
●
●
●
Read all instructions before using heater.
Extreme caution is necessary when any heater is used
by or near children or invalids and whenever the heater
is left operating and unattended.
CAUTION: This appliance has a polarized plug (one
blade is wider than the other). To reduce the risk of
shock, this plug is intended to fit only one way in a
polarized outlet. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a
qualified electrician. DO NOT attempt to defeat this
safety feature. To do so could result in an electric shock
hazard.
CAUTION: It is normal for the plug to feel warm to the
touch; however, a loose fit between the AC outlet
(receptacle) and plug may cause overheating and
distortion of the plug. Contact a qualified electrician to
replace loose or worn outlet.
CAUTION: Always plug heaters directly into a wall
outlet/receptacle. Never use with an extension cord or
reloadable power tap (outlet/power strip).
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY
INSERT.
01
When using electrical appliances,basic precautions
should always be followed to reduce the risk of fire,
electric shock, and injury to persons, and
hyperthermia,including the following:
IMPORTANT SATETY INSTRUCTIONS
CAUTION
●
●
●
●
●
●
●
This heater is hot when in use. To avoid burns, do not
let bare skin touch hot surface. If provided, always use
handles when moving this heater. Keep combustible
materials such as furniture, pillows, bedding, papers,
clothes and curtains at least 3 feet (0.9m) from the
front of the heater and keep them away from the sides
and rear.
Always unplug the heater when not in use.
Do not operate any heater with a damaged cord or
plug or after the heater malfunctions, has been
dropped or damaged in any manner. Discard heater or
return heater to authorized service facility for examina-
tion, electrical or mechanical adjustment, or repair.6. Do
not use the heater outdoors.
This heater is not intended for use in bathroom, laundry
areas and similar moist indoor locations. Never locate
heater where it may fall into a bathtub or other water
container.
Do not run cord under carpeting. Do not cover cord
with throw rugs, runners, or similar coverings. Do not
route cord under furniture or appliances. Arrange cord
away from traffic area and where it will not be tripped
over.
This heater draws 12.5 amps during operation. To pre-
vent overloading a circuit, do not plug the heater into a
circuit that already has other appliances working.
To disconnect the heater, first turn controls to off, then
remove plug from outlet. Never pull by the cord.
02
WARNING
●
●
●
●
To prevent a possible fire, do not block air intakes or
exhaust in any manner.Do not use on soft surface, like a
bed, where openings may become blocked.
A heater has hot and arcing or sparking parts inside. Do
not use it in the areas where gasoline, paint, or flamma-
ble liquids are used or stored.
Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may
cause fire, electric shock, or injury to persons.
The output of this heater may vary and its temperature
may become intense enough to burn exposed skin. Use
of this heater is not recommended for persons with
reduced sensitivity to heat or an inability to react to
avoid burns.
SAVE THESE INSTRUCTIONS
03
04
900W
1500W
900W
1500W
Power Regulation Range
SPECIFICATIONS
PHTPU1501WCProduct Model
Voltage
Frequency
Rated Power
120V~
60Hz
1500W
LOW
HIGH
LOW OSC
HIGH OSC
PRODUCTOVERVIEW
Part Name
05
NOTE
•All the pictures inthis manual are for explanation purposeonly. Any discrepancy between
the real object and the illustration in the drawing shall defer to the real product.
•The machine is equipped witha power indicator that glows wheneverthe heater is
plugged in and turned on.
Control Panel
Grille
Display screen
Front cover
Rear cover
Base
Dispaly area
06
OPERATION INSTRUCTIONS
Panel Operation & Display
FunctionTimer
Check Before Turning On The Machine
• Check if the power wire is under good condition.
• The product adopts 120V AC power supply, before use, please confirm if the rated
current of the power socket meets the local requirements with safe grounding device,
otherwise, please replace it with the qualified socket.
ON/OFFSwing
-, +
Function descriptionButton
ON/OFF
TEMPERATURE
SETTING
TIMER
• Plug the unit into a grounded 120V outlet, the power light " " on,
press hte ON/OFF key (or press the ON/OFF key of the remote
controller) for start, the machine supplies air at high power after
start, the digital screen displays “HI”.
•In the ECO mode of the machine, press "+" or "-" can set the temperature
value, set the range of 5-35℃.When the room temperature exceeds the set
temperatureat 2℃, the machine stops working, and stay in the standby state.
When the temperature is lower than the set temperature, the machine starts
to heat up again.
•
•
•Repeatedly press the "Function" key so that the heater switches in the
order of "high gear - low gear - ECO mode - high gear".
Timing stop
When the heater is turned on, press the TIMER key to enter the timing stop
state (within 0-8 hours), then press the "+" key to increase the timing stop
time, and press the "-" key to decrease the timing stop time.
Timing start
When the electric heater is in the standby mode, press the TIMER key to
enter the reservation start mode (within 0-8 hours), then press the "+" key to
increase the reservation start time , and press the "-" key to decrease the
reservation start time .
FUNCTION
07
Function descriptionButton
SWING
• The electric heater in operation mode, press the "swing" key to open
the swing function, pressing this button to turn off the swing function;
when the electric heater stops heating function, the wind swinging
function also stop.
•Select the ECO energy saving gear, electric heater according to the ambient
temperature and the temperature setting of the machine to do comparison,
select the appropriate gear operation to achieve the purpose of saving
energy.
ECO ENERGY
SAVING
FUNCTION
Remote Controller
• The remote control should be normally used within 16 ft of the front of the product
and 30 degrees of the deviation angle.
• The battery contains many heavy metals, acids and bases, etc., which may threaten
human’s health; Waste batteries should be recycled separately.
Mode
“+”or“-”
ON/OFF
Timer
Swing
No matter in what mode, the temperature sensor appears short circuit or open circuit,
digital screen displays "E1" or "E2" and constantly flicker, while any key operation is
invalid and the buzzer rings 10 times.
Protection When Temperature Sensor has short circuit or open circuit
•
Safety Protection
In the start up state, if the room temperature (TH) exceeds 131°F, the appliance will
automatically shut down all outputs. The digital display screen will flash for 75
seconds, then continuously display "FF". Pressing any operative button will not have
any effect, the only way to exit this protective mode is by powering down and
manually unplugging the appliance.
Use 1 "CR2032" battery
(not included)
08
CLEANING AND MAINTENANCE
• Turn the heater “OFF”, unplug it and wait for the heater to cool down.
• Use a dry cloth to clean only external surfaces of the heater.
• Do not use any cleaning agents or detergents.
• Never immerse the heater in water.
• Pack the heater in the original carton and store it in a cool and dry place.
It is recommended that the heater be cleaned at least one time during the operating
season in order to provide the optimum level of performance. ALWAYS TURN THE
POWER SWITCH OFF AND UNPLUG THE HEATER BEFORE CLEANING. Be sure to save
the box for off-season storage.
TROUBLESHOOTING
The appliances may encounters some errors and malfunctions, the following tables contain
possible causes and notes for resolving an error or malfunction.
Solution
Possible Cause SolutionProblem
After the power
is engaged, the
machine does not
work.
●The plug may not be
plugged well.
Check whether the plug is
properly inserted into the
receptacle.
The machine
suddenly stops
during heating.
●The temperature exceeds the
threshold of the thermal cut
Pull o the plug manually,and
then insert it into the receptacle
again when the machine
is cooled.
09

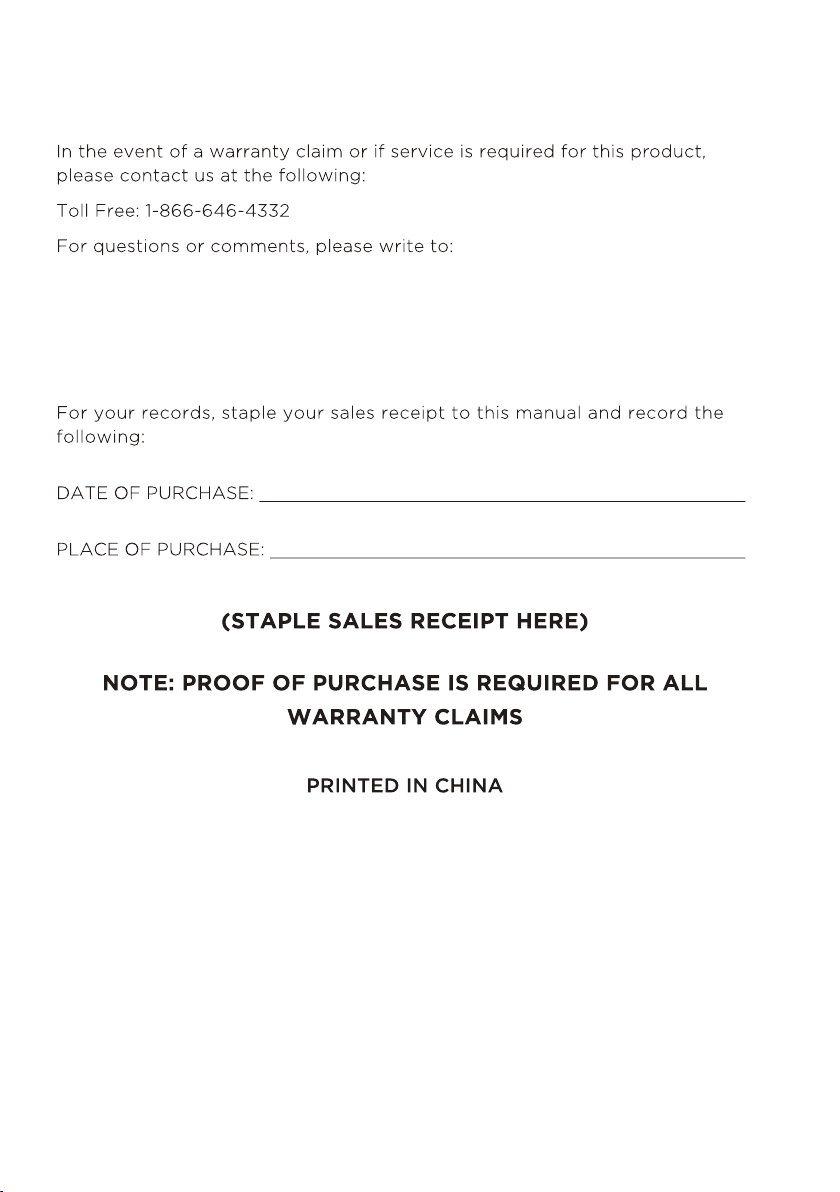

SERVICE AND SUPPORT
Midea America (Canada) Corporation
215 Shields Ct Unit #2,
Markham, ON L3R 8V2
