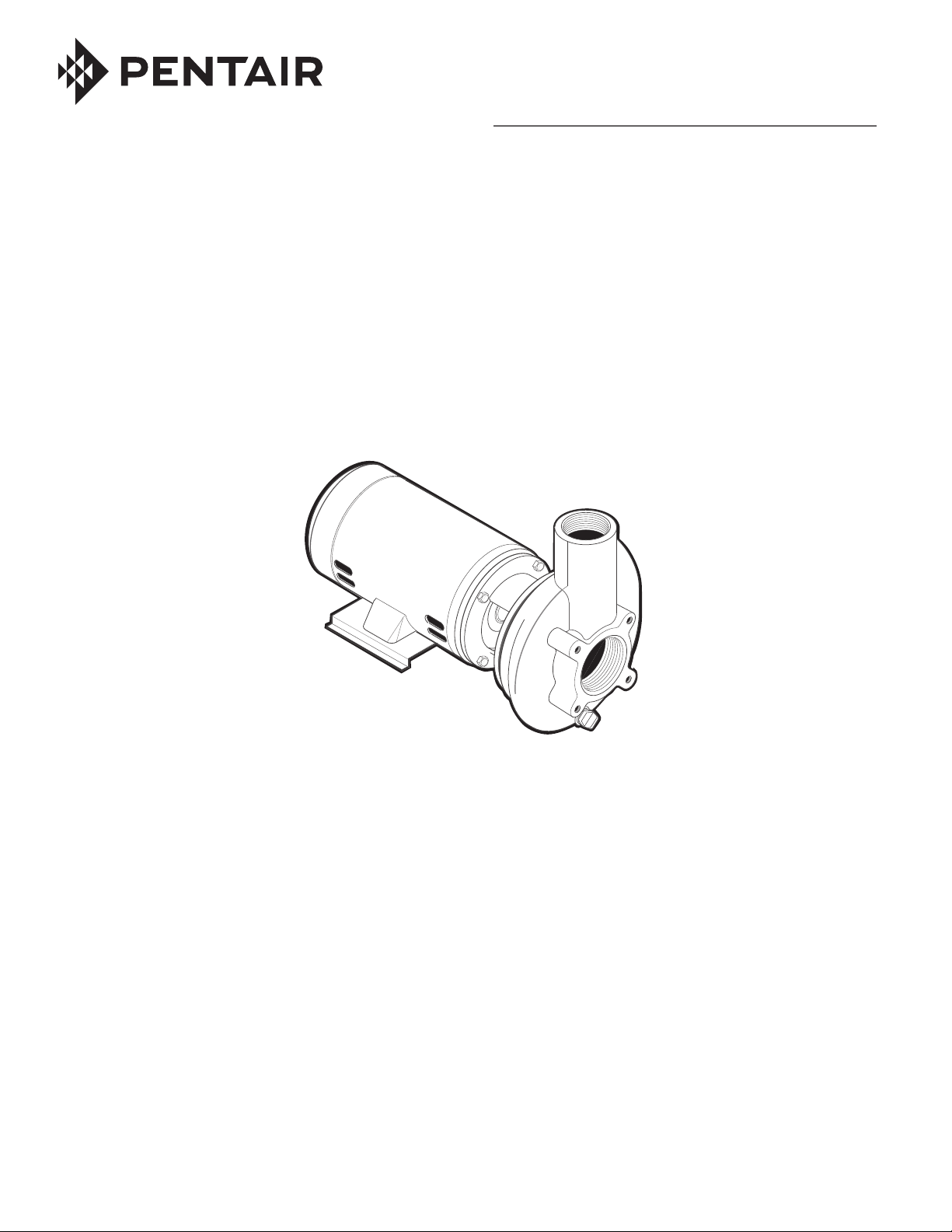

“C” and “CC” Series

Installation/Operation/Parts

For further operating, installation,

or maintenance assistance:

Call 1-888-782-7483

Safety 2

READ AND FOLLOW

SAFETY INSTRUCTIONS!

This is the safety alert symbol. When you see this symbol on

your pump or in this manual, look for one of the following signal words

and be alert to the potential for

personal injury:

warns about hazards that will cause serious personal injury,

death or major property damage if ignored.

warns about hazards that can cause serious personal injury,

death or major property damage if ignored.

warns about hazards that will or can cause minor personal

injury or property damage if ignored.

The label NOTICE indicates special instructions which are important but

not related to hazards.

Carefully read and follow all safety instructions in this manual and

on pump.

Keep safety labels in good condition.

Replace missing or damaged safety labels.

Motor normally operates at high temperature and will be

too hot to touch. It is protected from heat damage during operation by

an automatic internal cutoff switch. Before handling pump or motor, stop

motor, and allow it to cool for 20 minutes.

California Proposition 65 Warning

This product and related accessories contain chemicals

known to the State of California to cause cancer, birth defects or other

reproductive harm.

Table of Contents 3

Page

General Safety....................................................................................................2

Warranty .............................................................................................................3

Installation........................................................................................................4-5

Maintenance ....................................................................................................5-7

Troubleshooting .................................................................................................8

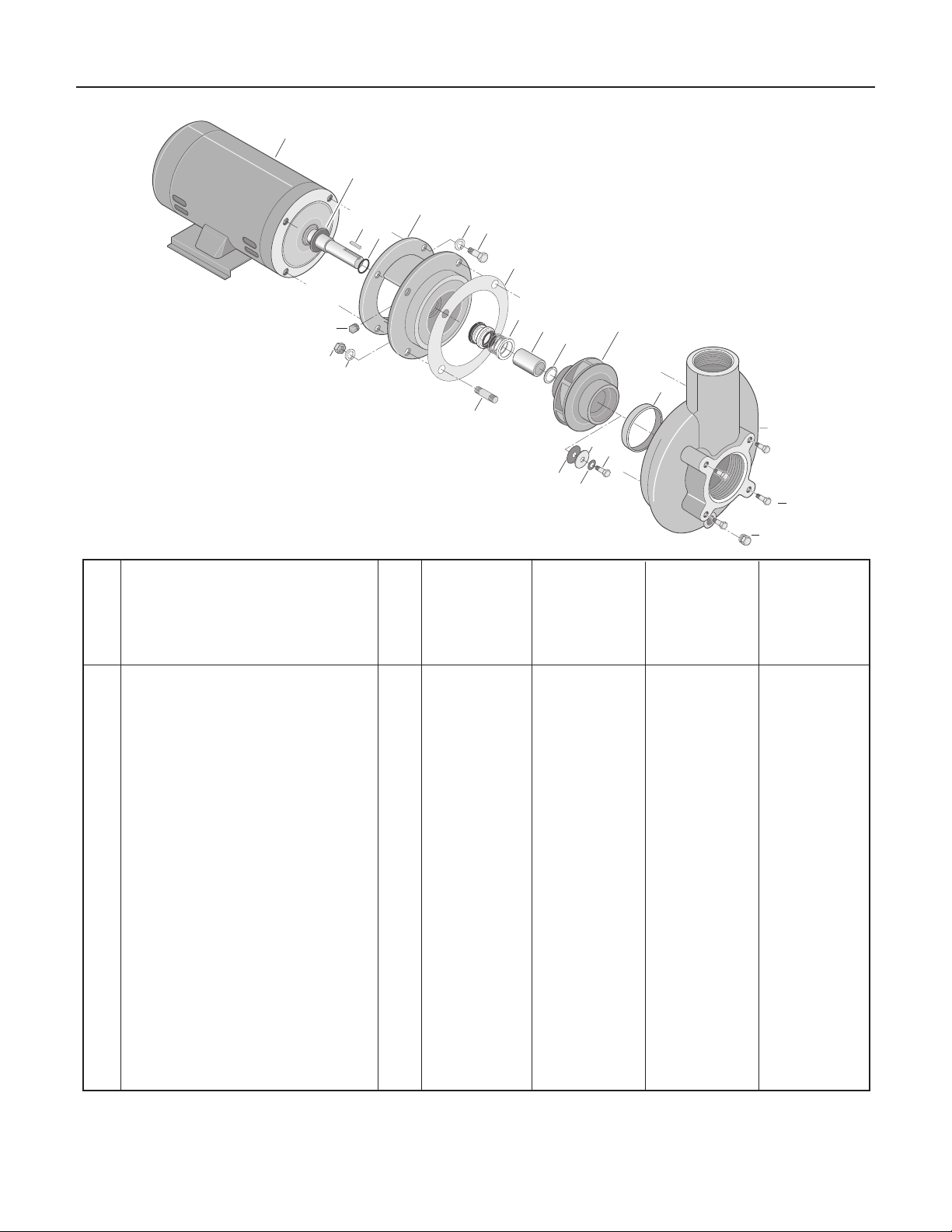

Repair Parts ..................................................................................................9-11

Limited Warranty

STA-RITE warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be

free from defects in material and workmanship for the Warranty Period shown below.

Product Warranty Period

Water Systems Products — jet pumps, small centrifugal pumps,

submersible pumps and related accessories

whichever occurs first:

12 months from date of original installation,

or 18 months from date of manufacture

Pro-Source®Composite Tanks 5 years from date of original installation

Pro-Source®Steel Pressure Tanks 5 years from date of original installation

Pro-Source®Epoxy-Lined Tanks 3 years from date of original installation

Sump/Sewage/Effluent Products 12 months from date of original installation, or

18 months from date of manufacture

Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication,

improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single

phase power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-

leg, ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.

Your only remedy, and STA-RITE’s only duty, is that STA-RITE repair or replace defective products (at STA-RITE’s choice).

You must pay all labor and shipping charges associated with this warranty and must request warranty service through the

installing dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty

Period has expired. This warranty is not transferable.

STA-RITE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES

WHATSOEVER.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED

WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. THE FOREGOING WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION

EXPRESSLY PROVIDED HEREIN.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of

an implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights

and You may also have other rights which vary from state to state.

This Limited Warranty is effective June 1, 2011 and replaces all undated warranties and warranties dated before June 1, 2011.

STA-RITE INDUSTRIES

293 Wright Street • Delavan, WI U.S.A. 53115

Phone: 1-888-782-7483 • Fax: 1-800-426-9446 • Web Site: sta-rite.com

Installation 4

SERIES C/CC CENTRIFUgAL PUmPS

The “C” and “CC” Series pumps are close coupled pumps with optional

traps. “CC” Series have cast iron volutes and adapters. “C” Series have

bronze volutes and adapters. Impellers on both series are bronze.

INSTALLATION

Location of Unit

Install pump as close to liquid source as possible, using short, simple

suction piping.

Piping should be as direct as possible; elbows and other fittings greatly

increase friction losses.

Allow service and maintenance access.

Mount on solid, rigid, vibration-free foundation.

Protect pump against flooding and excess moisture.

Piping

Pump is not self-priming. Unless liquid source level is above pump

suction at all times, install a foot valve on suction pipe.

Support both suction and discharge piping independently near the pump

to avoid placing strains on pump. Start all piping at pump to avoid strains

left by a gap at last connection.

If possible, increase size of both suction and discharge piping if more

than short runs are required.

NOTICE: Never use a suction pipe smaller than the suction connection of

the pump.

NOTICE: If a reducer is necessary in the suction piping, always use an

eccentric reducer with the straight side on top.

NOTICE: BE SURE suction does not leak. Suction pipe must slope

gradually upward to the pump. Avoid any fittings which might cause an air

trap.

Install gate valve and union in suction and discharge lines. If complete

pump removal is required for service, close gate valves and disconnect at

unions.

Grounding the Motor

Hazardous

voltage

Can shock, burn or cause death.

Ground motor before working

on pump or motor.

Install, ground, wire and maintain this pump in accordance with the

National Electrical Code, Article 250, or applicable local Codes and

Ordinances.

Ground the pump permanently using a wire of size and type specified

by National or Local Electrical Code.

Connect ground wire first. Connect to ground first, then to motor

terminal provide. Do not connect motor to electrical power supply until

unit is permanently grounded. Any other sequence may cause serious

shock hazard. Do not ground to a gas supply line.

The motor grounding wire need not be larger than the wires supplying the

motor, provided the supply wires conform to the wiring date included in

this manual (see Table I, Page 5).

Installation / Maintenance 5

Wiring

NOTICE: For 575 volt installations, see motor nameplate. Consult a

licensed electrician for wiring information. Installation must meet code.

For 200, 230, and 460 volt installations, check fusing/wiring data chart

(Table I, below) before connecting pump to power source.

Check that voltage/frequency on motor nameplate are identical with

voltage/frequency of incoming power supply.

NOTICE: Wire dual voltage motors correctly according to wiring diagram

on motor.

Check rotation of motor. Look through opening in adapter. Rotation

should be clockwise when viewed from the motor end. If not:

• TurnpumpOFFanddisconnectfrompowersource.

• Forthree-phasemotors,reverseanytwoleadstomotorstarter.

• Forsinglephasemotors,re-connectaccordingtowiringdiagramon

motor.

Priming the Pump

NOTICE: NEVER run pump dry. To run pump dry may damage seals.

To Prime:

1. If pump is installed below liquid source level, open gate valve in

suction line and flood suction.

2. If pump is not installed below liquid source level, fill pump through a

tee installed in pump discharge and fitted with a priming plug in the

upright position.

Tighten priming plug securely after priming!

IMPORTANT: BE SURE lead wire opening on end of

motor is fully sealed when conduit or a pressure switch

is not used. Failure to seal it properly will allow dirt, rain,

bugs, etc. to enter back compartment of motor through

conduit opening and cause switch malfunction.

TABLE I - RECOmmENDED FUSINg AND WIRINg DATA - 60 CYCLE mOTORS

* Time delay fuse or circuit breakers are recommended in any motor circuit.

DIAMETER IN FEET FROM MOTOR TO METER (METERS)

BRANCH

0’(0) 101’(31) 201’(62) 301’(92) 401’(123)

MAX. FUSE*

TO TO TO TO TO

MOTOR LOAD RATING

100’(30) 200’(61) 300’(91) 400’(122) 500’(152)

HP PHASE VOLTS AMPS AMPS

WIRE SIZE

3 1 230 17.0 25 10 (5.5) 10 (5.5) 10 (5.5) 8 (8.4) 8 (8.4)

3 3 200 11.0 15 14 (2) 14 (2) 12 (3) 10 (5.5) 10 (5.5)

3 3 230 9.6 15 14 (2) 14 (2) 12 (3) 12 (3) 10 (5.5)

3 3 460 4.8 15 14 (2) 14 (2) 14 (2) 14 (2) 14 (2)

5 1 230 28.0 40 8 (8.4) 8 (8.4) 8 (8.4) 6 (14) 6 (14)

5 3 200 17.5 25 10 (5.5) 10 (5.5) 10 (5.5) 8 (8.4) 8 (8.4)

5 3 230 15.2 20 12 (3) 12 (3) 10 (5.5) 10 (5.5) 8 (8.4)

5 3 460 7.6 15 14 (2) 14 (2) 14 (2) 14 (2) 14 (2)

Stationary

Seat

Rotating

Seal

Spring

1419 1294

Figure 1

Figure 2

Maintenance 6

mAINTENANCE

Little or no maintenance to pump is required other than possible

replacement of shaft seal after a reasonable period of operation (see

below).

Lubricate motor according to motor manufacturer’s instructions. Periodic

greasing is required for most motors.

PUmP STORAgE

Drain pump to prevent freezing.

Keep motor dry and loosely covered. Do not wrap with plastic sheeting;

trapped moisture could cause corrosion or insulation deterioration.

NOTICE: A good rust inhibitor in the liquid end of cast iron pumps is

recommended to prevent excessive corrosion.

PUmP START-UP AFTER STORAgE

Replace all drain plugs and close all drain valves in system.

Be sure all connections are tightly sealed.

After inital check is made, fill pump according to “Priming the Pump”

above.

SHAFT SEAL REPLACEmENT

NOTICE: The highly polished and lapped faces of the seal are easily

damaged. Follow instructions and handle the seal with care.

Hazardous

voltage

Be sure unit is grounded and power

disconnected before attempting any

work on pump or motor.

REmOVAL OF OLD SEAL

Refer to Figure 1 for Mechanical Seal parts identification.

1. Remove motor hold down bolts and bolts holding adapter/seal plate to

volute. Slide motor, adapter/seal plate and impeller backward to clear

volute.

2. Remove impeller screw and washer from end of shaft and slide

impeller off of shaft.

3. Unbolt adapter/seal plate from motor.

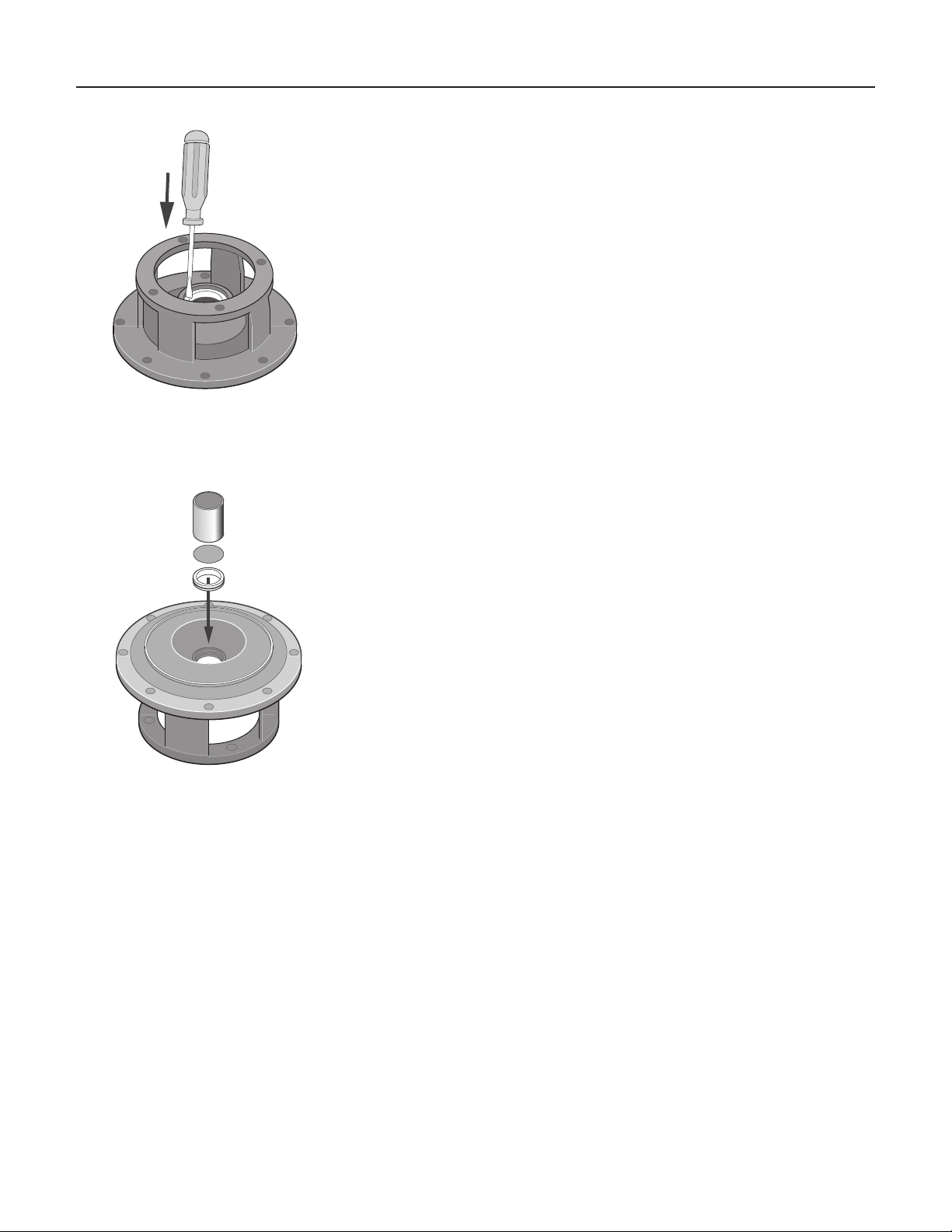

4. Use two screwdrivers (Figure 2) or bearing puller to carefully separate

motor from adapter/seal plate, bringing rotating half of seal off with

adapter/seal plate. Shaft sleeve may come off with seal.

5. Use hammer, if necessary, to drive shaft sleeve out of seal. Clean up

shaft sleeve with emery paper if necessary.

6. Place adapter/seal plate face down on bench and drive old stationary

half of seal out of adapter/seal plate by carefully tapping with

screwdriver and hammer (Figure 3).

7. Use a wire brush to thoroughly clean adapter/seal plate cavity. Be sure

all dust and grime are out of seal cavity before installing new seal.

If Gear Puller is used,

place jackscrew here.

Rotating Seat will come off

with adapter/sealplate.

1420 1294

If Gear Puller is used,

place jackscrew here.

Rotating Seat

will come off with

adapter/sealplate

Maintenance 7

INSTALLINg NEW SEAL

1. NOTICE: Seal faces are highly polished and lapped. Handle with

care. Any mar, nick or scratch on seal face will cause it to leak.

BE SURE to install with polished faces toward each other.

2. Clean polished surface of ceramic seat with clean cloth.

3. Wet O-Ring around ceramic seat with liquid soap.

4. Press stationary (ceramic) half of seal cavity into cavity firmly and

squarely with thumb pressure. If it does not seat properly, remove

and place seal face up on bench. Re-clean adapter/seal plate cavity.

Seal should now seat correctly.

5. If seal does not seat after re-cleaning adapter/seal plate cavity, place

a cardboard washer over polished face of seal and carefully press

into place using a piece of 1” standard pipe as a press (Figure 4).

NOTICE: BE SURE you do not scratch seal face.

6. Dispose of cardboard washer and recheck seal face to be sure it is

free of dirt, foreign particles, scratches and grease.

7. Inspect shaft and shaft sleeve to be sure they are clean.

8. Re-install O-Ring, shaft sleeve and slinger on shaft.

NOTICE: A small amount of grease or Never-Seez under shaft sleeve

will help prevent shaft and sleeve from freezing together when pump

is in service.

9. Remount adapter/seal plate to motor, being careful not to scratch seal

face.

10. Apply liquid soap to inside diameter and outside face of rubber drive

ring on rotating half of seal.

11. Slide seal assembly onto shaft sleeve (sealing face first) far enough

so that seal spring is located on shaft sleeve.

NOTICE: Be careful not to nick carbon seal face when passing it

over end of shaft sleeve.

12. Slide impeller and gaskets onto shaft with key in position. Be sure to

maintain proper order as shown in Exploded View, Page 9.

13. Install washer and impeller screw on end of shaft and tighten screw

until it is snug. This should locate seal in place and bring seal faces

together.

14. Reinstall motor, adapter and impeller assembly on volute, using new

gasket.

15. Reinstall motor hold-down bolts.

16. Check all bolts for tightness.

1421 1294

1" Standard Pipe

Stationary Seat

Cardboard

Washer

(Supplied with seal)

1422 1294

Figure 3

Figure 4

Troubleshooting 8

SYmPTOm KEY NUmBERS FOR CAUSES

Pump does not deliver liquid 1, 2, 3, 4, 6, 10, 12, 14, 15, 20, 21

Pump delivers too little flow 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 18, 20, 21, 27, 28

Delivery pressure too low 5, 12, 13, 14, 15, 18, 20, 27, 28

Pump loses prime after starting 2, 3, 5, 6, 7, 10

Pump needs too much power 13, 14, 15, 16, 17, 18, 21, 22, 24, 25, 27

Seal leaks 22, 24, 29, 30

Pump vibrates or is noisy 2, 3, 4, 8, 9, 10, 11, 19, 21, 22, 23, 24, 25, 26, 28, 29, 30,

31, 32, 33, 34

Motor bearings have short life 22, 24, 25, 26, 29, 30, 31, 32, 33, 34

Pump overheats and/or seizes 1, 4, 19, 20, 22, 25, 26, 29, 30

CAUSES

1. Pump not primed. 18. Viscosity of liquid different than design.

2. Pump or suction pipe not completely full of liquid. 19. Pump operating at very low capacity.

3. Suction lift too high. 20. Parallel operation of pumps unsuited for such operation.

4. Pump cavitating; increase suction pressure. 21. Foreign matter in impeller.

5. Excessive amount of air or gas in liquid. 22. Misalignment of pump or piping.

6. Air pockets in suction pipe. 23. Foundations not rigid.

7. Air leakage in suction pipe. 24. Shaft bent.

8. Foot valve too small. 25. Rotating part rubbing on stationary part.

9. Foot valve partially clogged. 26. Bearings worn.

10. Suction pipe inlet not sufficiently submerged. 27. Wear ring worn.

11. Impeller, suction or trap partially or completely 28. Impeller damaged.

plugged. 29. Shaft running off center due to worn bearings or

12. Speed too low. misalignment.

13. Voltage wrong or too low. 30. Impeller out of balance resulting in vibration.

14. Wrong direction of rotation. 31. Excessive grease in bearing causing high bearing

temperature.

15. System head too high for pump design. 32. lack of lubrication.

16. System head too low for pump design. 33. Dirt in bearings.

17. Specific gravity of liquid different than design. 34. Rust in bearings due to water getting into motor.

Read symptom describing problem below at left. Causes

for problems (bottom) are keyed to numbers at right.

Check pump for causes listed at right and correct those

that apply.

Hazardous voltage. Can shock, burn

or kill. Take all normal precautions for the voltage

involved.

Repair Parts 9

1839 0695

1128 0695

Key Part

No. Description Cast Iron Bronze

1* Lock Handle C154-18D C154-18D

2 Cover - 6” C30-30 C3-78DZZ

2 Cover - 8” C3-105 C3-105D

2 Cover - 11” C3-76 –

3 O-Ring - 6” U9-46 U9-46

3 O-Ring - 8” U9-171 U9-171

3 O-Ring - 11” U9-105 –

4 Strainer Basket - 6” C108-11P C108-11P

4 Strainer Basket - 8” C108-34SS C108-34SS

4 Strainer Basket - 11” C108-25SS –

5 Suction Trap Body - 6” C53-5B C53-5D

5 Suction Trap Body - 8” C53-21 C53-21D

5 Suction Trap Body - 11” C53-8 –

6** Pipe Plug 1/4” U78-57DT U78-57DT

7 Gasket, Flange C20-19 C20-19

8 Capscrew, 3/8-16x1-3/4” – U30-77C

9 Nut, Hex 3/8-16 – U36-38C

 • Capscrew,5/16-18x7/8” U30-61C(4) U30-61C(4)

Suction Trap Complete - 6” Pkg. #51 Pkg. #56

Suction Trap Complete - 8” Pkg. #98 Pkg. #99

Suction Trap Complete - 11” Pkg. #74 –

Quantity1unlessotherwisenoted().

•Notillustrated.

* 6” has 2 each; 8” & 11” have 4 each.

** 6” & 8” have 1 each; 11” has 2 each.

6” Suction Trap 8” and 11” Suction Trap

NOTICE:

Traps are not

included with pumps.

Repair Parts 10

10 12

1904 0795 CC P/S

Model numbers with a “3” in them indicate a 3-Phase motor.

Model numbers with a “2” in them indicate a 200V motor.

NOTE: CSerieswithdifferenthydraulicnumbers(CCMH-93)areoldermodelsthatusedifferentparts.

Consult factory for older models.

CCmH-136 CCHH-137S

CCm2H-136 CmH-136 CCHH3-137S

CCm2H-136S CmH3-136 CCHH36-137

CCmH3-136S CCmH36-136 CCH2H-137S CHH-137

CCm2H3-136 Cm2H-136 CCH2H3-137 CHH3-137

Key CCm2H3--136S Cm2H3-136 CCH2H3-137S CH2H3-137

No. Description Qty. 3 HP 3 HP 3 HP 3 HP

1 Motor 230V/60H/1 Ph. 1 C218-177 C218-177 C218-177 C218-177

1 Motor 230/460V/60H/3 Ph. 1 C218-179 C218-179 C218-179 C218-179

1 Motor 575V/60H/3 Ph. 1 – C218-290C C218-290C –

1 Motor 200V/60H/1 Ph. 1 C218-191 C218-191 C218-191 C218-191

1 Motor 200V/60H/3 Ph. 1 C218-178 C218-178 C218-178 C218-178

2 Water Slinger-1 Ph. 1 C69-15 C69-15 C69-15 C69-15

 2 WaterSlinger-3Ph.(†) 1 C69-16 C69-16 C69-16 C69-16

3 Key, Impeller 1 U65-42A U65-42A U65-42A U65-42A

4 O-Ring 1 U9-265 U9-265 U9-265 U9-265

5 Adapter 1 C2-81 C2-81D C2-81 C2-81D

6 Lockwasher, 3/8” 8 U43-12ZP U43-12ZP U43-12ZP U43-12ZP

7 Capscrew, 3/8-16x7/8” 4 U30-73ZP U30-73ZP U30-73ZP U30-73ZP

8 Gasket 1 C20-77 C20-77 C20-77 C20-77

9 Shaft Seal 1 U109-433SS U109-433SS U109-433SS U109-433SS

10 Shaft Sleeve 1 C23-58 C23-58 C23-58 C23-58

11 Gasket, Sleeve 1 C20-101 C20-101 C20-101 C20-101

12 Impeller 1 C105-224DD C105-224DD – –

 12 Impeller(SiliconBrass) 1 C105-224DG C105-224DG C105-224DF C105-224DF

13 Gasket, Impeller 1 C20-100 C20-100 C20-100 C20-100

14 Washer, Impeller 1 C43-45SS C43-45SS C43-45SS C43-45SS

15 Washer, Stat-O-Seal 1 C43-46 C43-46 C43-46 C43-46

16 Screw, Impeller 3/8-16x3/4” 1 U30-72SS U30-72SS U30-72SS U30-72SS

17 Wear Ring Only 1 C23-40 C23-40 C23-40 C23-40

 18 VoluteAssembly(includes18A&20) 1 C201-174 C201-174D C201-174 C201-174D

 18A VoluteAssemby(Incl.17Only) 1 C101-167 C101-167D C101-167 C101-167D

19 Capscrew 5/16-18x3/4” 4 U30-62ZP U30-62ZP U30-62ZP U30-62ZP

20 Pipe Plug, 1/4” NPT, Hex Head 1 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV

21 Stud, 3/8-16x1-1/4” 4 U30-22SS U30-22SS U30-22SS U30-22SS

22 Nut, Hex 3/8x16 4 U36-38ZP U36-38SSW U36-38ZP U36-38SSW

23 Pipe Plug, 1/4” NPT 1 U78-57SSS U78-57SSS U78-57SSS U78-57SST

Questo manuale è adatto per i seguenti modelli

Altri manuali Pentair Pompa dell'acqua

Pentair

Pentair MYERS S40HT Series Guida

Pentair

Pentair MYERS MSP33V10BP-R Manuale utente

Pentair

Pentair Myers 5 HP Quick Prime Manuale utente

Pentair

Pentair Hydromatic MPC Manuale

Pentair

Pentair MYERS Series Manuale

Pentair

Pentair Hydromatic HRS Manuale

Pentair

Pentair Aquatic Eco-Systems Verus 850 Manuale utente

Pentair

Pentair Hydromatic SKV50 Manuale

Pentair

Pentair Hydromatic SHEF50 Guida all'installazione

Pentair

Pentair STA-RITE INTELLIFLO3 VSF Manuale del prodotto

Pentair

Pentair STA-RITE PNC Manuale utente

Pentair

Pentair Hypro 1541A-SP Series Manuale per l'uso e la cura

Pentair

Pentair 5P6R Manuale utente

Pentair

Pentair Hydromatic W-A1 Manuale

Pentair

Pentair DE40PC1 Manuale utente

Pentair

Pentair STA-RITE DS3 Series Manuale utente

Pentair

Pentair MYERS MS33D Manuale utente

Pentair

Pentair MYERS MRGD200MC2 Manuale utente

Pentair

Pentair Myers MCU20S Manuale utente

Pentair

Pentair STA-RITE CC Series Manuale utente

Pentair

Pentair HYPRO 9303C Guida utente

Pentair

Pentair AURORA PACKAGED SYSTEMS Manuale di servizio

Pentair

Pentair HYPRO 9700 Series Manuale utente

Pentair

Pentair BERKELEY LTH Series Manuale utente

Manuali Pompa dell'acqua popolari di altre marche

Neptun

Neptun NPHW 5500 Manuale utente

Sensidyne

Sensidyne Gilian BDX-II Istruzioni per l'installazione e il funzionamento

Draper

Draper 47808 Manuale utente

Trolla

Trolla 12820 Manuale utente

Sunfab

Sunfab SVH Series Manuale utente

WilTec

WilTec 50740 Manuale utente

Fieldmann

Fieldmann FVC 5015 EK Manuale utente

Everbilt

Everbilt EFSUB5-122HD Manuale utente

Graco

Graco Husky 3300e Manuale utente

esotec

esotec 101018 Manuale utente

moyno

moyno 2000 CC Manuale utente

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuale utente

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guida alla risoluzione dei problemi

DUROMAX

DUROMAX XP WX Series Manuale utente

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuale utente

Franklin Electric

Franklin Electric IPS Manuale utente

Xylem

Xylem e-1532 Series Manuale utente

Milton Roy

Milton Roy PRIMEROYAL Manuale utente
